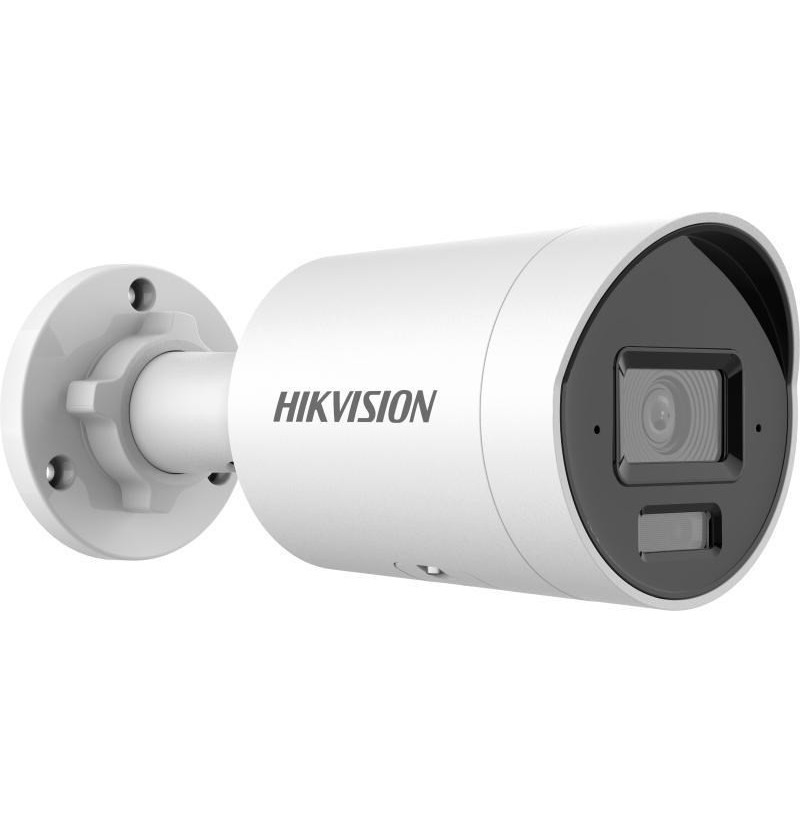

DS-2CD2043G2-LI(2.8mm) IP Camera

Housing material: Metal
International Protection (IP) code: IP67
Form factor: Bullet
Product colour: White
Protection features: Water resistant, Dust resistant
Mounting type: Ceiling/wall
Power source type: DC, PoE
Power consumption (max): 6 W
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output current: 0.5 A
DC output voltage: 12
Password reset via email: Yes
HTTPS encryption: Yes
Video motion detection: Yes
Pixel counter: Yes
IP address filtering: Yes
Heartbeat: Yes
Mirror: Yes
Active tampering alarm: Yes
Password protection: Yes
Digest authentication: Yes
Audit log: Yes
Flash log: Yes
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Reset button: Yes
Behavior analysis: Line crossing detection
Web browser: Yes
Length: 176.3 mm
Weight: 515 g
Diameter: 7.44 cm
Networking standards: IEEE 802.3af
Bluetooth: No
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
Live view: Yes
User access level: Administrator, Operator, User
Certification: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006IP67: IEC 60529-2013
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Number of languages: 33
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Day/night mode: Yes
Languages support: Multi
Dynamic range: 120 dB
Package height: 117 mm
Package weight: 760 g
Package width: 234 mm
Package depth: 120 mm
Number of cameras: 1
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Card reader integrated: Yes
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Maximum memory card size: 512 GB
Ethernet LAN (RJ-45) ports: 1
Minimum illumination: 0 lx
Tilt angle range: 0 - 90°
Angle of rotation: 360°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Lens viewing angle, vertical: 57°
Lens viewing angle, diagonal: 122°
Lens viewing angle, horizontal: 104°
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Supported graphics resolutions: 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 2688 x 1520
Back Light Compensation (BLC): Yes
Maximum resolution: 2688 x 1520 pixels
Bit rate: 32 Kbps - 8 Mbps
Frame rate: 30 fps
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Video compression formats: H.264, H.265+, H.264+, M-JPEG, H.265
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Night vision distance: 40 m
LED type: IR/White
Night vision: Yes
Infra-red wavelength: 850 nm
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Observe distance: 25 m
Detect distance: 63 m
Identify distance: 6 m
Recognize distance: 12 m
Number of lenses: 1
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
