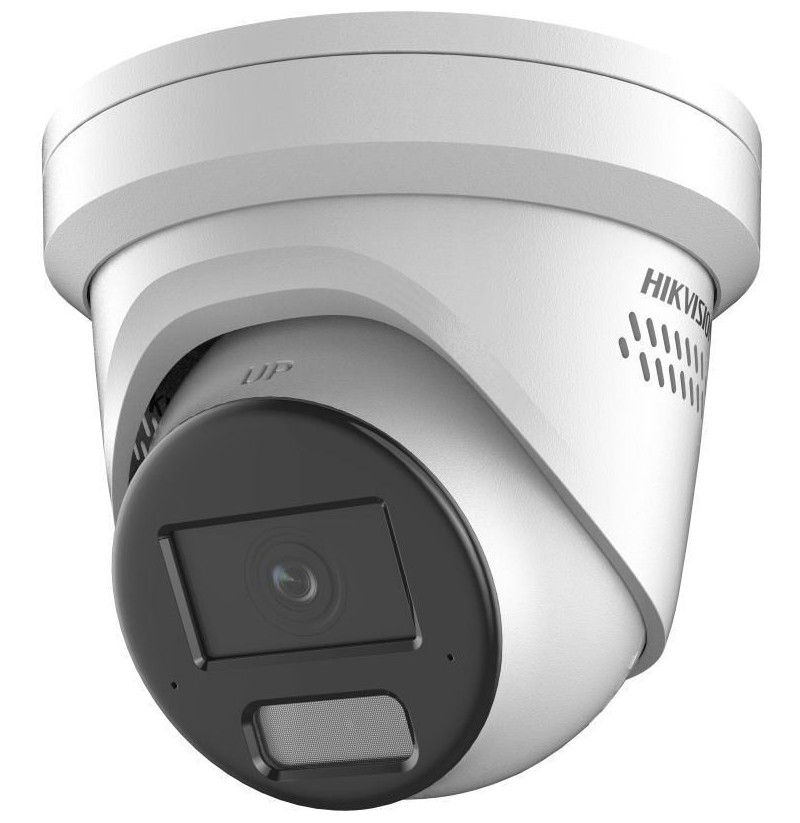

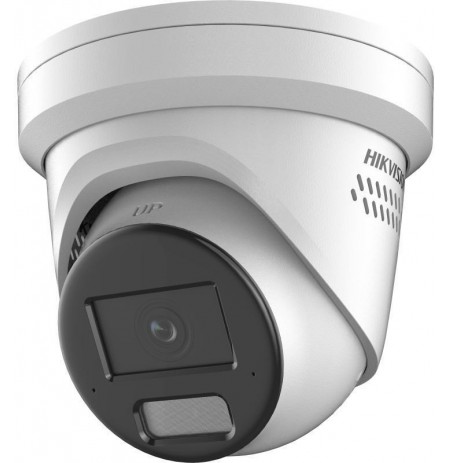

Hikvision | AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera | DS-2CD2346G2H-IS2U

Lens mount interface: M12
Housing material: Metal
Mounting type: Ceiling/wall
Product colour: White
Form factor: Turret
International Protection (IP) code: IP67
Protection features: Water resistant, Dust resistant
Power consumption (max): 16 W
Power consumption (Power over Ethernet (PoE)): 18 W
Power source type: DC, PoE
DC output current: 1.34 A
DC output voltage: 12
Intelligent Video Surveillance (IVS) system features: Face detection
Video motion detection: Yes
Security algorithms: EAP-TLS, EAP-MD5, EAP-LEAP
Heartbeat: Yes
Pixel counter: Yes
Password protection: Yes
Alarm input channels: 1
Digital watermark: Yes
IP address filtering: Yes
Human and vehicle targets classification: Yes
Password reset via email: Yes
Mirror: Yes
Alarm output channels: 1
Automatic Network Replenishment (ANR): Yes
Active tampering alarm: Yes
HTTPS encryption: Yes
Digest authentication: Yes
Privacy protection: Yes
Network access storage (NAS): Yes
Audit log: Yes
Flash log: Yes
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Behavior analysis: Intrusion detection, Line crossing detection
Reset button: Yes
Web-based management: Yes
Weight: 550 g
Diameter: 13.8 cm
Height: 115.4 mm
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)
Ethernet interface type: Fast Ethernet
Live view: Yes
Wi-Fi: No
Bluetooth: No
Number of simultaneous live view channels: 6 channels
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Client interoperability: iVMS-4200, Hik-Connect
User access level: Administrator, Operator, User
Placement supported: Outdoor
Infrared (IR) cut-off filter: Yes
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Languages support: Multi
Dynamic range: 120 dB
Day/night mode: Yes
Type: IP security camera
Number of languages: 33
Package weight: 800 g
Package height: 160 mm
Package depth: 170 mm
Package width: 170 mm
Number of cameras: 1
Audio output channels: 1.0 channels
Audio formats supported: MP2L2, G.711 μ-law, G.726, AAC-LC, MP3, PCM, G.711 A-law, G.722.1
Sample rates: 8 - 48 kHz
Signal-to-Noise Ratio (SNR): 52 dB
Audio input channels: 1.0 channels
Number of microphones: 2
Bit rate range: 8 - 320 Kbit/s
Built-in microphone: Yes
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Maximum memory card size: 512 GB
Built-in HDD: No
Card reader integrated: Yes
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Camera shutter speed: 1/3 - 1/100000 s
Tilt angle range: 0 - 75°
Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 100°
Lens viewing angle, vertical: 55°
Pan range: 0 - 360°
Lens viewing angle, diagonal: 120°
Number of Privacy masking areas: 4
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Optical sensor size: 25.4 / 3 mm (1 / 3")
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 2688 x 1520, 640 x 480 (VGA), 640 x 360
Frame rate: 30 fps
Image quality adjustment: Brightness, Sharpness, Saturation, Contrast
Privacy masking: Yes
Maximum resolution: 2688 x 1520 pixels
Video recording: Yes
Bit rate: 32 Kbps - 8192 Kbps
Noise reduction: Yes
Video compression formats: H.265, H.265+, M-JPEG, H.264, H.264+
Smart IR: Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 4 MP
Back Light Compensation (BLC): Yes
Video streaming: Yes
LED type: IR
Infra-red wavelength: 850 nm
Night vision distance: 30 m
Night vision: Yes
Maximum aperture number: 1
Number of lenses: 1
Identify distance: 6 m
Observe distance: 25 m
Fixed focal length: 2.8 mm
Detect distance: 63 m
Recognize distance: 12 m
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Compliance certificates: RoHS, CE, Low Voltage Directive (LVD), CB, UL
