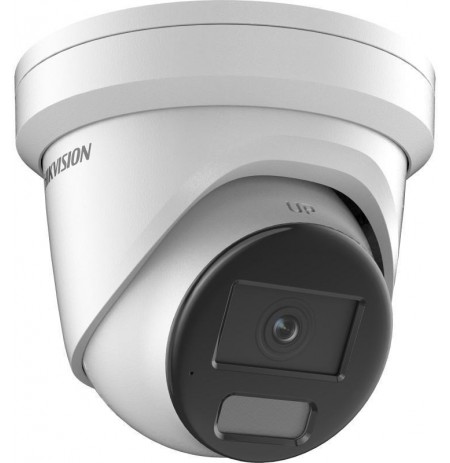

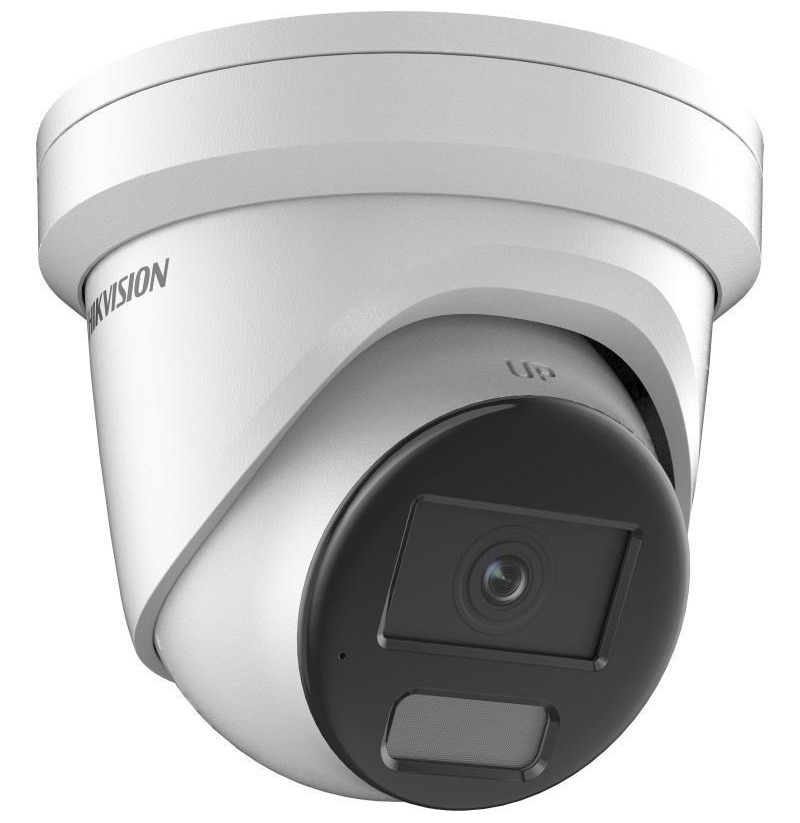

Hikvision | IP Camera | DS-2CD2346G2H-IU | Dome | 4 MP | 2.8mm | IP67 | H.265+ | microSD/microSDHC/microSDXC card

Lens mount interface: M12
Mounting type: Ceiling/wall
Form factor: Bullet
Product colour: White
International Protection (IP) code: IP67
Housing material: Aluminium
Protection features: Water resistant, Dust resistant
Power consumption (Power over Ethernet (PoE)): 9 W
DC output current: 0.6 A
DC output voltage: 12
Power consumption (max): 7.2 W
Power source type: DC, PoE
Mirror: Yes
Heartbeat: Yes
IP address filtering: Yes
Active tampering alarm: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Video motion detection: Yes
HTTPS encryption: Yes
Password protection: Yes
Human and vehicle targets classification: Yes
Privacy protection: Yes
Password reset via email: Yes
Security algorithms: TLS, HTTPS
Pixel counter: Yes
Digest authentication: Yes
Flash log: Yes
Automatic Network Replenishment (ANR): Yes
Audit log: Yes
Network access storage (NAS): Yes
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Reset button: Yes
Web-based management: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Diameter: 13.8 cm
Height: 115.4 mm
Weight: 550 g
Live view: Yes
Number of users: 32 user(s)
Wi-Fi: No
User access level: Administrator, Operator, User
Networking standards: IEEE 802.3af
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Number of simultaneous live view channels: 6 channels
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Day/night mode: Yes
Type: IP security camera
Infrared (IR) cut-off filter: Yes
Dynamic range: 120 dB
Placement supported: Outdoor
Languages support: Multi
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Number of languages: 33
Package depth: 170 mm
Package width: 170 mm
Package weight: 800 g
Package height: 160 mm
Number of cameras: 1
Audio formats supported: AAC-LC, G.722.1, G.711 μ-law, MP2L2, G.726, G.711 A-law, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Built-in microphone: Yes
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 512 GB
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Pan range: 0 - 360°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, vertical: 54.7°
Tilt angle range: 0 - 75°
Lens viewing angle, diagonal: 119.7°
Angle of rotation: 360°
Lens viewing angle, horizontal: 100.2°
Number of Privacy masking areas: 4
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Optical sensor size: 25.4 / 3 mm (1 / 3")
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Total megapixels: 4 MP
Image quality adjustment: Brightness, Saturation, Contrast, Sharpness
Video streaming: Yes
Video compression formats: H.264+, H.265+, M-JPEG, H.264, H.265
Region of Interest (ROI) encoding: Yes
Maximum resolution: 2688 x 1520 pixels
Smart IR: Yes
Noise reduction: Yes
Privacy masking: Yes
Highlight Compensation (HLC): Yes
Frame rate: 30 fps
Supported graphics resolutions: 640 x 360, 2688 x 1520, 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 8192 Kbps
Noise reduction technology: 3D noise reduction
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR
Night vision distance: 30 m
Identify distance: 6 m
Maximum aperture number: 1
Observe distance: 25 m
Fixed focal length: 2.8 mm
Recognize distance: 12 m
Number of lenses: 1
Detect distance: 63 m
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Compliance certificates: UL, RoHS, CE, CB, Low Voltage Directive (LVD)
