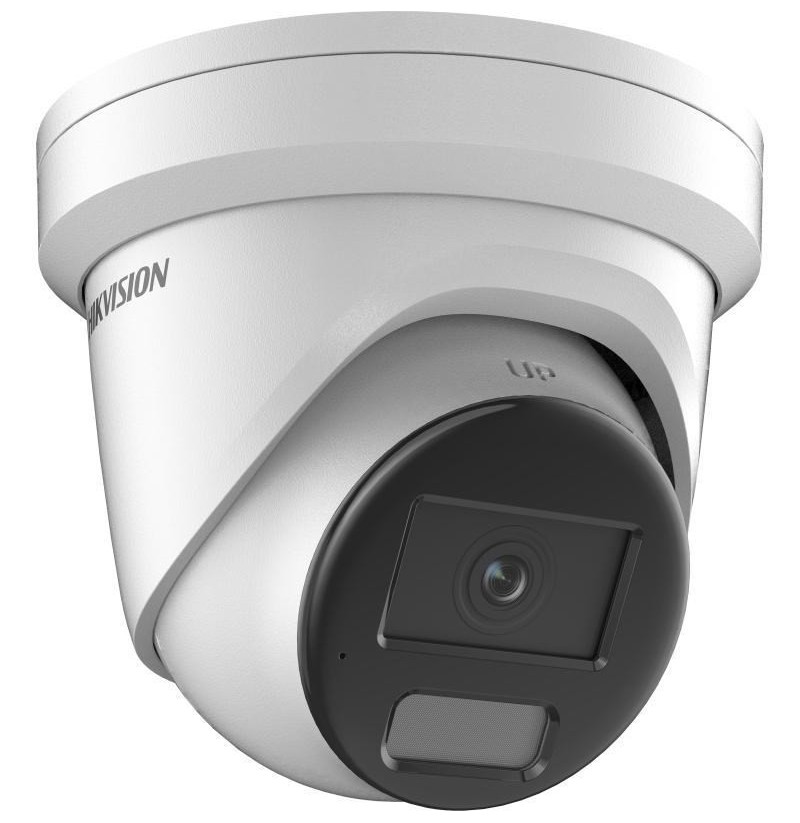

HIKVISION IP CAMERA DS-2CD2346G2H-IU(2.8mm)(eF)

Lens mount interface: M12
Protection features: Dust resistant, Water resistant
Housing material: Aluminium
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Form factor: Turret
Product colour: White
Power consumption (max): 7.2 W
DC output current: 0.6 A
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 9 W
Power source type: DC, PoE
Pixel counter: Yes
Password reset via email: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes
IP address filtering: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Password protection: Yes
Heartbeat: Yes
Mirror: Yes
Active tampering alarm: Yes
Privacy protection: Yes
Network access storage (NAS): Yes
Flash log: Yes
Audit log: Yes
Automatic Network Replenishment (ANR): Yes
Security algorithms: HTTPS, TLS
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Reset button: Yes
Height: 115.4 mm
Diameter: 13.8 cm
Weight: 550 g
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Wi-Fi: No
Number of users: 32 user(s)
Live view: Yes
Bluetooth: No
Networking standards: IEEE 802.3af
Quality of Service (QoS) support: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Placement supported: Outdoor
Languages support: Multi
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Dynamic range: 120 dB
Type: IP security camera
Connectivity technology: Wired
Package width: 170 mm
Package depth: 170 mm
Package height: 160 mm
Package weight: 800 g
Number of cameras: 1
Sample rates: 8 - 48 kHz
Bit rate range: 8 - 320 Kbit/s
Audio formats supported: G.726, MP3, PCM, G.722.1, AAC-LC, G.711 A-law, G.711 μ-law, MP2L2
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, diagonal: 119.7°
Lens viewing angle, horizontal: 100.2°
Lens viewing angle, vertical: 54.7°
Minimum illumination: 0 lx
Angle of rotation: 360°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Number of Privacy masking areas: 4
Tilt angle range: 0 - 75°
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Number of sensors: 1
Highlight Compensation (HLC): Yes
Noise reduction: Yes
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Video streaming: Yes
Total megapixels: 4 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8192 Kbps
Video compression formats: H.265+, H.264+, H.265, M-JPEG, H.264
Image quality adjustment: Contrast, Brightness, Sharpness, Saturation
Smart IR: Yes
Noise reduction technology: 3D noise reduction
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2688 x 1520, 640 x 360
Maximum resolution: 2688 x 1520 pixels
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Infra-red wavelength: 850 nm
Recognize distance: 12 m
Observe distance: 25 m
Fixed focal length: 2.8 mm
Identify distance: 6 m
Maximum aperture number: 1
Detect distance: 63 m
Number of lenses: 1
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Compliance certificates: UL, Low Voltage Directive (LVD), RoHS, CE, CB
