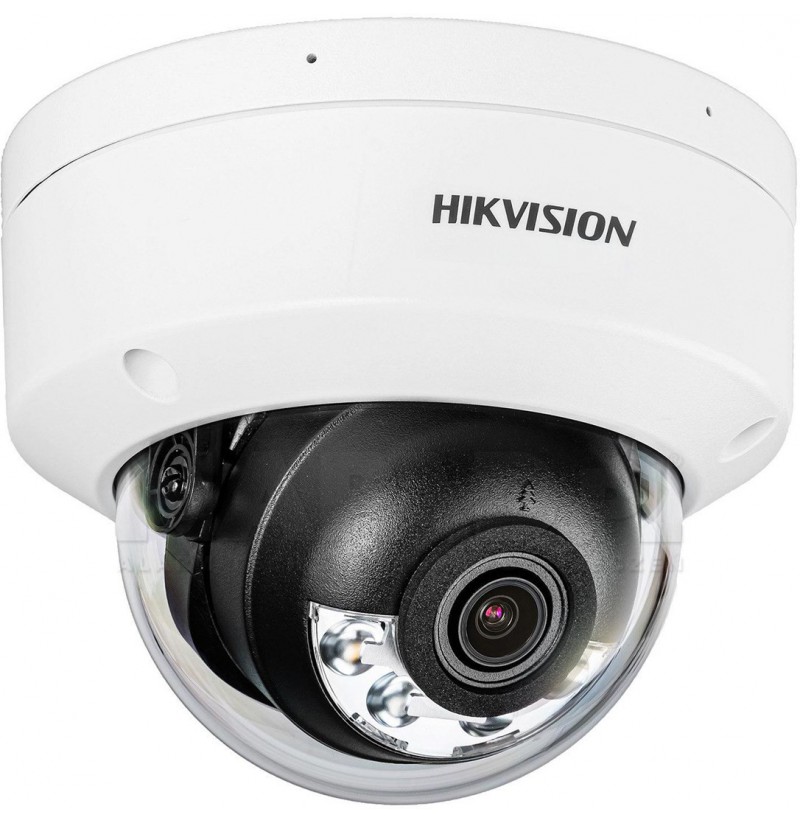

HIKVISION IP CAMERA DS-2CD2183G2-LIS2U(2.8mm)

Mounting type: Ceiling/wall
Protection features: Water resistant, Vandal proof, Dust resistant
Form factor: Dome
International Protection (IP) code: IP67
IK code: IK10
Housing material: Aluminium
Product colour: White
Power consumption (Power over Ethernet (PoE)): 9.5 W
DC output current: 0.65 A
DC output voltage: 12
Power source type: DC, PoE
Power consumption (max): 7.8 W
IP address filtering: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Password protection: Yes
Heartbeat: Yes
Active tampering alarm: Yes
Mirror: Yes
Password reset via email: Yes
Pixel counter: Yes
Audit log: Yes
Digest authentication: Yes
Automatic Network Replenishment (ANR): Yes
Security algorithms: TLS
Alarm input channels: 1
Alarm output channels: 1
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Behavior analysis: Line crossing detection
Web browser: Yes
Reset button: Yes
Diameter: 12.2 cm
Height: 97.6 mm
Weight: 600 g
Live view: Yes
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Bluetooth: No
Wi-Fi: No
Networking standards: IEEE 802.3af
Certification: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013,IK10: IEC 62262:2002
Infrared (IR) cut-off filter: Yes
Languages support: Multi
Day/night mode: Yes
Dynamic range: 120 dB
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Number of languages: 33
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Package weight: 840 g
Package width: 150 mm
Package depth: 150 mm
Package height: 141 mm
Number of cameras: 1
Bit rate range: 8 - 320 Kbit/s
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Sample rates: 8 - 48 kHz
Number of microphones: 2
Audio output channels: 1.0 channels
Audio input channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Built-in HDD: No
Card reader integrated: Yes
Maximum memory card size: 512 GB
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, diagonal: 127°
Lens viewing angle, horizontal: 108°
Lens viewing angle, vertical: 59°
Number of Privacy masking areas: 8
Angle of rotation: 355°
Camera shutter speed: 1/3 - 1/100000 s
Tilt angle range: 0 - 75°
Minimum illumination: 0 lx
Pan range: 0 - 355°
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Video compression formats: H.265, H.265+, H.264, H.264+
Gain control type: Auto
Video recording: Yes
Video streaming: Yes
Noise reduction: Yes
Total megapixels: 8 MP
Region of Interest (ROI) encoding: Yes
Frame rate: 30 fps
Supported graphics resolutions: 3840 x 2160, 1280 x 720 (HD 720), 2688 x 1520, 640 x 360, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 3200 x 1800
Maximum resolution: 3840 x 2160 pixels
Bit rate: 32 Kbps - 16 Mbps
Noise reduction technology: 3D noise reduction
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR/White
Night vision distance: 30 m
Fixed focal length: 2.8 mm
Observe distance: 33 m
Number of lenses: 1
Recognize distance: 16 m
Identify distance: 8 m
Detect distance: 84 m
Maximum aperture number: 1.6
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
