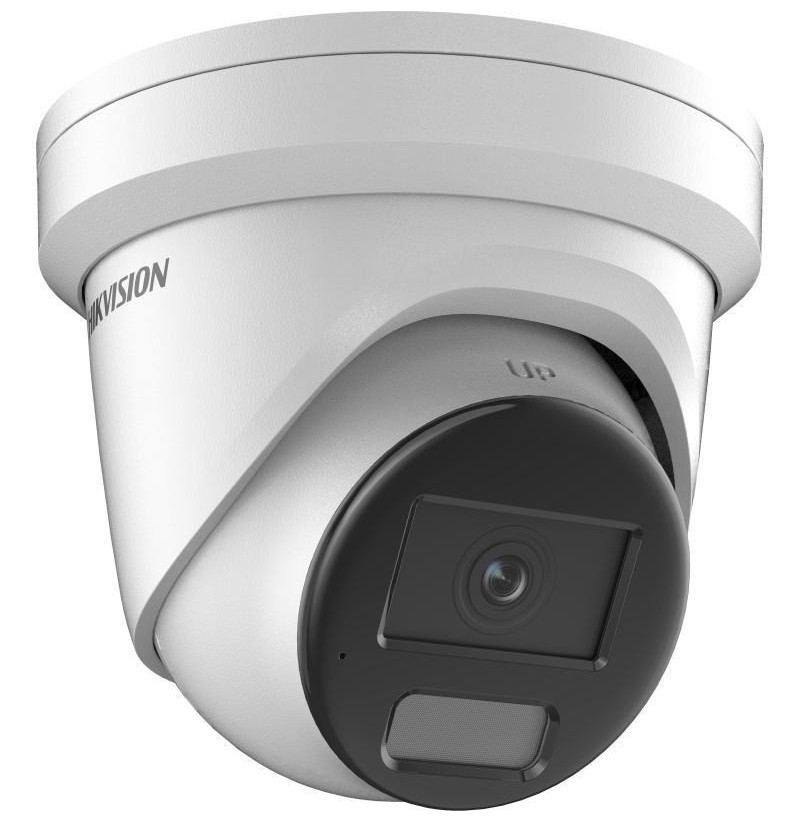

HIKVISION IP CAMERA DS-2CD2366G2H-IU(2.8mm)

Lens mount interface: M12
Housing material: Metal
Mounting type: Ceiling/wall
Form factor: Turret
Product colour: White
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67
DC output voltage: 12
DC output current: 0.54 A
Power consumption (Power over Ethernet (PoE)): 8 W
Power consumption (max): 6.5 W
Power source type: DC, PoE
Digital watermark: Yes
Password reset via email: Yes
Heartbeat: Yes
Mirror: Yes
Pixel counter: Yes
Human and vehicle targets classification: Yes
IP address filtering: Yes
Digest authentication: Yes
Privacy protection: Yes
HTTPS encryption: Yes
Automatic Network Replenishment (ANR): Yes
Network access storage (NAS): Yes
Video motion detection: Yes
Active tampering alarm: Yes
Password protection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Audit log: Yes
Security algorithms: EAP-MD5, EAP-LEAP, EAP-TLS
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Behavior analysis: Intrusion detection, Line crossing detection
Reset button: Yes
Web-based management: Yes
Height: 115.4 mm
Diameter: 13.8 cm
Weight: 770 g
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Ethernet interface type: Fast Ethernet
Live view: Yes
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Number of users: 32 user(s)
Wi-Fi: No
Networking standards: IEEE 802.3af
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Bluetooth: No
Dynamic range: 120 dB
Number of languages: 33
Languages support: Multi
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Type: IP security camera
Connectivity technology: Wired
Package height: 160 mm
Package width: 170 mm
Package weight: 1.04 kg
Package depth: 170 mm
Number of cameras: 1
Audio formats supported: MP3, G.726, AAC-LC, PCM, G.722.1, MP2L2, G.711 μ-law, G.711 A-law
Signal-to-Noise Ratio (SNR): 52 dB
Sample rates: 8 - 48 kHz
Bit rate range: 8 - 320 Kbit/s
Built-in microphone: Yes
Built-in HDD: No
Maximum memory card size: 512 GB
Card reader integrated: Yes
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, vertical: 60°
Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, diagonal: 143.5°
Lens viewing angle, horizontal: 114.8°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Number of Privacy masking areas: 4
Tilt angle range: 0 - 75°
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1
Bit rate: 32 Kbps - 16 Mbps
Smart IR: Yes
Noise reduction: Yes
Frame rate: 30 fps
Total megapixels: 6 MP
Region of Interest (ROI) encoding: Yes
Back Light Compensation (BLC): Yes
Video compression formats: H.265+, H.264+, H.265, H.264, M-JPEG
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Image quality adjustment: Contrast, Sharpness, Brightness, Saturation
Video streaming: Yes
Video recording: Yes
Maximum resolution: 3200 x 1800 pixels
Supported graphics resolutions: 3200 x 1800, 1920 x 1080 (HD 1080), 2688 x 1520, 640 x 480 (VGA), 640 x 360, 1280 x 720 (HD 720)
LED type: IR
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes
Number of lenses: 1
Observe distance: 25 m
Identify distance: 6 m
Fixed focal length: 2.8 mm
Recognize distance: 12 m
Detect distance: 64 m
Maximum aperture number: 1
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Compliance certificates: Low Voltage Directive (LVD), RoHS, CE, CB, UL
