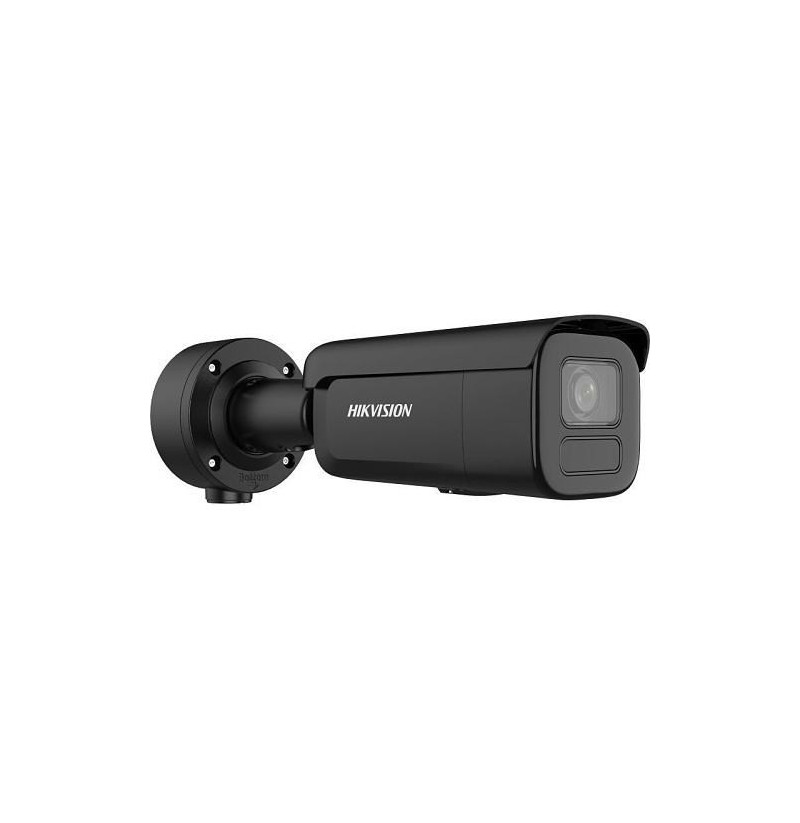

HIKVISION IP CAMERA DS-2CD2686G2HT-IZS(2.8-12)/eF/BLK

Housing material: Metal
Mounting type: Ceiling/wall
Protection features: Water resistant, Dust resistant, Vandal proof
IK code: IK10
International Protection (IP) code: IP67
Form factor: Bullet
Product colour: Black
Power consumption (Power over Ethernet (PoE)): 18 W
DC output voltage: 12
DC output current: 1.21 A
Power consumption (max): 14.5 W
Power source type: DC, PoE
Audit log: Yes
Heartbeat: Yes
Alert notification type: E-mail
Password protection: Yes
Privacy protection: Yes
Human and vehicle targets classification: Yes
Pixel counter: Yes
Password reset via email: Yes
Mirror: Yes
Active tampering alarm: Yes
Digest authentication: Yes
Digital watermark: Yes
Automatic Network Replenishment (ANR): Yes
Network access storage (NAS): Yes
Video motion detection: Yes
IP address filtering: Yes
Alarm input channels: 1
Intelligent Video Surveillance (IVS) system features: Face detection, Scene change
HTTPS encryption: Yes
Alarm output channels: 1
Security algorithms: EAP-MD5, EAP-LEAP, EAP-TLS
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Reset button: Yes
Web-based management: Yes
Height: 95.7 mm
Weight: 1.48 kg
Length: 298 mm
Width: 97.9 mm
Live view: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Number of users: 32 user(s)
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Wi-Fi: No
Networking standards: IEEE 802.3af
Bluetooth: No
Quality of Service (QoS) support: Yes
Languages support: Multi
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Dynamic range: 120 dB
Wide Dynamic Range (WDR): Yes
Alarm input/output: Yes
Placement supported: Outdoor
Day/night mode: Yes
Connectivity technology: Wired
Type: IP security camera
Package weight: 2.32 kg
Package height: 180 mm
Package depth: 190 mm
Package width: 385 mm
Number of cameras: 1
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Audio formats supported: MP2L2, PCM, G.711 A-law, G.711 μ-law, G.726, MP3, AAC-LC, G.711, G.722.1
Signal-to-Noise Ratio (SNR): 52 dB
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in HDD: No
Maximum memory card size: 512 GB
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Card reader integrated: Yes
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, diagonal: 137.4 - 47.3°
Lens viewing angle, horizontal: 112.3 - 41.2°
Lens viewing angle, vertical: 58.1 - 23.1°
Number of Privacy masking areas: 4
Angle of rotation: 360°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 355°
Minimum illumination: 0 lx
Tilt angle range: 0 - 90°
Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS
Progressive scan: Yes
Image quality adjustment: Sharpness, Saturation, Contrast, Brightness
Video recording: Yes
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Total megapixels: 8 MP
Highlight Compensation (HLC): Yes
Video streaming: Yes
Noise reduction: Yes
Video compression formats: H.265, M-JPEG, H.265+, H.264, H.264+
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Noise reduction technology: 3D noise reduction
Bit rate: 32 Kbps - 16 Mbps
Supported graphics resolutions: 3200 x 1800, 1920 x 1080 (HD 1080), 640 x 360, 1280 x 720 (HD 720), 3840 x 2160, 2688 x 1520, 640 x 480 (VGA)
Maximum resolution: 3840 x 2160 pixels
Infra-red wavelength: 850 nm
Night vision distance: 60 m
LED type: IR
Night vision: Yes
Number of lenses: 1
Focal length range: 2.8 - 12 mm
Observe distance (tele): 86 m
Identify distance (wide): 9 m
Recognize distance (tele): 43 m
Identify distance (tele): 22 m
Observe distance (wide): 35 m
Recognize distance (wide): 17 m
Detect distance (wide): 87 m
Detect distance (tele): 216 m
Maximum aperture number: 1.2
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Compliance certificates: Industry Canada (IC), REACH, RoHS, CE, WEEE, RCM, Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CB
