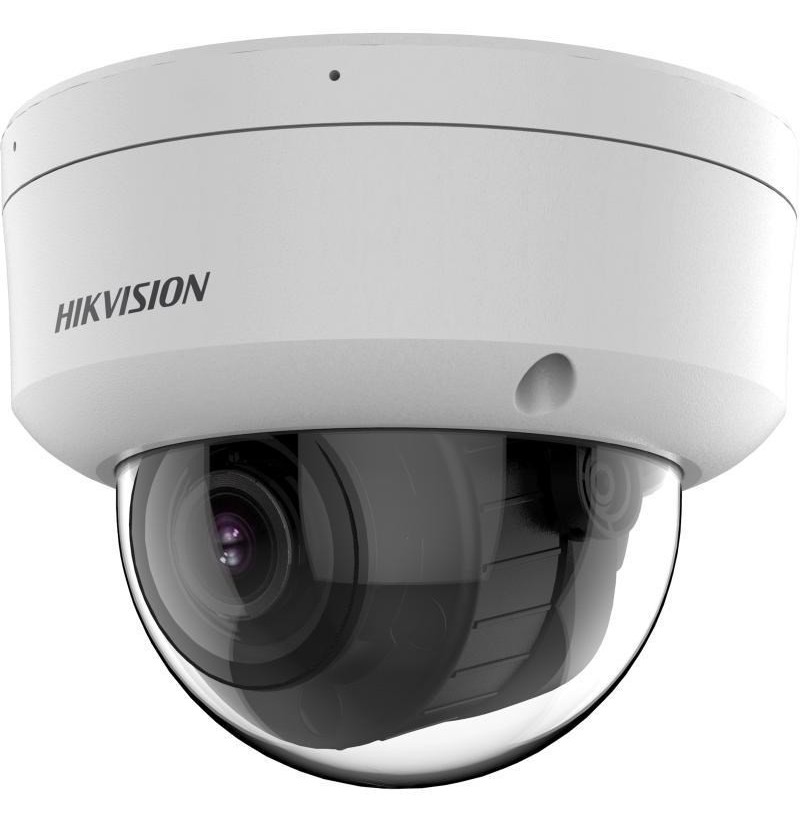

HIKVISION IP CAMERA DS-2CD2743G2-LIZS2U(2.8-12mm)

Protection features: Water resistant, Dust resistant
Mounting type: Ceiling/wall
International Protection (IP) code: IP67
Form factor: Dome
IK code: IK10
Housing material: Metal
Product colour: White
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 12.5 W
Power consumption (max): 10.56 W
DC output current: 0.88 A
Power source type: DC, PoE
Alarm output channels: 1
Privacy protection: Yes
IP address filtering: Yes
Alarm input channels: 1
Password protection: Yes
Digest authentication: Yes
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Human and vehicle targets classification: Yes
Heartbeat: Yes
HTTPS encryption: Yes
Active tampering alarm: Yes
Password reset via email: Yes
Mirror: Yes
Pixel counter: Yes
Digital watermark: Yes
Audit log: Yes
Flash log: Yes
Automatic Network Replenishment (ANR): Yes
Network access storage (NAS): Yes
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Reset button: Yes
Diameter: 12.2 cm
Height: 97.6 mm
Weight: 620 g
Number of simultaneous live view channels: 6 channels
Live view: Yes
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Bluetooth: No
Networking standards: IEEE 802.3af
Languages support: Multi
Wide Dynamic Range (WDR): Yes
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Number of languages: 33
Dynamic range: 120 dB
Placement supported: Outdoor
Type: IP security camera
Connectivity technology: Wired
Package depth: 150 mm
Package height: 141 mm
Package width: 150 mm
Package weight: 880 g
Number of cameras: 1
Audio input channels: 1.0 channels
Bit rate range: 8 - 320 Kbit/s
Signal-to-Noise Ratio (SNR): 52 dB
Audio formats supported: G.722.1, AAC-LC, MP2L2, G.711 A-law, MP3, PCM, G.726, G.711 μ-law
Sample rates: 8 - 48 kHz
Number of microphones: 2
Built-in microphone: Yes
Audio output channels: 1.0 channels
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Maximum memory card size: 512 GB
Built-in HDD: No
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 355°
Lens viewing angle, vertical: 54.7 - 17.6°
Minimum illumination: 0 lx
Lens viewing angle, horizontal: 102.4 - 31.2°
Pan range: 0 - 355°
Lens viewing angle, diagonal: 122.1 - 35.8°
Number of Privacy masking areas: 4
Tilt angle range: 0 - 75°
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Gain control type: Auto
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Image quality adjustment: Sharpness, Contrast, Saturation, Brightness
Bit rate: 32 Kbps - 8 Mbps
Back Light Compensation (BLC): Yes
Privacy masking: Yes
Smart IR: Yes
Video recording: Yes
Video compression formats: H.265+, M-JPEG, H.265, H.264, H.264+
Video streaming: Yes
Total megapixels: 4 MP
Noise reduction technology: 3D noise reduction
Frame rate: 30 fps
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 640 x 360, 2688 x 1520
Maximum resolution: 2688 x 1520 pixels
Night vision distance: 40 m
Infra-red wavelength: 850 nm
LED type: IR/White
Night vision: Yes
Number of lenses: 1
Observe distance (tele): 78.6 m
Recognize distance (tele): 39.6 m
Recognize distance (wide): 12.8 m
Focal length range: 2.8 - 12 mm
Maximum aperture number: 1.6
Detect distance (wide): 64 m
Observe distance (wide): 25.4 m
Identify distance (tele): 19.8 m
Detect distance (tele): 198 m
Identify distance (wide): 6.4 m
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Compliance certificates: RoHS, CE, UL, Low Voltage Directive (LVD), CB
