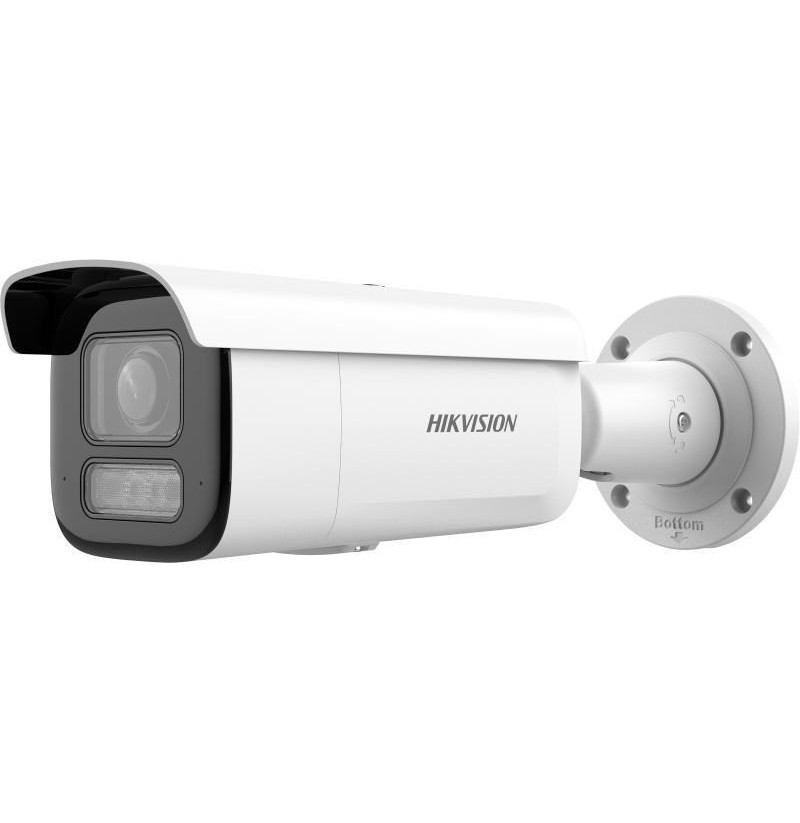

HIKVISION IP CAMERA DS-2CD2683G2-LIZS2U(2.8-12mm)

IK code: IK10
Housing material: Aluminium
Protection features: Dust resistant, Vandal proof, Waterproof
International Protection (IP) code: IP67
Product colour: White
Form factor: Bullet
Mounting type: Ceiling/wall
Power consumption (max): 13 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 15 W
DC output voltage: 12
DC output current: 1.08 A
Heartbeat: Yes
Anti-flicker: Yes
Alarm output channels: 1
IP address filtering: Yes
Video motion detection: Yes
Alarm input channels: 1
Password protection: Yes
Privacy protection: Yes
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Mirror: Yes
Active tampering alarm: Yes
Pixel counter: Yes
Digest authentication: Yes
Password reset via email: Yes
Network access storage (NAS): Yes
Automatic Network Replenishment (ANR): Yes
Audit log: Yes
Flash log: Yes
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Web-based management: Yes
Reset button: Yes
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Weight: 1.53 kg
Height: 94.2 mm
Length: 332.8 mm
Width: 97.9 mm
Bluetooth: No
Ethernet LAN: Yes
Networking standards: IEEE 802.1x, IEEE 802.3at
Quality of Service (QoS) support: Yes
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Number of users: 32 user(s)
Live view: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Placement supported: Outdoor
Day/night mode: Yes
Languages support: Multi
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Number of languages: 33
Package height: 180 mm
Package weight: 2 kg
Package depth: 190 mm
Package width: 385 mm
Number of cameras: 1
Audio output channels: 1.0 channels
Built-in microphone: Yes
Audio formats supported: PCM, AAC, MP3
Signal-to-Noise Ratio (SNR): 52 dB
Voice codecs: G.711ulaw, MP2L2, G.722.1, G.726, G.711alaw
Audio input channels: 1.0 channels
Sample rates: 8 - 48 kHz
Bit rate range: 8 - 320 Kbit/s
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Maximum memory card size: 512 GB
Built-in HDD: No
Ethernet LAN (RJ-45) ports: 1
Tilt angle range: 0 - 90°
Angle of rotation: 360°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 355°
Lens viewing angle, diagonal: 128.5 - 34.7°
Lens viewing angle, horizontal: 106.5 - 30.2°
Lens viewing angle, vertical: 55.7 - 17°
Number of Privacy masking areas: 8
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Supported graphics resolutions: 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520, 3840 x 2160, 1920 x 1080 (HD 1080), 640 x 360
Maximum resolution: 3840 x 2160 pixels
Bit rate: 32 Kbps - 8 Mbps
Total megapixels: 4 MP
Image quality adjustment: Saturation, Contrast, Sharpness, Brightness
Video compression formats: M-JPEG, H.264, H.265, H.265+, H.264+
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video recording: Yes
Video formats supported: H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Noise reduction: Yes
Region of Interest (ROI) encoding: Yes
Video streaming: Yes
Frame rate: 30 fps
LED type: IR
Night vision distance: 60 m
Infra-red wavelength: 850 nm
Night vision: Yes
Maximum aperture number: 1.6
Detect distance (wide): 88.3 m
Number of lenses: 1
Observe distance (wide): 35 m
Focal length range: 2.8-12 mm
Recognize distance (tele): 57.9 m
Identify distance (tele): 29 m
Observe distance (tele): 114.9 m
Recognize distance (wide): 17.7 m
Identify distance (wide): 8.8 m
Detect distance (tele): 289.7 m
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Compliance certificates: RoHS, KC, WEEE, RCM, REACH, CB
