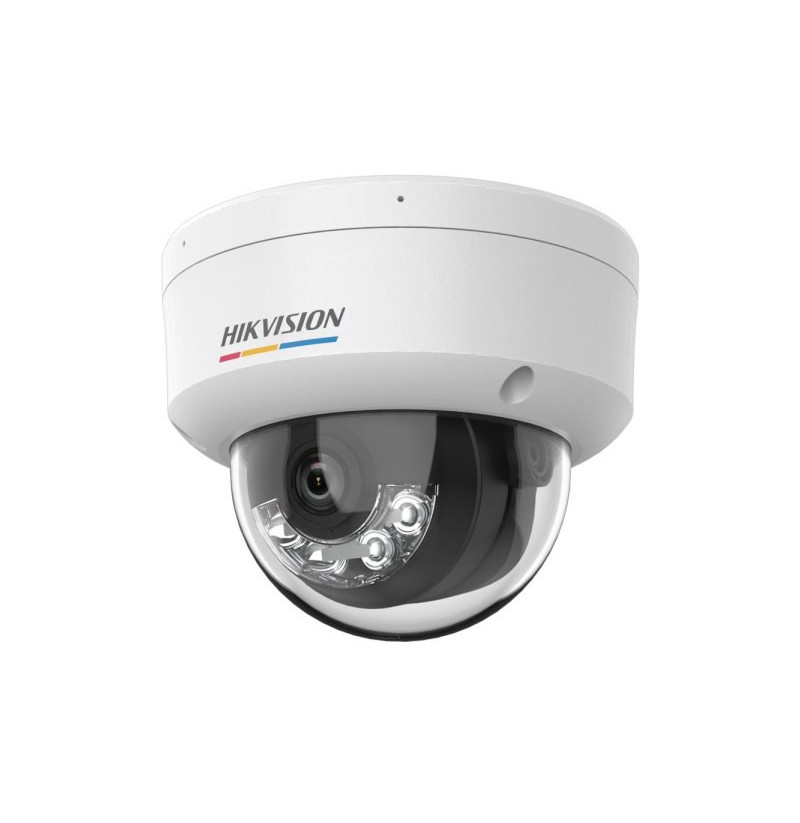

IP Camera: HIKVISION DS-2CD1167G2H-LIU(2.8mm)

Product colour: White
IK code: IK08
International Protection (IP) code: IP67
Housing material: Plastic, Metal
Form factor: Dome
Mounting type: Ceiling
Power consumption (max): 6.6 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 8 W
DC output voltage: 12
DC output current: 0.55 A
Audit log: Yes
Privacy protection: Yes
Heartbeat: Yes
Human and vehicle targets classification: Yes
Password protection: Yes
Video motion detection: Yes
Password reset via email: Yes
Digest authentication: Yes
Mirror: Yes
Digital watermark: Yes
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Weight: 550 g
Height: 97.6 mm
Diameter: 12.2 cm
Networking standards: IEEE 802.3af
Quality of Service (QoS) support: Yes
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Number of users: 32 user(s)
Live view: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Dynamic range: 120 dB
Languages support: Ukrainian, English
Number of languages: 2
Day/night mode: Yes
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Package depth: 150 mm
Package weight: 800 g
Package width: 150 mm
Package height: 141 mm
Manual: Yes
Number of cameras: 1
Built-in microphone: Yes
Audio formats supported: G.722.1, G.711, PCM, MP2L2, AAC-LC, G.726
Bit rate range: 16 - 160 Kbit/s
Sample rates: 8 - 16 kHz
Signal-to-Noise Ratio (SNR): 52 dB
Built-in HDD: No
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Number of Privacy masking areas: 4
Tilt angle range: 0 - 75°
Angle of rotation: 355°
White balance: Manual, Auto
Lens viewing angle, horizontal: 115°
Lens viewing angle, diagonal: 143°
Lens viewing angle, vertical: 60°
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0 lx
Pan range: 0 - 355°
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Progressive scan: Yes
Maximum resolution: 3200 x 1800 pixels
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 3200 x 1800, 2560 x 1440, 640 x 360
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Noise reduction technology: 3D noise reduction
Supported video modes: 480p, 1080p, 720p, 1440p, 360p
Frame rate: 20 fps
Video formats supported: M-JPEG, H.264+, H.265+, H.264, H.265
Video compression formats: H.265+, H.264+, H.264, H.265, M-JPEG
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Video recording: Yes
Image quality adjustment: Sharpness, Brightness, Contrast
Region of Interest (ROI) encoding: Yes
Total megapixels: 6 MP
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Privacy masking: Yes
Smart IR: Yes
Video streaming: Yes
Night vision distance: 30 m
LED type: IR/White
Infra-red wavelength: 850 nm
Night vision: Yes
Detect distance: 64 m
Maximum aperture number: 1
Fixed focus: Yes
Fixed focal length: 2.8 mm
Number of lenses: 1
Observe distance: 25 m
Identify distance: 6 m
Recognize distance: 12 m
