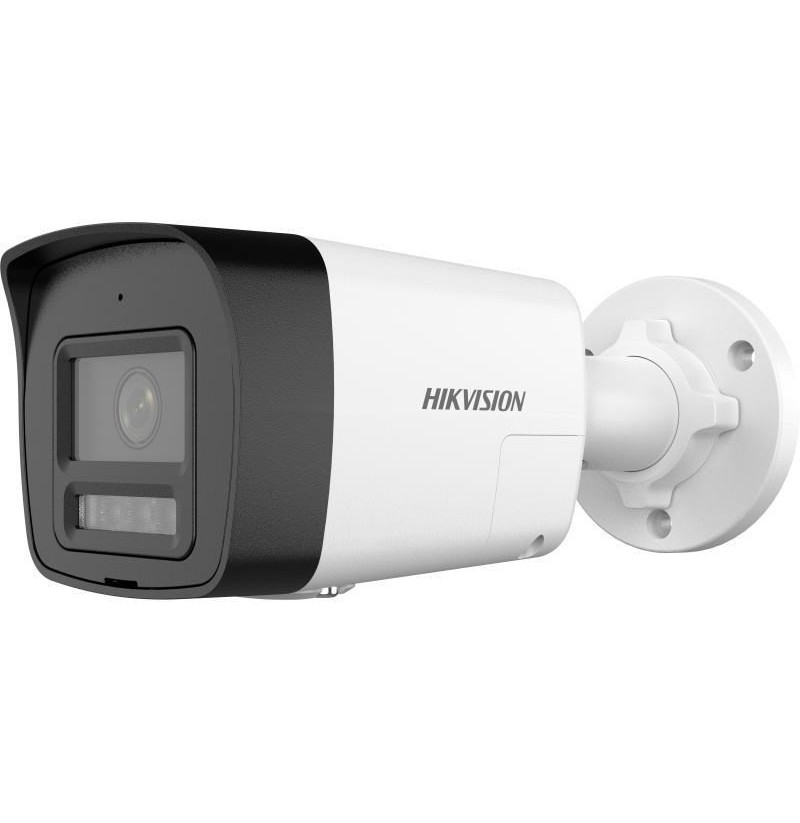

Camera DS-2CD1083G2-LIUF/SL 2.8mm PL

Housing material: Plastic, Metal
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Form factor: Bullet
Product colour: White
Protection features: Waterproof
Power consumption (max): 8 W
Power source type: DC, PoE
DC output current: 0.66 A
Power consumption (Power over Ethernet (PoE)): 9.5 W
DC output voltage: 12
Digital watermark: Yes
Mirror: Yes
Password protection: Yes
Password reset via email: Yes
Video motion detection: Yes
Digest authentication: Yes
Privacy protection: Yes
Heartbeat: Yes
Active tampering alarm: Yes
Audit log: Yes
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Reset button: Yes
Web-based management: Yes
Weight: 490 g
Height: 69.1 mm
Width: 67.4 mm
Length: 179 mm
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Live view: Yes
Bluetooth: No
Client interoperability: iVMS-4200, Hik-Connect
Wi-Fi: No
Number of simultaneous live view channels: 6 channels
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Built-in light: Yes
Placement supported: Outdoor
Infrared (IR) cut-off filter: Yes
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Languages support: English, Ukrainian
Type: IP security camera
Day/night mode: Yes
Number of languages: 2
Dynamic range: 120 dB
Package weight: 481 g
Package height: 118 mm
Package depth: 121 mm
Package width: 216 mm
Number of cameras: 1
Signal-to-Noise Ratio (SNR): 52 dB
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Built-in microphone: Yes
Sample rates: 8 - 16 kHz
Built-in speaker(s): Yes
Bit rate range: 16 - 160 Kbit/s
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB
Ethernet LAN (RJ-45) ports: 1
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Tilt angle range: 0 - 90°
Minimum illumination: 0 lx
Pan range: 0 - 360°
Lens viewing angle, horizontal: 113°
Lens viewing angle, diagonal: 134°
Lens viewing angle, vertical: 62°
Number of Privacy masking areas: 4
Sensor type: CMOS
Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Video compression formats: H.265+, H.264+, M-JPEG, H.264, H.265
Image quality adjustment: Sharpness, Brightness, Saturation
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Supported graphics resolutions: 640 x 360, 2688 x 1520, 1280 x 720 (HD 720), 640 x 480 (VGA), 3200 x 1800, 1920 x 1080 (HD 1080), 3840 x 2160
Total megapixels: 8 MP
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 15 fps
Privacy masking: Yes
Bit rate: 32 Kbps - 16 Mbps
Maximum resolution: 3840 x 2160 pixels
Back Light Compensation (BLC): Yes
LED type: IR
Night vision: Yes
Night vision distance: 30 m
B/W night vision distance: 30 m
Infra-red wavelength: 850 nm
Number of lenses: 1
Identify distance: 7 m
Observe distance: 31 m
Maximum aperture number: 2
Fixed focal length: 2.8 mm
Detect distance: 79 m
Recognize distance: 15 m
Compliance certificates: CB, RoHS, CE, REACH, WEEE
