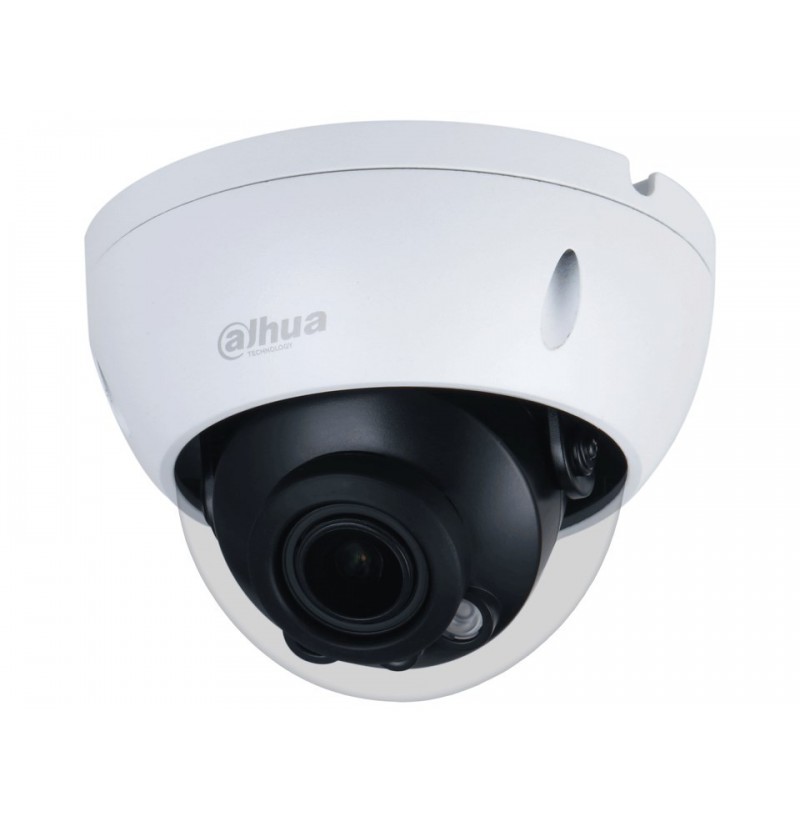

DAHUA IP CAMERA IPC-HDBW2541R-ZAS-27135-S2

Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP67
IK code: IK10
Housing material: Metal
Form factor: Dome
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 4 W
Power source type: DC, PoE
Power consumption (typical): 3.1 W
Intelligent Video Surveillance (IVS) system features: Tripwire, Intrusion
Mirror: Yes
Video motion detection: Yes
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Web browser: Yes
Management software: Smart PSS; DSS; DMSS
Weight: 492 g
Height: 88.9 mm
Diameter: 12.2 cm
Number of users: 20 user(s)
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B
Day/night mode: Yes
Alarm input/output: Yes
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Package weight: 663 g
Number of cameras: 1
Audio output channels: 2.0 channels
Audio formats supported: G.726, PCM, G.711 A-law
Audio input channels: 2.0 channels
ROM capacity: 128 MB
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
Maximum memory card size: 256 GB
Built-in HDD: No
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, vertical: 72 - 23°
Lens viewing angle, diagonal: 134 - 38°
Lens viewing angle, horizontal: 100 - 30°
Number of Privacy masking areas: 4
Tilt angle range: 0 - 75°
Pan range: 0 - 355°
Minimum illumination: 0 lx
Adjustment shutter speed: Auto/Manual
Angle of rotation: 360°
White balance: Street lamp, Outdoor, Regional custom, Natural, Auto
Camera shutter type: Electronic
Camera shutter speed: 1/3 -1/100000 s
Sensor type: CMOS
Number of sensors: 1
Number of effective pixels (H x V): 2592 x 1944 pixels
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video compression formats: H.264+, H.264B, H.265, M-JPEG, H.264, H.264H, H.265+
Video streaming: Yes
Gain control type: Auto/Manual
Privacy masking: Yes
Supported graphics resolutions: 2592 x 1944, 2304 x 1296, 1920 x 1080 (HD 1080), 704 x 480, 2688 x 1520, 1280 x 720 (HD 720), 704 x 576, 1280 x 960
Maximum resolution: 2592 x 1944 pixels
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Bit rate: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Frame rate: 30 fps
Noise reduction: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 5 MP
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Night vision: Yes
LED type: IR
Night vision distance: 40 m
Number of illumination LEDs: 2
Observe distance (tele): 88.6 m
Recognize distance (wide): 12.9 m
Observe distance (wide): 25.8 m
Identify distance (tele): 22.1 m
Closest focusing distance: 0.8 m
Identify distance (wide): 6.4 m
Recognize distance (tele): 44.3 m
Focal length range: 2.7 - 13.5 mm
Detect distance (wide): 64.4 m
Detect distance (tele): 221.4 m
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
Bit rate control (panoramic camera): Variable Bit Rate (VBR), Constant Bit Rate (CBR)
