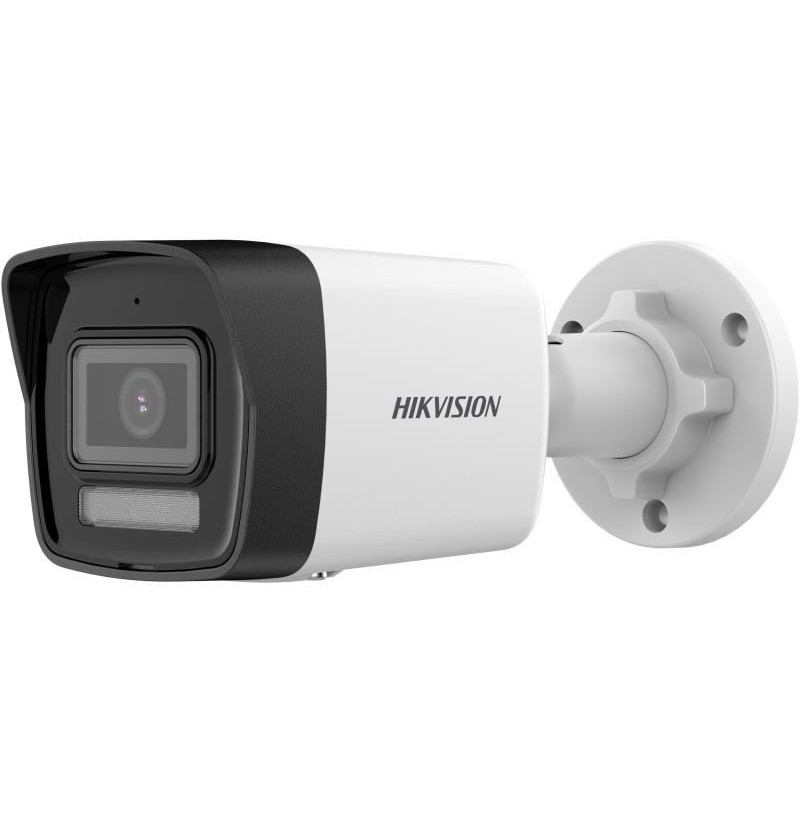

DS-2CD1063G2-LIU(2.8mm) IP Camera

Product colour: White
Protection features: Waterproof
International Protection (IP) code: IP67
Form factor: Bullet
Housing material: Metal, Plastic
Mounting type: Ceiling/wall
Power consumption (max): 5 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output current: 0.41 A
DC output voltage: 12
Password reset via email: Yes
Video motion detection: Yes
Privacy protection: Yes
Password protection: Yes
Digital watermark: Yes
Heartbeat: Yes
Mirror: Yes
Digest authentication: Yes
Audit log: Yes
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Web-based management: Yes
Weight: 285 g
Height: 69.1 mm
Width: 66 mm
Length: 170.8 mm
Bluetooth: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Client interoperability: iVMS-4200, Hik-Connect
Number of users: 32 user(s)
Live view: Yes
Connectivity technology: Wired
Type: IP security camera
Built-in light: Yes
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor & outdoor
Languages support: English, Ukrainian
Day/night mode: Yes
Number of languages: 2
Infrared (IR) cut-off filter: Yes
Dynamic range: 120 dB
Package weight: 481 g
Package depth: 121 mm
Package height: 118 mm
Package width: 216 mm
Number of cameras: 1
Built-in microphone: Yes
Sample rates: 8 - 16 kHz
Bit rate range: 16 - 160 Kbit/s
Audio formats supported: G.722.1, AAC-LC, G.726, PCM, MP2L2, G.711
Signal-to-Noise Ratio (SNR): 52 dB
Built-in HDD: No
Ethernet LAN (RJ-45) ports: 1
Tilt angle range: 0 - 90°
Angle of rotation: 360°
Minimum illumination: 0 lx
Lens viewing angle, diagonal: 127°
Lens viewing angle, horizontal: 105°
Lens viewing angle, vertical: 55°
Pan range: 0 - 360°
Camera shutter speed: 1 - 1/100000 s
Number of Privacy masking areas: 4
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Supported graphics resolutions: 3200 x 1800, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 640 x 480 (VGA), 640 x 360, 2688 x 1520
Maximum resolution: 3200 x 1800 pixels
Highlight Compensation (HLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Back Light Compensation (BLC): Yes
Privacy masking: Yes
Image quality adjustment: Saturation, Sharpness, Brightness, Contrast
Region of Interest (ROI) encoding: Yes
Video compression formats: H.265+, H.264, M-JPEG, H.264+, H.265
Total megapixels: 6 MP
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Night vision distance: 30 m
Night vision: Yes
Infra-red wavelength: 850 nm
Number of lenses: 1
Recognize distance: 15 m
Detect distance: 76 m
Fixed focus: Yes
Observe distance: 30 m
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Identify distance: 7 m
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Sustainability compliance: Yes
Compliance certificates: REACH, RoHS, CE, WEEE, RCM, Low Voltage Directive (LVD), CB
