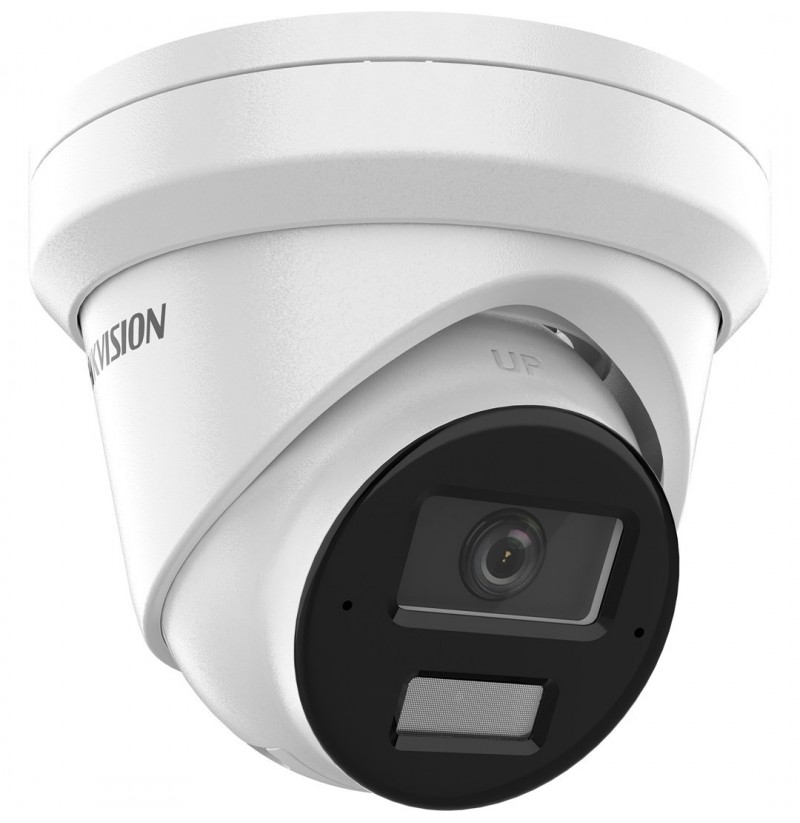

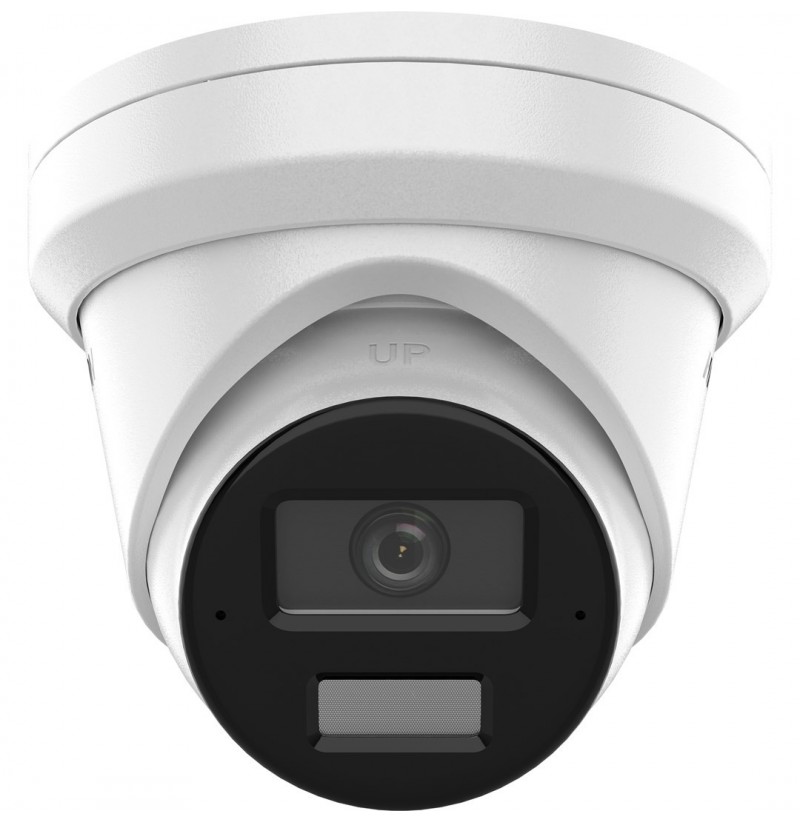

IP Camera DS-2CD2383G2-LI2U(4mm)

Protection features: Water resistant, Dust resistant
Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP67
Housing material: Metal
Power source type: DC, PoE
Power consumption (max): 8 W
DC output current: 0.66 A
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 9.5 W
Password protection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Mirror: Yes
Heartbeat: Yes
Automatic Network Replenishment (ANR): Yes
Password reset via email: Yes
Video motion detection: Yes
Human and vehicle targets classification: Yes
Network access storage (NAS): Yes
Pixel counter: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Flash log: Yes
Active tampering alarm: Yes
Privacy protection: Yes
Audit log: Yes
Digest authentication: Yes
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Reset button: Yes
Web-based management: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Diameter: 12.7 cm
Weight: 515 g
Height: 96.3 mm
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Quality of Service (QoS) support: Yes
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels
Bluetooth: No
Live view: Yes
Number of users: 32 user(s)
Networking standards: IEEE 802.2x, IEEE 802.3af
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Ethernet LAN: Yes
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Built-in light: Yes
Languages support: Multi
Dynamic range: 120 dB
Type: IP security camera
Placement supported: Outdoor
Number of languages: 33
Infrared (IR) cut-off filter: Yes
Package width: 150 mm
Package depth: 150 mm
Package height: 141 mm
Package weight: 755 g
Number of cameras: 1
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Audio formats supported: AAC, MP3, PCM
Bit rate range: 8 - 320 Kbit/s
Voice codecs: MP2L2, G.711ulaw, G.726, G.711alaw, G.722.1
Number of microphones: 2
Sample rates: 8 - 48 kHz
Card reader integrated: Yes
Maximum memory card size: 512 GB
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Built-in HDD: No
Ethernet LAN (RJ-45) ports: 1
Minimum illumination: 0 lx
Lens viewing angle, vertical: 44°
Camera shutter speed: 1/3 - 1/100000 s
Tilt angle range: 0 - 75°
Pan range: 0 - 360°
Angle of rotation: 360°
Lens viewing angle, horizontal: 88°
Lens viewing angle, diagonal: 105°
Number of Privacy masking areas: 8
Progressive scan: Yes
Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Noise reduction: Yes
Maximum resolution: 3840 x 2160 pixels
Bit rate: 32 Kbps - 16 Mbps
Highlight Compensation (HLC): Yes
Supported video modes: 360p, 480p, 1080p, 720p, 1520p
Video compression formats: H.264+, H.265, H.264, H.265+, M-JPEG
Region of Interest (ROI) encoding: Yes
Image quality adjustment: Brightness, Saturation, Sharpness, Contrast, Mirror
Video recording: Yes
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Supported graphics resolutions: 3200 x 1800, 1280 x 720 (HD 720), 640 x 480 (VGA), 3840 x 2160, 2688 x 1520, 640 x 360, 1920 x 1080 (HD 1080)
Video streaming: Yes
Back Light Compensation (BLC): Yes
Total megapixels: 6 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Infra-red wavelength: 850 nm
LED type: IR/White
Night vision: Yes
Night vision distance: 30 m
Number of lenses: 1
Observe distance: 46 m
Fixed focus: Yes
Identify distance: 11 m
Detect distance: 117 m
Fixed focal length: 4 mm
Maximum aperture number: 1.6
Recognize distance: 23 m
Compliance certificates: WEEE, RCM, BIS, Industry Canada (IC), REACH, CB, KC, Low Voltage Directive (LVD), RoHS, CE
Sustainability compliance: Yes
