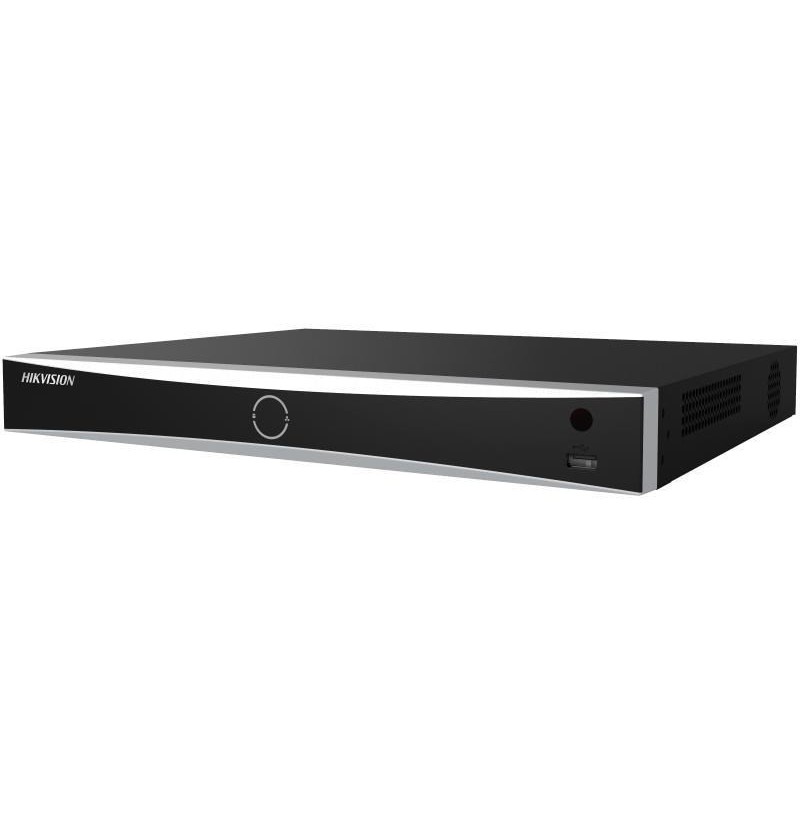

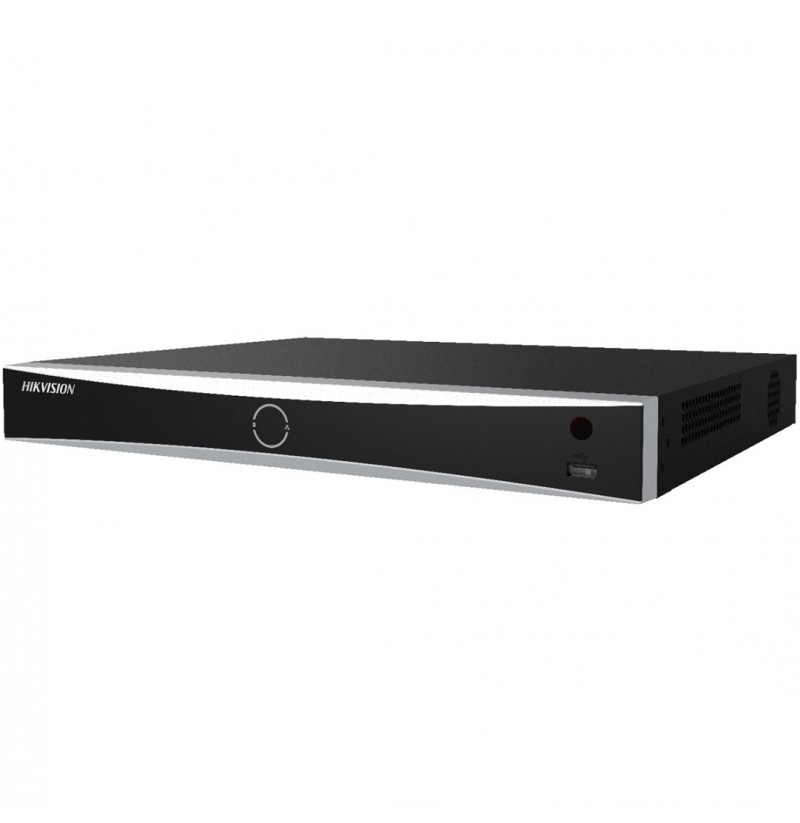

Hikvision | 8-ch PoE 1U K Series AcuSense 4K NVR | DS-7608NXI-K2/8P(D) | 2

Compliance certificates: CE, Federal Communications Commission (FCC)
Rack mounting: Yes
Product colour: Black
Rack capacity: 1U
Total Power over Ethernet (PoE) budget: 80 W
Output current: 2.5 A
Output voltage: 48 V
Power consumption (typical): 15 W
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Height: 52 mm
Depth: 315 mm
Width: 385 mm
Weight: 3 kg
Supported resolutions: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Number of simultaneously playbacked channels: 8 channels
Audio formats supported: AAC, G.726, G.711 μ-law, G.722, G.711 A-law
Input bandwidth: 80 Mbit/s
Video input channels: 8 channels
Alarm input channels: 4
Face detection: Yes
Maximum frame rate: 30 fps
Alarm output channels: 1
Video formats supported: H.264, H.265, H.264+, H.265+
Output bandwidth: 160 Mbit/s
Maximum resolution: 3840 x 2160 pixels
Wi-Fi: No
Power over Ethernet (PoE) ports quantity: 8
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDMI ports quantity: 1
Audio RCA inputs: 1
VGA (D-Sub) output ports: 1
Internal SATA ports quantity: 2
HDMI output: Yes
Audio RCA outputs: 1
Ethernet LAN data rates: 100, 1000, 10
Ethernet LAN (RJ-45) ports: 9
Networking standards: IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity: 2
Power over Ethernet (PoE): Yes
Number of HDDs supported: 2
Maximum storage capacity: 20 TB
HDD capacity: 10 TB
HDD interface: SATA
