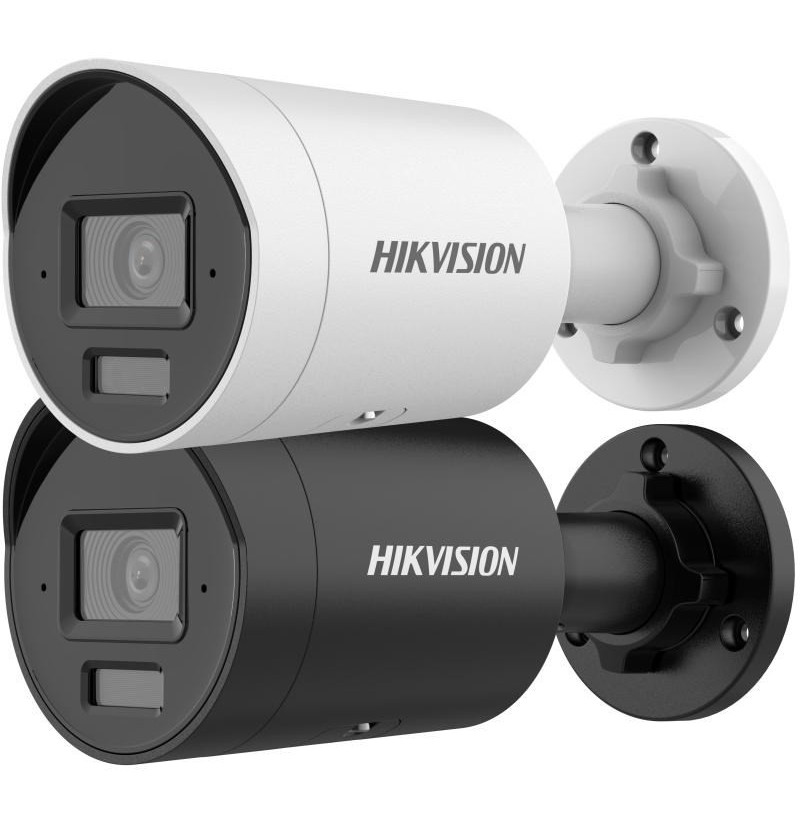

DS-2CD2063G2-LI2U(4mm) IP Camera

Mounting type: Ceiling/wall
Housing material: Metal
Form factor: Bullet
International Protection (IP) code: IP67
Protection features: Water resistant, Dust resistant
Product colour: White
DC output current: 0.5 A
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 7.5 W
Power source type: DC, PoE
Power consumption (max): 6 W
IP address filtering: Yes
Password reset via email: Yes
Mirror: Yes
Active tampering alarm: Yes
Video motion detection: Yes
Heartbeat: Yes
Password protection: Yes
Pixel counter: Yes
HTTPS encryption: Yes
Digest authentication: Yes
Flash log: Yes
Audit log: Yes
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Behavior analysis: Line crossing detection
Web browser: Yes
Reset button: Yes
Diameter: 7.44 cm
Length: 176.3 mm
Weight: 515 g
Live view: Yes
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels
Number of users: 32 user(s)
Networking standards: IEEE 802.3af
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Bluetooth: No
Wi-Fi: No
Certification: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013
Dynamic range: 120 dB
Languages support: Multi
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Number of languages: 33
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Connectivity technology: Wired
Package width: 234 mm
Package weight: 760 g
Package height: 117 mm
Package depth: 120 mm
Number of cameras: 1
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Sample rates: 8 - 48 kHz
Bit rate range: 32 - 320 Kbit/s
Built-in microphone: Yes
Maximum memory card size: 512 GB
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ethernet LAN (RJ-45) ports: 1
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Angle of rotation: 360°
Lens viewing angle, diagonal: 100°
Lens viewing angle, horizontal: 84°
Lens viewing angle, vertical: 45°
Minimum illumination: 0 lx
Tilt angle range: 0 - 90°
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video compression formats: H.265, H.265+, H.264, H.264+, M-JPEG
Total megapixels: 2 MP
Gain control type: Auto
Video streaming: Yes
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Frame rate: 30 fps
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 3200 x 1800, 2688 x 1520, 640 x 360
Maximum resolution: 3200 x 1800 pixels
Bit rate: 32 Kbps - 16 Mbps
Back Light Compensation (BLC): Yes
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR/White
Night vision distance: 40 m
Number of lenses: 1
Maximum aperture number: 1.6
Recognize distance: 15 m
Observe distance: 31 m
Fixed focal length: 4 mm
Identify distance: 7 m
Detect distance: 78 m
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
