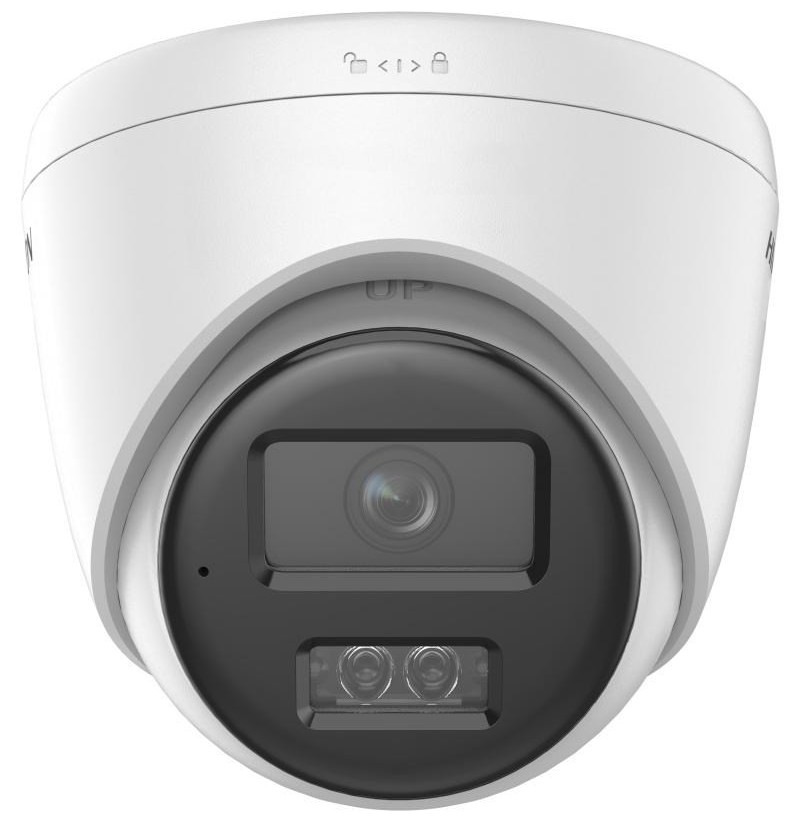

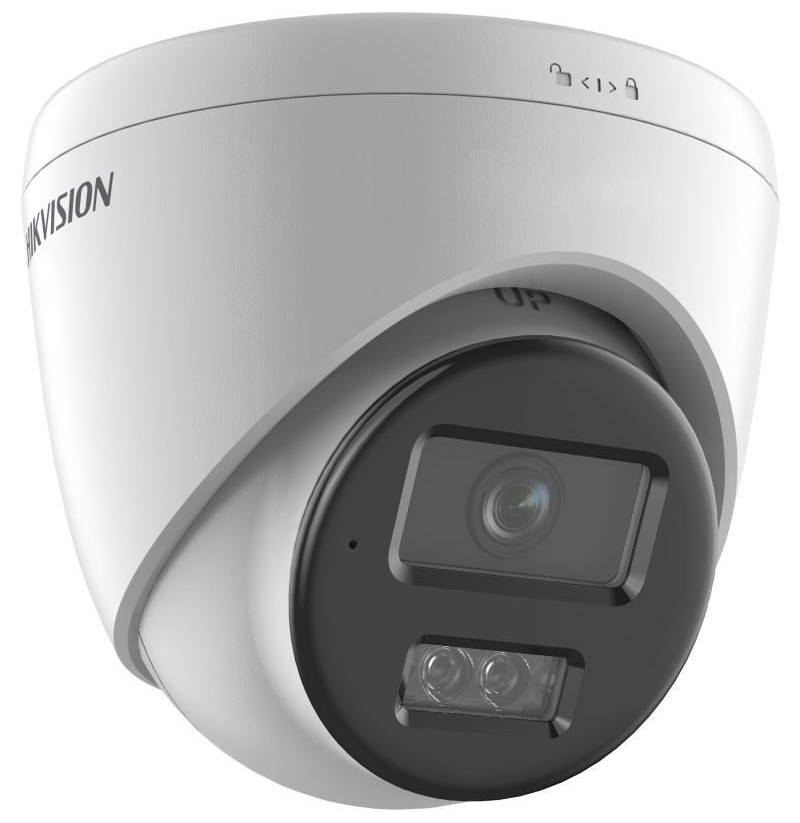

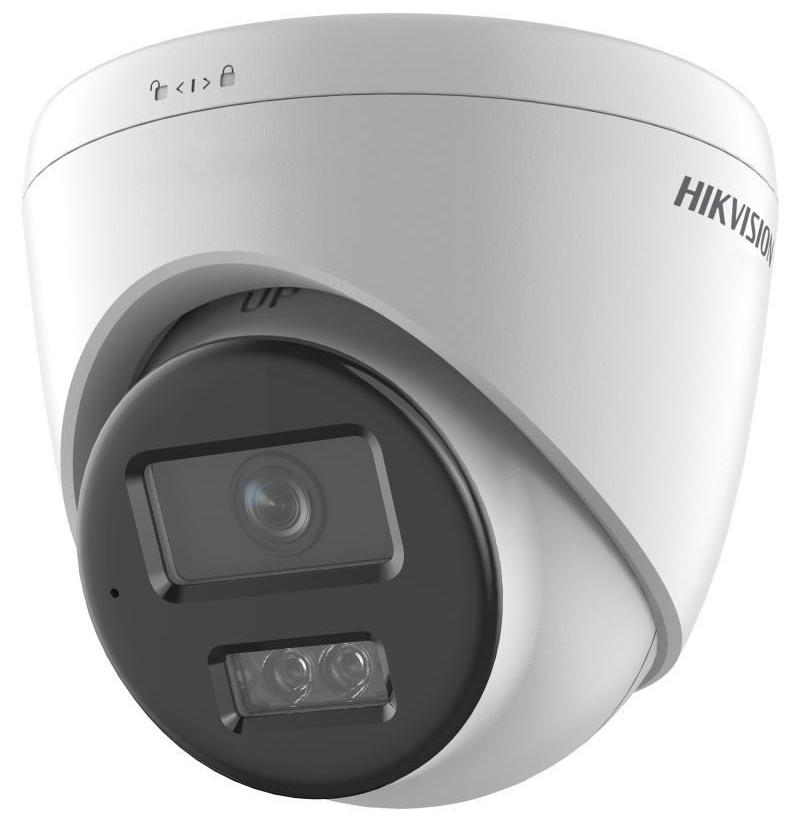

IP Camera: HIKVISION DS-2CD1363G2-LIU(2.8mm)

International Protection (IP) code: IP67
Housing material: Plastic, Metal
Mounting type: Ceiling
Product colour: White
Form factor: Dome
DC output current: 0.41 A
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output voltage: 12
Power source type: DC, PoE
Power consumption (max): 5 W
Password reset via email: Yes
Video motion detection: Yes
Heartbeat: Yes
HTTPS encryption: Yes
Mirror: Yes
Password protection: Yes
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Height: 89.2 mm
Diameter: 11 cm
Weight: 340 g
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Ethernet LAN: Yes
Number of users: 32 user(s)
Live view: Yes
Bluetooth: No
Networking standards: IEEE 802.3af
Wide Dynamic Range (WDR): Yes
Languages support: Ukrainian, English
Number of languages: 2
Infrared (IR) cut-off filter: Yes
Dynamic range: 120 dB
Day/night mode: Yes
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Built-in light: Yes
Type: IP security camera
Package depth: 150 mm
Package height: 141 mm
Package weight: 560 g
Package width: 150 mm
Number of cameras: 1
Manual: Yes
Mounting kit: Yes
Sample rates: 8 - 16 kHz
Bit rate range: 16 - 160 Kbit/s
Audio formats supported: MP2L2, G.711 A-law, G.722.1, PCM, AAC-LC, G.711 μ-law
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Maximum memory card size: 512 GB
Built-in HDD: No
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, diagonal: 127°
Lens viewing angle, vertical: 55°
Lens viewing angle, horizontal: 105°
Camera shutter speed: 1/100000 - 1/3 s
Minimum illumination: 0 lx
Pan range: 0 - 360°
Angle of rotation: 360°
Camera pan control: Yes
Camera tilt control: Yes
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 4
Number of sensors: 1
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Sensor type: CMOS
Progressive scan: Yes
Total megapixels: 6 MP
Frame rate: 20 fps
Back Light Compensation (BLC): Yes
Digital Wide Dynamic Range (DWDR): Yes
Supported video modes: 480p, 1080p, 720p, 1440p, 360p
Video formats supported: H.264+, H.265, H.264, H.265+
Highlight Compensation (HLC): Yes
Privacy masking: Yes
Video compression formats: H.265, H.264, H.265+, H.264+
Image quality adjustment: Contrast, Sharpness, Saturation, Brightness
Video recording: Yes
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Maximum resolution: 3200 x 1800 pixels
Supported graphics resolutions: 640 x 360, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 640 x 480 (VGA), 2560 x 1440, 3200 x 1800
Night vision distance: 30 m
LED type: IR/White
Infra-red wavelength: 850 nm
Night vision: Yes
Recognize distance: 15 m
Observe distance: 30 m
Number of lenses: 1
Detect distance: 76 m
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Identify distance: 7 m
Sustainability compliance: Yes
Compliance certificates: WEEE, BIS, RoHS, CE, REACH, UL, CB
