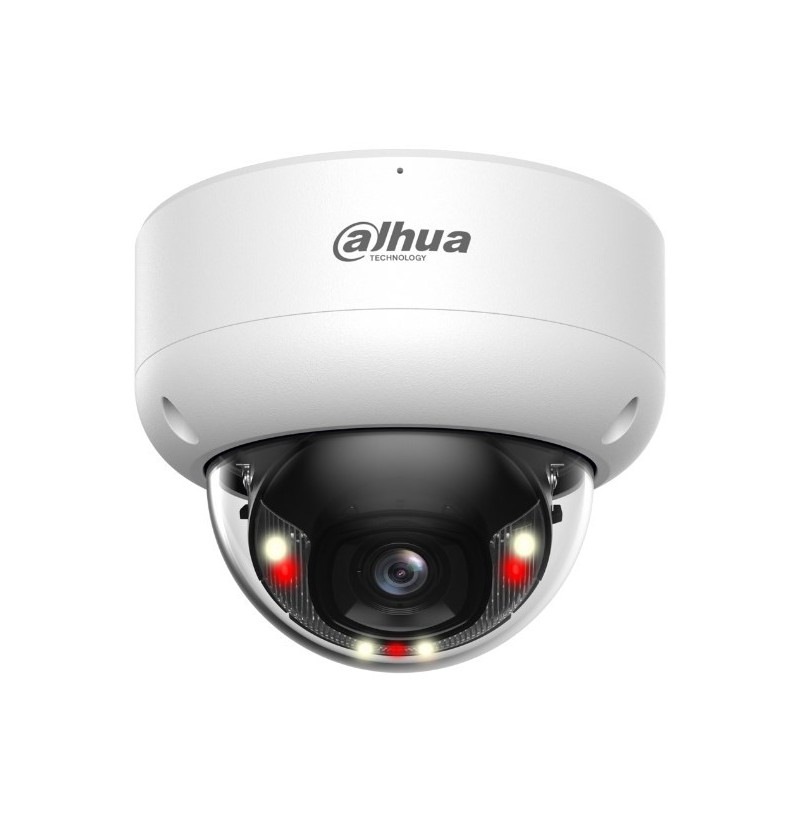

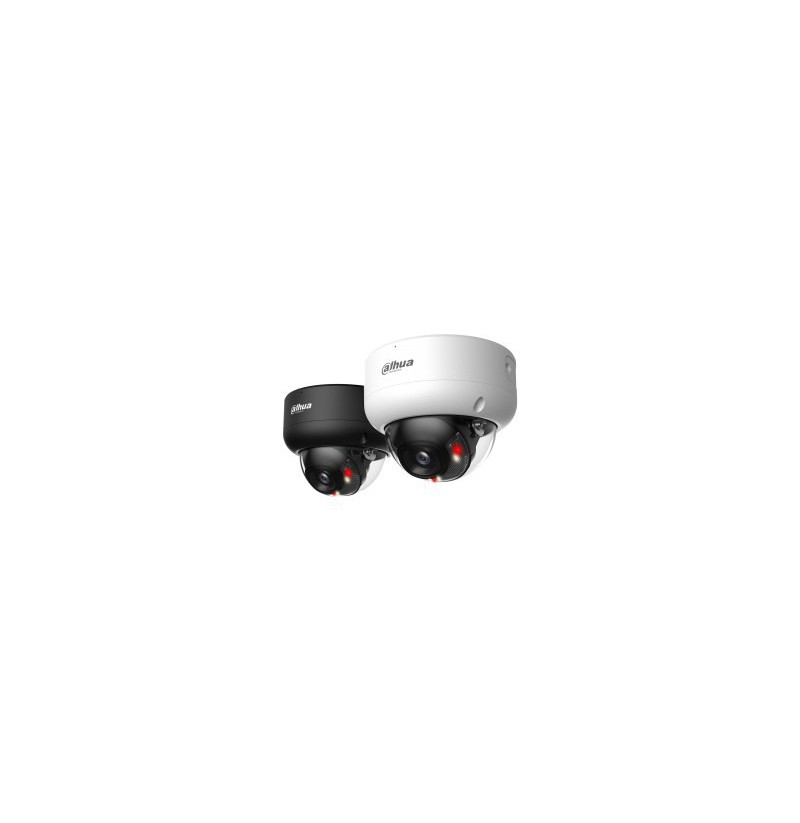

IP Camera Dahua IPC-HDBW3849E-AS-IL-0280B

International Protection (IP) code: IP67
Housing material: Metal
IK code: IK10
Form factor: Dome
Mounting type: Ceiling
Product colour: White
Power source type: DC, PoE
Power consumption (max): 6.2 W
Power consumption (typical): 3.7 W
Power consumption (Power over Ethernet (PoE)): 8.2 W
DC output voltage: 12
Mirror: Yes
Alarm input channels: 1
Video motion detection: Yes
Alarm output channels: 1
Password protection: Yes
Digest authentication: Yes
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 40 - 60 °C
Storage temperature (T-T): 40 - 60 °C
Firmware upgradeable: Yes
Management software: Smart PSS; DSS; DMSS
Height: 111.7 mm
Weight: 528 g
Width: 89.1 mm
Networking standards: IEEE 802.3af, IEEE 802.1x
Number of users: 20 user(s)
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Bluetooth: No
User access level: User
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Type: IP security camera
Built-in light: Yes
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Day/night mode: Yes
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Package weight: 690 g
Number of cameras: 1
Manual: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Built-in microphone: Yes
Audio input channels: 1.0 channels
Audio formats supported: G.711, G.726, G.723, PCM
Bit rate range: 3 - 8192 Kbit/s
Audio output channels: 1.0 channels
ROM capacity: 256 MB
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
Card reader integrated: Yes
RAM capacity: 1024 MB
Ethernet LAN (RJ-45) ports: 1
Camera shutter speed: 1/3 s–1/100,000
White balance: Lamp, Outdoor, Natural, Auto, Custom modes, Manual
Lens viewing angle, vertical: 58°
Number of Privacy masking areas: 8
Tilt angle range: 0 - 75°
Adjustment shutter speed: Auto/Manual
Pan range: 0 - 360°
Minimum illumination: 0.007 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 110°
Lens viewing angle, diagonal: 132°
Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS
Number of effective pixels (H x V): 3840 x 2160 pixels
Total megapixels: 8 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Maximum resolution: 3840 x 2160 pixels
Noise reduction technology: 3D noise reduction
Supported graphics resolutions: 352 x 240, 704 x 480, 1280 x 720 (HD 720), 704 x 576, 1280 x 960, 640 x 480 (VGA), 2304 x 1296, 2688 x 1520, 3072 x 2048, 352 x 288, 3840 x 2160, 2592 x 1944, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 1728
Gain control type: Auto/Manual
Video streaming: Yes
Back Light Compensation (BLC): Yes
Video compression formats: H.265, H.264
Frame rate: 30 fps
Highlight Compensation (HLC): Yes
Noise reduction: Yes
Number of illumination LEDs: 2
Night vision distance: 50 m
LED type: IR
Night vision: Yes
Number of lenses: 1
Closest focusing distance: 1.5 m
Identify distance (wide): 19 m
Focal length range: 2.8 - 3.6 mm
Fixed focus: Yes
Recognize distance (wide): 18 m
Detect distance (tele): 257.4 m
Auto focus: Yes
Recognize distance (tele): 51.5 m
Maximum aperture number: 1
Observe distance (wide): 36 m
Identify distance (tele): 25.7 m
Detect distance (wide): 89.9 m
Observe distance (tele): 103 m
Focus: Motorized/Manual
Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
