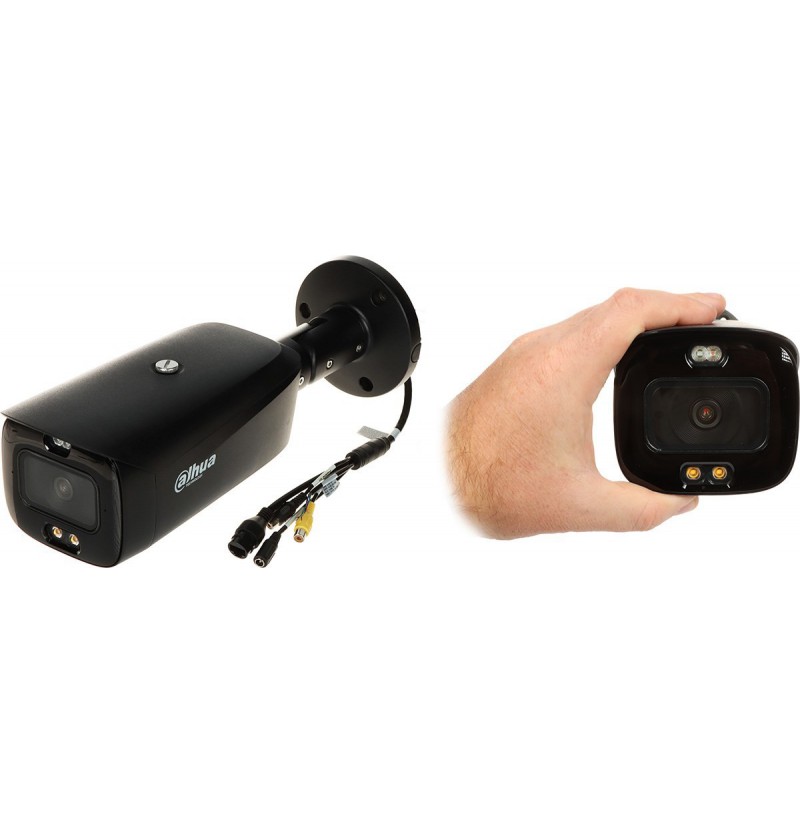

Camera Dahua IPC-HFW3549T1-AS-PV-0280B-S5

Housing material: Metal, Plastic
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: Black
Form factor: Bullet
DC output voltage: 12
Power consumption (max): 2 W
Power consumption (Power over Ethernet (PoE)): 2.6 W
Power source type: DC, PoE
Intelligent Video Surveillance (IVS) system features: Intrusion, Tripwire
Mirror: Yes
Video motion detection: Yes
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Web-based management: Yes
Depth: 84.7 mm
Length: 288.4 mm
Width: 94.4 mm
Weight: 1 kg
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Number of users: 20 user(s)
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes
Networking standards: IEEE 802.1x, IEEE 802.3af
Certification: CE-LVD: EN62368-1; CE-EMC: 2014/30/EU; FCC: 47 CFR FCC 15, B
Placement supported: Outdoor
Alarm input/output: Yes
Day/night mode: Yes
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Type: IP security camera
Package weight: 1.23 kg
Number of cameras: 1
Audio input channels: 1.0 channels
Voice codecs: PCM, G.711a, G.726, G.723, G.711Mu, AAC
Audio output channels: 1.0 channels
Built-in microphone: Yes
Built-in HDD: No
ROM capacity: 128 MB
Internal memory: 512 MB
Ethernet LAN (RJ-45) ports: 1
Angle of rotation: 360°
Minimum illumination: 0.003 lx
Camera pan control: Yes
White balance: Custom modes, Outdoor, Manual, Auto, Natural
Camera tilt control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Lens viewing angle, vertical: 71°
Lens viewing angle, horizontal: 98°
Lens viewing angle, diagonal: 129°
Tilt angle range: 0 - 90°
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1
Frame rate: 30 fps
Noise reduction: Yes
Bit rate: 32 - 8192 Kbps, 12 - 8192 Kbps
Total megapixels: 5 MP
Gain control type: Auto/Manual
Back Light Compensation (BLC): Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Privacy masking: Yes
Video compression formats: H.265, H.264+, H.265+, M-JPEG, H.264
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Supported graphics resolutions: 704 x 480, 2688 x 1520, 2560 x 1440, 1280 x 720 (HD 720), 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 2304 x 1296, 2592 x 1944
Maximum resolution: 2592 x 1944 pixels
LED type: IR
Night vision distance: 40 m
Night vision: Yes
Fixed focal length: 2.8 mm
Recognize distance: 13.5 m
Number of lenses: 1
Closest focusing distance: 1.2 m
Maximum aperture number: 1
Identify distance: 6.7 m
Detect distance: 67.4 m
Observe distance: 27 m
