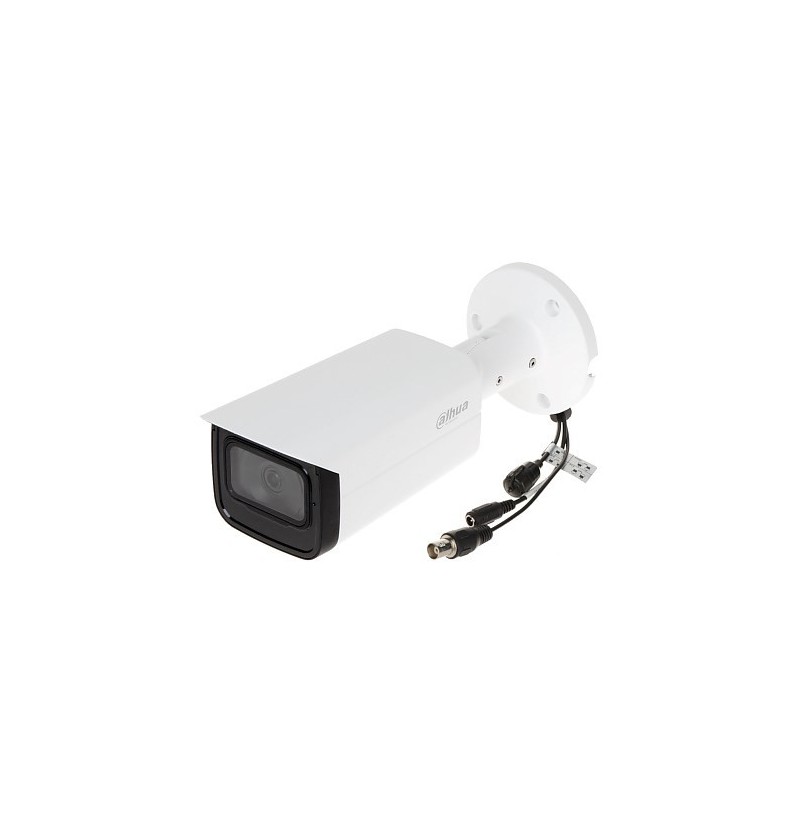

Camera HAC-HFW2501TU-A-0360B-S2

International Protection (IP) code: IP67
Product colour: White
Housing material: Metal
Form factor: Bullet
Mounting type: Ceiling/Wall/Pole
Power source type: DC
Power consumption (max): 9.6 W
DC output voltage: 12
Mirror: Yes
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Depth: 90.4 mm
Height: 90.4 mm
Weight: 770 g
Width: 244.1 mm
Ethernet LAN: No
Wi-Fi: No
Bluetooth: No
Certification: CE (EN55032:2015, EN 61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Placement supported: Outdoor
Wide Dynamic Range (WDR): Yes
Type: CCTV security camera
Day/night mode: Yes
Connectivity technology: Wired
Package weight: 1.04 kg
Number of cameras: 1
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 65 dB
Built-in HDD: No
BNC output ports: 1
Minimum illumination: 0.001 lx
Tilt angle range: 0 - 90°
Lens viewing angle, horizontal: 92°
Lens viewing angle, diagonal: 109°
Lens viewing angle, vertical: 48°
Angle of rotation: 360°
Camera shutter speed: PAL: 1/3 - 1/100000; NTSC: 1/4 - 1/100000
White balance: Manual, Auto
Pan range: 0 - 360°
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Back Light Compensation (BLC): Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Maximum resolution: 2880 x 1620 pixels
Gain control type: Auto/Manual
Smart IR: Yes
Supported graphics resolutions: 960 x 480, 960 x 576, 2560 x 1440, 1920 x 1080 (HD 1080), 2880 x 1620
Privacy masking: Yes
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 5 MP
Night vision: Yes
Night vision distance: 80 m
LED type: IR
Number of illumination LEDs: 4
Closest focusing distance: 1.6 m
Maximum aperture number: 1.6
Number of lenses: 1
Recognize distance: 16 m
Identify distance: 8 m
Observe distance: 32 m
Detect distance: 80 m
Fixed focus: Yes
Fixed focal length: 3.6 mm
