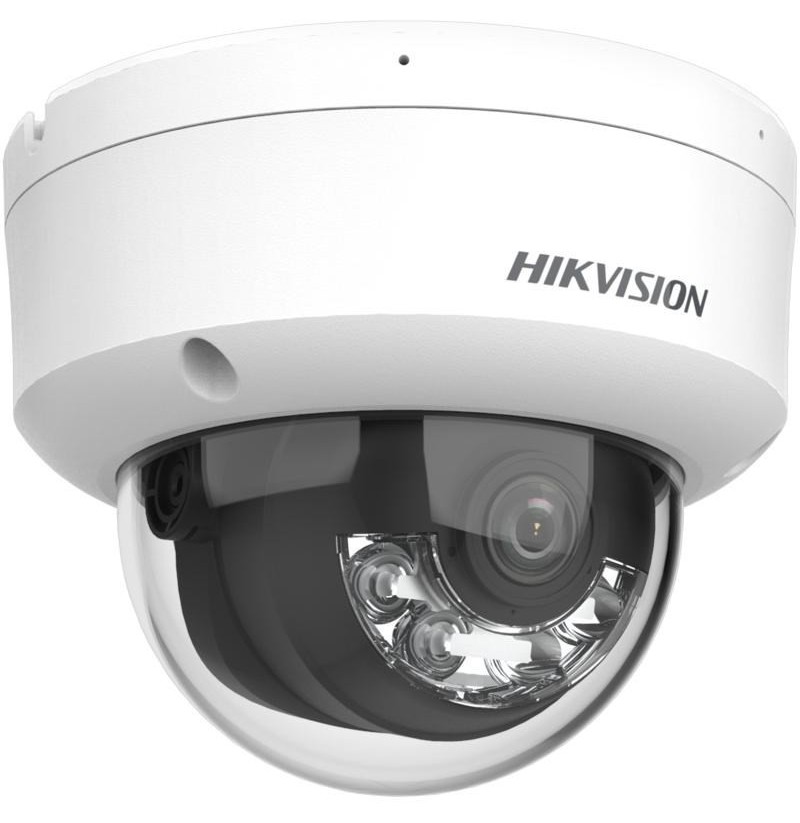

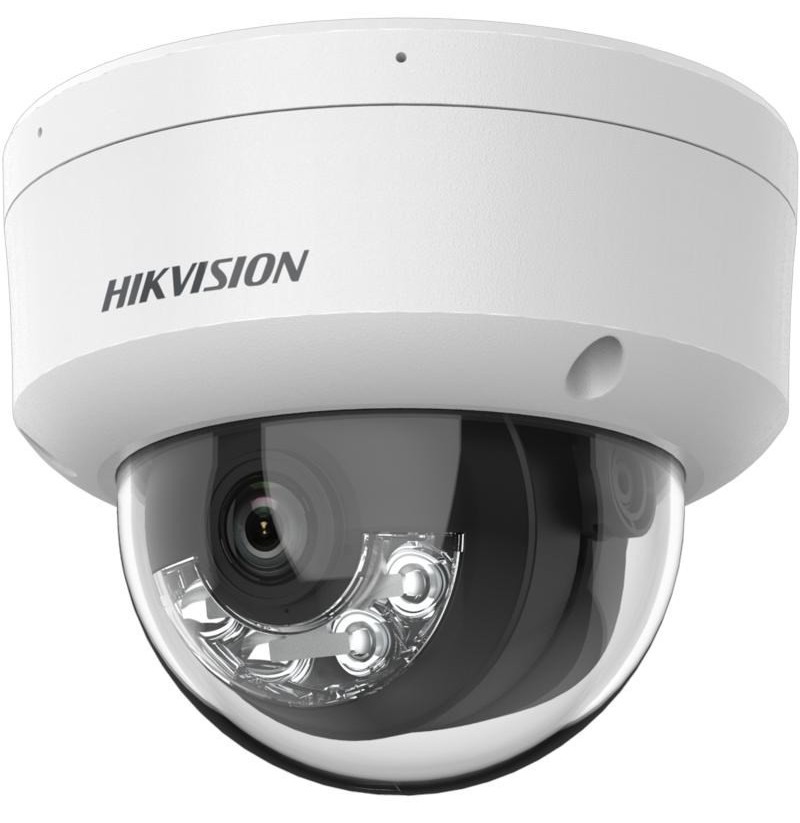

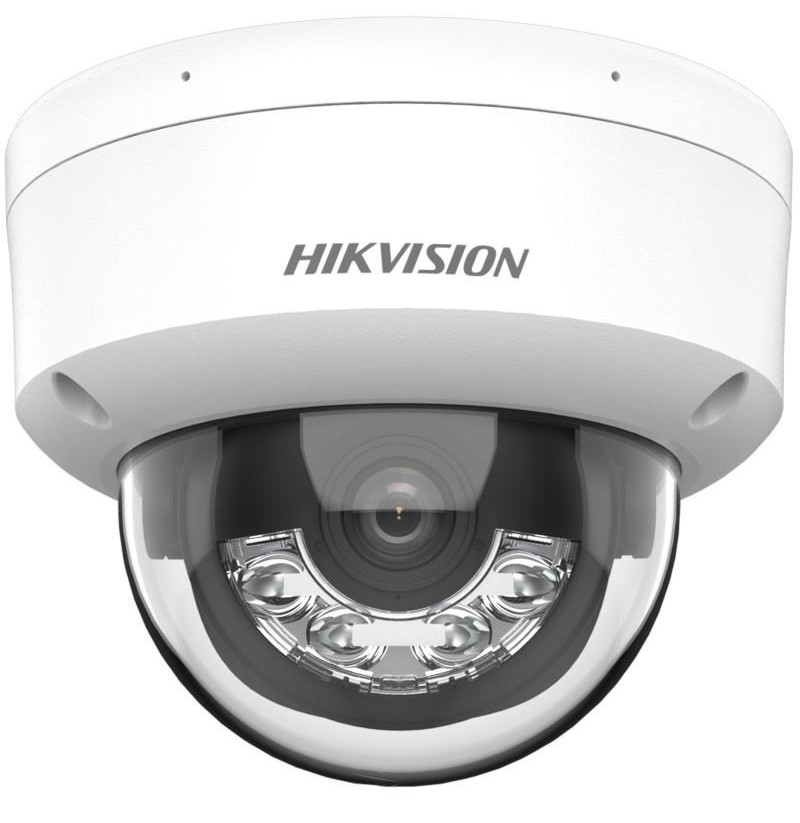

DS-2CD1163G2-LIU(2.8mm) IP Camera

Form factor: Dome
Mounting type: Ceiling
International Protection (IP) code: IP67
Housing material: Plastic, Metal
IK code: IK08
Product colour: White
Power consumption (max): 6 W
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output current: 0.5 A
Power source type: DC, PoE
DC output voltage: 12
Password protection: Yes
Mirror: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Password reset via email: Yes
Heartbeat: Yes
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Weight: 550 g
Height: 97.6 mm
Diameter: 12.1 cm
Wi-Fi: No
Ethernet LAN: Yes
Live view: Yes
Networking standards: IEEE 802.3af
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Number of users: 32 user(s)
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Bluetooth: No
Built-in light: Yes
Wide Dynamic Range (WDR): Yes
Languages support: English, Ukrainian
Infrared (IR) cut-off filter: Yes
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Number of languages: 2
Type: IP security camera
Connectivity technology: Wired
Day/night mode: Yes
Package width: 150 mm
Package weight: 800 g
Package height: 141 mm
Package depth: 150 mm
Mounting kit: Yes
Manual: Yes
Number of cameras: 1
Audio formats supported: G.722.1, AAC-LC, PCM, G.711 A-law, G.711 μ-law, MP2L2
Sample rates: 8 - 16 kHz
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 16 - 160 Kbit/s
Built-in HDD: No
Ethernet LAN (RJ-45) ports: 1
Angle of rotation: 355°
Minimum illumination: 0 lx
Tilt angle range: 0 - 75°
Lens viewing angle, diagonal: 127°
Camera shutter speed: 1/100000 - 1/3 s
Lens viewing angle, vertical: 55°
Lens viewing angle, horizontal: 105°
Pan range: 0 - 355°
Number of Privacy masking areas: 4
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Frame rate: 20 fps
Video formats supported: H.265, H.264, H.264+, H.265+
Supported video modes: 360p, 720p, 1440p, 480p, 1080p
Privacy masking: Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Image quality adjustment: Saturation, Contrast, Brightness, Sharpness
Digital Wide Dynamic Range (DWDR): Yes
Supported graphics resolutions: 640 x 360, 2560 x 1440, 1280 x 720 (HD 720), 3200 x 1800, 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Maximum resolution: 3200 x 1800 pixels
Noise reduction technology: 3D noise reduction
Video compression formats: H.265, H.264+, H.265+, H.264
Video recording: Yes
Total megapixels: 6 MP
Noise reduction: Yes
Infra-red wavelength: 850 nm
LED type: IR/White
Night vision: Yes
Night vision distance: 30 m
Recognize distance: 15 m
Number of lenses: 1
Fixed focal length: 2.8 mm
Observe distance: 30 m
Maximum aperture number: 1.6
Detect distance: 76 m
Identify distance: 7 m
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Sustainability compliance: Yes
Compliance certificates: UL, CB, RoHS, CE, WEEE, BIS, REACH
