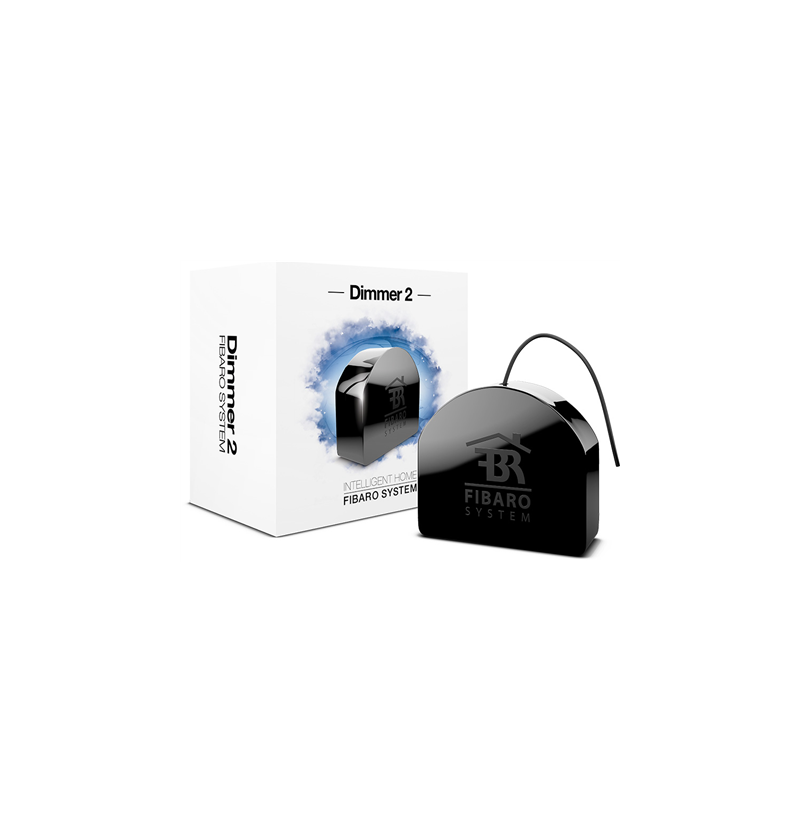

Fibaro | Dimmer 2 | Z-Wave | Black

Ypatybės: Remotely controlled light dimming module is designed to work with various types of light sources. It may be connected to two-wire or three-wire configuration so it can operate with or without neutral lead. FIBARO Dimmer 2 can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. New FIBARO Dimmer 2 is equipped with an algorithm of smart light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with nondimmable light sources (in 3-wire connection).

Tipas: Dimmer

Galingumas: 250W

Frequency: 868.4 Mhz

Colour of product: Black

Type: Actors

Embeeded battery: No

WEEE tax: No

Volume (m3): 0.00 m³

Tare weight (kg): 0.01 kg

Gross depth (mm): 65.00 mm

Gross width (mm): 65.00 mm

Gross height (mm): 45.00 mm

Paper/Pasteboard: 35.00 g

Gross weight: 0.06 kg

Supported network protocols: Z-Wave

Purpose: Home Automation

Special features: Compatible with any Z-Wave and Z-Wave+ controller • Implemented algorithm of smart light source detection • Active power and energy metering functionality • Works with various types of switches – momentary, toggle, three-way, etc. • Soft-start function • LED diode signaling inclusion status, calibration status and MENU levels • Built-in Z-Wave range tester • Dimmer 2 automatically senses faults in wiring, reporting excess temperature, burnt bulb, overvoltage and overload • Advanced configuration options

Technical features: Power source 220-240V~ 50Hz • Output power: 50-250W (resistive load) • Overcurrent protection: required external 10A circuit breaker • Power consumption: <1.3W • Ambient temperature: 0oC - 35oC • To be mounted in standard wall switch boxes Ø 50mm • Radio protocol: Z-Wave Plus • Radio frequency: 868.42 MHz or 869.85 MHz EU; 908.4 MHz or 916 MHz US; 921.4 MHz or 919.8 MHz ANZ; 869 MHz RU; • Outside dimensions (L x W x H): 42.5 x 38.25 x 20.3mm • Compliant with EU directives: RoHS 2011/65/EU, LVD 2006/95/EC, EMC 2004/108/EC, R&TTE 1999/5/EC

Packing quantity: 1.00 pc(s)

Frequency range: 868.4 MHz

Other features: Radio controlled light dimming module, designed to work with various types of light sources. May be connected to two-wire or three-wire configuration. Fibaro Dimmer 2 can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. New Fibaro Dimmer 2 is equipped with an algorithm of smart light source detection which makes configuration easier and ensures high compatibility of the device. It features automatic overload protection switch-off and soft start function. In case of non-dimmable light sources only on/off function may be possible (in 3-wire connection). Product Highlights: As a dimmer, works with: • 230V operated conventional incandescent and halogen light sources • 12V operated ELV halogen lamps (with electronic transformers) • 12V operated MLV halogen lamps (with ferromagnetic transformers) • Dimmable LED lamps • Dimmable compact fluorescent CFL tube lamps • Supported dimmable light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2 (depending on the type of load) As a switch, works with: • Compact fluorescent lamps • LED lamps • Supported light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2 (depending on the type of load)

Warranty: 24 month(s)

Producer product name: Dimmer 2

Connectivity technology: Wireless

Net weight: 0.05 kg
