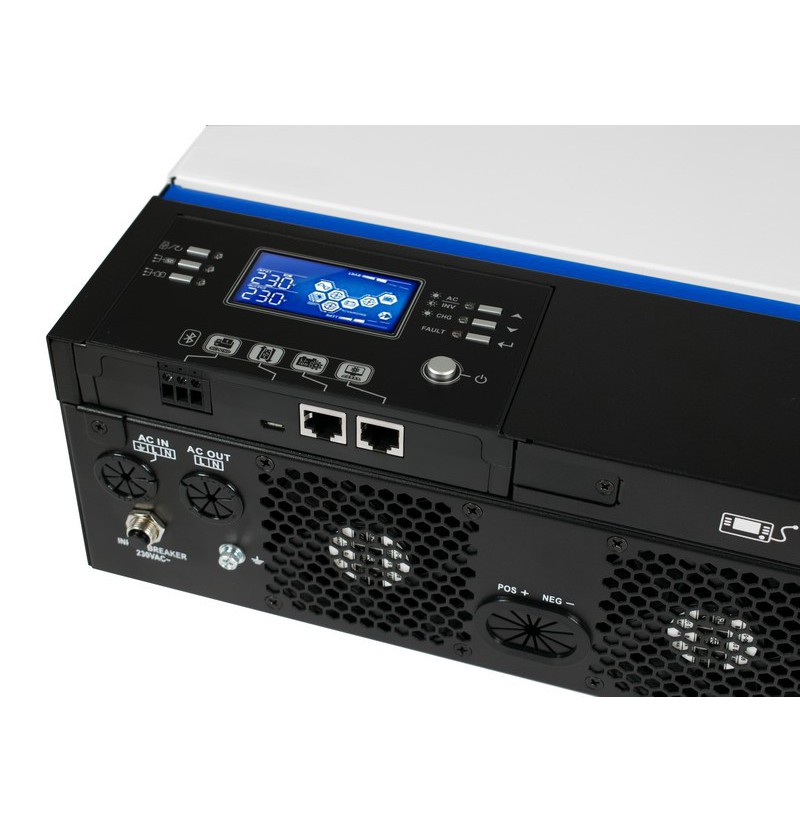

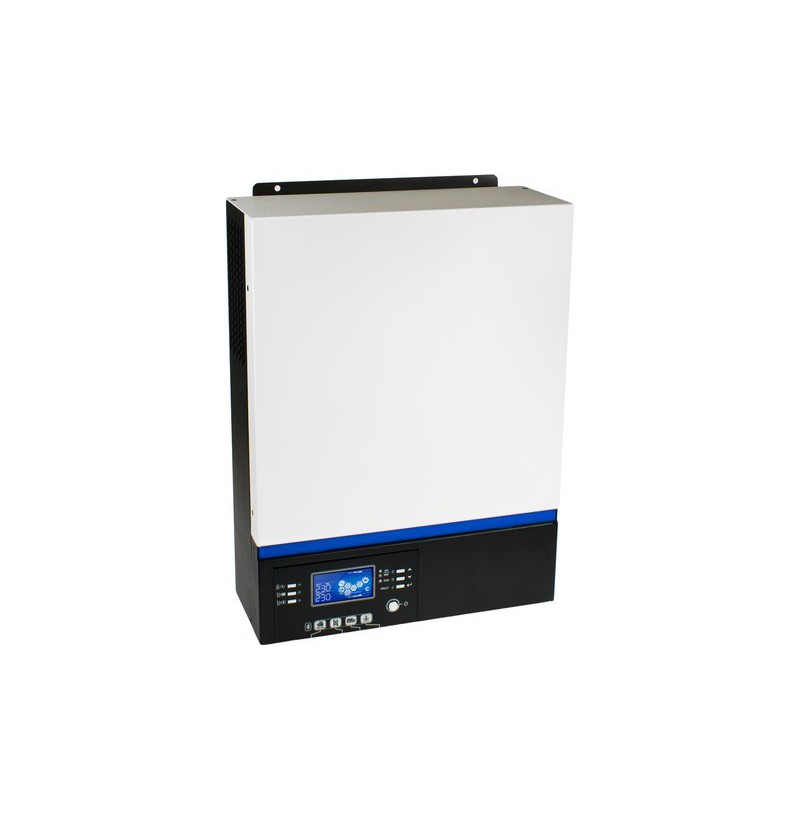

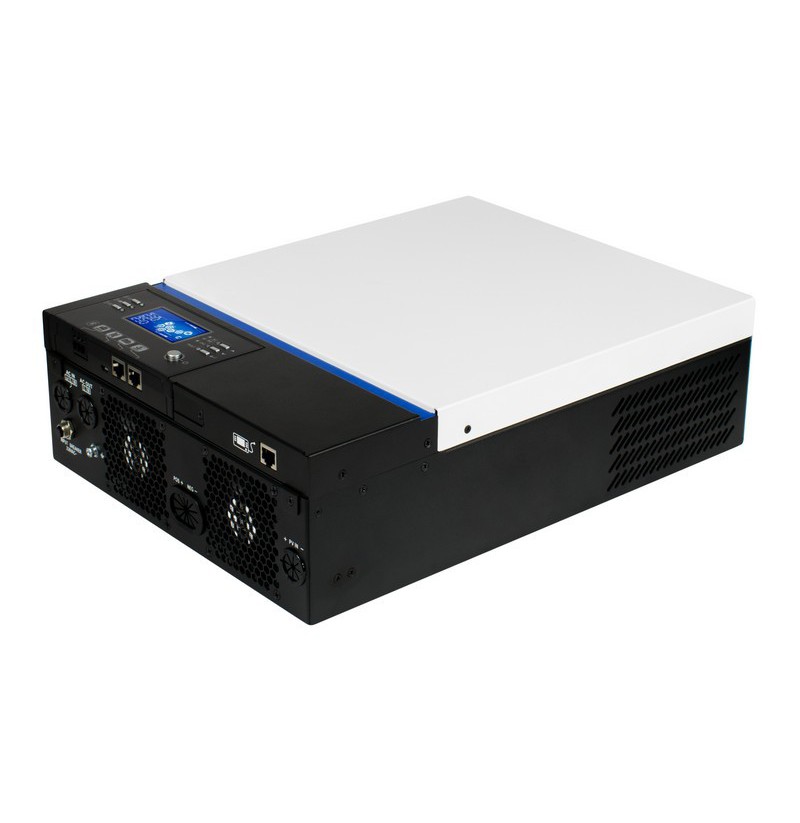

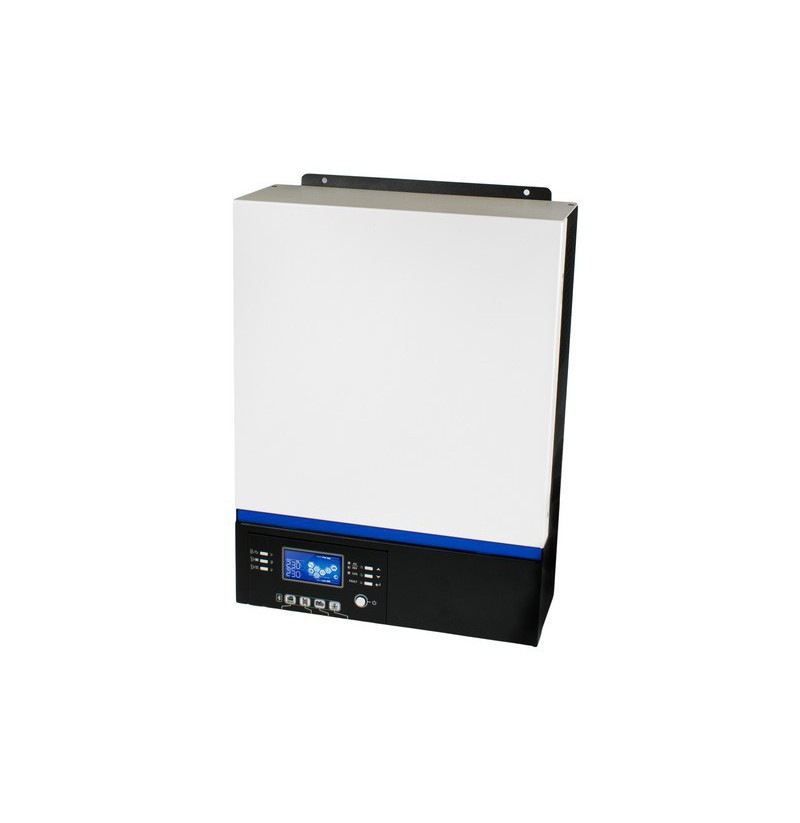

Off-Grid Hybrid Solar Inverter AZO Digital ESB 10kW-48 Padidinti

Off-Grid Hybrid Solar Inverter AZO Digital ESB 10kW-48

945,41 €

5903332566457

Galimas pasirinkimas

 pristatymas 9...11 d.d.

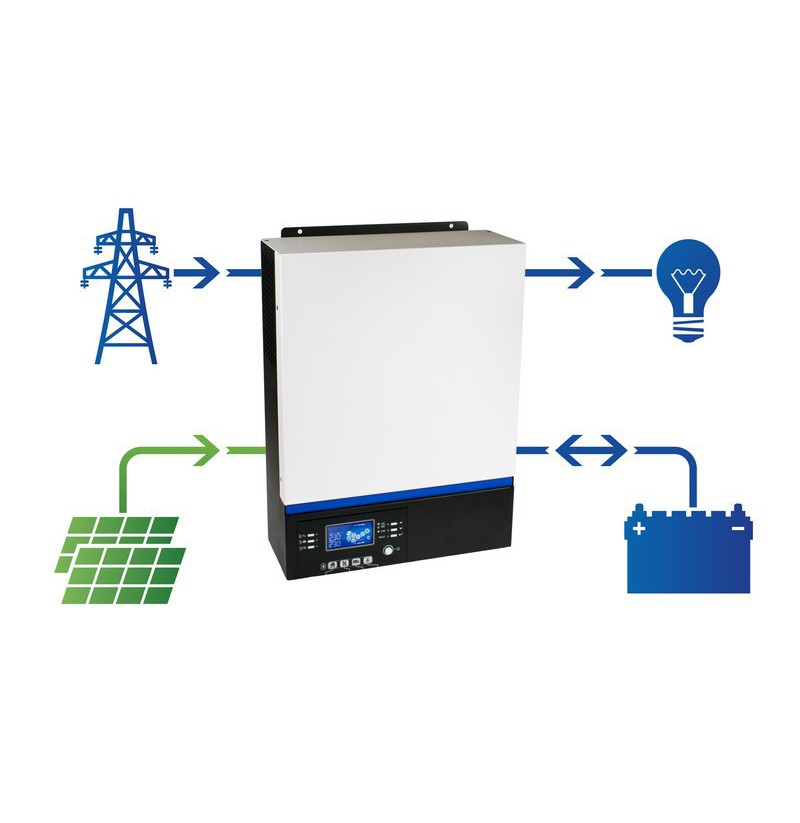

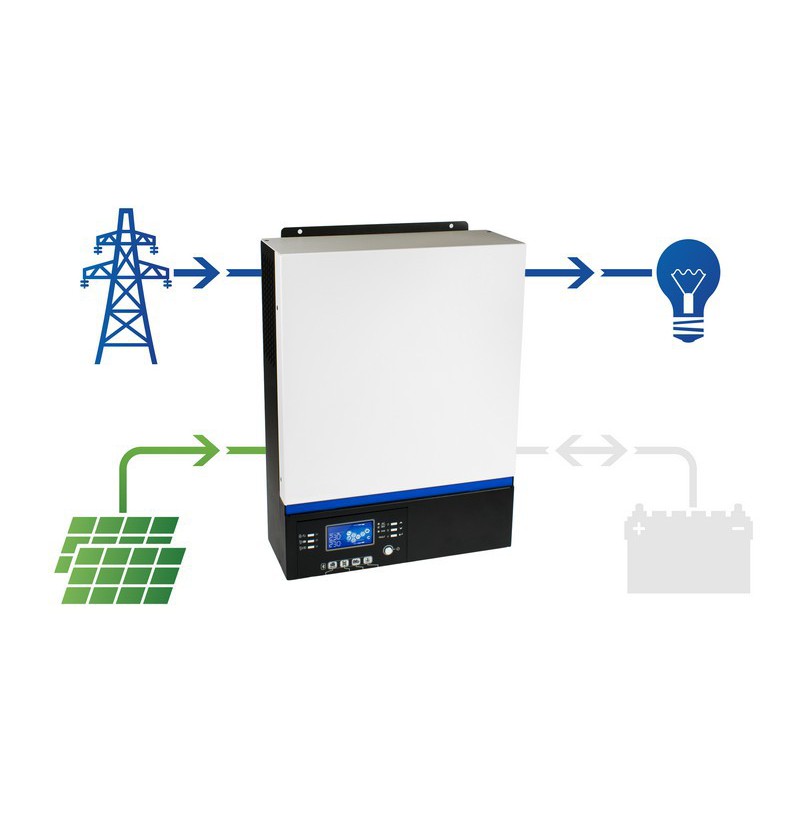

Purpose: Off-grid power systems based on energy from PV panels, grid and battery
Power supply type: -
Product colour: White
Power current type: AC/AC
Power protection features: Overload
MPPT function: Yes
International Protection (IP) code: IP21
Door cooling fan: Yes

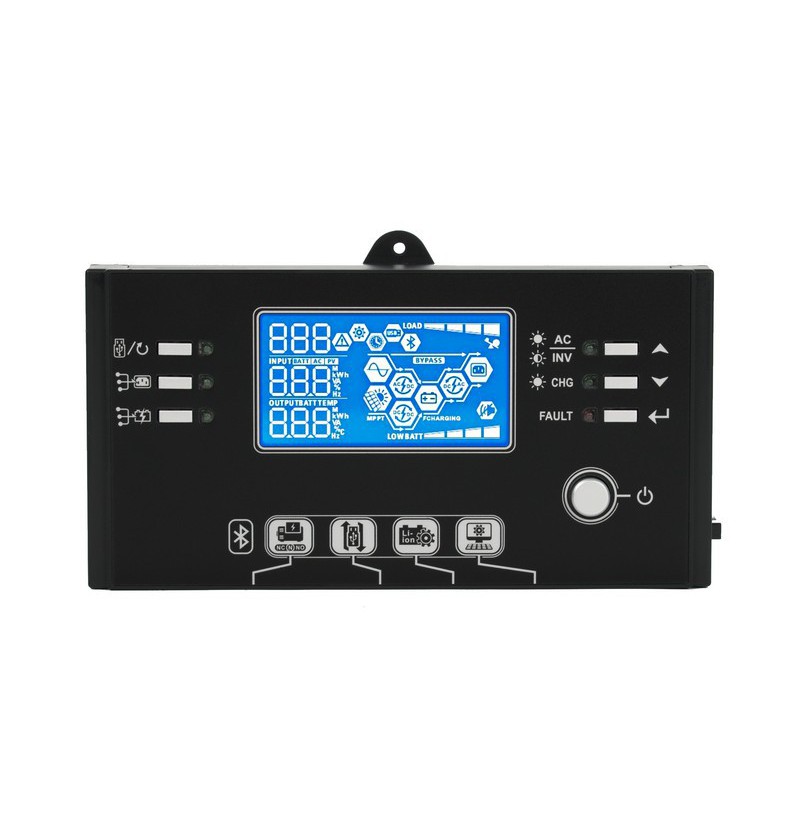

Display included: Yes
Recharge indicator: Yes

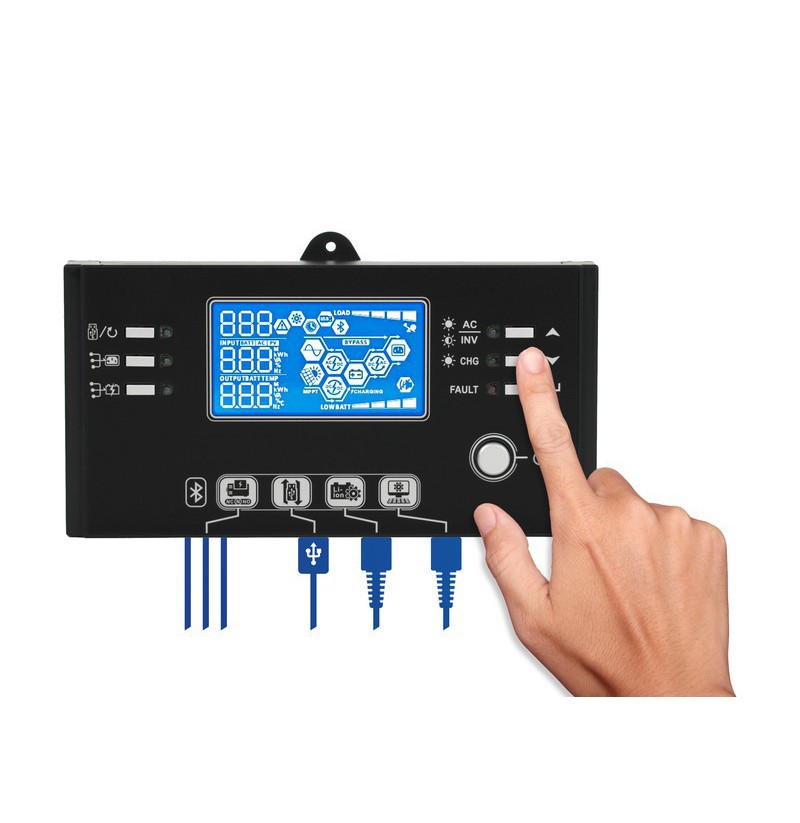

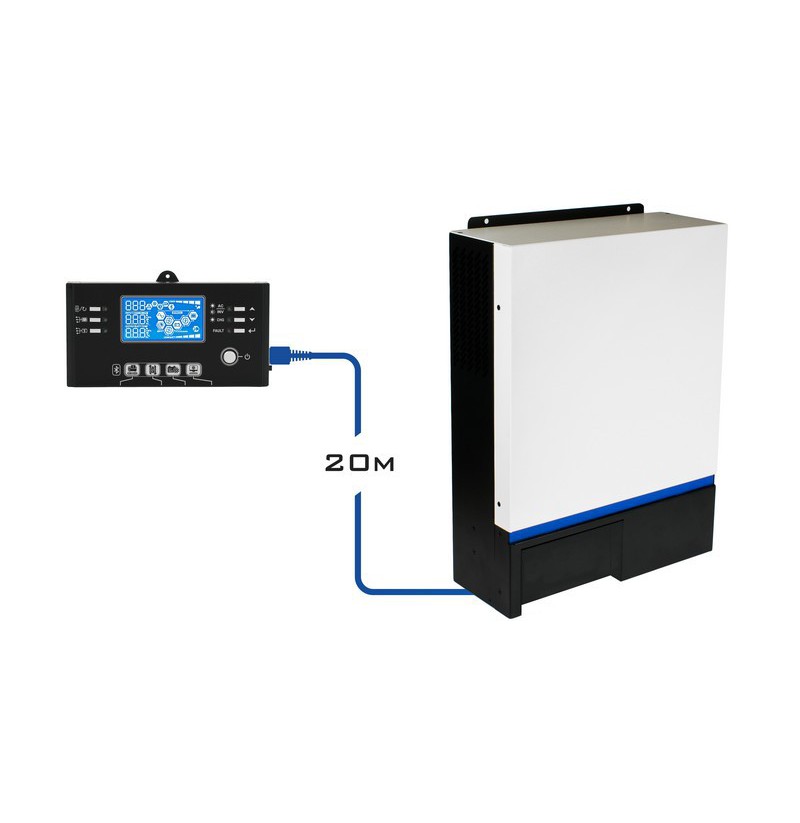

Control display unit: Yes
Output power capacity: 10000 VA
Waveform: Sine
Input frequency: 50/60 Hz
Charging voltage: 54 V
Maximum charging current from solar panels (MPPT): 80 A
AC input voltage: 90 - 280 V
Nominal input voltage: 230 V
MPPT voltage range: 120 - 450 V
Continuous power: 5000 VA
DC battery voltage: 48 V
Output voltage (VAC): 230 VAC
Height: 400 mm
Weight: 10 kg
Depth: 115 mm
Width: 300 mm
Efficiency: 93%
Cooling type: Active
Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 5 - 95%
Typical switching time: 15 ms
Cables included: AC
DFU / User manual: Yes
Control display unit: Yes
USB port: Yes

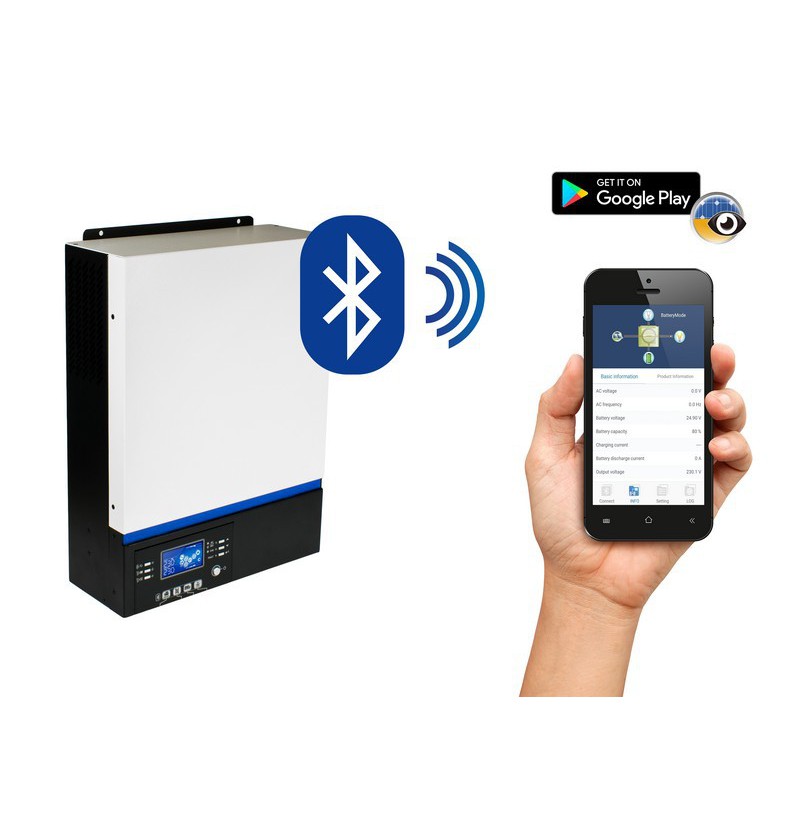

Bluetooth: Yes
