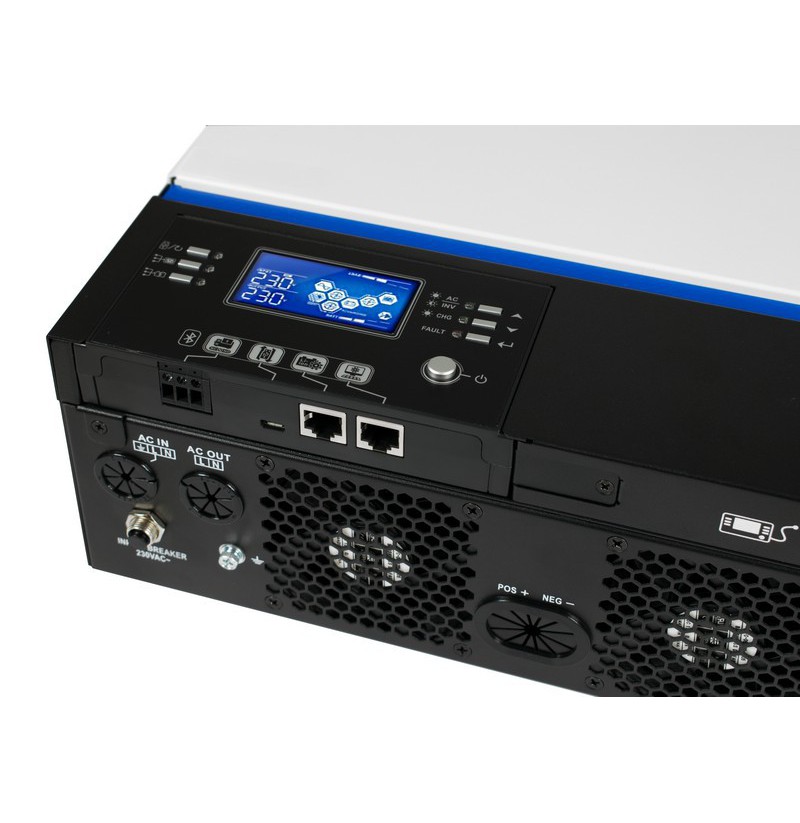

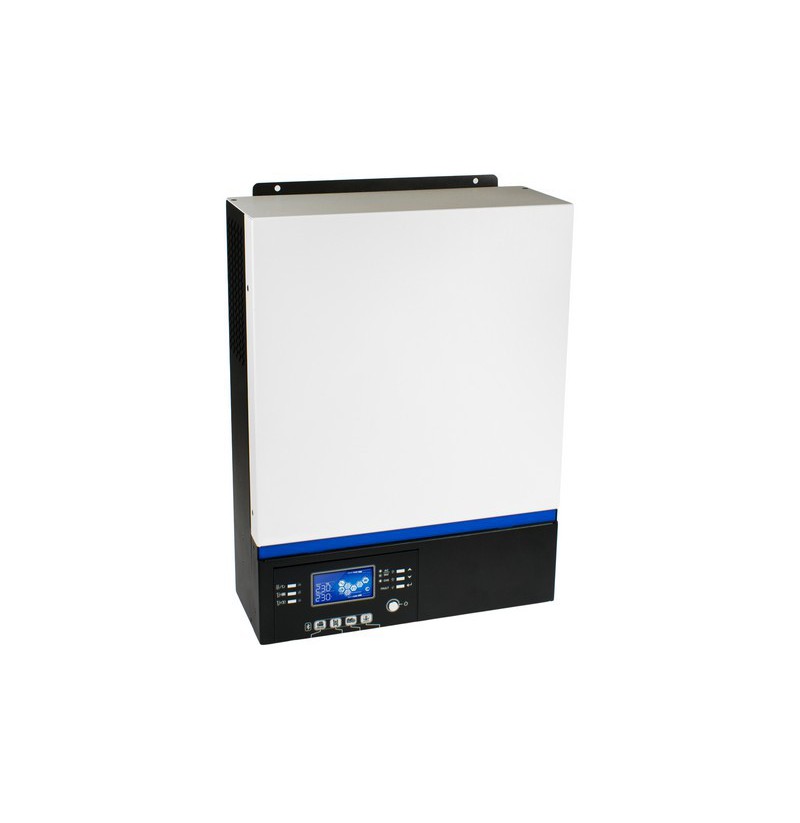

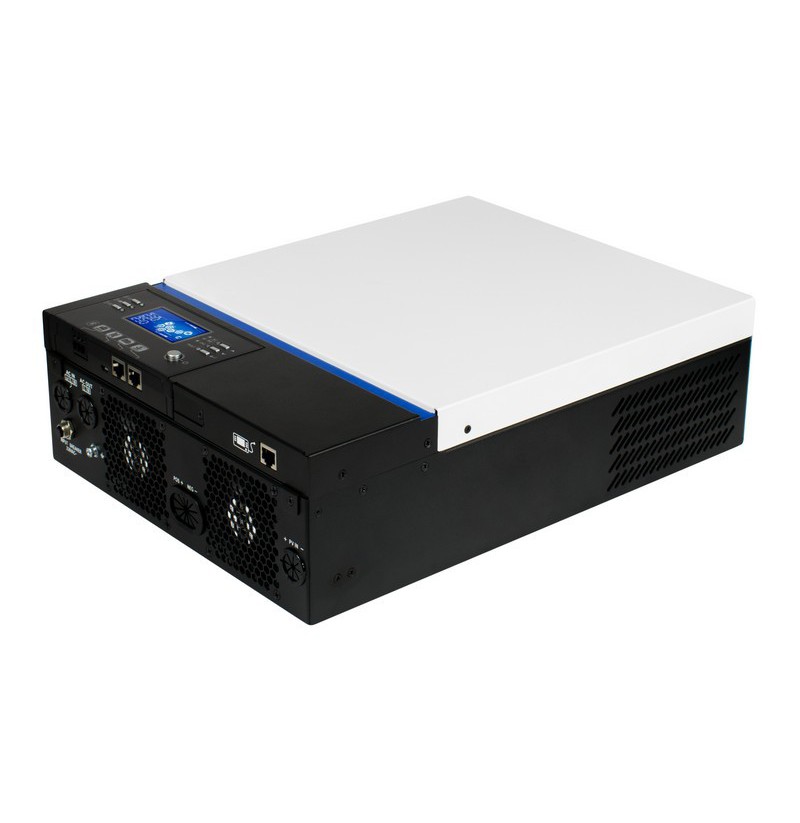

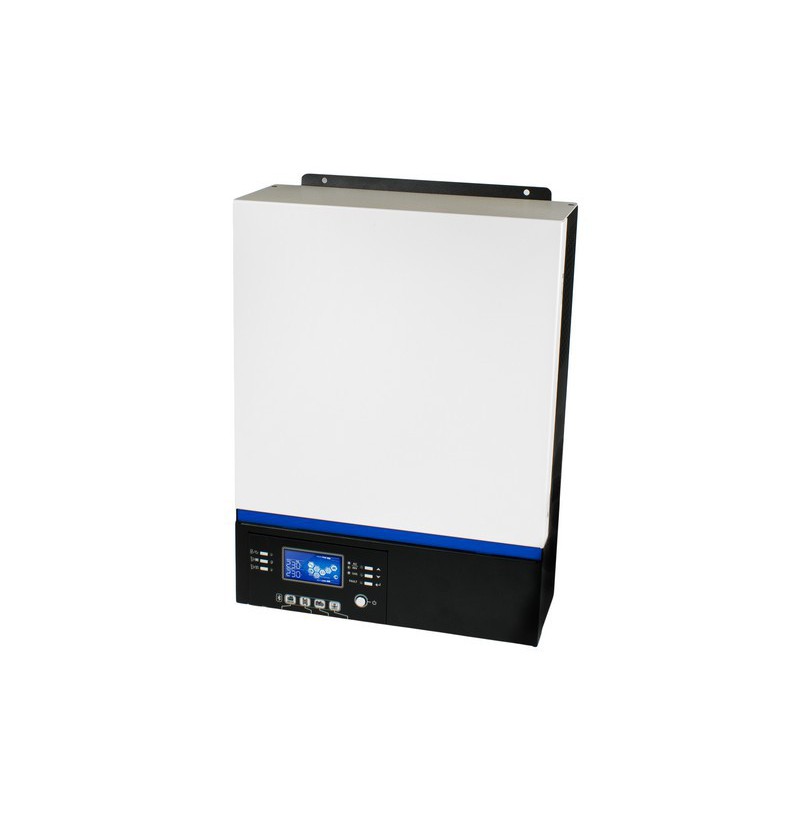

Off-Grid Hybrid Solar Inverter AZO Digital ESB 3KW-24 Padidinti

Off-Grid Hybrid Solar Inverter AZO Digital ESB 3KW-24

636,06 €

5903332566433

Galimas pasirinkimas

 pristatymas 9...11 d.d.

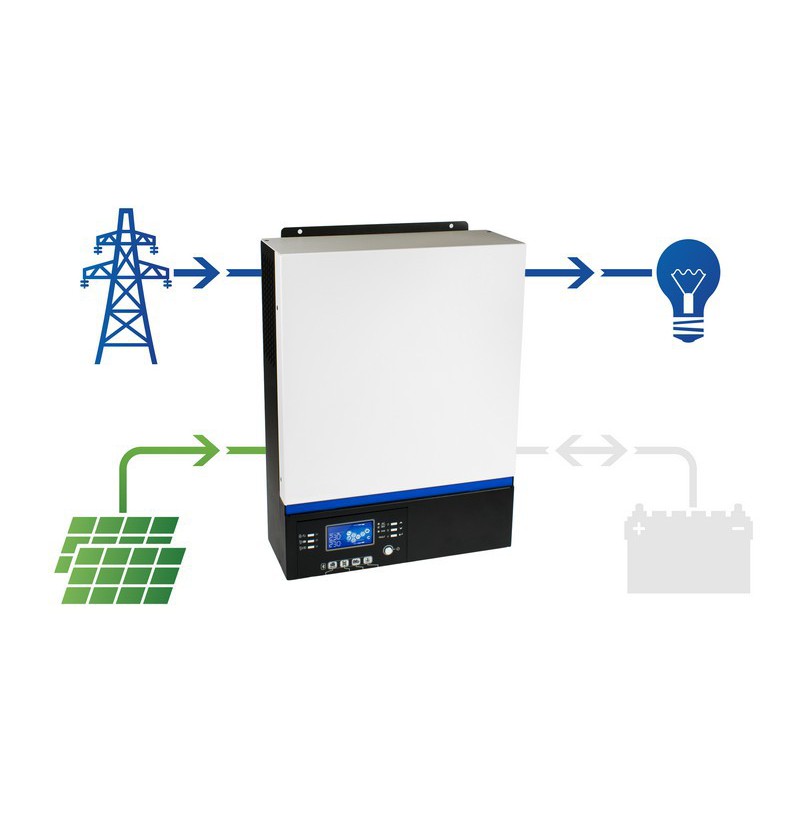

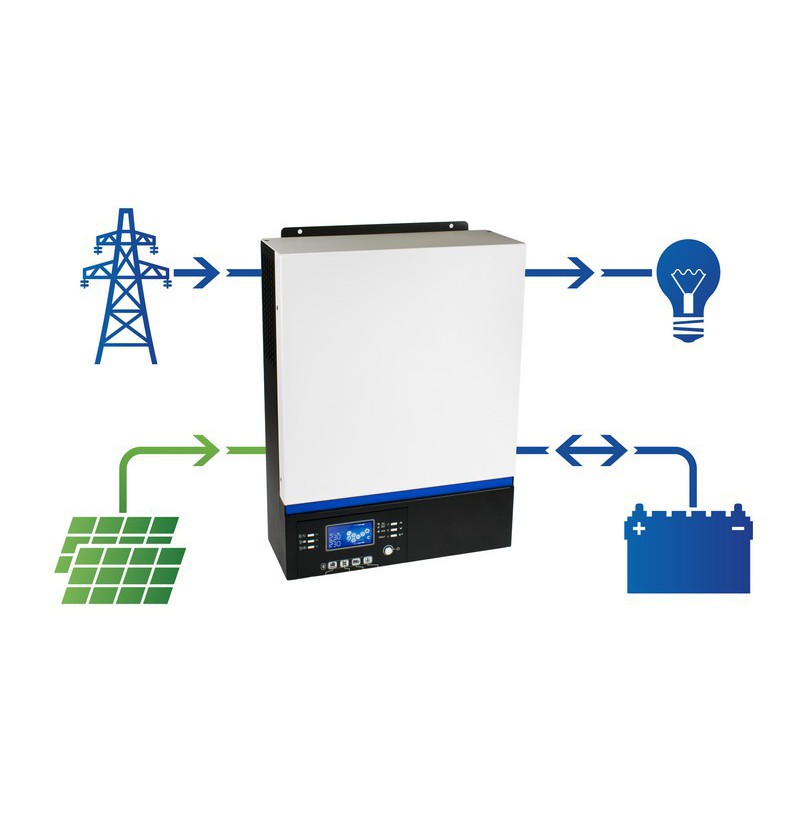

Purpose: Off-grid power systems based on energy from PV panels, grid and battery
Power supply type: -
Power protection features: Overload
International Protection (IP) code: IP21
Power current type: AC/AC
Product colour: White
MPPT function: Yes
Door cooling fan: Yes

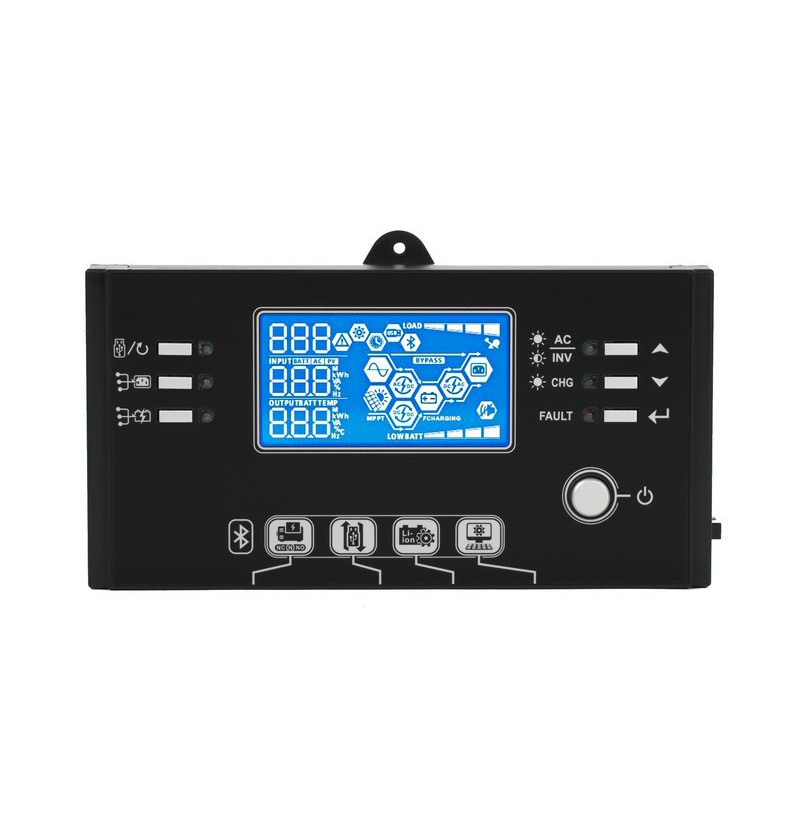

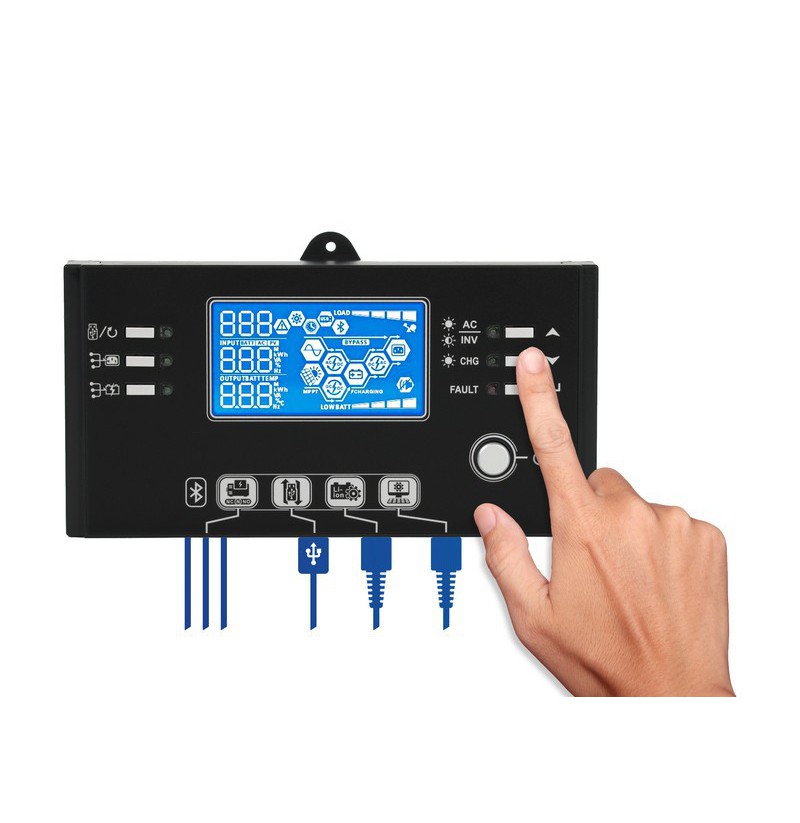

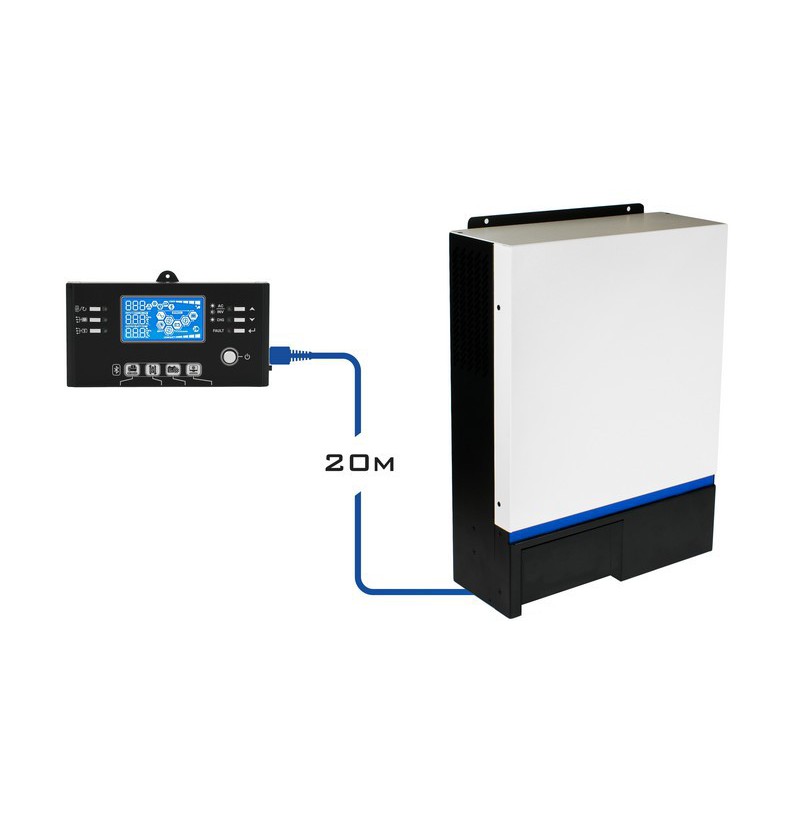

Control display unit: Yes
Recharge indicator: Yes
Display included: Yes
Input frequency: 50/60 Hz
Charging voltage: 27 V
Output power capacity: 3000 VA
Output voltage (VAC): 230 VAC
MPPT voltage range: 120 - 380 V
Waveform: Sine
AC input voltage: 90 - 280 V
Nominal input voltage: 230 V
Continuous power: 1500 VA
Maximum charging current from solar panels (MPPT): 60 A
DC battery voltage: 24 V
Height: 390 mm
Depth: 100 mm
Width: 280 mm
Weight: 8.5 kg
Operating temperature (T-T): -10 - 50 °C
Typical switching time: 15 ms
Efficiency: 93%
Operating relative humidity (H-H): 5 - 95%
Cooling type: Active
Cables included: AC
DFU / User manual: Yes
Control display unit: Yes
USB port: Yes
Bluetooth: Yes
