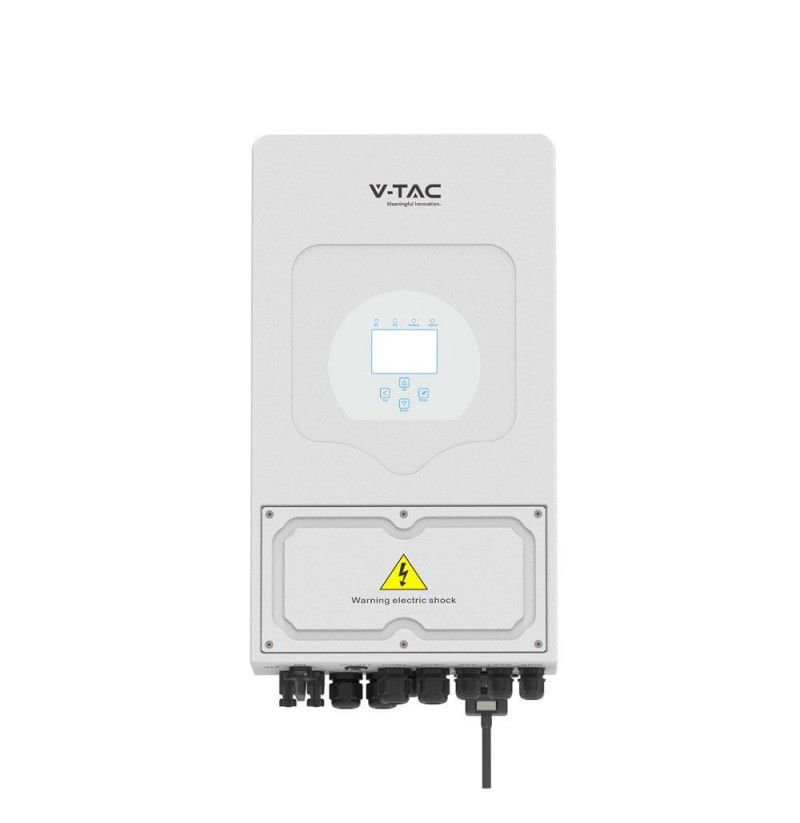

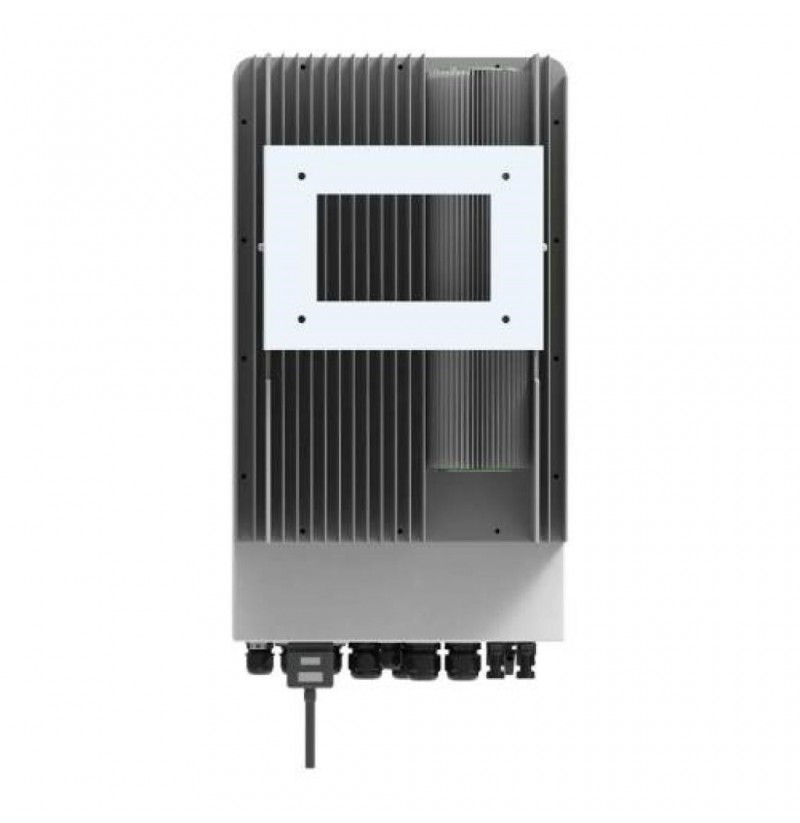

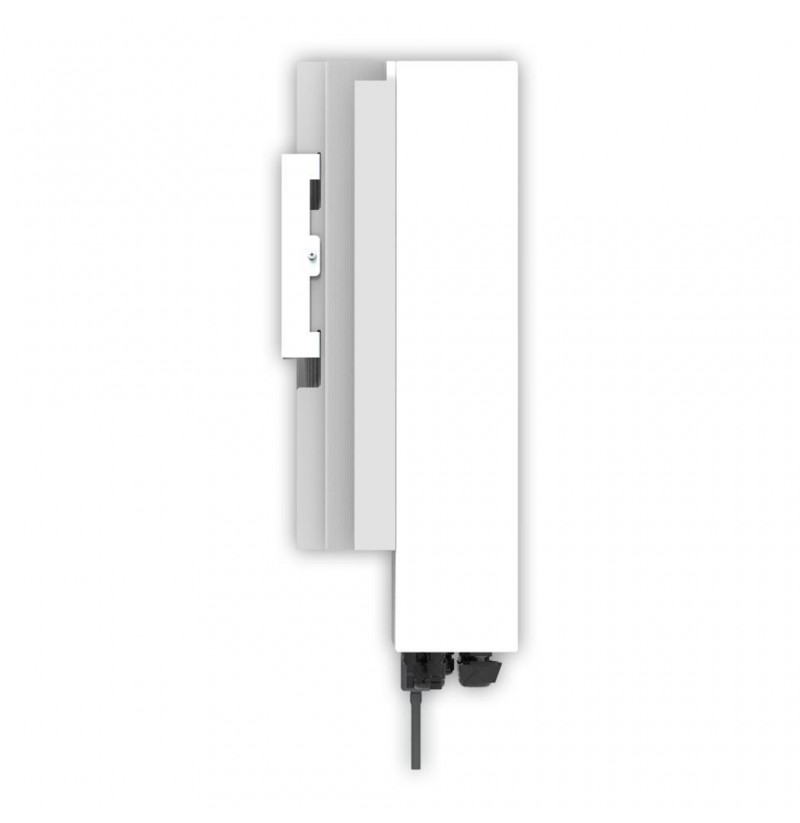

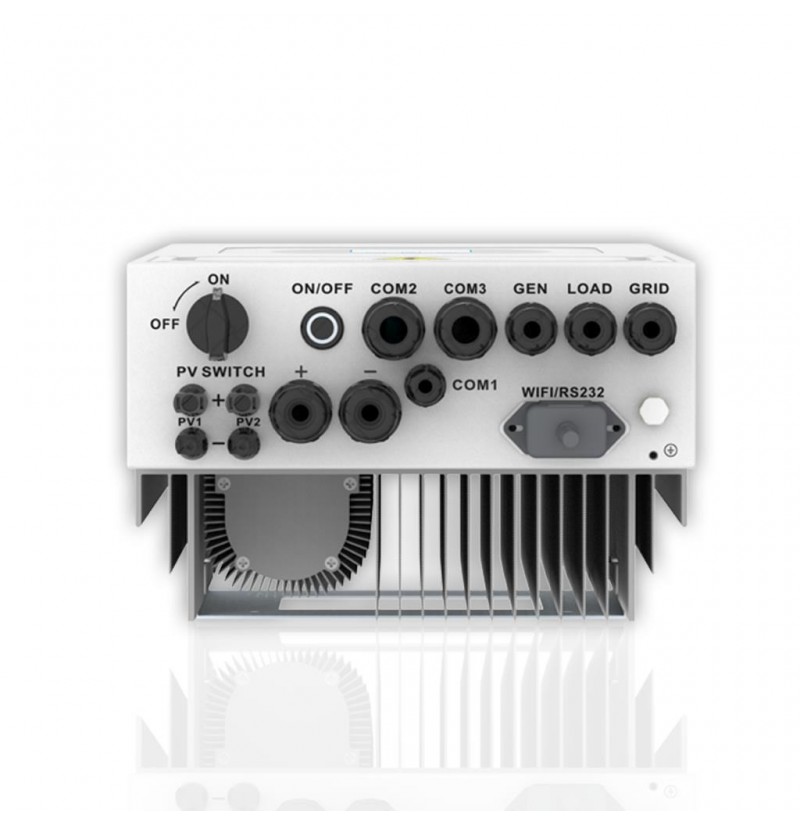

Hybrid inverter V-TAC DEYE SG03LP1 (SUN-3.6K-SG03LP1-EU) Three-phase inverter 3.6KW ON GRID/OFF GRID (SKU 11725) White Padidinti

Hybrid inverter V-TAC DEYE SG03LP1 (SUN-3.6K-SG03LP1-EU) Three-phase inverter 3.6KW ON GRID/OFF GRID (SKU 11725) White

1 071,43 €

3800170202658

Galimas pasirinkimas

 pristatymas 7...9 d.d.


Maximum output power: 5500 W
Touchscreen: Yes
Nominal input voltage: 550 V
Maximum AC current: 11.4 / 10.9 A
Standard interfaces: RS485, CAN
Number of MPP trackers: 2
Protection class: II
Rated current: 7.6 / 7.3 A
Number of phases: 3
Built-in display: LCD
Power current type: DC/AC
Strings for MPP tracker: 1+1
Starting voltage: 160 V
Input current: 13 + 13 A
DC voltage range: 350 - 650 V
MPPT voltage range: 200 - 650 V
Product colour: White
International Protection (IP) code: IP65
Rated AC output power: 5000 W
Maximum continuous AC current: 50 A
Maximum input power (DC): 6500 W
Overcurrent protection: Yes
Short circuit protection: Yes
Polarity reverse circuit protection: Yes
Overvoltage protection: Y
Noise level: 45 dB
Cooling type: Natural
Operating temperature (T-T): -25 - 60 °C
Depth: 281 mm
Weight: 33.6 kg
Width: 422 mm
Height: 702 mm
Certificates: CE, EMC, RoHS
Maximum charging current: 90 A
Maximum discharge current: 90 A
Battery voltage range: 40 - 60 V
Battery temperature sensor: Yes
