SCHNEIDER ELECTRIC CHARGE 7,4/11/22KW 1P/3PN T2S Padidinti

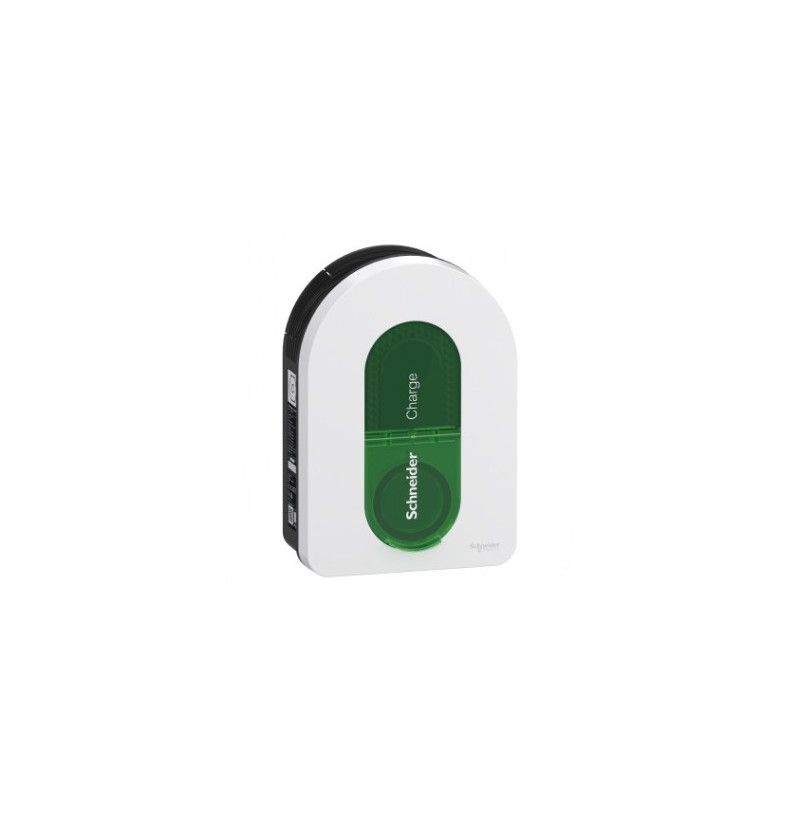

Schneider Electric EVH5A22N2S electric vehicle charging station Green, White Wall 1

562,53 €

EVH5A22N2S

3606486846162

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Warranty period: 1.5 year(s)
Compliance certificates: REACH, RoHS
Supported protocols: OCPP 1.6
Certification: EN 61851 IEC 61851-1 EN 61000-6-1 EN 61000-6-3
Mechanical impact protection code: IK10
International Protection (IP) code: IP55
Socket type: Type 2
Quantity per pack: 1 pc(s)
Wi-Fi: Yes
Power source type: AC
Integrated charging cable: Yes
Product colour: Green
Cable colour: Black
Built-in display: No
LED indicators: Yes
Mounting type: Wall
Single-phase output voltage supported: 230 V, 240 V, 400 V
Minimum operating power (single-phase): 7.4 kW
Maximum operating power (single-phase): 22 kW
Number of phases: 1
Nominal frequency: 60 Hz
Maximum operating current per phase: 32 A
Operating altitude: 0 - 2000 m
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 45 °C
Storage temperature (T-T): -40 - 85 °C
Package height: 225 mm
Package weight: 4.71 kg
Height: 352 mm
Depth: 117 mm
Width: 244 mm
Package width: 290 mm
Weight: 3.2 kg
Package depth: 395 mm
Ethernet LAN: Yes
