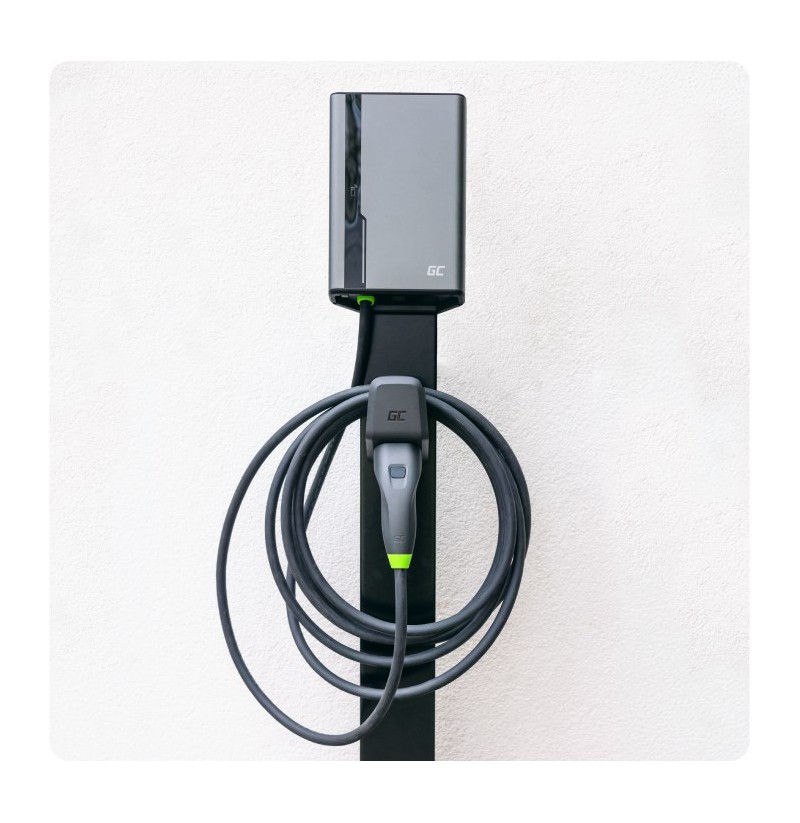

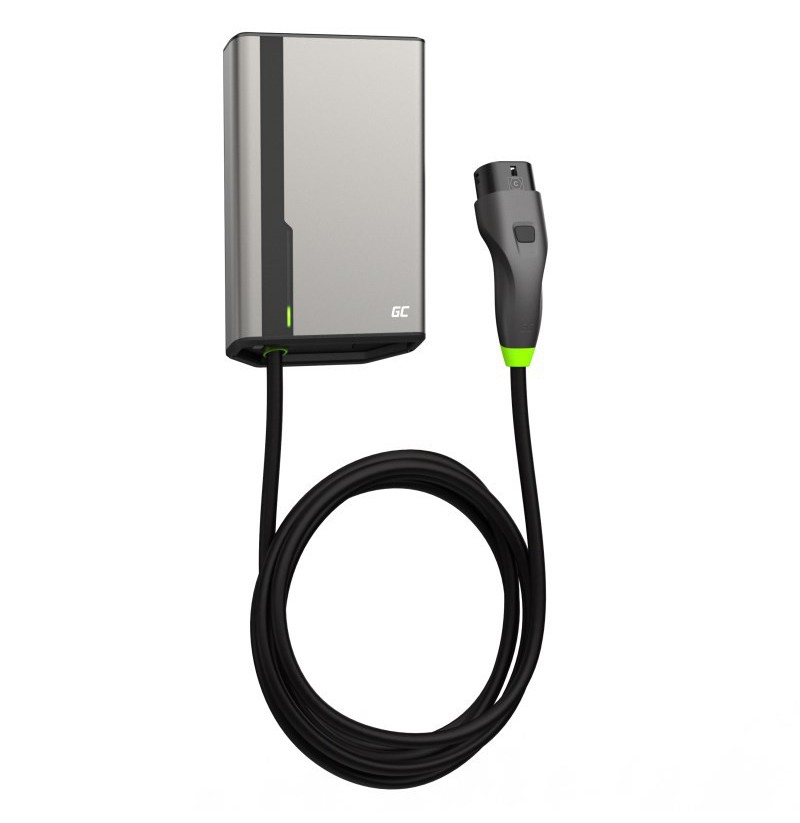

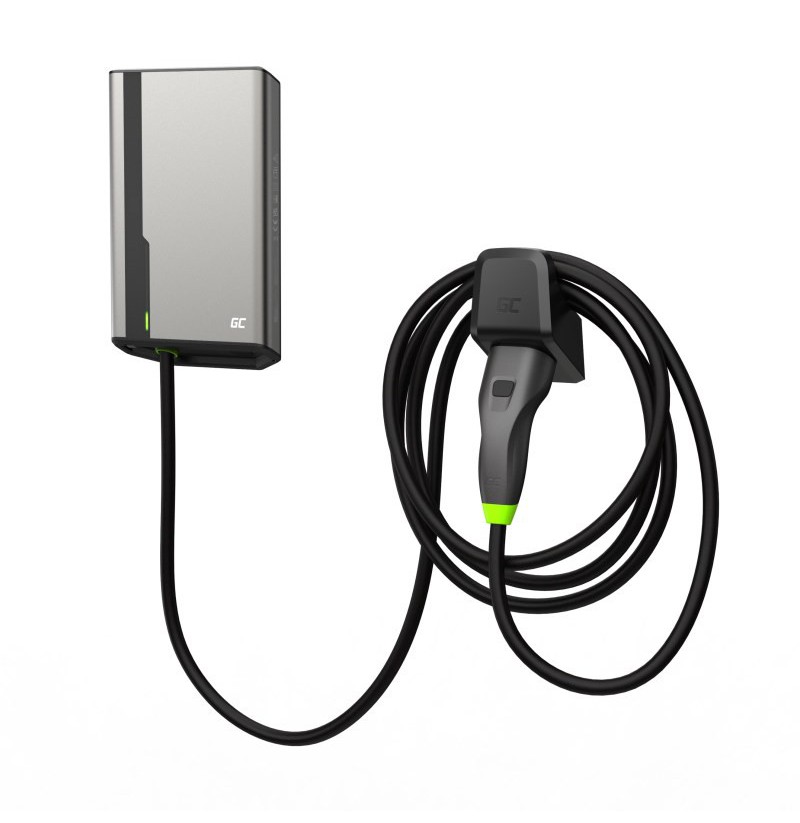

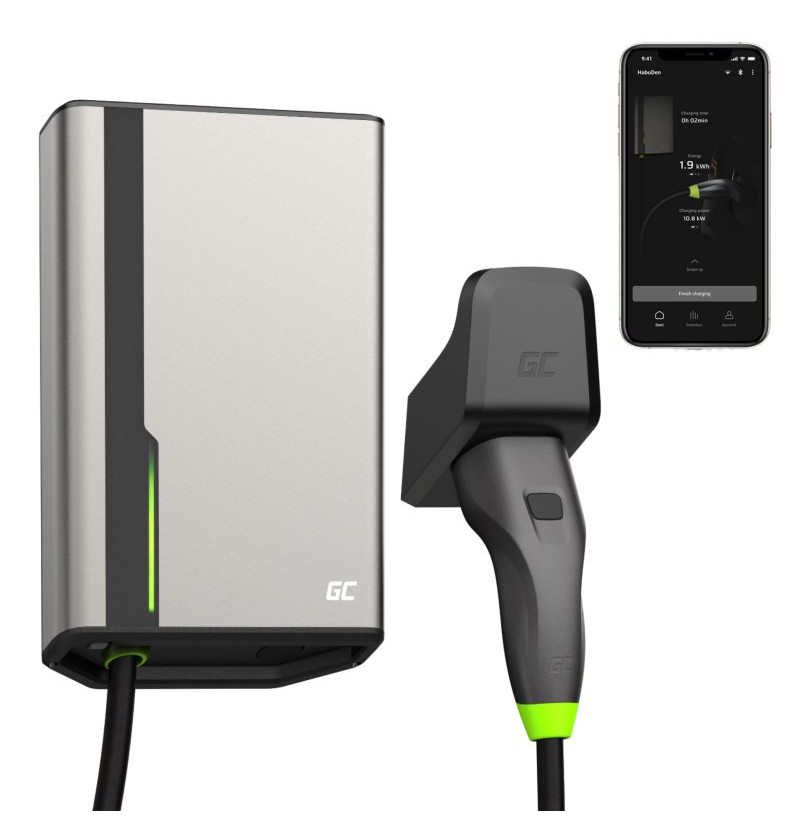

Green Cell EVGC021A2275 electric vehicle charging station Grey Aluminium Wall 3 Built-in display LED Padidinti

Green Cell EVGC021A2275 electric vehicle charging station Grey Aluminium Wall 3 Built-in display LED

754,66 €

5904326374669

Galimas pasirinkimas

 pristatymas 7...9 d.d.


Warranty period: 2 year(s)
Certification: IEC 62196, IEC 62752, IEC 60309, EN 300 220-1/2, EN 300 328, EN 301 489-1/17, EN 301 489-1/3,
EN 301 489-1/52, EN 301 511
Power source type: AC
Firmware upgradeable: Yes
Over current protection: Yes
International Protection (IP) code: IP54
Mechanical impact protection code: IK10
Vehicle connection plug: Type 2
Wi-Fi: Yes
Vehicle charging standard: Mode 3
Direct current failure monitoring: Yes
LED indicators: Error, Power, Activity, Fault, Charging
Built-in display: Yes
Display technology: LED
Mounting type: Wall
Housing colour: Grey
Housing material: Aluminium
Integrated charging cable: Yes
Cable colour: Black
Integrated energy meter: Yes
Maximum operating current (three-phase): 32 A
Three-phase output voltage supported: 400 V
Maximum operating power (single-phase): 7.2 kW
Maximum operating current per phase: 32 A
Number of phases: 3
Single-phase output voltage supported: 230 V
Maximum operating power (three-phase): 22 kW
Minimum operating power (single-phase): 1.4 kW
Maximum charging power: 22000 W
Weight: 6.72 kg
Width: 211 mm
Depth: 73 mm
Height: 338 mm
Charging cable length: 7.5 m
