Nauja Victron Energy Quattro 48/5000/70-100/100 230V VE.Bus inverter Padidinti

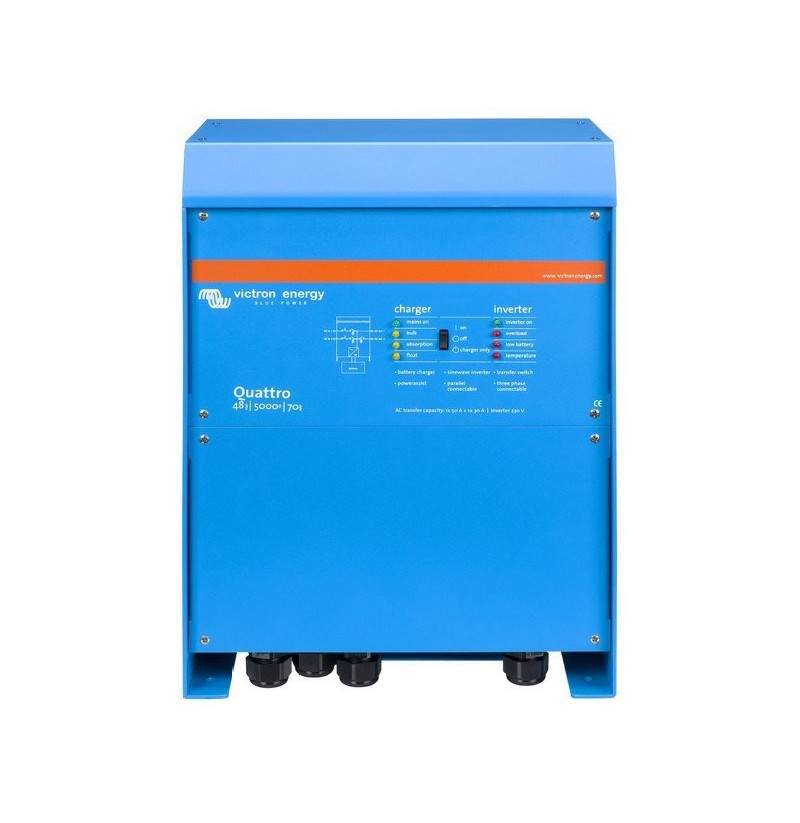

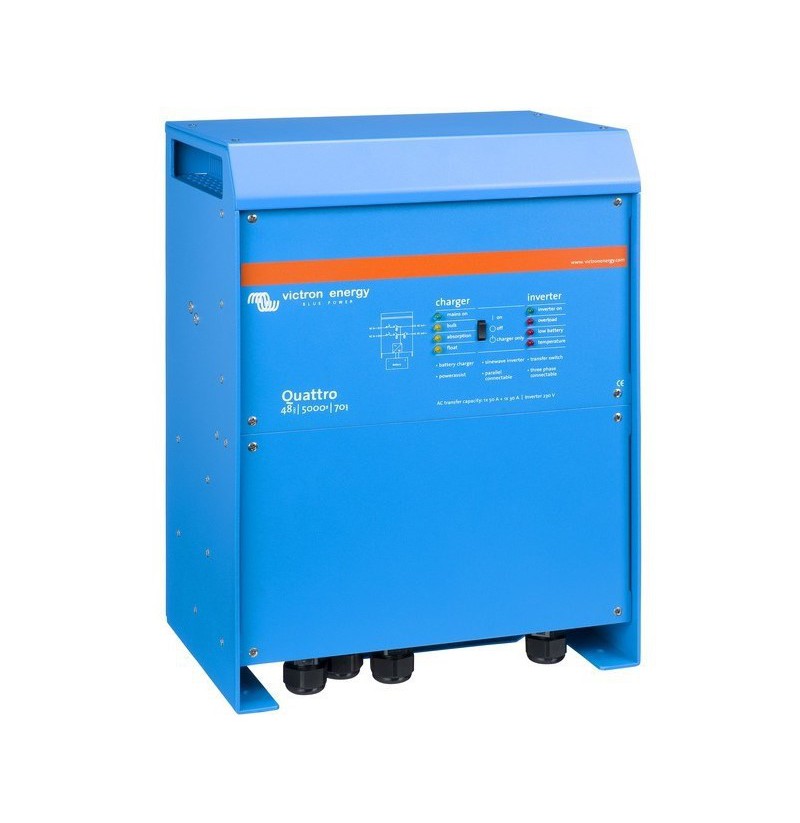

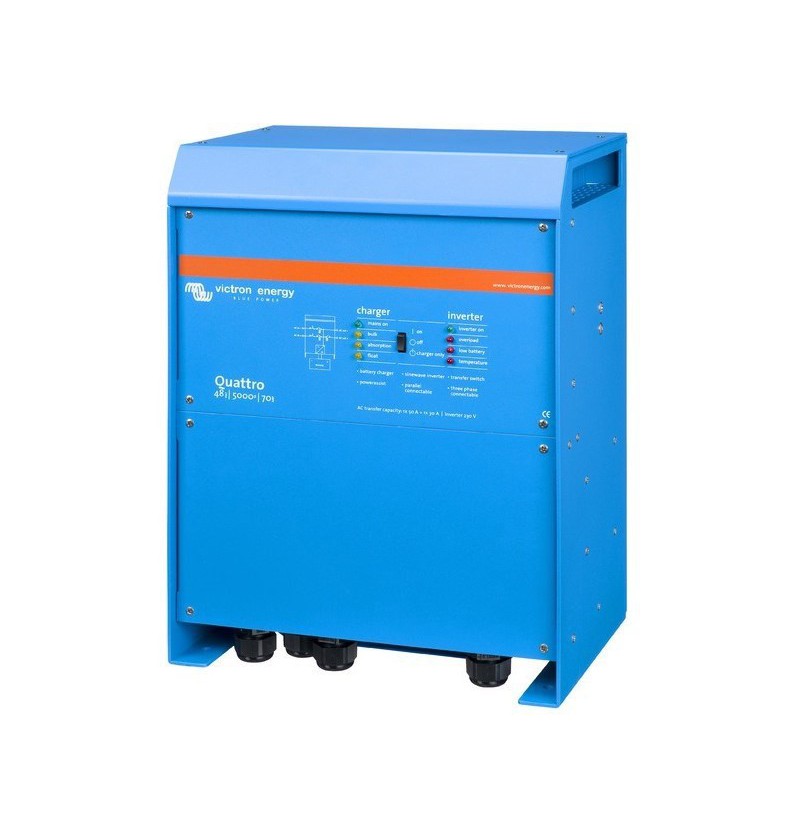

Victron Energy Quattro 48/5000/70-100/100 230V VE.Bus inverter

1 500,47 €

8719076024231

Galimas pasirinkimas

 pristatymas 7...9 d.d.


Power protection features: Over power, Under voltage
Three-phase and parallel operation: Yes
Protection class: a - g
Power current type: DC/AC
Brand compatibility: Victron Energy
Efficiency: 95%
Purpose: Solar panel
Relay outputs: 3
Material: Aluminium
Built-in display: No
Number of AC inputs: 2
Number of VE.Bus ports: 1
Product colour: Blue
Mounting type: M6
Parallel ports quantity: 2
LED indicators: Yes
Number of AC outputs: 2
Power at zero load: 35 W
AC input voltage: 187 - 265 V
Frequency range: 45 - 65 Hz
Charging voltage (absorption): 57.6 V
Output power at 40°C: 3700 W
Charging voltage (liquid): 55.2 V
Output power at 65°C: 3000 W
Charging the current battery: 70 A
Frequency: 50 Hz
Peak power: 10000 W
Input voltage: 38 - 66 V
Apparent power: 5000 VA
DC input voltage: 48 V
Output voltage: 230 V
Output power at 25°C: 4000 W
Maximum feed through current: 2 x 100 A
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 65 °C
International Protection (IP) code: IP21
Height: 440 mm
Depth: 240 mm
Weight: 30 kg
Width: 328 mm
Quantity per pack: 1 pc(s)
