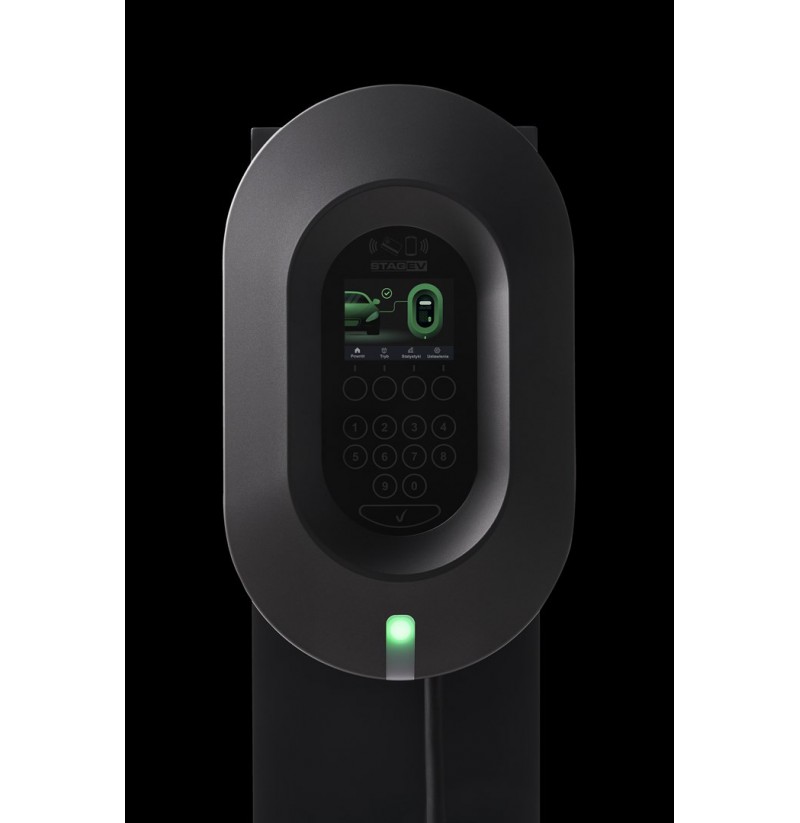

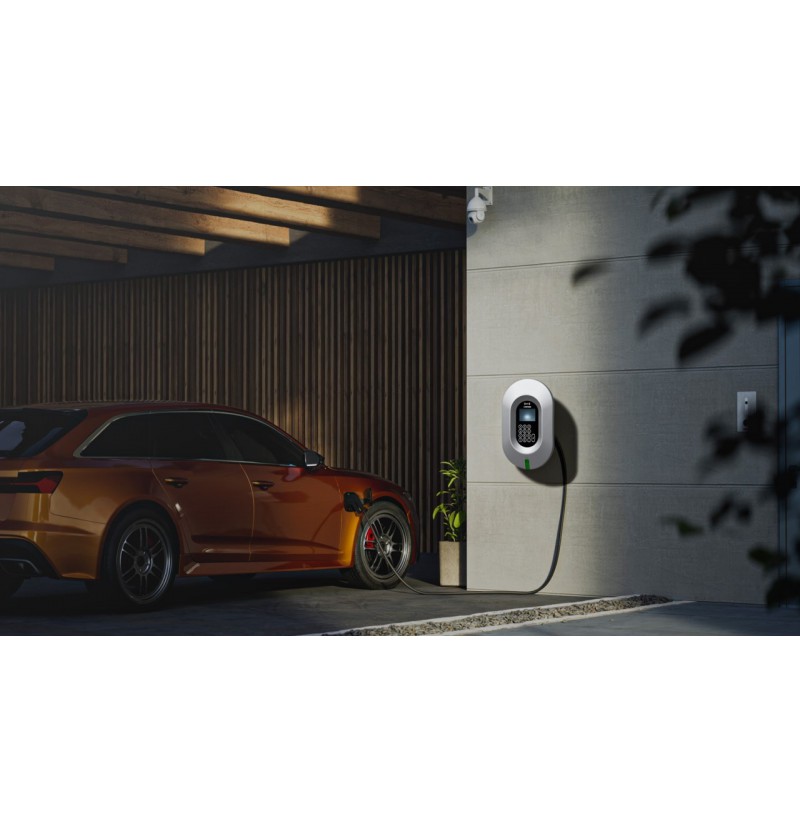

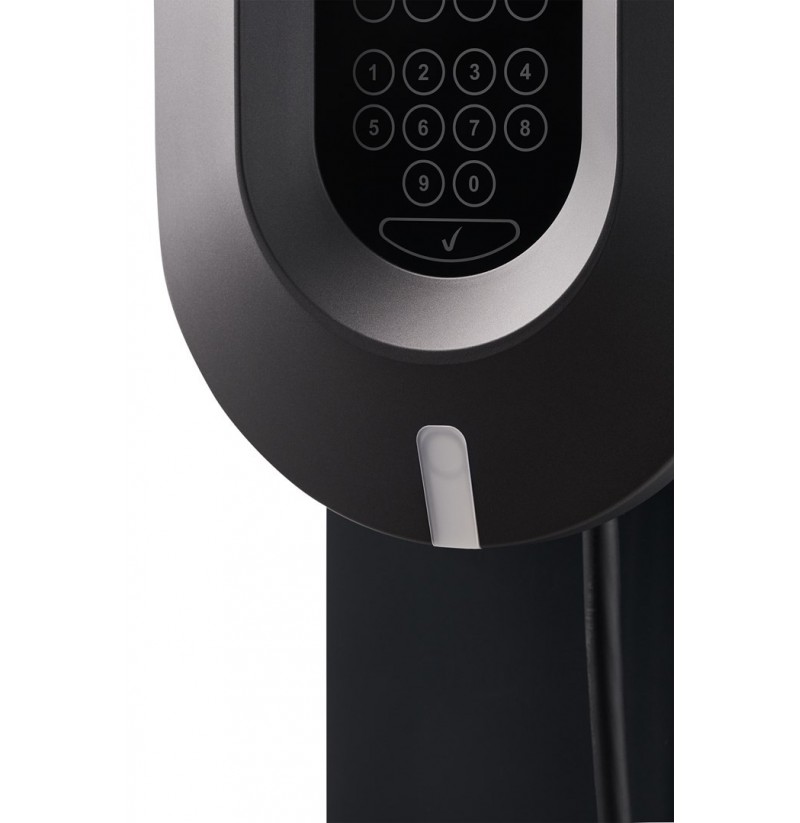

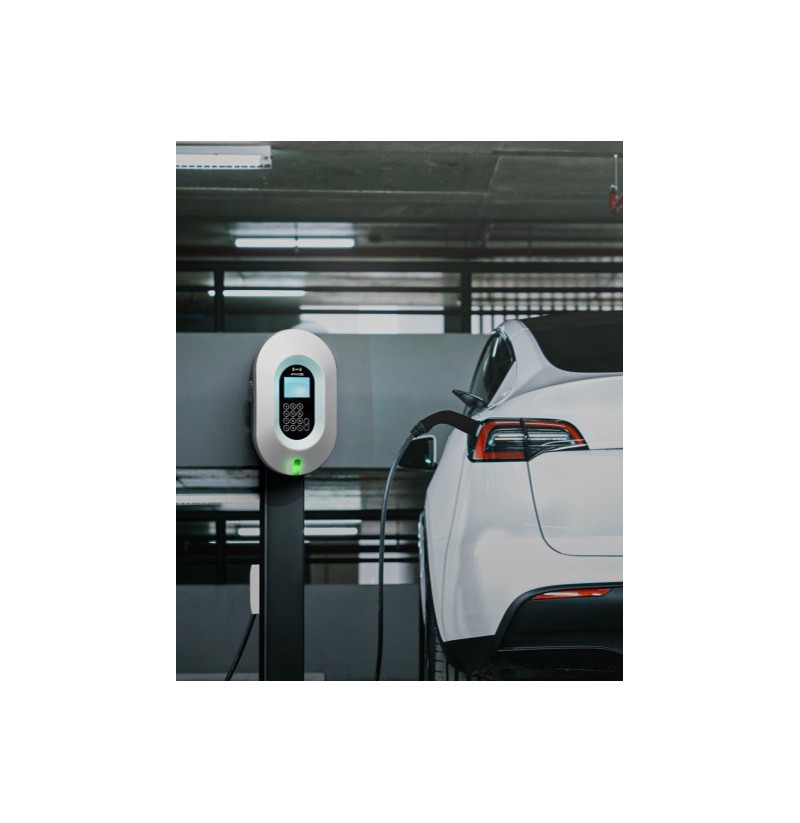

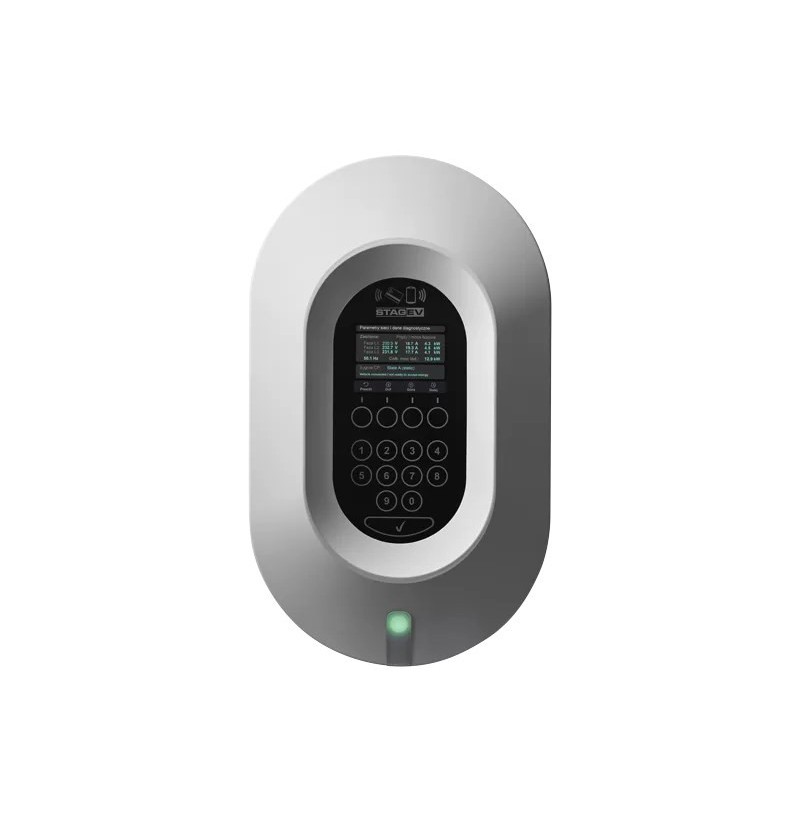

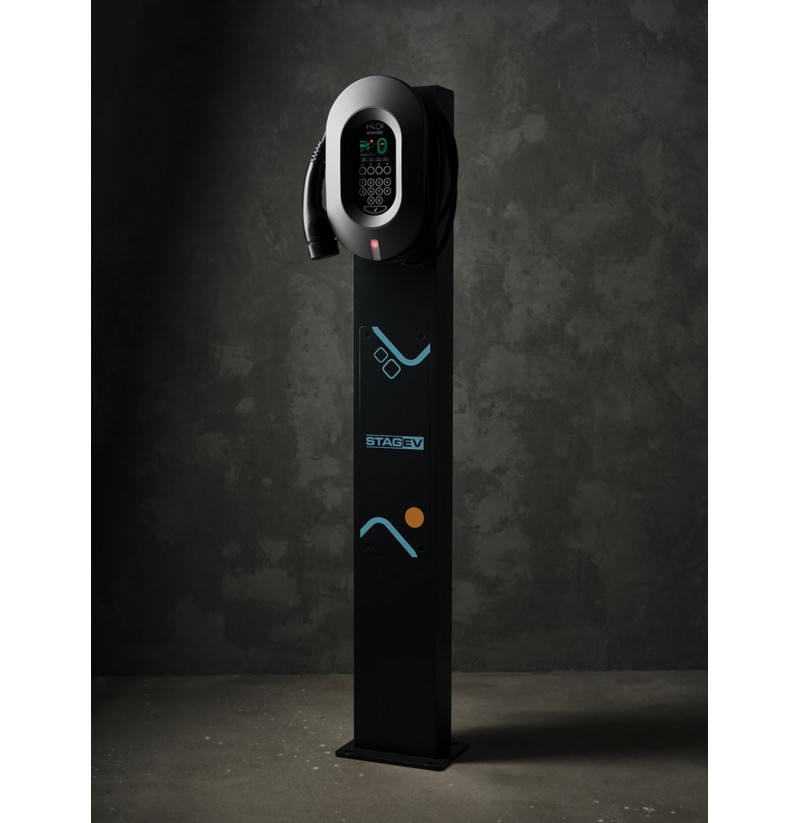

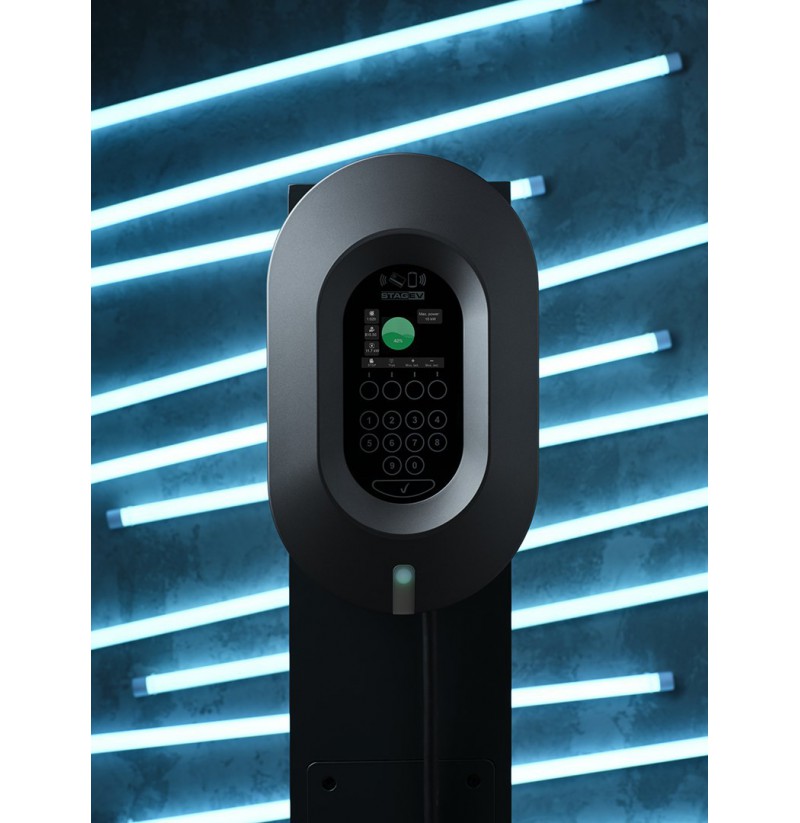

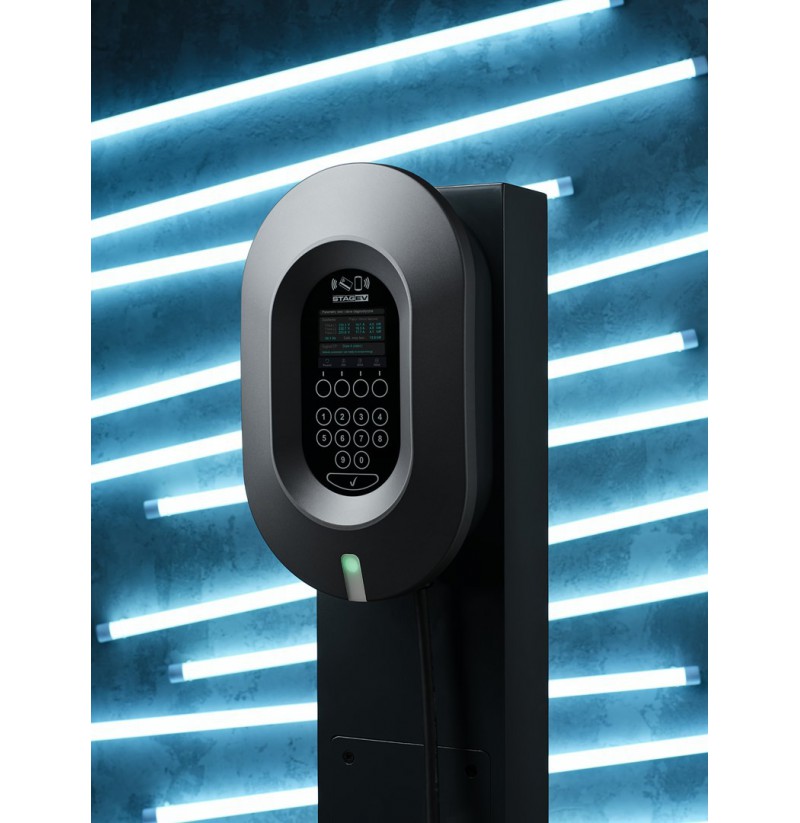

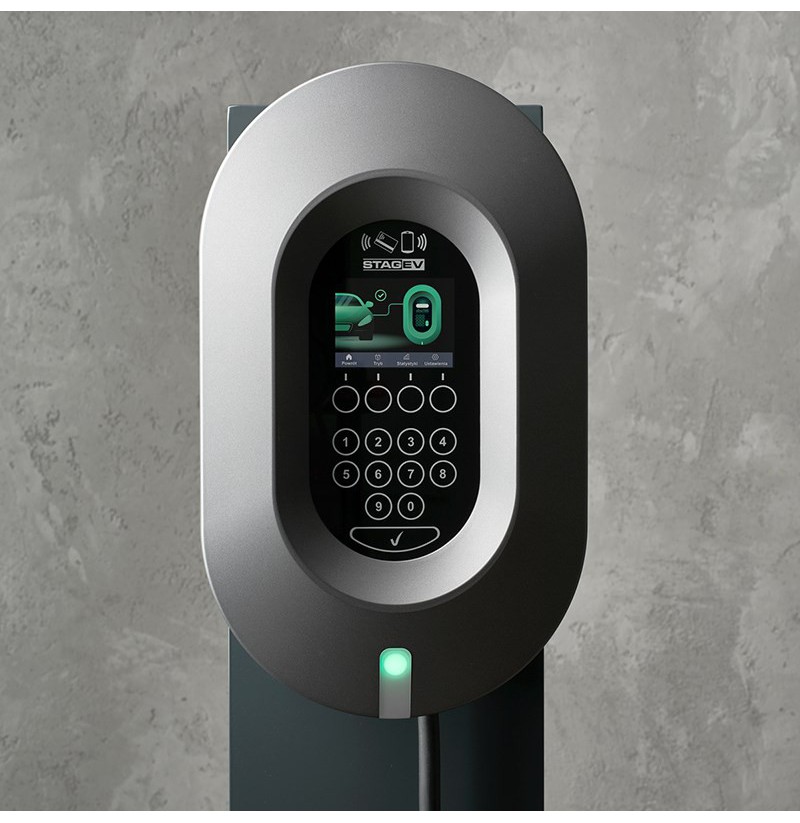

STAG EV STAG-EV-WB-11KW - car battery charger 230/400 V AC (L-N / L-L), 3-phase Graphite, White

Safety warning: Installation and service only by qualified electrician; disconnect from mains before opening; follow manuals
Safety notices link: https://www.stag-ev.com
Dangerous goods: No
Dispose of contents/container to (P501): Dispose of equipment as WEEE and packaging via appropriate recycling streams
Recycling codes: PELD/LDPE (Low-density polyethylene), PAP (Corrugated fiberboard (cardboard)
Warranty period: 3 year(s)
Pallet net width: 80 cm
Pallet net height: 2.1 m
Product supplier data: Brand: STAGEV; Manufactured: AC S.A., Address: ul. 42 Pułku Piechoty 50, 15‑181 Białystok, Poland; Website: www.stag-ev.com
Package volume: 43500 cm³
Pallet net weight: 120 kg
Pallet net length: 120 cm
Pallet gross volume: 2016 dm³
Pallet gross weight: 180 kg
PSTI certified: No
Total carbon footprint (kg of CO2e): n/a (no product‑level CFP published)
Compliance certificates: Electromagnetic Compatibility (EMC), RoHS
Compatible products: EV/PHEV compliant with IEC 61851‑1 using Type 2 AC charging
Output power: 11 kW
Charging cable length: 5 m
Display type: LCD
Charging current: 16 A
Housing material: Polycarbonate (PC), Glass
Suitable for: Outdoor
Handle(s): Yes
Socket type: Type 2
Mounting type: Wall
Touchscreen: Yes
Power cable length: 5 m
Charging voltage: 230/400 V AC (L-N / L-L), 3-phase
Number of phases: 3
Output current: 16 A
Fault diagnose system: Yes
Cable entry location: Bottom, Rear
Product colour: Graphite, White
Bluetooth: No
Built-in display: Yes
International Protection (IP) code: IP65
Wi-Fi: Yes
AC input frequency: 50–60
On/off switch: No
Input current: 16 A
AC input voltage: 230/400 V AC (L-N / L-L), 3-phase
Height: 390 mm
Package depth: 510 mm
Package height: 275 mm
Width: 230 mm
Package weight: 3.7 kg
Depth: 125 mm
Weight: 2.5 kg
Package width: 310 mm
UN number: Not applicable / not classified as dangerous good
Customs product code (TARIC): 8537109170
Export Control Classification Number (ECCN): EAR99
Country of origin: Poland
Hazard pictogram(s): GHS05: Corrosive, GHS04: Compressed gas
Warnings: Disconnect the unit from the power supply during maintenance or servicing., Before use, make sure the device is correctly installed by a qualified electrician., Do not use the unit in a damp or wet environment to avoid the risk of electric shock.
