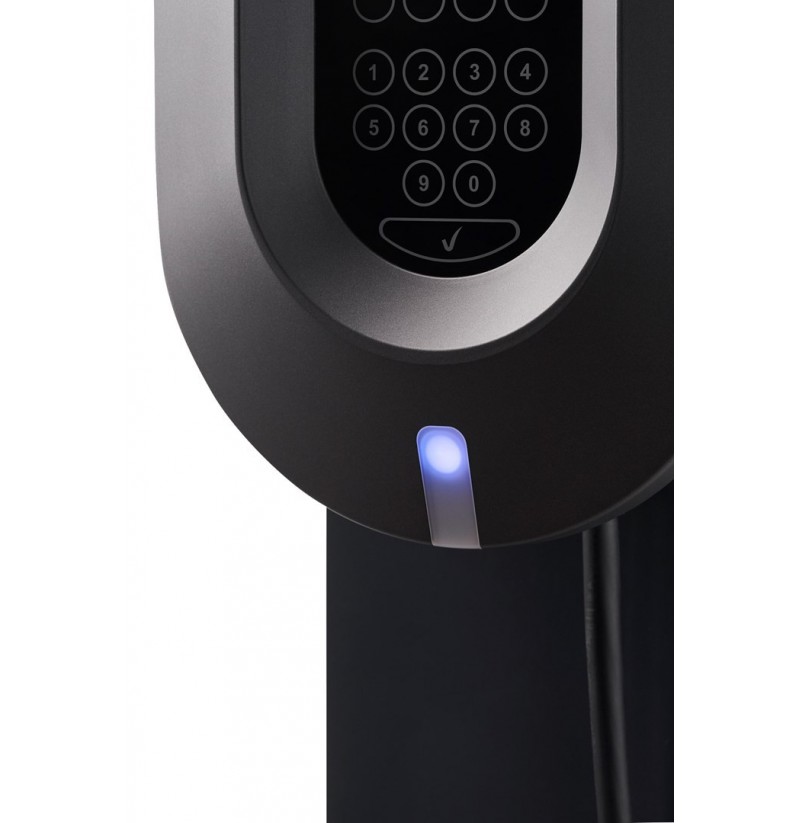

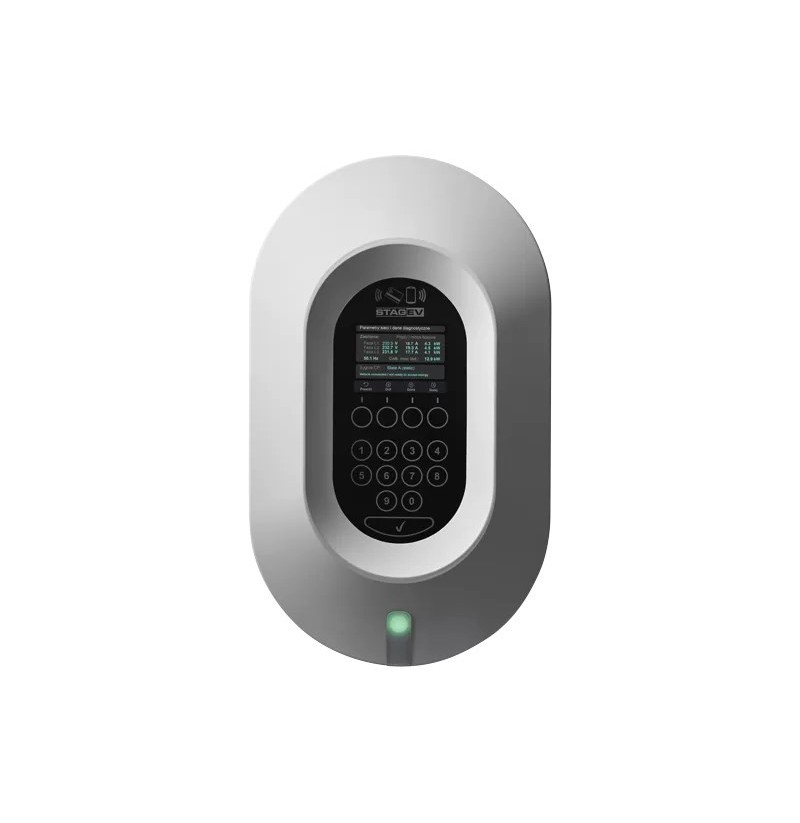

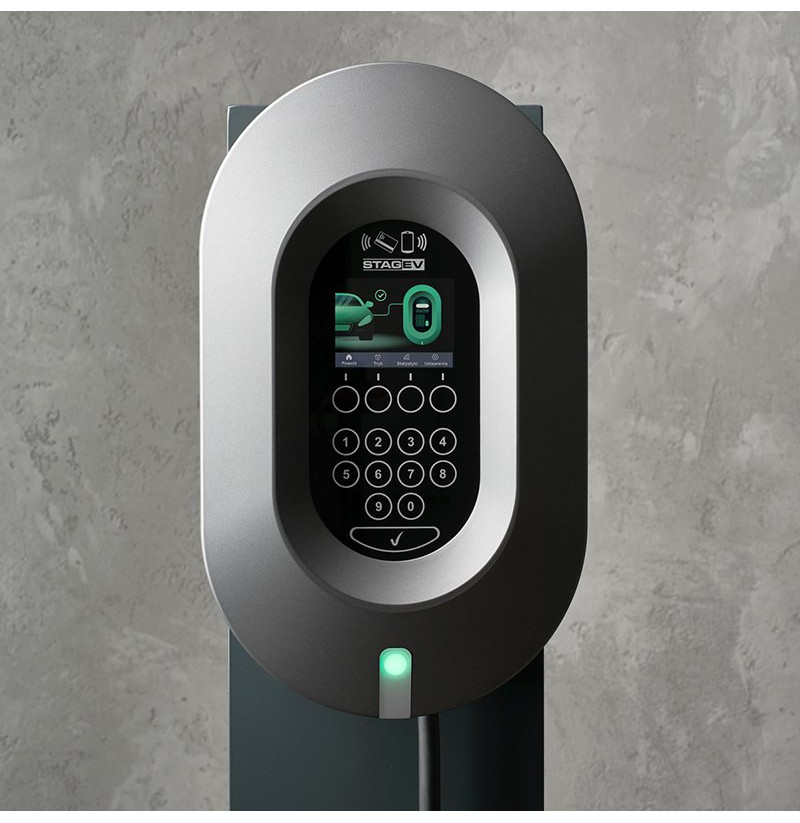

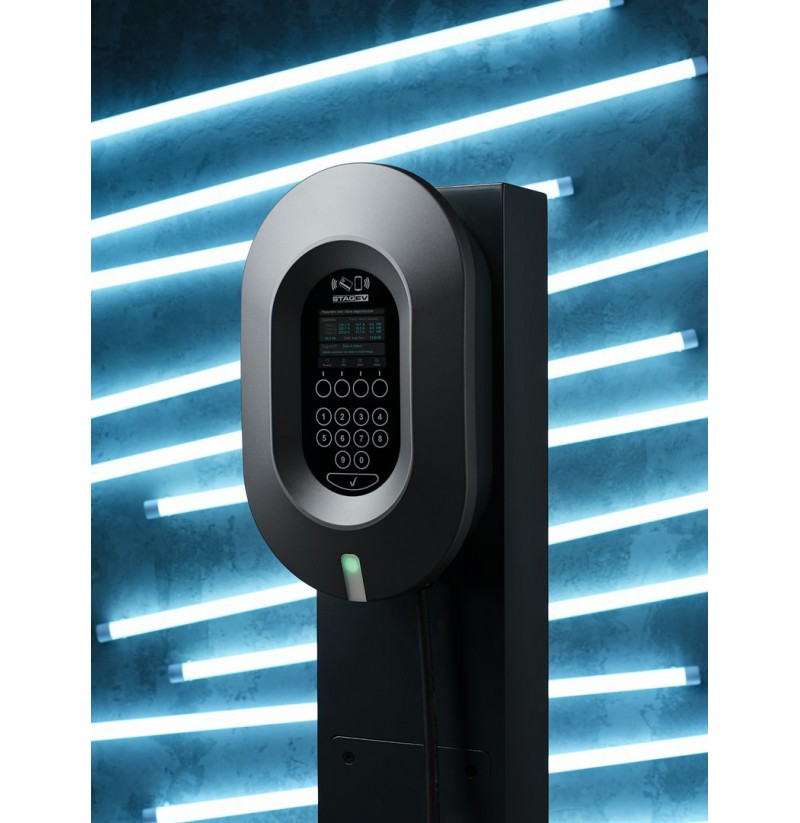

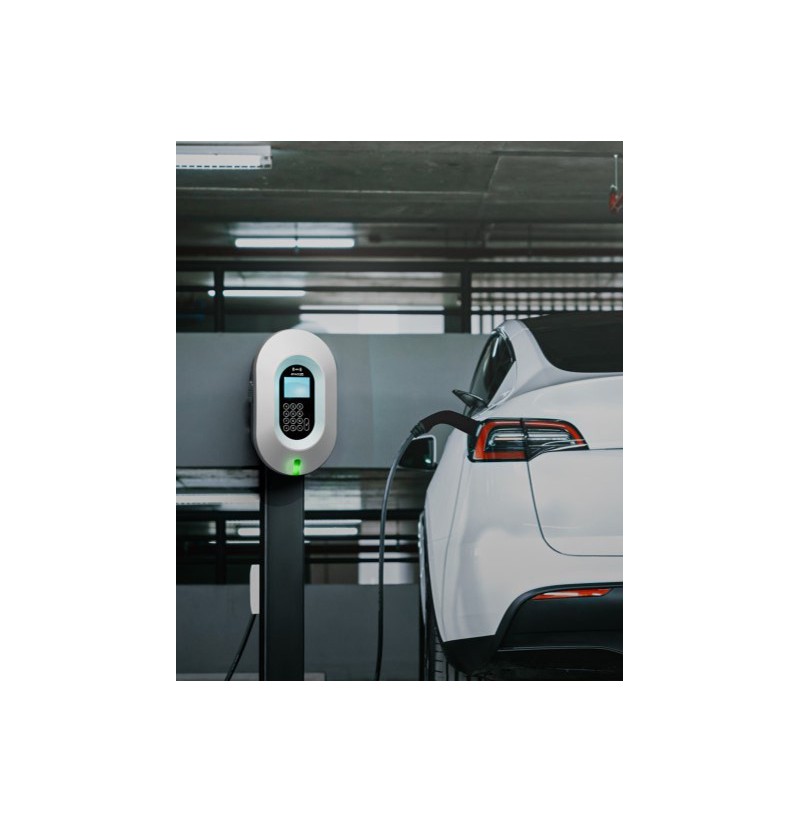

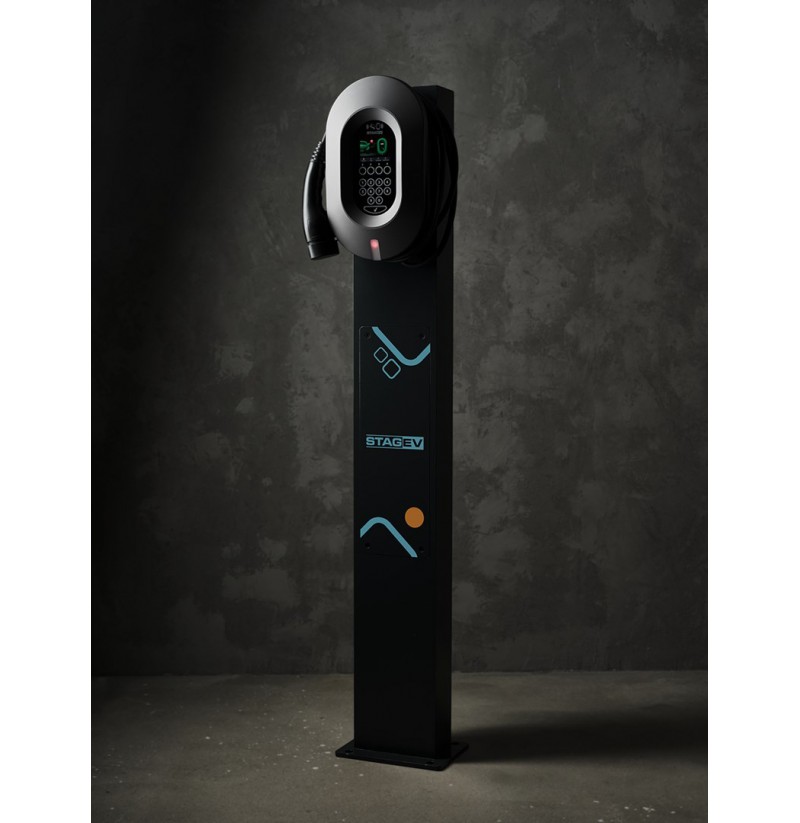

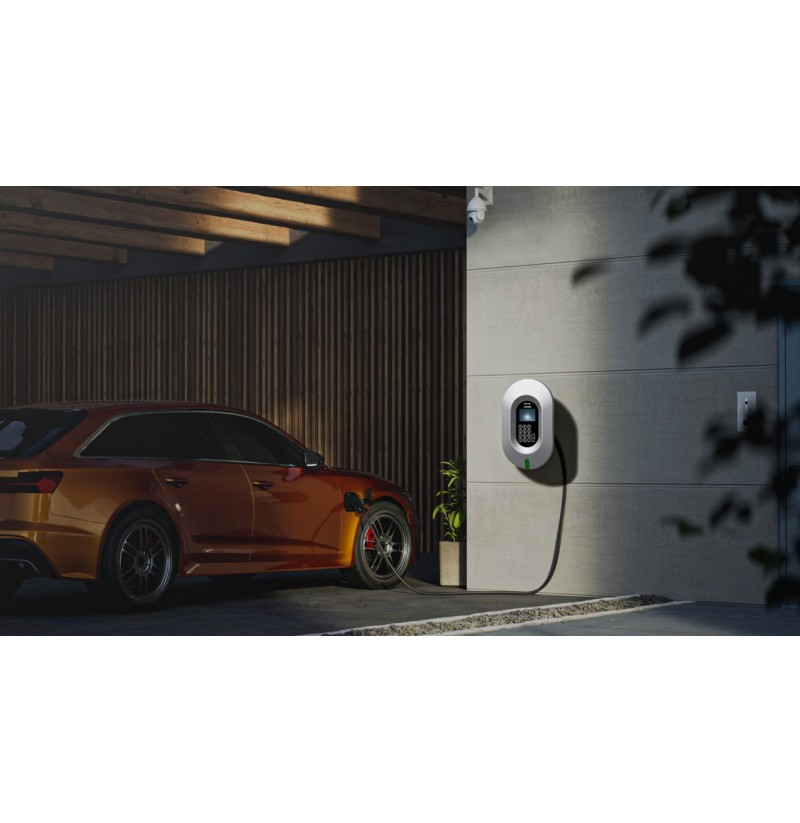

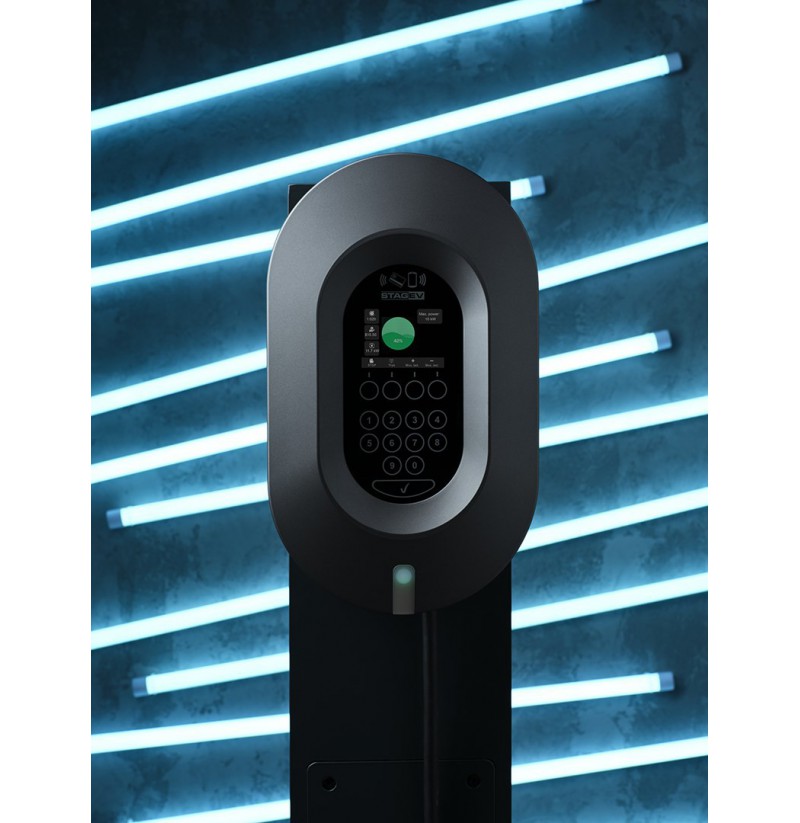

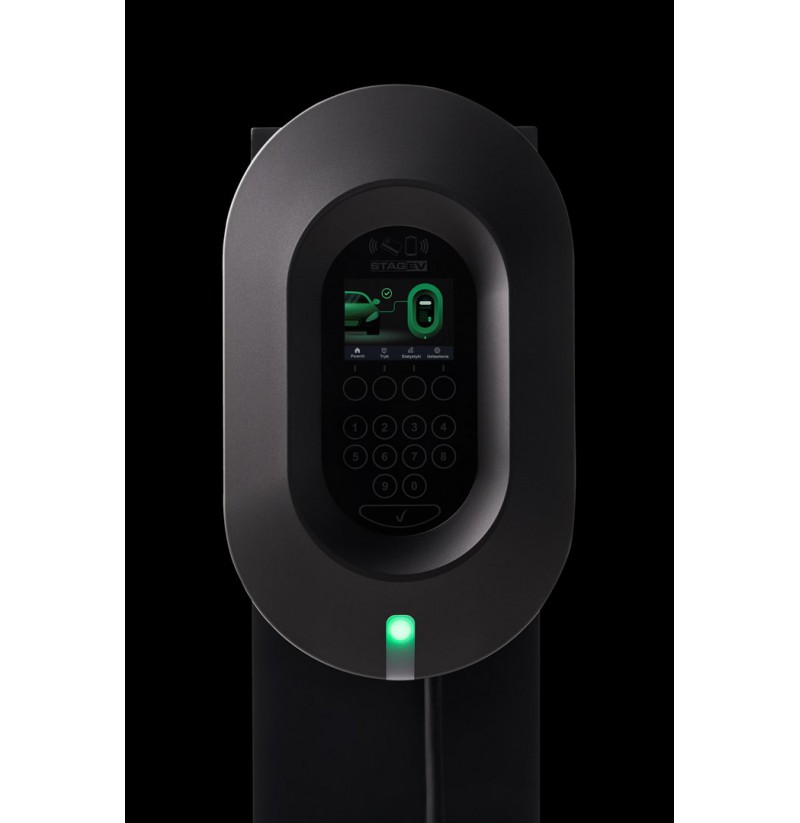

STAG EV CORE Charging Station (Charging Cable) White, Graphite

Safety warning: Installation and service only by qualified electrician; disconnect from mains before opening; follow manuals
Package volume: 43500 cm³
Pallet gross weight: 180 kg
Pallet gross volume: 2016 dm³
Safety notices link: https://www.stag-ev.com
Dispose of contents/container to (P501): Dispose of equipment as WEEE and packaging via appropriate recycling streams
Recycling codes: PAP (Corrugated fiberboard (cardboard), PELD/LDPE (Low-density polyethylene)
PSTI certified: No
Compliance certificates: RoHS, Electromagnetic Compatibility (EMC)
Pallet net weight: 120 kg
Total carbon footprint (kg of CO2e): n/a (no product‑level CFP published)
Dangerous goods: No
Pallet net width: 80 cm
Pallet net length: 120 cm
Pallet net height: 2.1 m
Product supplier data: Brand: STAGEV; Manufactured: AC S.A., Address: ul. 42 Pułku Piechoty 50, 15‑181 Białystok, Poland; Website: www.stag-ev.com
Warranty period: 3 year(s)
Compatible products: EV/PHEV compliant with IEC 61851‑1 using Type 2 AC charging
AC input voltage: 230/400 V AC (L-N / L-L), 3-phase
Output current: 32 A
Socket type: Type 2
Mounting type: Wall
Power cable length: 5 m
Built-in display: Yes
Product colour: Graphite, White
Wi-Fi: Yes
Charging current: 16 A
Suitable for: Outdoor
Charging voltage: 230/400 V AC (L-N / L-L), 3-phase
Handle(s): Yes
Input current: 16 A
Number of phases: 3
International Protection (IP) code: IP65
Bluetooth: No
Touchscreen: Yes
Display type: LCD
AC input frequency: 50–60
On/off switch: No
Housing material: Glass, Polycarbonate (PC)
Fault diagnose system: Yes
Cable entry location: Rear, Bottom
Output power: 22 kW
Charging cable length: 5 m
Weight: 2.5 kg
Height: 390 mm
Package depth: 510 mm
Width: 230 mm
Depth: 125 mm
Package weight: 3.7 kg
Package width: 310 mm
Package height: 275 mm
UN number: Not applicable / not classified as dangerous good
Country of origin: Poland
Export Control Classification Number (ECCN): EAR99
Customs product code (TARIC): 8537109170
Hazard pictogram(s): GHS05: Corrosive, GHS04: Compressed gas
Warnings: Disconnect the unit from the power supply during maintenance or servicing., Do not use the unit in a damp or wet environment to avoid the risk of electric shock., Before use, make sure the device is correctly installed by a qualified electrician.
