GIGABYTE GP-UD1300GM PG5 1300W 80+ Gold

201,99 €

4719331553388

Galimas pasirinkimas

 3..5 d.d.


Number of fans: 1 fan(s)
Fan diameter: 14 cm
Illumination: No
Fan location: Top
Product colour: Black
Cooling type: Active
Max output current (+12V): 108.3 A
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Combined power (+12V): 1300 W
Input current: 12 - 6 A
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 17.5 W
Power protection features: Overheating, Over power, Under voltage, Over current, Short circuit, Over voltage
Max output current (+5Vsb): 3.5 A
Combined power (+3.3V): 125 W
Total power: 1300 W
Combined power (+5V): 125 W
Max output current (+3.3V): 25 A
Maximum input current (@220V): 12 A
Max output current (+5V): 25 A
Hold time: 16 ms
Efficiency: 90%
Max output current (-12V): 0.3 A
Maximum input current (@110V): 6 A
Height: 86 mm
Weight: 4.17 kg
Width: 150 mm
Depth: 160 mm
Power supply unit (PSU) form factor: ATX
Noise level: 40 dB
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Package weight: 4.5 kg
Package width: 340 mm
Package depth: 219 mm
Package height: 145 mm
Package type: Box

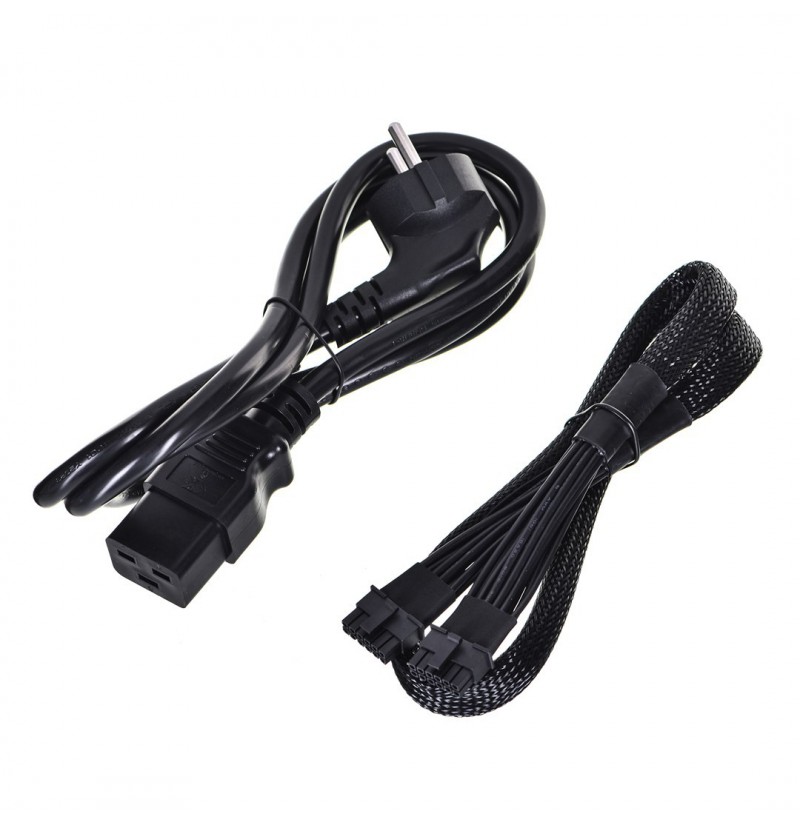

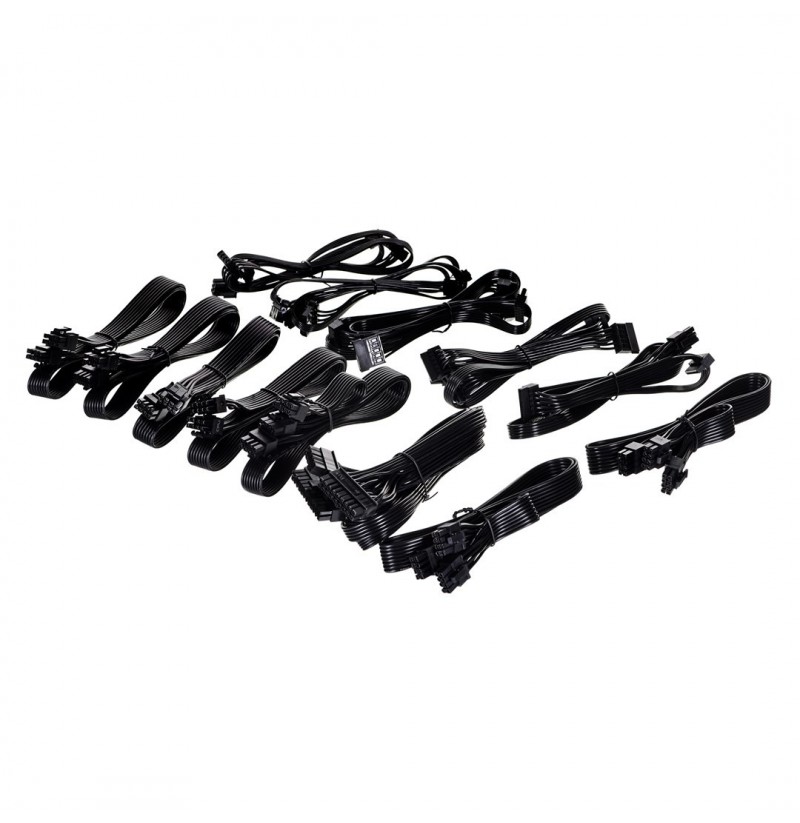

Cables included: CPU, PATA, Peripheral (Molex), SATA
Compliance certificates: Federal Communications Commission (FCC), CCC, RoHS, CE

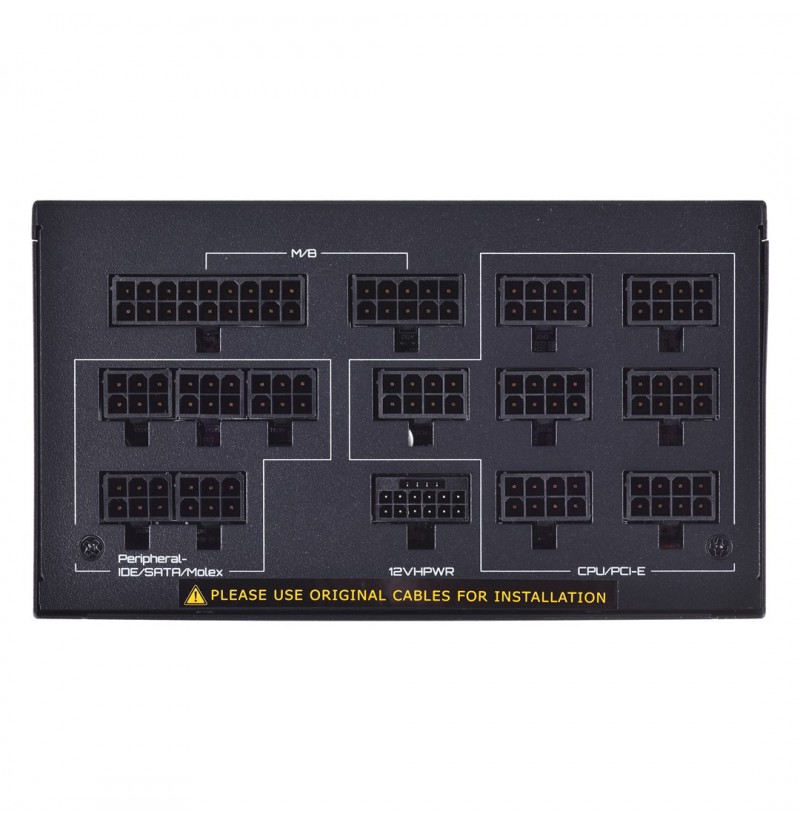

Motherboard power connector: 20+4 pin ATX
Number of PATA power connectors: 3
Number of SATA power connectors: 8
Cabling type: Fully-Modular
PCI Express connector: Yes
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 4
SATA power cable length: 150 mm, 600
PCI Express power cable length: 70 cm
ATX power connector (20+4 pin): Yes
Peripheral (Molex) power cable length: 200, 600
Motherboard power cable length: 61 cm
PCI Express power connectors (16-pin): 1
Warranty period: 10 year(s)
Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
