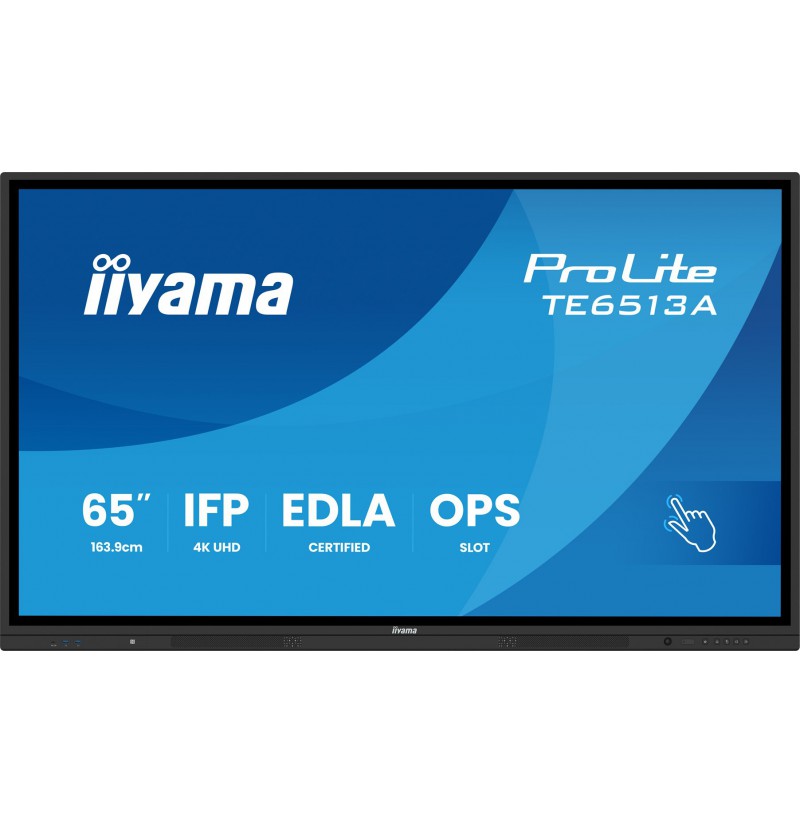

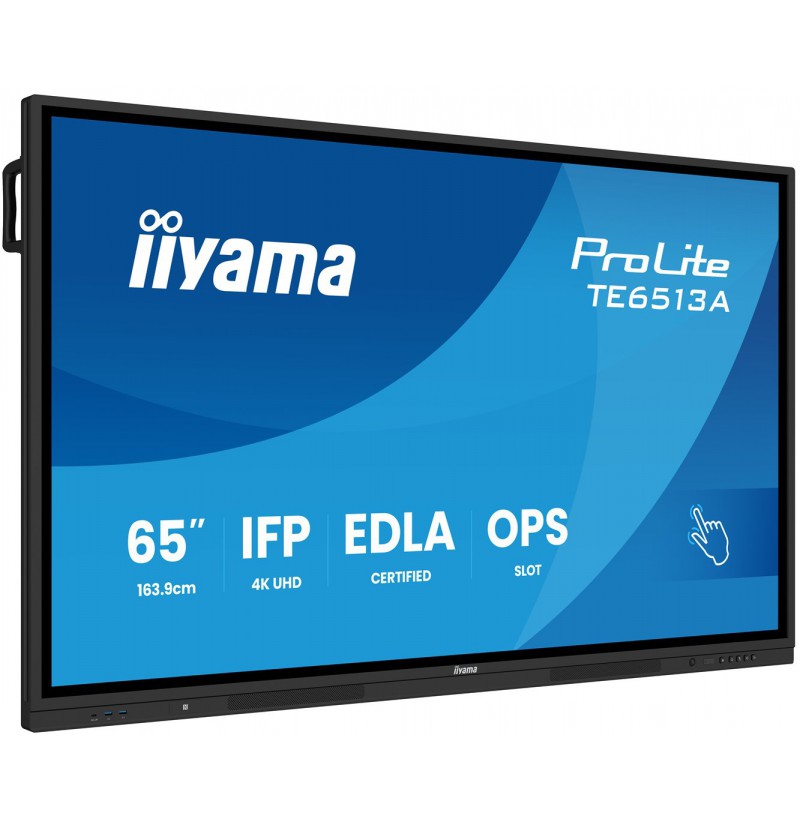

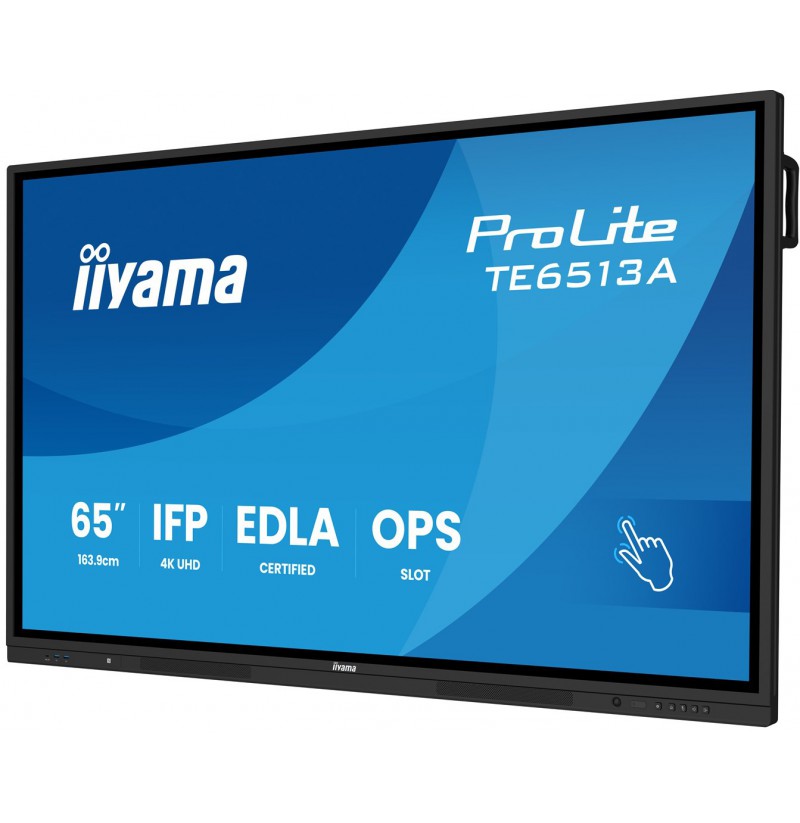

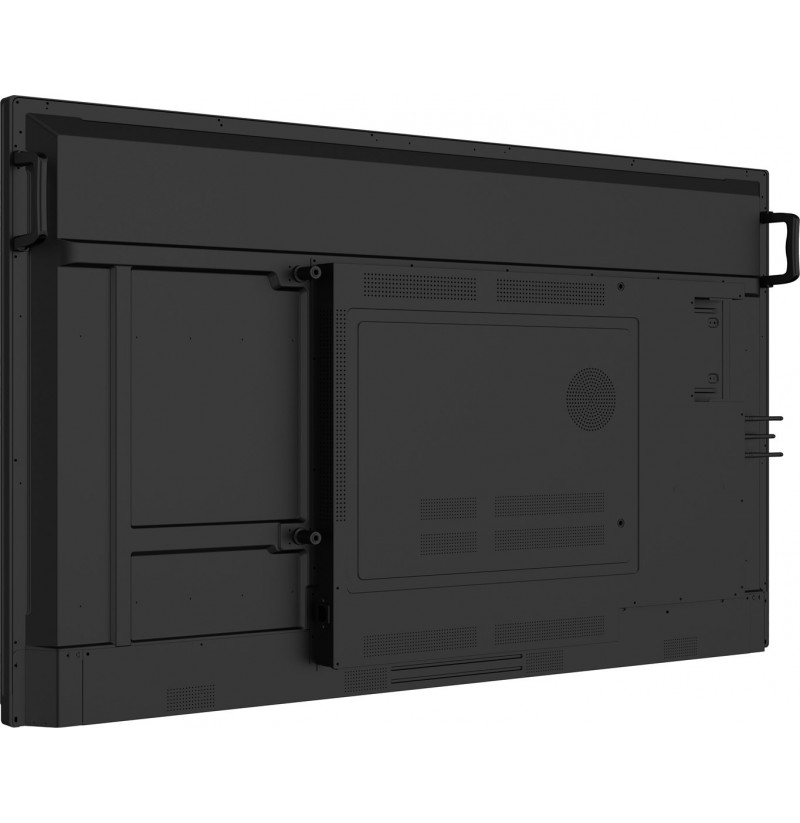

iiyama TE6513A-B3AG Signage Display Interactive flat panel 163.8 cm (64.5") LCD Wi-Fi 500 cd/m2 4K Ultra HD Black Touchscreen

iiyama TE6513A-B3AG Signage Display Interactive flat panel 163.8 cm (64.5") LCD Wi-Fi 500 cd/m2 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
Sustainability certificates: ErP
Warranty period: 5 year(s)
Compliance certificates: WEEE, REACH, TÜV mark, RoHS, CE, CB, EAC
Playback media: Y
Audio in (mini jack): Yes
OPS slot: 1
Bezel colour: Black
Bezel width (top): 1.41 cm
Orientation: Horizontal
Anti-glare screen: Yes
Bezel width (side): 1.67 cm
Bezel width (bottom): 4.67 cm
Product colour: Black
Panel mounting interface: 600 x 400 mm
Placement supported: Indoor
Product design: Interactive flat panel
VESA mounting: Yes
Energy efficiency class (SDR): G
Power consumption (off): 0.3 W
Power consumption (typical): 144 W
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (standby): 0.5 W
Storage temperature (T-T): -20 - 60 °C
Operating temperature (T-T): 0 - 40 °C
Display depth: 87 mm
Display height: 891.5 mm
Display width: 1489 mm
Display weight: 39.4 kg
Height: 891.5 mm
Width: 1489 mm
Weight: 39.4 kg
Depth: 87 mm
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Ethernet LAN data rates: 1000 Mbit/s
Wi-Fi: Yes
On Screen Display (OSD) languages: German, Italian, Dutch, English, Norwegian, Spanish, Estonian, Ukrainian, Finnish, Danish, French, Polish, Swedish, Hungarian, LAT, Russian, Czech
Mean time between failures (MTBF): 50000 h
Operating hours (hours/days): 24/7
HDCP version: 2.2
On Screen Display (OSD): Yes
HDCP: Yes
Purpose: Commercial
Package weight: 48.5 kg
Package depth: 185 mm
Package height: 1010 mm
Package width: 1640 mm
Stylus pen: Yes
Number of stylus pens: 4
Cables included: USB, AC, HDMI
Remote control included: Yes
Native refresh rate: 60 Hz
Display brightness: 500 cd/m²
Active display area (W x H): 1428.5 x 803.5 mm
Touchscreen technology: PureTouch-IR
Touch response time: 5 ms
Number of simultaneous touchpoints: 40
Colour saturation: 72%
Glass thickness: 3.2 mm
Multi-touch: Yes
Surface hardness: 7H
Response time: 8 ms
Display diagonal (metric): 163.9 cm
Viewing angle, vertical: 178°
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Horizontal scan range: 30 - 135 kHz
Viewing angle, horizontal: 178°
Display number of colours: 1.07 billion colours
Display resolution: 3840 x 2160 pixels
Contrast ratio (typical): 1200:1
Pixel pitch: 0.372 x 0.372 mm
Touchscreen: Yes
Display technology: LCD
Panel type: IPS
Display diagonal: 163.8 cm (64.5")
RMS rated power: 60 W
Built-in speaker(s): Yes
Number of built-in speakers: 2
Consumer Electronics Control (CEC): Yes
USB ports quantity: 6
Audio Return Channel (ARC): Yes
RS-232C: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
HDMI output ports quantity: 1
OPS module slot: Yes
HDMI input ports quantity: 1
DisplayPort version: 1.2
DisplayPorts quantity: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports: 2
DVI port: No
HDMI version: 2.0
RS-232 interface: Yes
HDMI ports quantity: 3
USB port: Yes
Compatible operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Bluetooth version: 5.0
Brightness: 500 cd/m²
Quick start guide: Yes
Power supply type: Internal
Bluetooth: Yes
Products per pallet: 6 pc(s)
Computer system type: System on Chip (SoC)
Processor architecture: ARM Cortex-A53+Cortex-A72
Internal storage capacity: 128 GB
Operating system version: 14
Computer system: Yes
On-board graphics card model: ARM Mali-G52
Processor model: RK3576
Processor cores: 8
Processor manufacturer: Rockchip
Built-in processor: Yes
Operating system installed: Android
Internal memory: 6 GB
Processor family: ARM Rockchip
