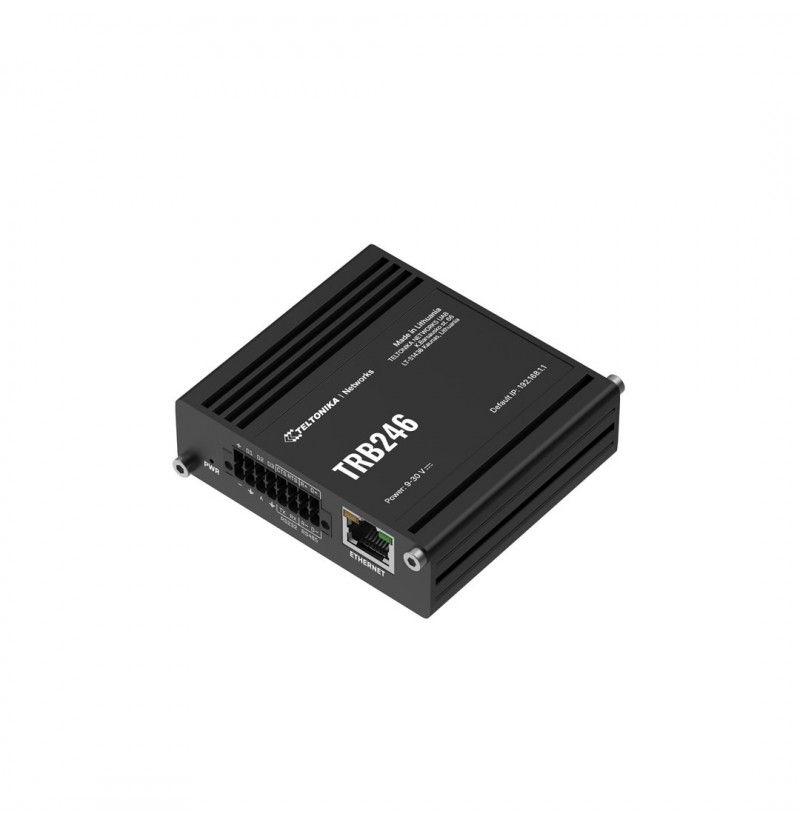

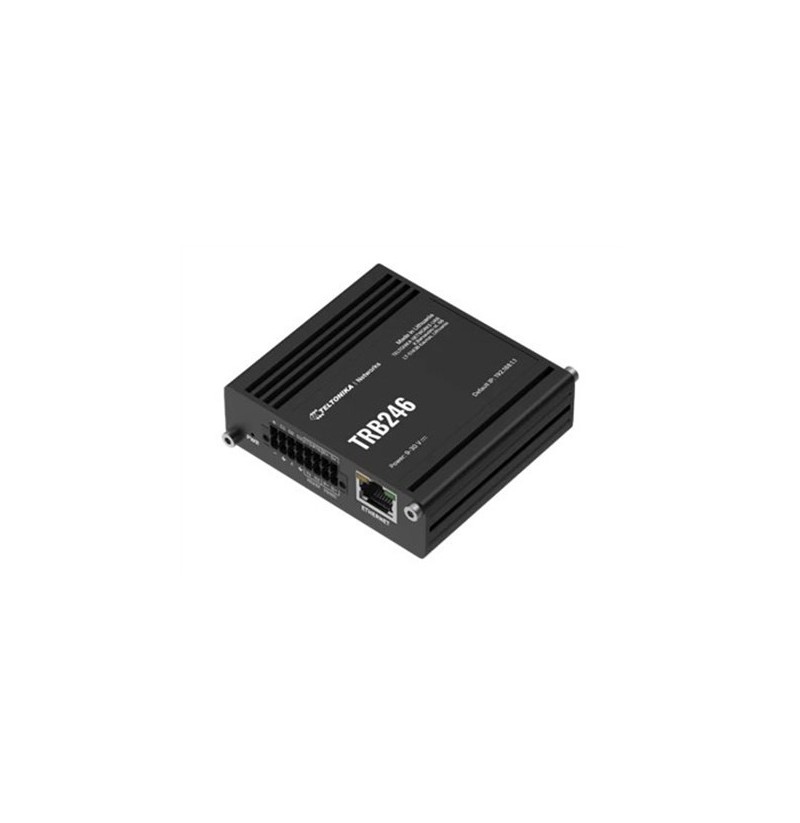

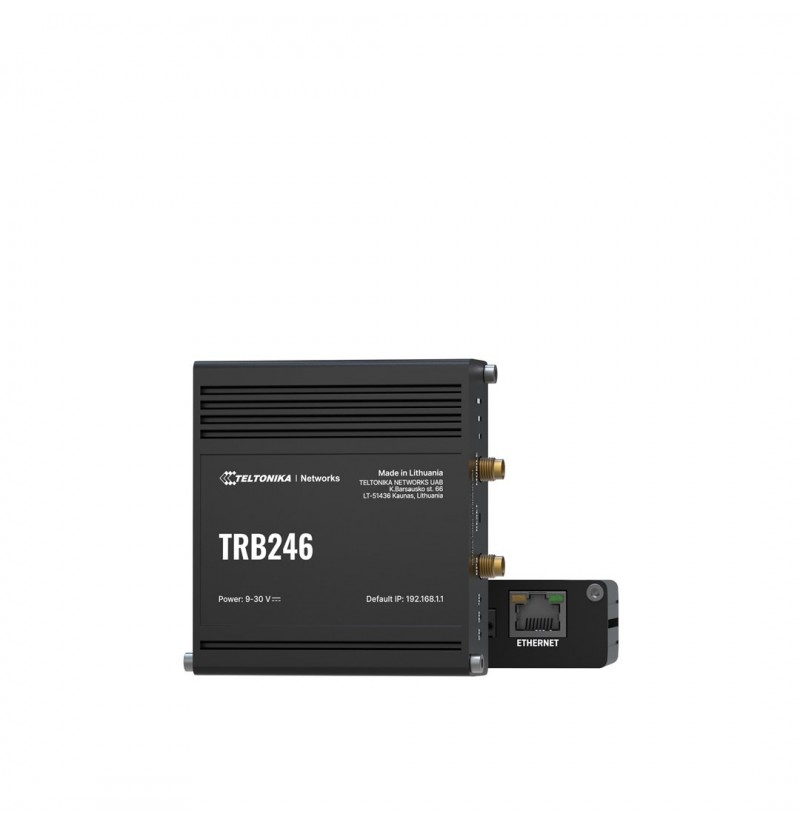

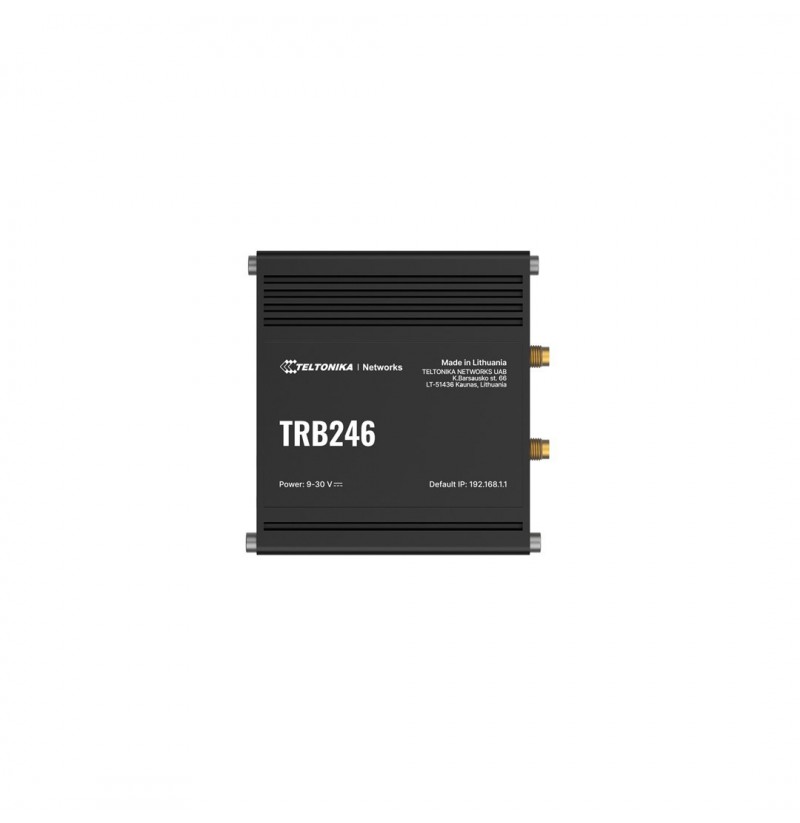

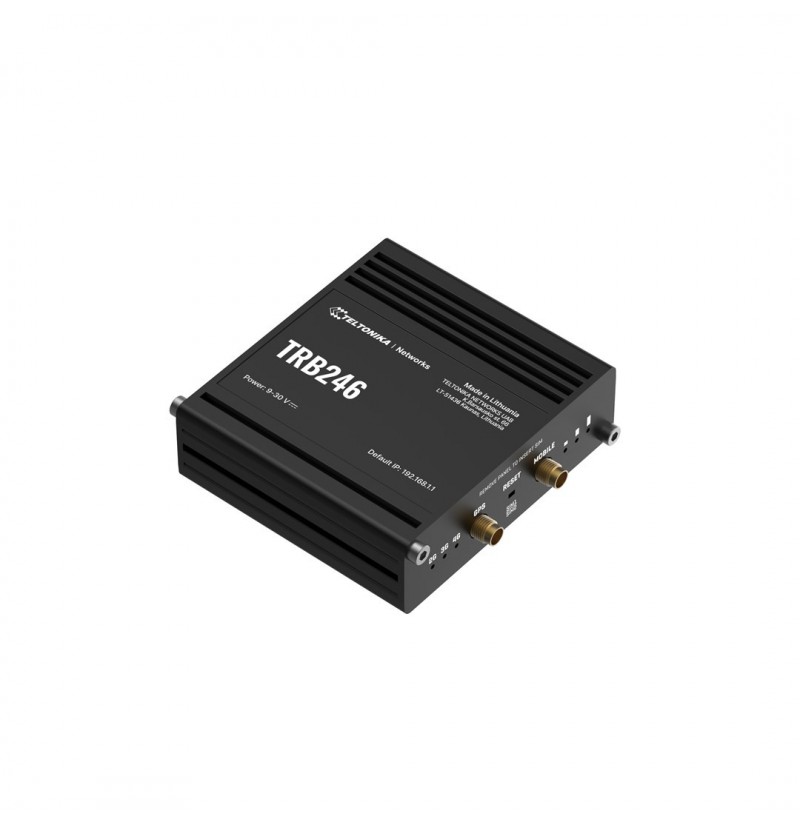

TRB246 (EU) Compact

Suitable for indoor use: Yes
Housing material: Aluminium
Mounting: DIN-rail/Wall mounting
LED indicators: Status, LAN, Power, Signal strength
Market positioning: Industrial
Device type: Cellular network gateway
Product colour: Black
Input voltage: 9 - 30 V
External power adapter: Yes
Power source type: DC
Port forwarding: Yes
DMZ support: Yes
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Management platform: RMS
Depth: 74.2 mm
Width: 83 mm
Weight: 165 g
Height: 25 mm
RAM type: DDR2
Web-based management: Yes
Built-in processor: Yes

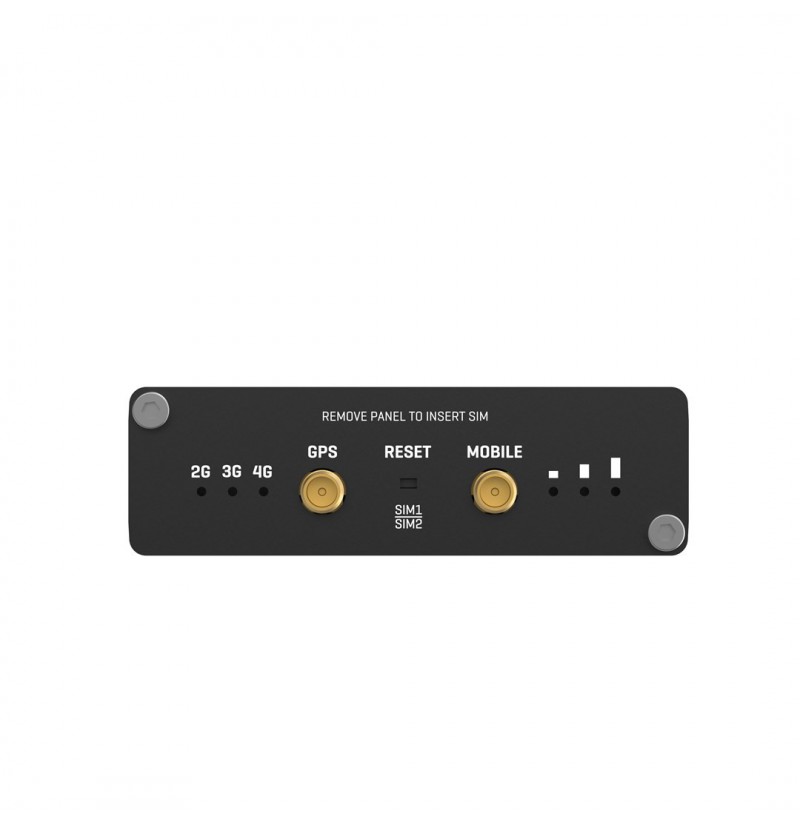

Antenna connector type: SMA
Antennas quantity: 2
Antenna type: External
RAM capacity: 0.128 GB
Internal storage capacity: 0.016 GB
Processor frequency: 0.58 GHz
GPS (satellite): Yes
Processor manufacturer: MediaTek
Wi-Fi: No
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Serial interface type: RS-232/485, RS-232
Galileo: Yes
BeiDou: Yes
Embedded GNSS: Yes
Quasi-Zenith Satellite System (QZSS): Yes
GLONASS: Yes
Number of SIM cards: 2
SIM interface: 3 V
Data transfer rate (LTE) (upload): 50 Mbit/s
Data transfer rate (LTE) (download): 150 Mbit/s
Short Message Service (SMS): Yes
Data network: LTE, 4G, 3G, 2G
SIM card type: MiniSIM
Warnings: Do not dismantle the unit yourself, there is a risk of electric shock., Do not open the appliance housing - risk of electric shock., Avoid contact with liquids as this may cause electric shock., Do not expose the device to extreme temperatures., Do not expose the device to water or moisture., The product may emit radio waves that may interfere with other electronic devices.
Ethernet LAN: Yes
Networking standards: IEEE 802.3u, IEEE 802.11e, IEEE 802.3az, IEEE 802.3
Ethernet LAN data rates: 100, 10
Full duplex: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN interface type: Fast Ethernet
DHCP server: Yes

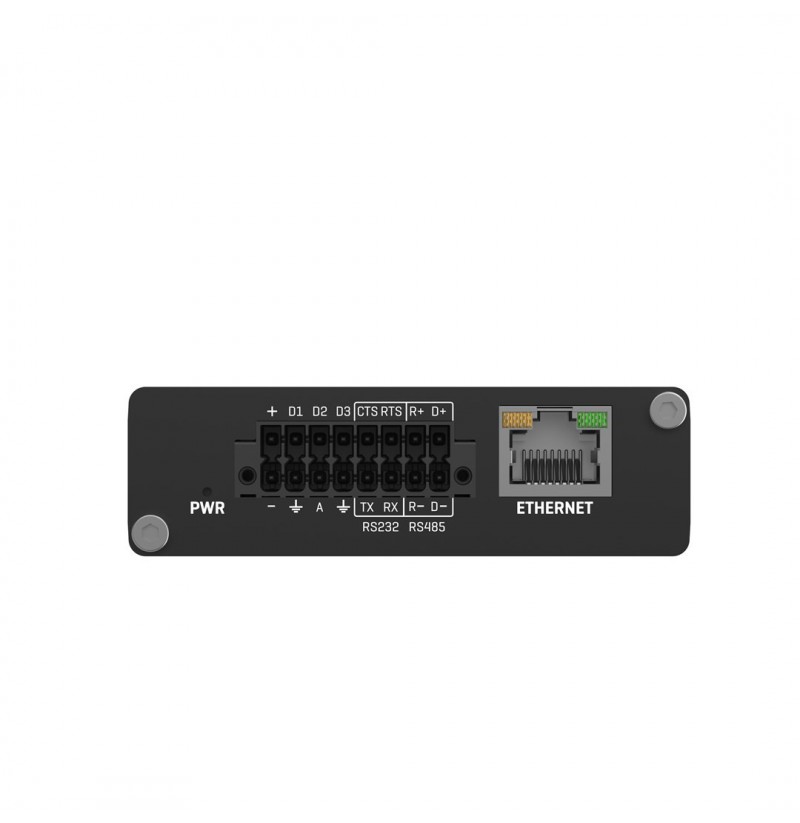

RS-485 signals: Data+, Data-, RDA-, RDB+
RS-232 signals: CTS, Rx, RTS, Tx
