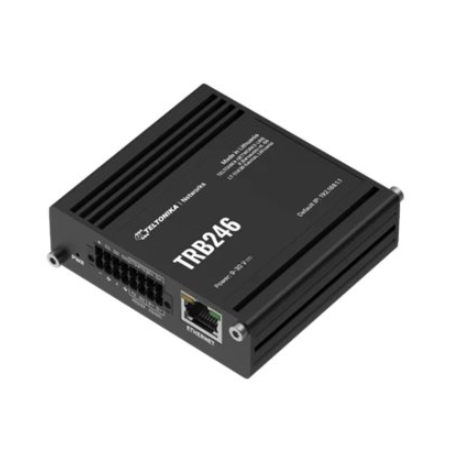

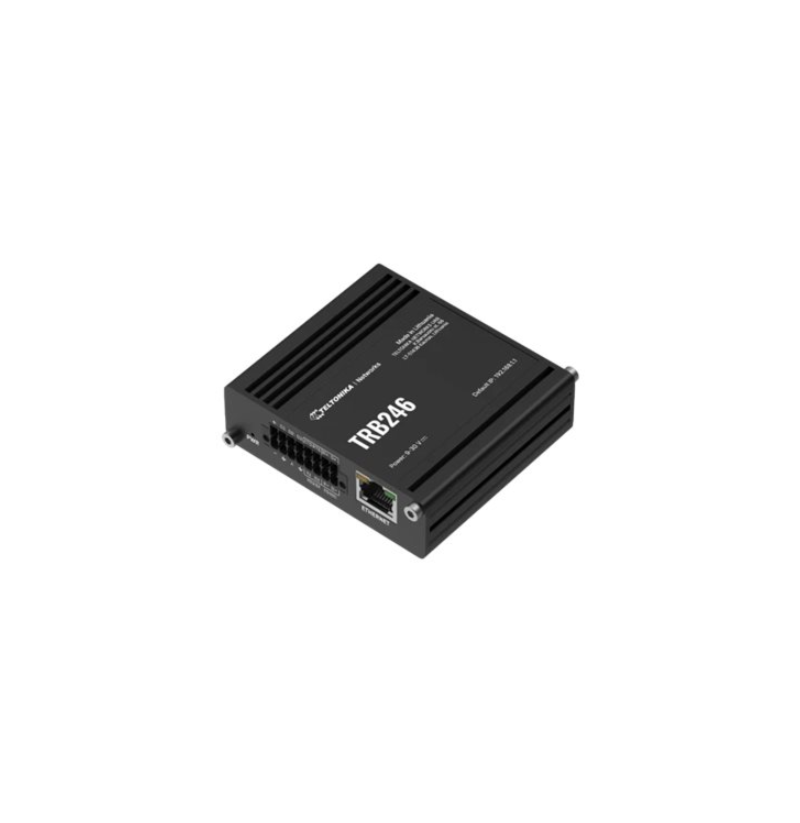

Teltonika | Industrial 4G IoT Gateway | TRB246 | 10

Product colour: Black
Market positioning: Industrial
Mounting: DIN-rail/Wall mounting
Housing material: Aluminium
LED indicators: Signal strength, Power, LAN, Status
Device type: Cellular network gateway
Suitable for indoor use: Yes
Power source type: DC
Input voltage: 9 - 30 V
External power adapter: Yes
DMZ support: Yes
Port forwarding: Yes
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 75 °C
Management platform: RMS
Weight: 165 g
Height: 25 mm
Width: 83 mm
Depth: 74.2 mm
Antenna connector type: SMA
Built-in processor: Yes
Web-based management: Yes
Antennas quantity: 2
Antenna type: External
Processor frequency: 0.58 GHz
Processor manufacturer: MediaTek
RAM type: DDR2
Internal storage capacity: 0.016 GB
RAM capacity: 0.128 GB
GPS (satellite): Yes
Wi-Fi: No
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Serial interface type: RS-232/485, RS-232
Embedded GNSS: Yes
BeiDou: Yes
Quasi-Zenith Satellite System (QZSS): Yes
GLONASS: Yes
Galileo: Yes
SIM interface: 3 V
SIM card type: MiniSIM
Number of SIM cards: 2
Short Message Service (SMS): Yes
Data network: LTE, 4G, 3G, 2G
Data transfer rate (LTE) (download): 150 Mbit/s
Data transfer rate (LTE) (upload): 50 Mbit/s
Ethernet LAN interface type: Fast Ethernet
DHCP server: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10, 100 Mbit/s
Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Ethernet LAN: Yes
Full duplex: Yes
RS-232 signals: CTS, Rx, Tx, RTS
RS-485 signals: Data+, Data-, RDB+, RDA-
