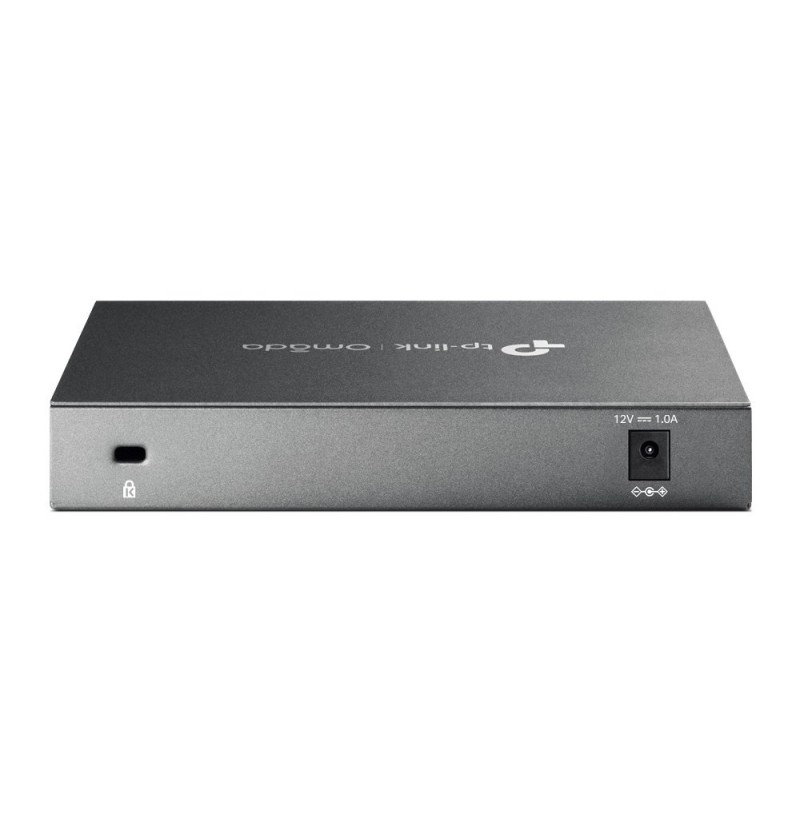

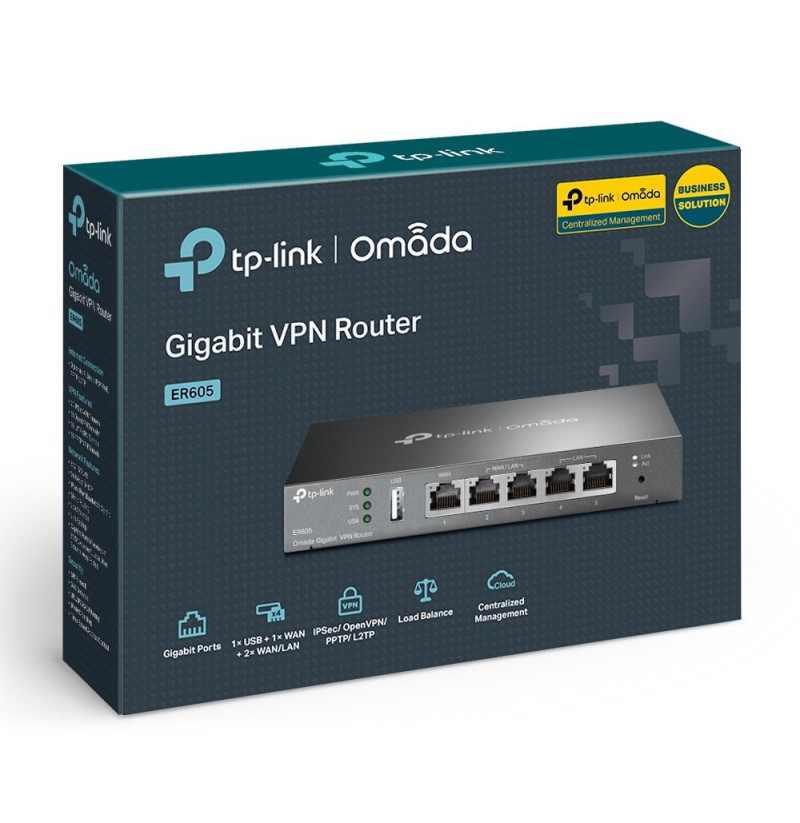

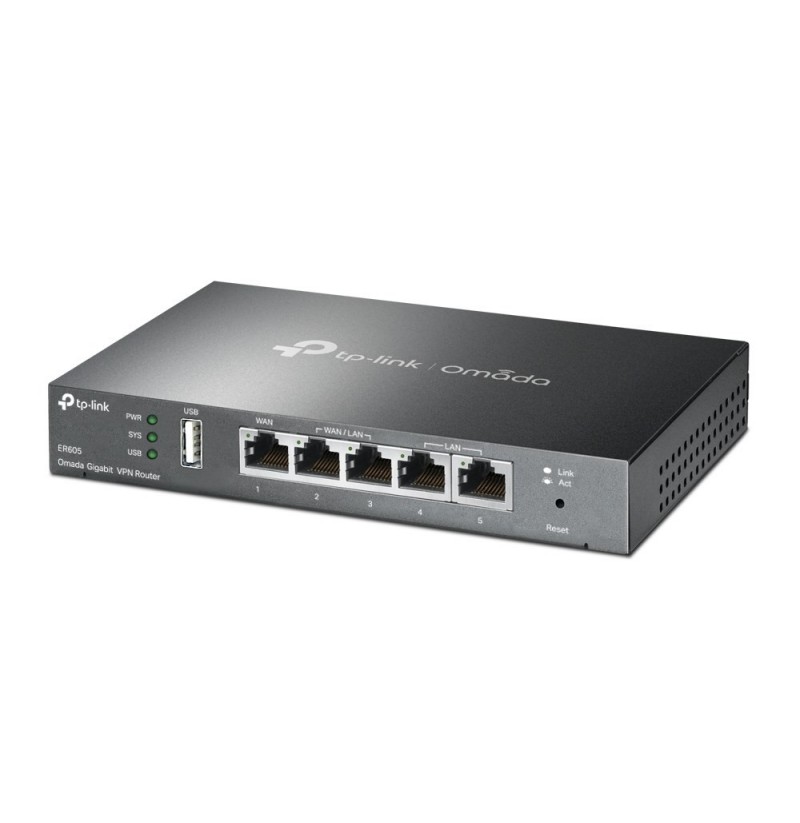

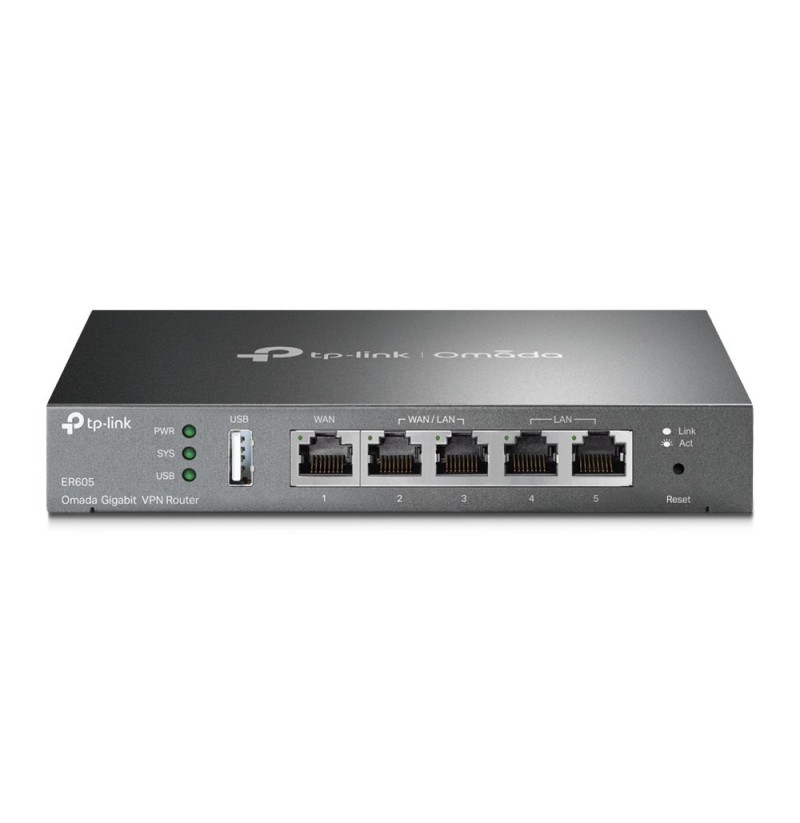

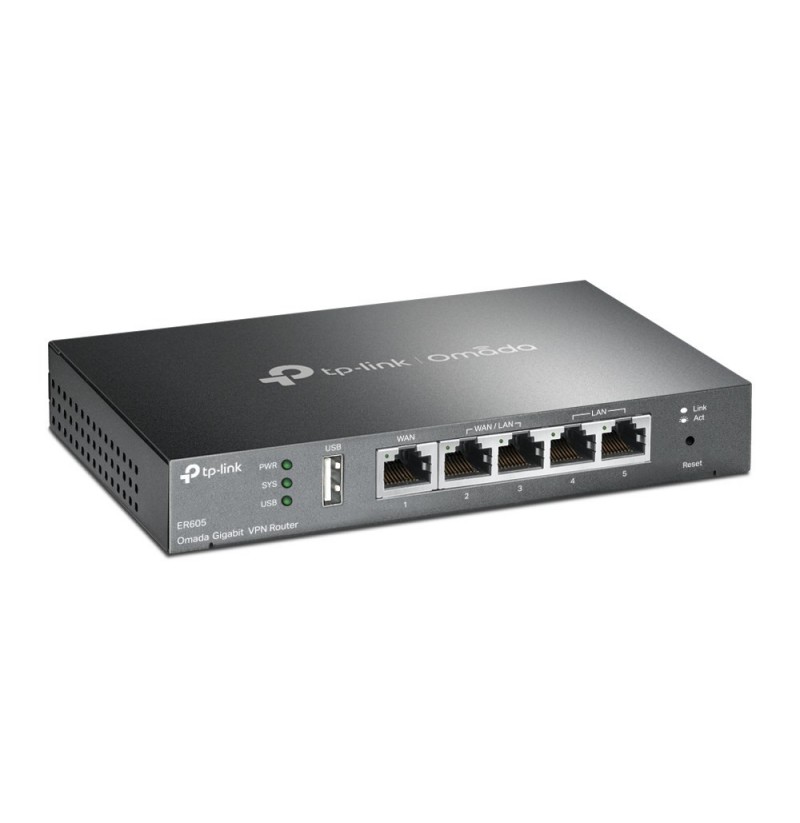

TP-Link Omada Gigabit VPN Router

Certification: CE, FCC, RoHS
Internal memory type: DRAM
Windows operating systems supported: Windows XP, Windows 7, Windows NT, Windows 8.1, Windows Vista, Windows 8, Windows 98SE, Windows 10, Windows 2000
Flash memory: 128 MB
Internal memory: 256 MB
Mac operating systems supported: MacOS
Linux operating systems supported: Yes
Rack mounting: Yes
Rack capacity: 1U
LED indicators: System, WAN, USB, LAN, Activity
Product colour: Black
Power source type: AC
AC input frequency: 50 - 60 Hz
Power consumption (typical): 7.94 W
AC input voltage: 120 - 240 V
VPN support: • 20 IPsec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IKEv1/v2• MD5, SHA1 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)• PPTP VPN Server• 10 PPTP VPN Clients• 16 Tunnels• PPTP with MPPE Encryption• L2TP VPN Server• 10 L2TP VPN Clients• 16 Tunnels• L2TP over IPSec• OpenVPN Server• 10 OpenVPN Clients• 16 OpenVPN Tunnels
NAT functionality: • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
ARP attack prevention: Yes
System event log: Yes
URL filtering: Yes
DoS attack prevention: Yes
VPN tunnels quantity: 20
Security algorithms: 256-bit AES, 3DES, MD5, DES, SHA-1, 192-bit AES, 128-bit AES
Authentication method: SHA-1, MD5
Network address translation (NAT): Yes
Firewall: Yes
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Reset button: Yes
Web-based management: Yes
Universal Plug and Play (UPnP): Yes
Width: 158 mm
Depth: 101 mm
Height: 25 mm
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
VLAN support: Yes
Concurrent connections: 150000
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Traffic control: Yes
Networking standards: IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab
Policy-based routing: Yes
Package width: 190 mm
Package weight: 650 g
Package depth: 254 mm
Package height: 60 mm
Cables included: AC
Quick installation guide: Yes
Manual: Yes
Quick start guide: Yes
Compliance certificates: RoHS
Supported protocols: IPsec/PPTP/L2TP
Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
DMZ support: Yes
DHCP server: Yes
Management protocols: Telnet
DHCP client: Yes
Routing protocols: RIP-1, RIP-2
Ethernet LAN (RJ-45) ports: 5
USB ports quantity: 1
Ethernet WAN: Yes
3G/4G USB modem compatibility: No
SIM card slot: No
DSL WAN: No
