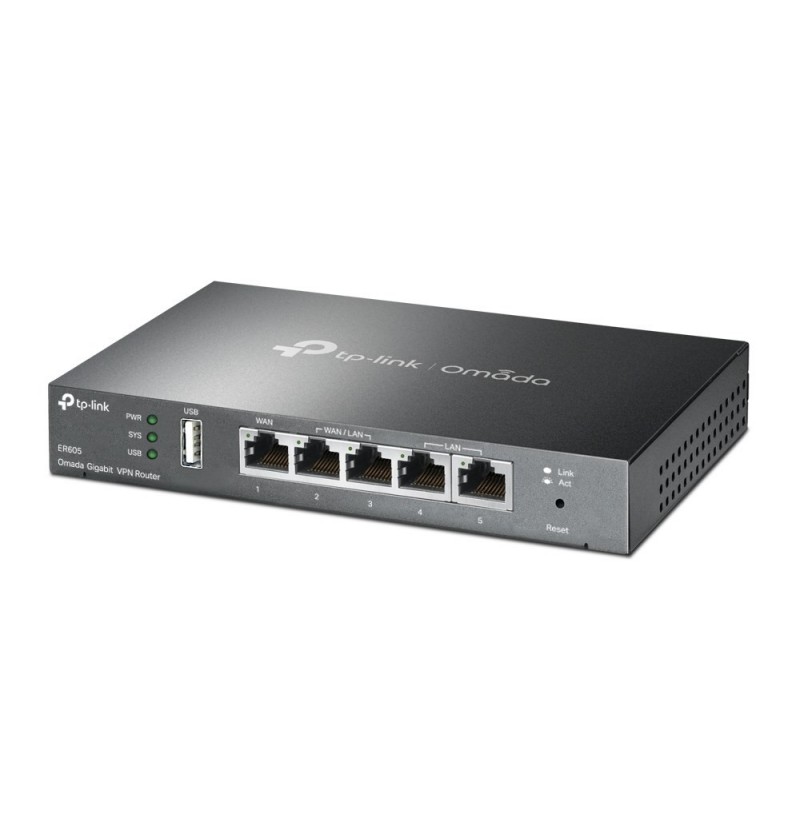

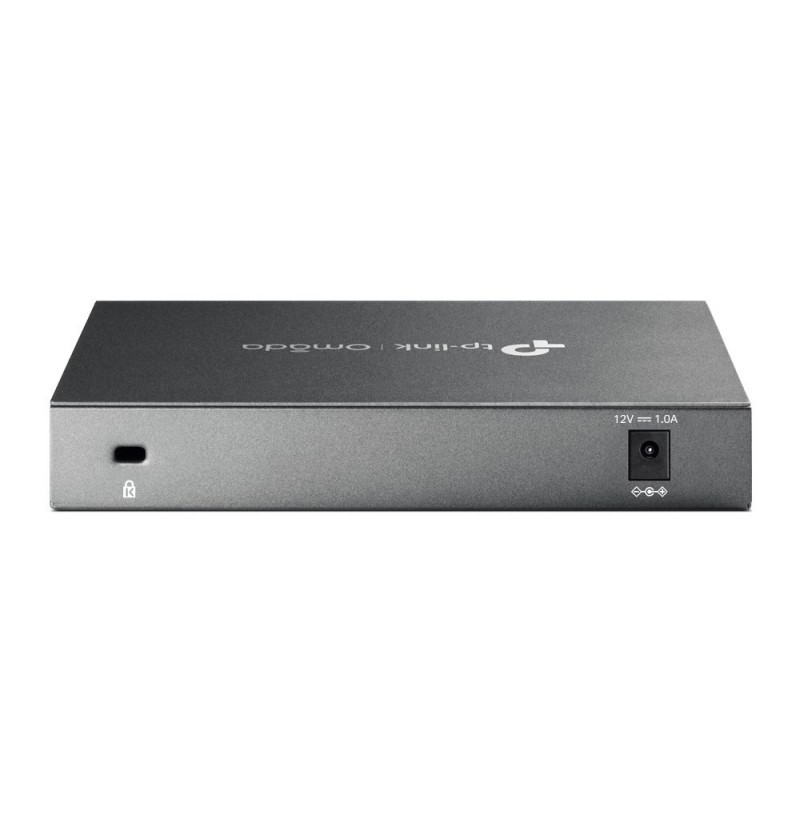

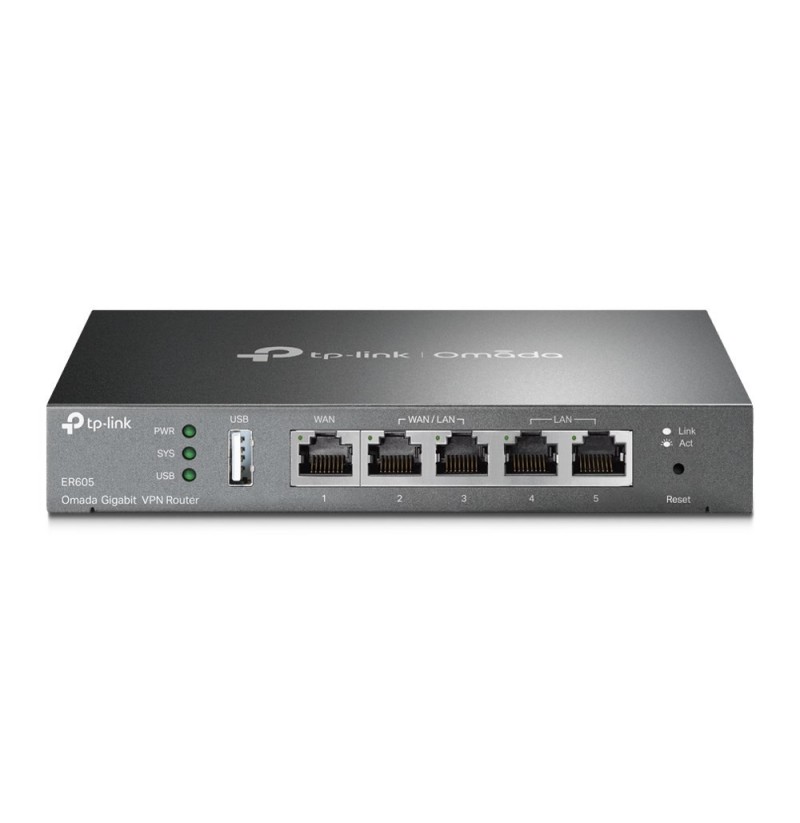

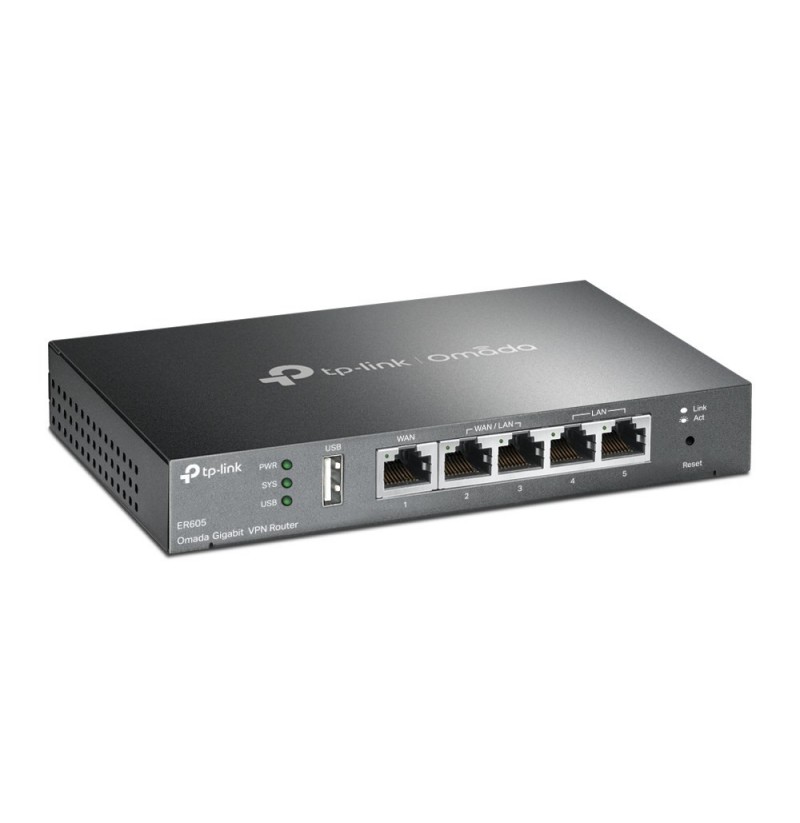

TP-Link Omada Gigabit VPN Router

Certification: CE, FCC, RoHS
Windows operating systems supported: Windows 10, Windows NT, Windows 8.1, Windows Vista, Windows XP, Windows 8, Windows 98SE, Windows 7, Windows 2000
Internal memory: 256 MB
Internal memory type: DRAM
Mac operating systems supported: MacOS
Linux operating systems supported: Yes
Flash memory: 128 MB
Rack mounting: Yes
LED indicators: USB, LAN, System, WAN, Activity
Product colour: Black
Rack capacity: 1U
Power consumption (typical): 7.94 W
AC input voltage: 120 - 240 V
AC input frequency: 50 - 60 Hz
Power source type: AC
VPN support: • 20 IPsec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IKEv1/v2• MD5, SHA1 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)• PPTP VPN Server• 10 PPTP VPN Clients• 16 Tunnels• PPTP with MPPE Encryption• L2TP VPN Server• 10 L2TP VPN Clients• 16 Tunnels• L2TP over IPSec• OpenVPN Server• 10 OpenVPN Clients• 16 OpenVPN Tunnels
NAT functionality: • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
VPN tunnels quantity: 20
System event log: Yes
Security algorithms: 192-bit AES, 128-bit AES, DES, SHA-1, 3DES, MD5, 256-bit AES
Network address translation (NAT): Yes
DoS attack prevention: Yes
ARP attack prevention: Yes
Authentication method: SHA-1, MD5
Firewall: Yes
URL filtering: Yes
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Universal Plug and Play (UPnP): Yes
Web-based management: Yes
Reset button: Yes
Width: 158 mm
Height: 25 mm
Depth: 101 mm
Ethernet interface type: Gigabit Ethernet
Concurrent connections: 150000
Cabling technology: 10/100/1000Base-T(X)
VLAN support: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u
Traffic control: Yes
Ethernet LAN data rates: 100, 1000, 10
Policy-based routing: Yes
Package weight: 650 g
Package depth: 254 mm
Package height: 60 mm
Package width: 190 mm
Cables included: AC
Quick installation guide: Yes
Manual: Yes
Quick start guide: Yes
Compliance certificates: RoHS
Supported protocols: IPsec/PPTP/L2TP
Management protocols: Telnet
Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
DHCP server: Yes
DHCP client: Yes
Routing protocols: RIP-2, RIP-1
DMZ support: Yes
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 5
DSL WAN: No
Ethernet WAN: Yes
3G/4G USB modem compatibility: No
SIM card slot: No
