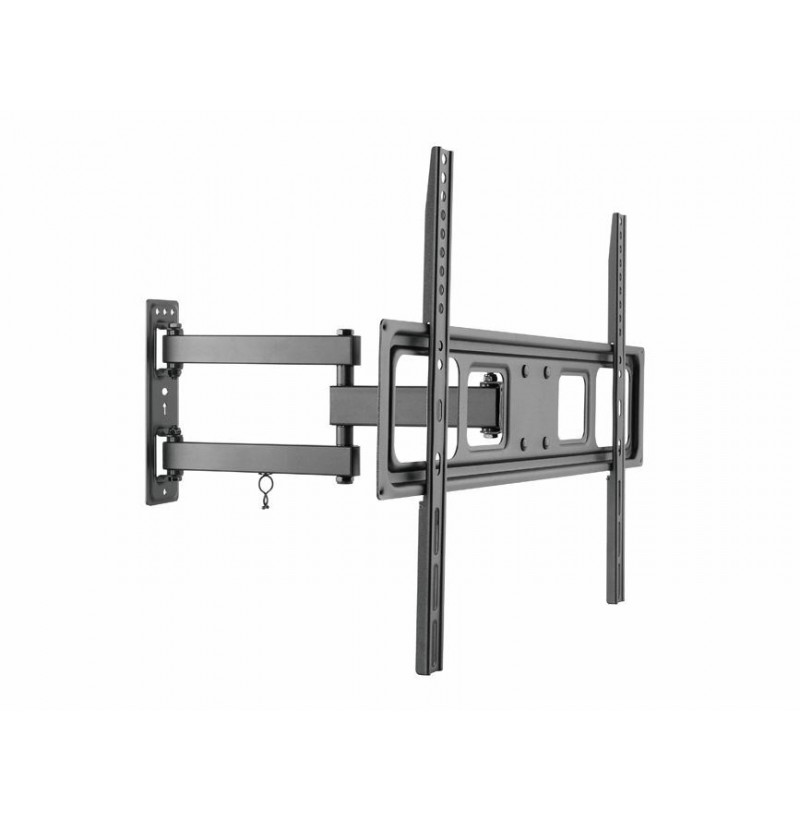

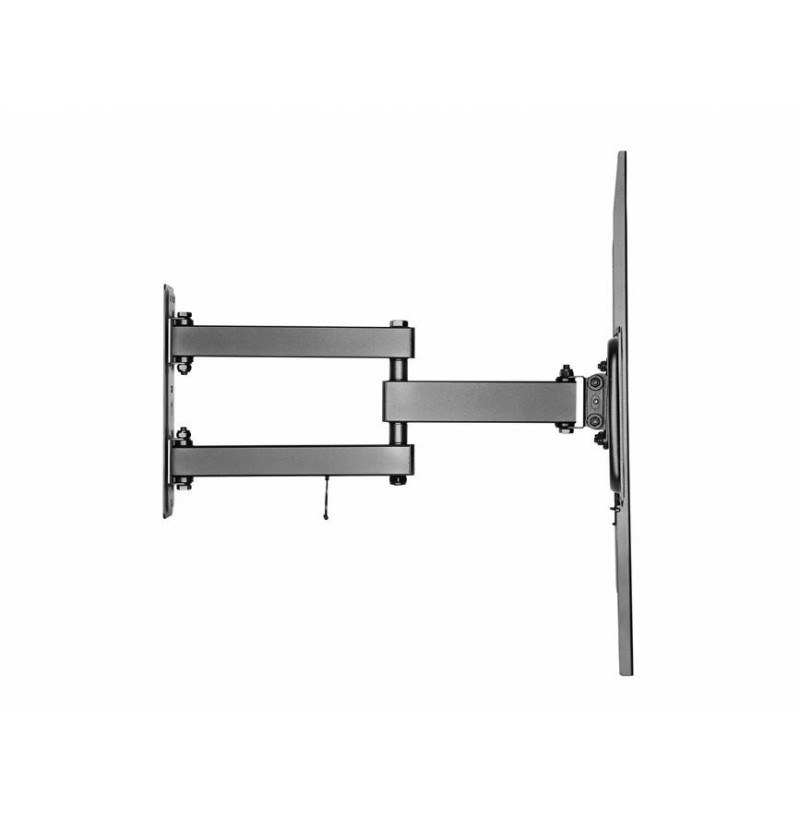

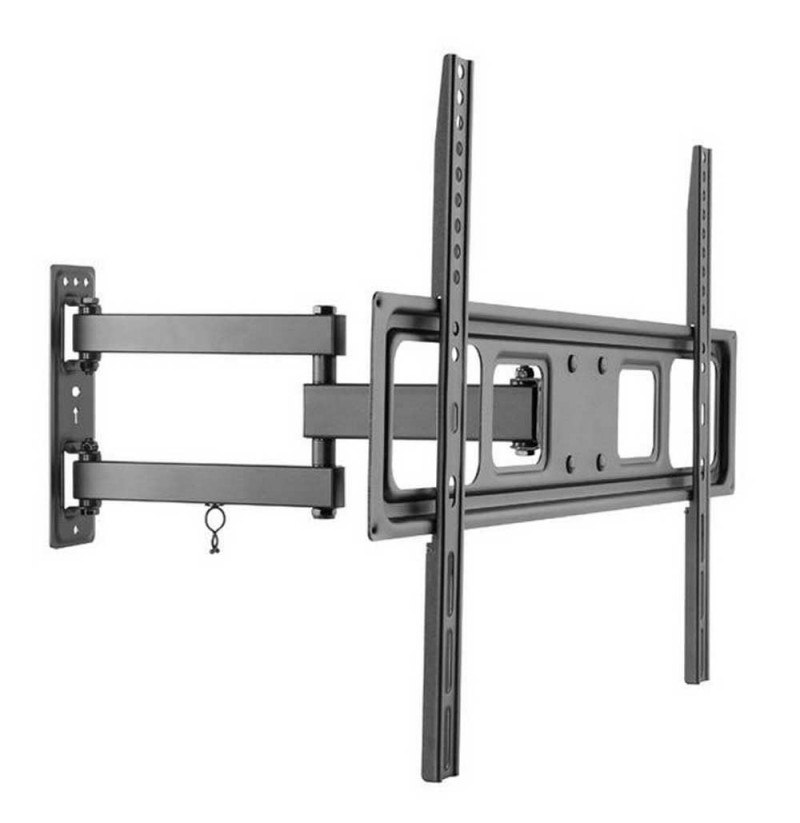

Equip 37"-70" Articulating TV Wall Bracket

Country of origin: China
Certification: ROHS
Housing material: Stainless steel
Product colour: Black

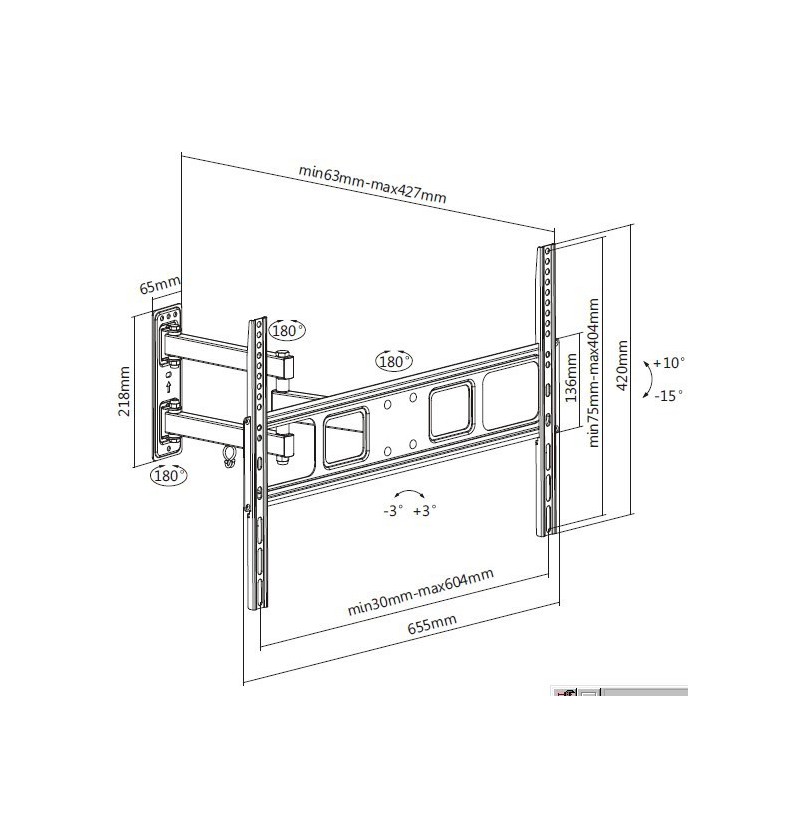

Height: 427 mm
Width: 655 mm
Depth (max): 42 cm
Weight: 3.12 kg
Quantity per pack: 1 pair(s)

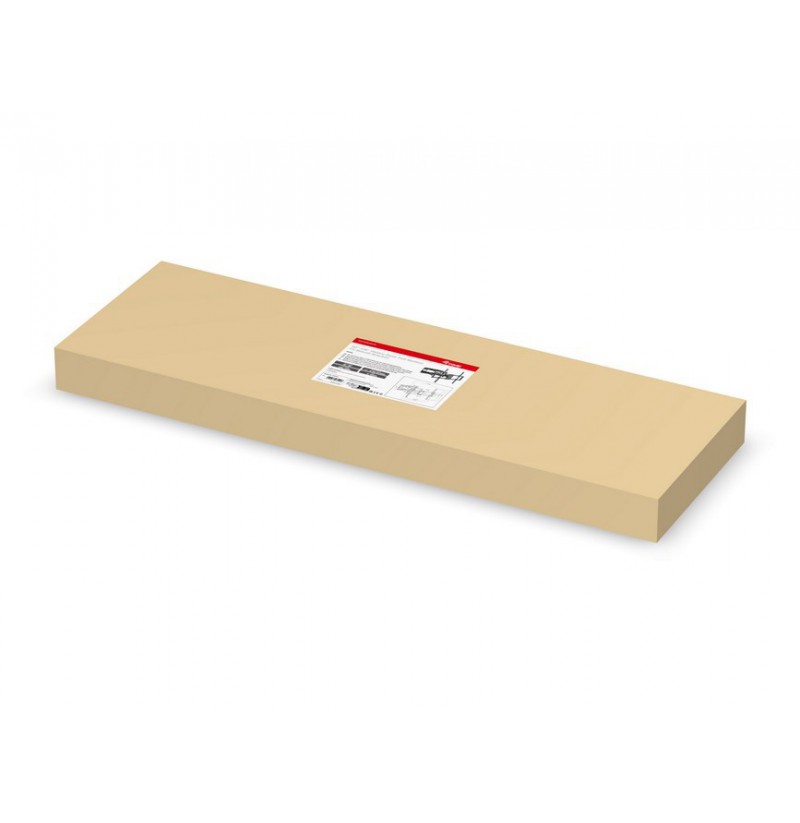

Package type: Box
Package height: 677 mm
Package weight: 3.54 kg
Package width: 231 mm
Package depth: 68 mm
Manual: Yes
Mounting kit: Yes

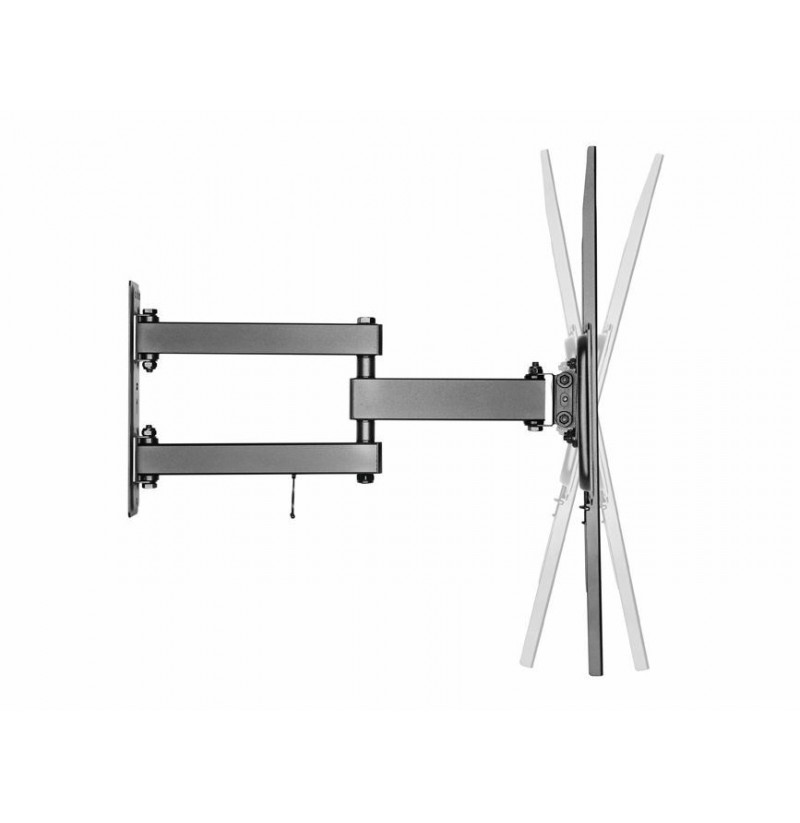

Tilt angle range: -15 - 10°
Distance to the wall (max): 42.7 cm
Tilt adjustment: Yes
Pan range: -90 - 90°
Distance to the wall (min): 6.3 cm
Master (outer) case width: 430 mm
Master (outer) case length: 245 mm
Master (outer) case height: 690 mm
Harmonized System (HS) code: 85299097
Products per master (outer) case: 6 pc(s)
Master (outer) case gross weight: 22 kg
Panel mounting interface: 400 x 200, 600 x 400 mm, 400 x 400 mm, 300 x 300 mm, 200 x 200 mm
Number of displays supported: 1
Minimum VESA mount: 200 x 200 mm
Maximum weight capacity: 35 kg
Maximum screen size: 177.8 cm (70")
Maximum VESA mount: 600 x 400 mm
Minimum screen size: 94 cm (37")
Mounting type: Wall
