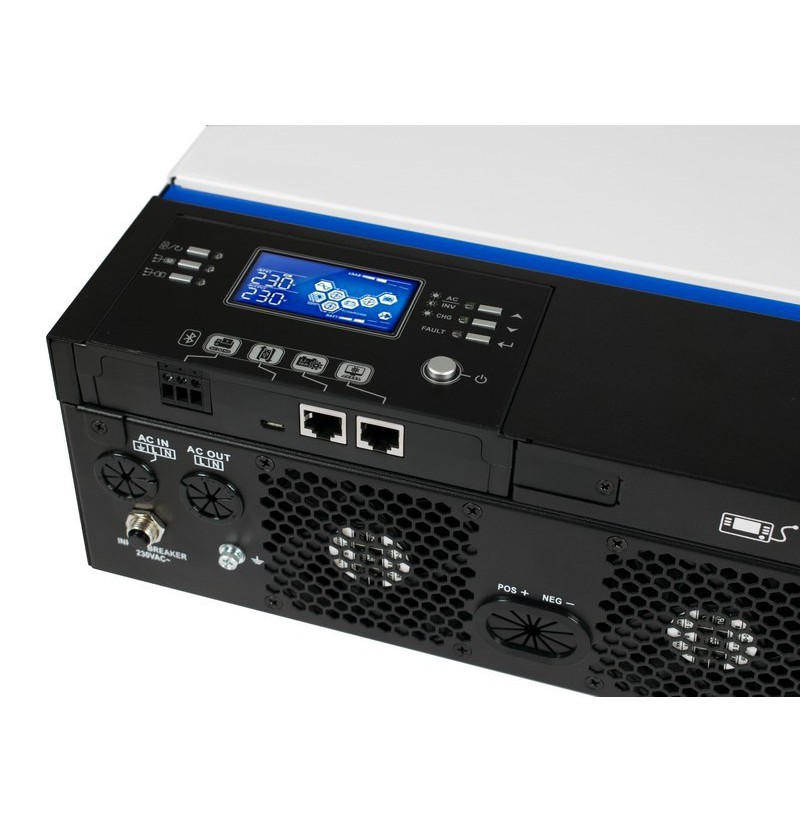

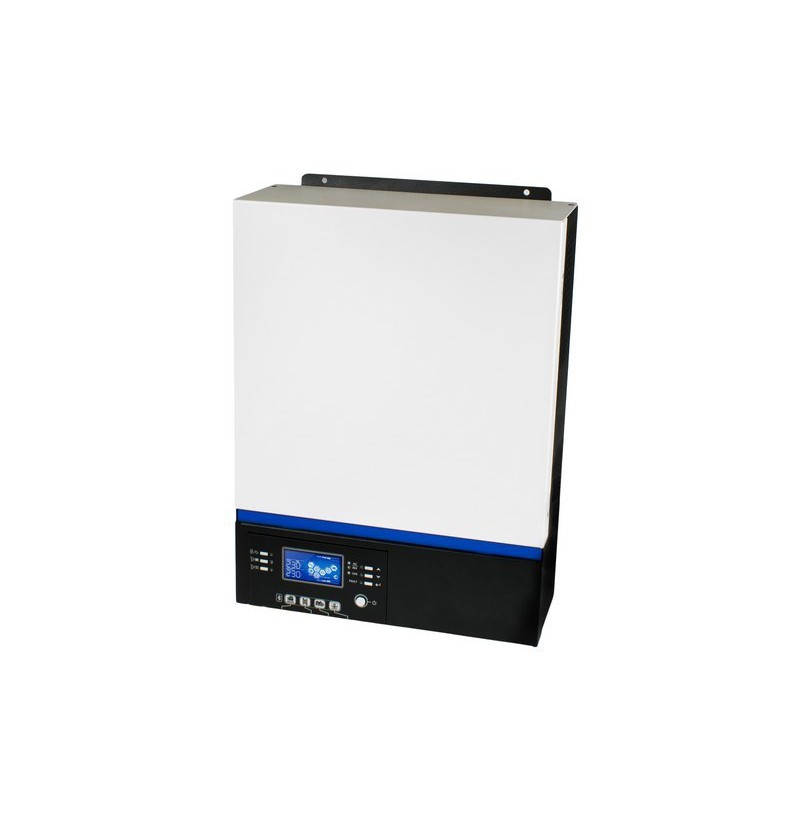

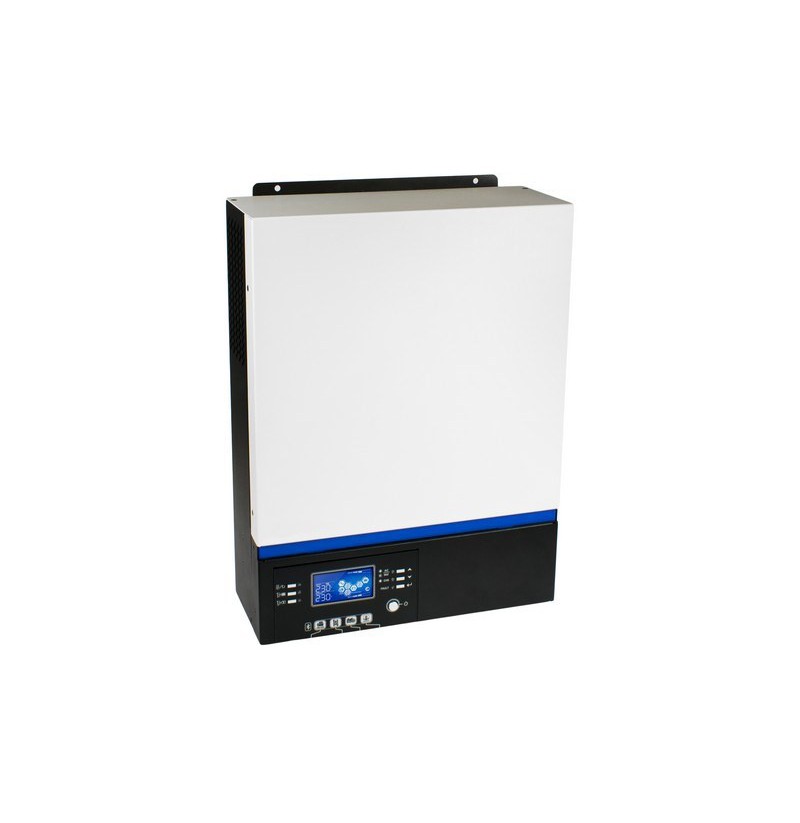

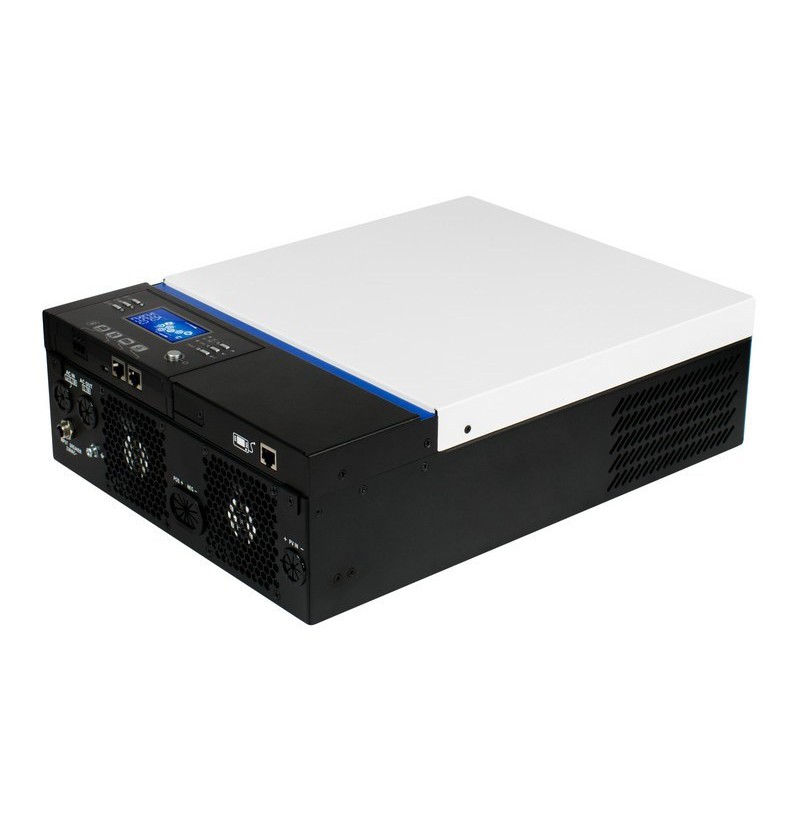

Off-Grid Hybrid Solar Inverter AZO Digital ESB 6KW-24 Padidinti

Off-Grid Hybrid Solar Inverter AZO Digital ESB 6KW-24

519,53 €

5903332566440

Galimas pasirinkimas

 pristatymas 9...11 d.d.

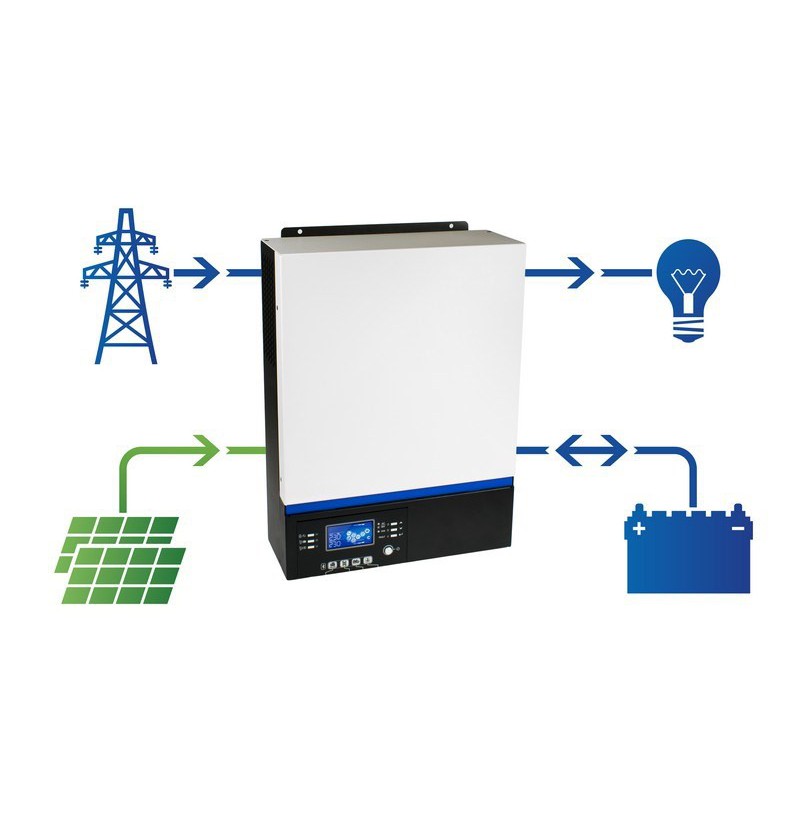

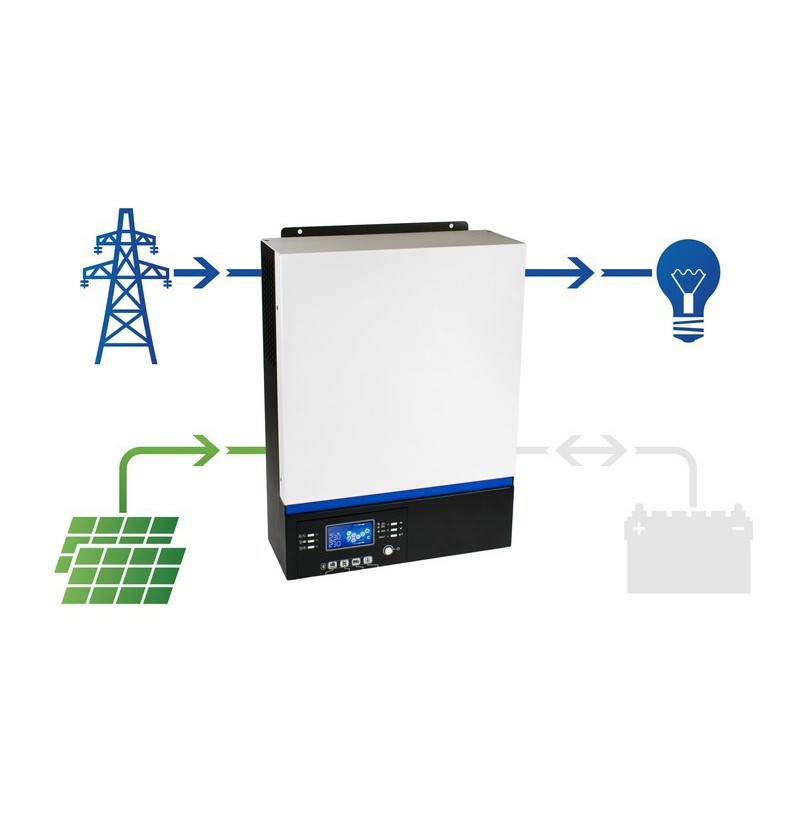

Purpose: Off-grid power systems based on energy from PV panels, grid and battery
Power supply type: -
Product colour: White
International Protection (IP) code: IP21
Power current type: AC/AC
MPPT function: Yes
Power protection features: Overload
Door cooling fan: Yes
Recharge indicator: Yes

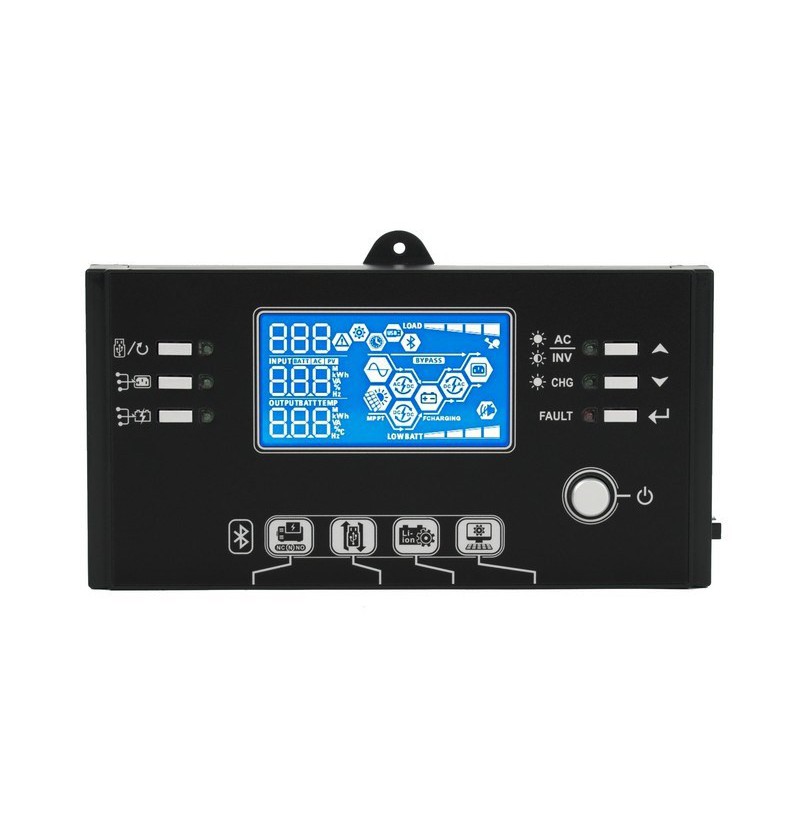

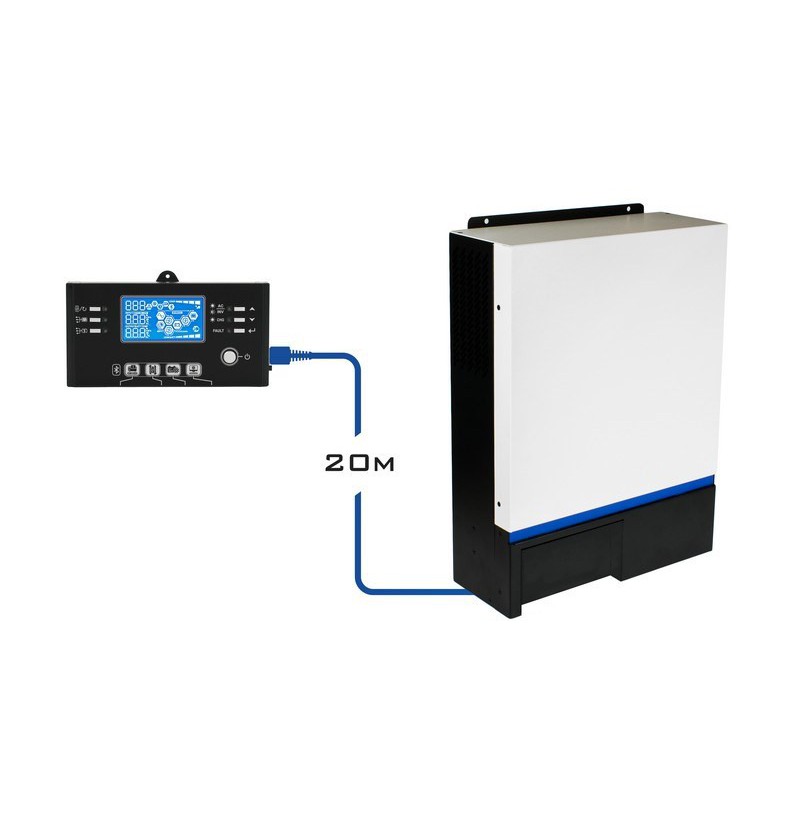

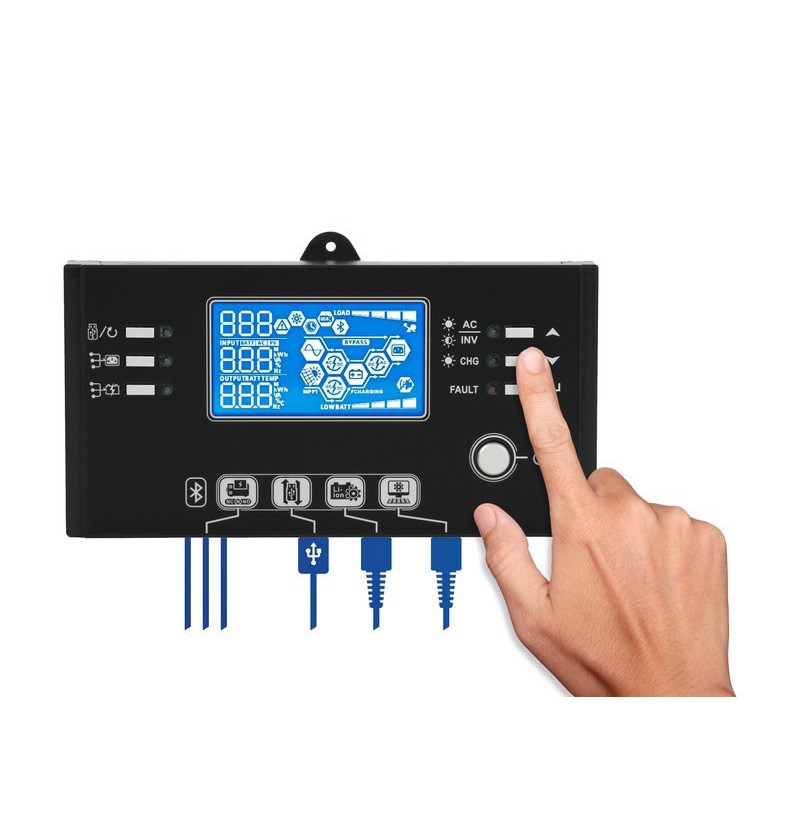

Control display unit: Yes
Display included: Yes
AC input voltage: 90 - 280 V
DC battery voltage: 24 V
Waveform: Sine
Maximum charging current from solar panels (MPPT): 80 A
MPPT voltage range: 120 - 450 V
Input frequency: 50/60 Hz
Charging voltage: 27 V
Continuous power: 3000 VA
Nominal input voltage: 230 V
Output power capacity: 6000 VA
Output voltage (VAC): 230 VAC
Weight: 9 kg
Width: 300 mm
Height: 400 mm
Depth: 115 mm
Cooling type: Active
Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 5 - 95%
Efficiency: 93%
Typical switching time: 15 ms
Cables included: AC
DFU / User manual: Yes
Control display unit: Yes

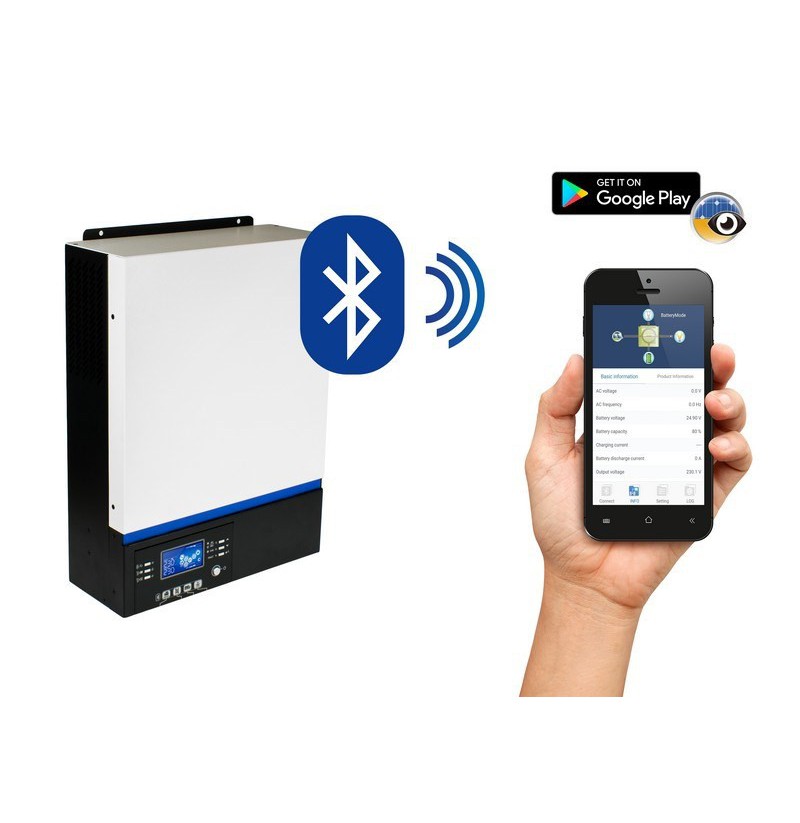

Bluetooth: Yes
USB port: Yes
