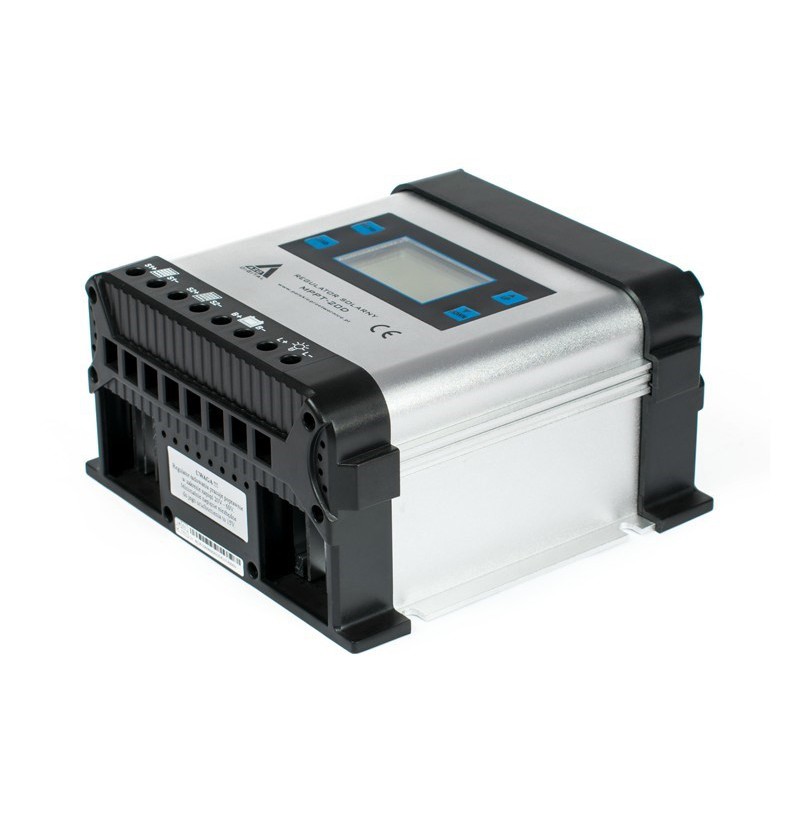

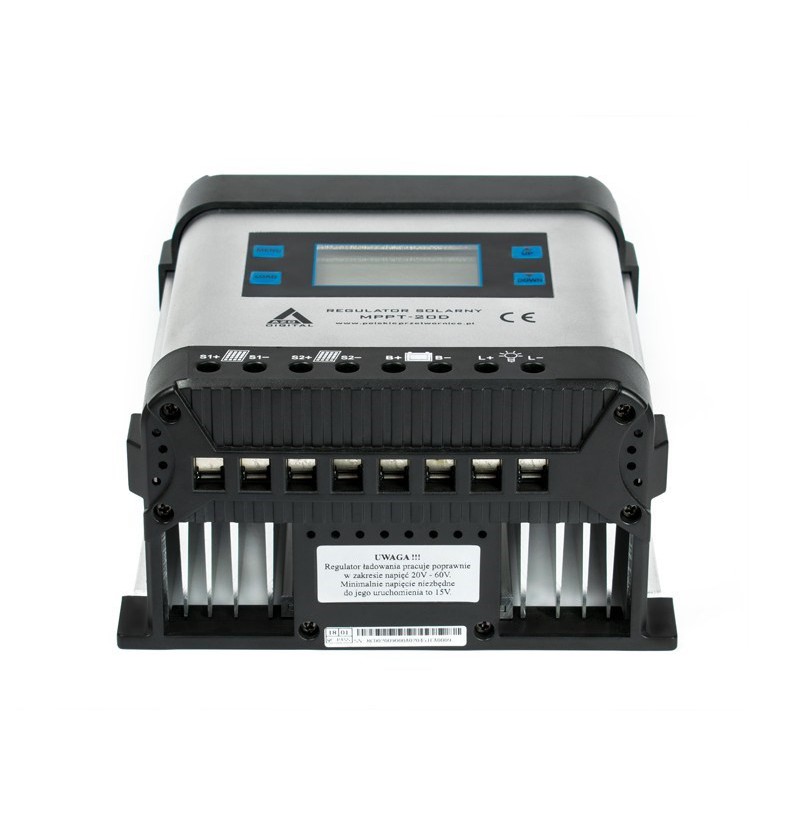

Solar MPPT charge controller AZO Digital 12/24 - 20A LCD display

Purpose: Photovoltaic panels
Power supply type: -
MPPT function: Yes
Power protection features: Overheating, Overvoltage protection, Overcharge, Over voltage
Product colour: White
International Protection (IP) code: IP21
Supported battery type: AGM / Gel
Power current type: DC
Built-in display: LCD
Conductor cross section (max): 16mm / 6AWG
DC battery voltage: 12 / 24 V
Input voltage: 12V: 20V-60V / 24V: 30V-90V (auto-detection)
Maximum charging current: 20 A
Height: 95 mm
Weight: 1.47 kg
Width: 175 mm
Depth: 175 mm
Operating temperature (T-T): -40 - 50 °C
Specific features: Internal power consumption: <1mA (standby) / 15mA (operation) / 130mA (operation with connected load)
Temperature compensation: 12V: 18mV/°C / 24V: 36mV/°C
