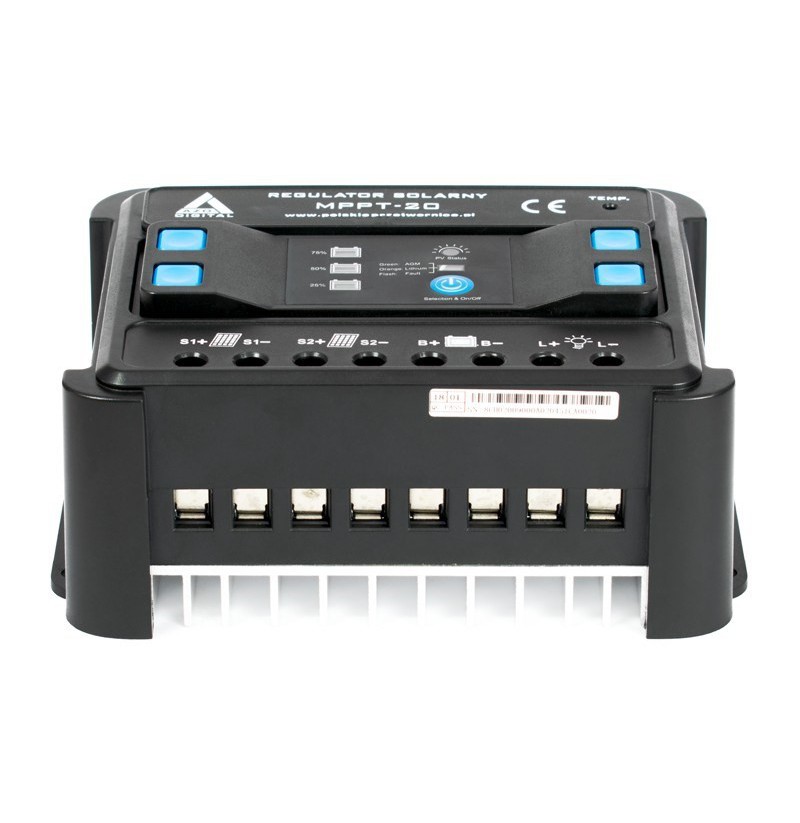

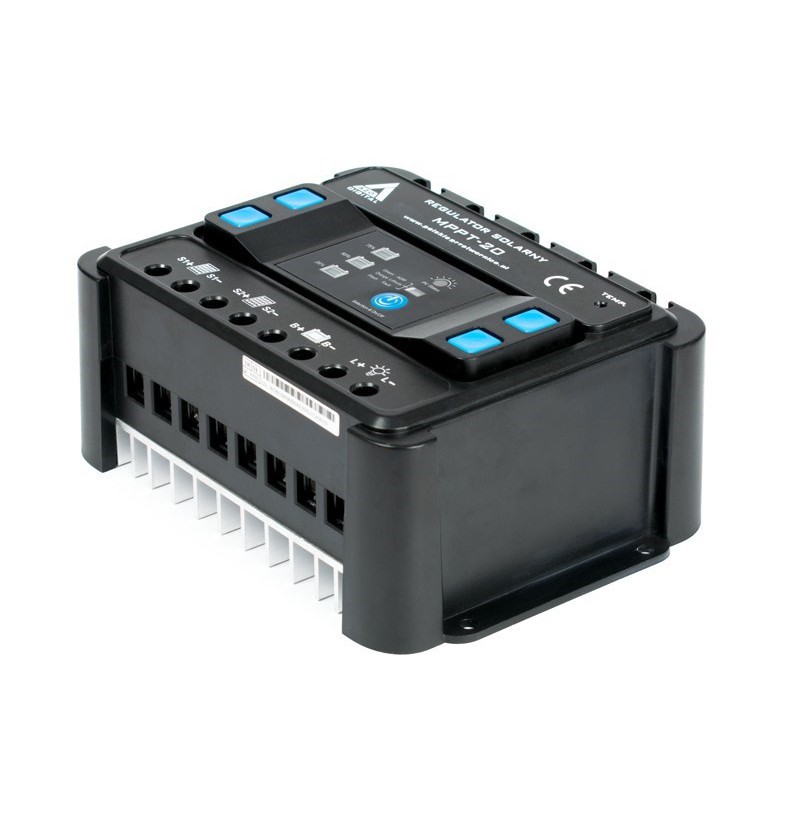

Solar MPPT charge controller AZO Digital 12/24 - 20A

Purpose: Photovoltaic panels
Power supply type: -
Product colour: Black
Power protection features: Overheating, Overvoltage protection, Over voltage, Overcharge
Power current type: DC
International Protection (IP) code: IP21
MPPT function: Yes
Supported battery type: AGM / Gel / LiFePO
Built-in display: No
Conductor cross section (max): 16mm / 6AWG
Input voltage: 12V: 10V-40V / 24V: 20V-65V (auto-detection)
DC battery voltage: 12 / 24 V
Maximum charging current: 20 A
Width: 127 mm
Weight: 0,8 kg
Height: 72 mm
Depth: 172 mm
Specific features: Internal power consumption: <40mA (standby) / 130mA (operation with load connected)
Operating temperature (T-T): -25 - 55 °C
Temperature compensation: 12V: 18mV/°C / 24V: 36mV/°C
