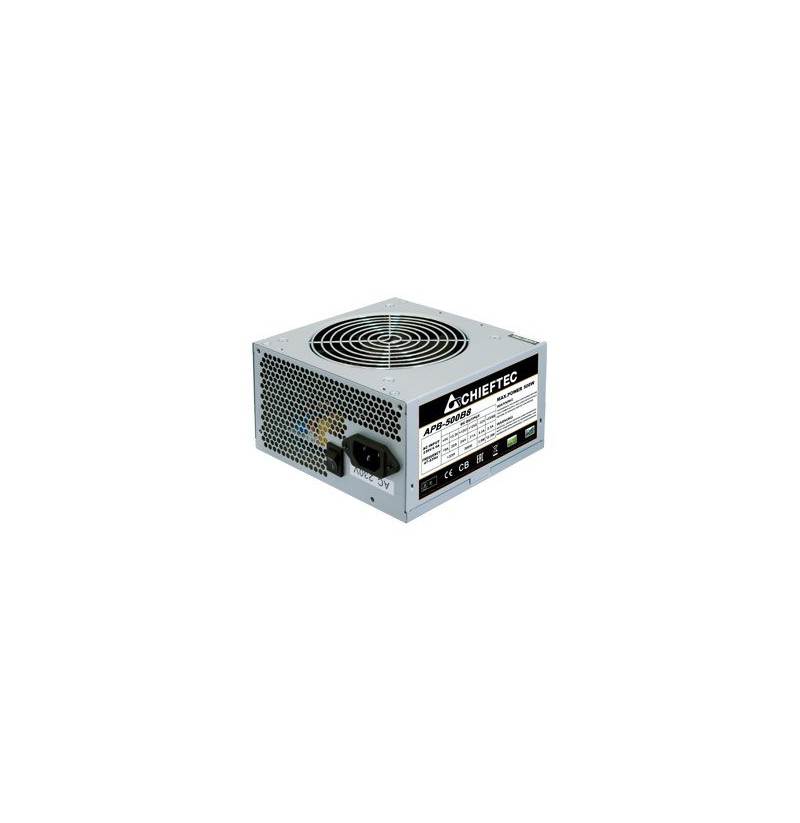

CHIEFTEC Value 500W efficacity 80p.c. Padidinti

CHIEFTEC Value 500W efficacity 80p.c. ATX 12V 2.3 Cables 1x20+4PIN ATX 3xSATA 2xMolex 1x4PIN 12V 1x8PIN 6 + 2 PCIe

38,16 €

APB-500B8

4710713230569

Galimas pasirinkimas

 3..5 d.d.


Sustainability certificates: RoHS
On/off switch: Yes
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Product colour: Silver
Cooling type: Active
Total power: 500 W
Max output current (+5Vsb): 2.5 A
Combined power (+5Vsb): 12.5 W
Efficiency: 80%
Power factor: 0.9
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Power protection features: Under voltage, Overload, Short circuit, Over voltage
Max output current (+5V): 19 A
Max output current (+12V1): 24 A
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 4 A
Combined power (+5V): 130 W
Max output current (+3.3V): 22 A
Max output current (+12V2): 21 A
Depth: 140 mm
Height: 87 mm
Width: 150 mm
Certification: CE, CB, TÜV, EAC
Power supply unit (PSU) form factor: ATX
Purpose: PC
ATX version: 2.3
80 PLUS certification: 80 PLUS
Number of SATA power connectors: 3
PCI Express power connectors (6+2 pin): 1
Cabling type: Non-Modular
EPS power connector (8-pin): No
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 2
Floppy disk drive connector: Yes
Harmonized System (HS) code: 84733020
