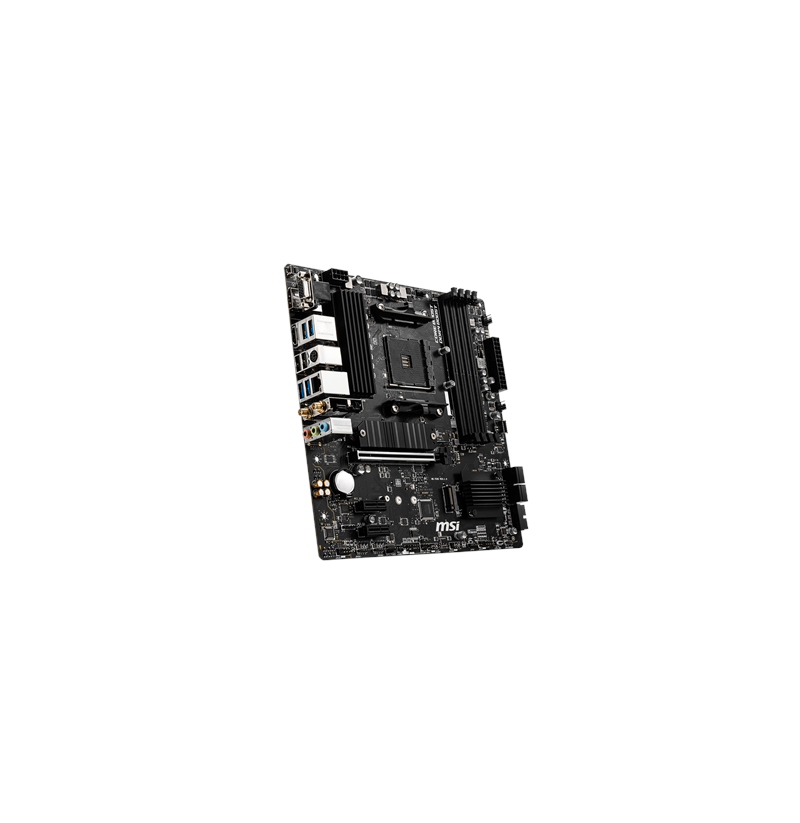

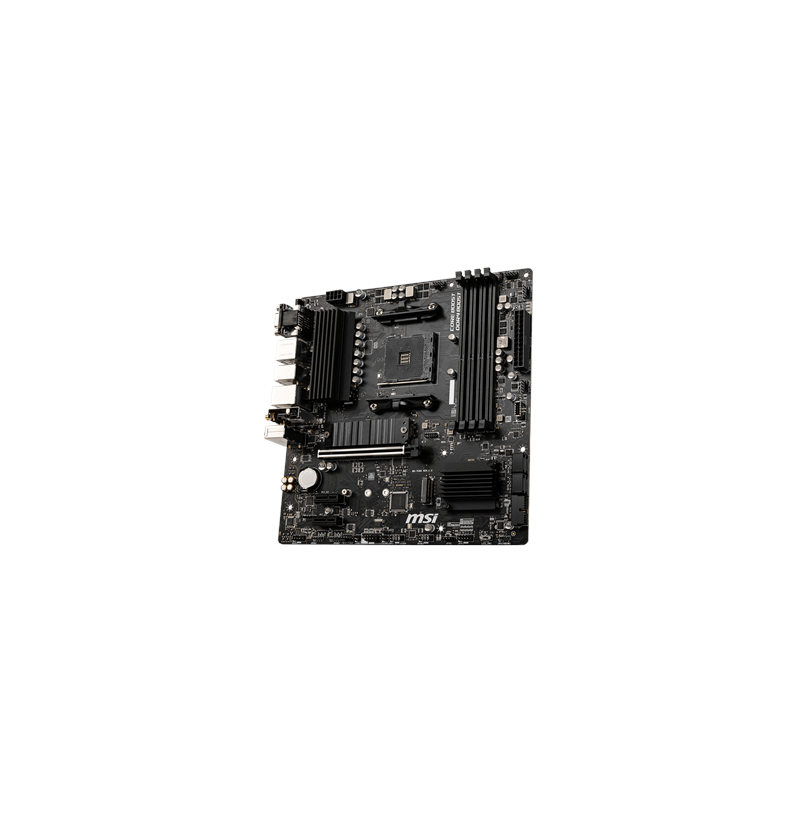

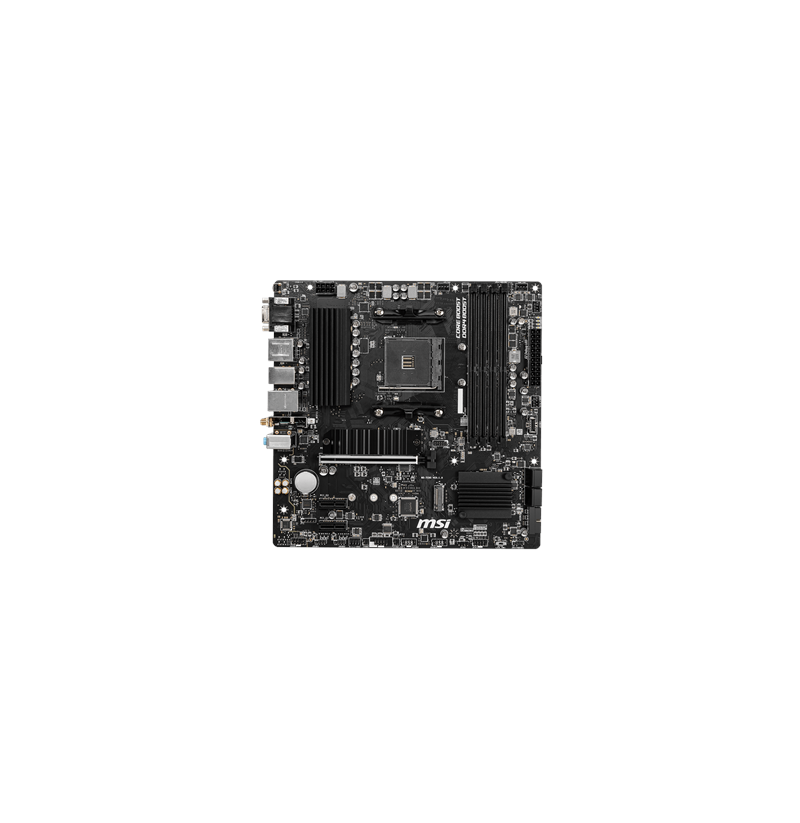

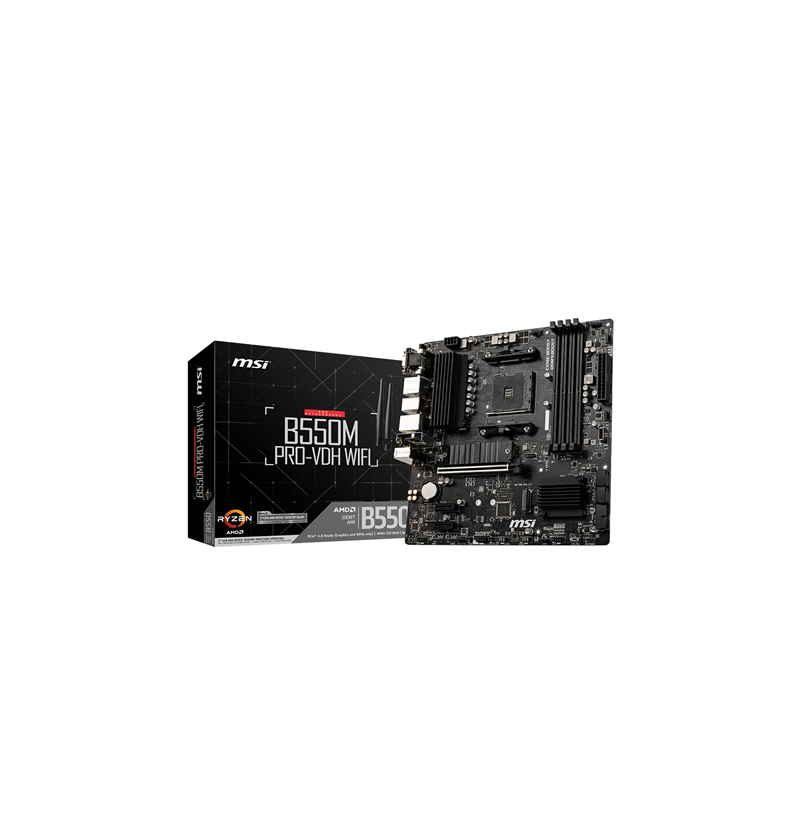

MSI B550M PRO-VDH WIFI Processor family AMD, Processor socket AM4, DDR4, Memory slots 4, Chipset AMD B, Micro ATX Padidinti

MSI B550M PRO-VDH WIFI motherboard Socket AM4 micro ATX AMD B550

106,47 €

B550M PRO-VDH WIFI

4719072733698

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Maximum graphics card memory: 16000 MB
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
Motherboard chipset family: AMD
Number of mounting holes: 8
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Audio chip: Realtek ALC892
Product colour: Black
Motherboard chipset: AMD B550
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 2667, 3733, 4400, 3066, 3466, 2133, 2933, 3600, 3200 MHz, 4266, 3000, 2400, 2800, 4133, 4000 MHz, 3866, 1866
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Width: 244 mm
Height: 65 mm
Depth: 244 mm
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Ethernet interface type: Gigabit Ethernet
Bluetooth version: 4.2
Ethernet LAN: Yes
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, 802.11b, 802.11g
LAN controller: Realtek 8111HN
Bluetooth: Yes
Number of SATA III connectors: 4
Serial port headers: 1
Number of chassis fan connectors: 3
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
Clear CMOS jumper: Yes
Cables included: SATA
Drivers included: Yes
RAID support: Yes
Supported storage drive interfaces: SATA III
RAID levels: 0, 1, 10
Supported storage drive types: HDD & SSD

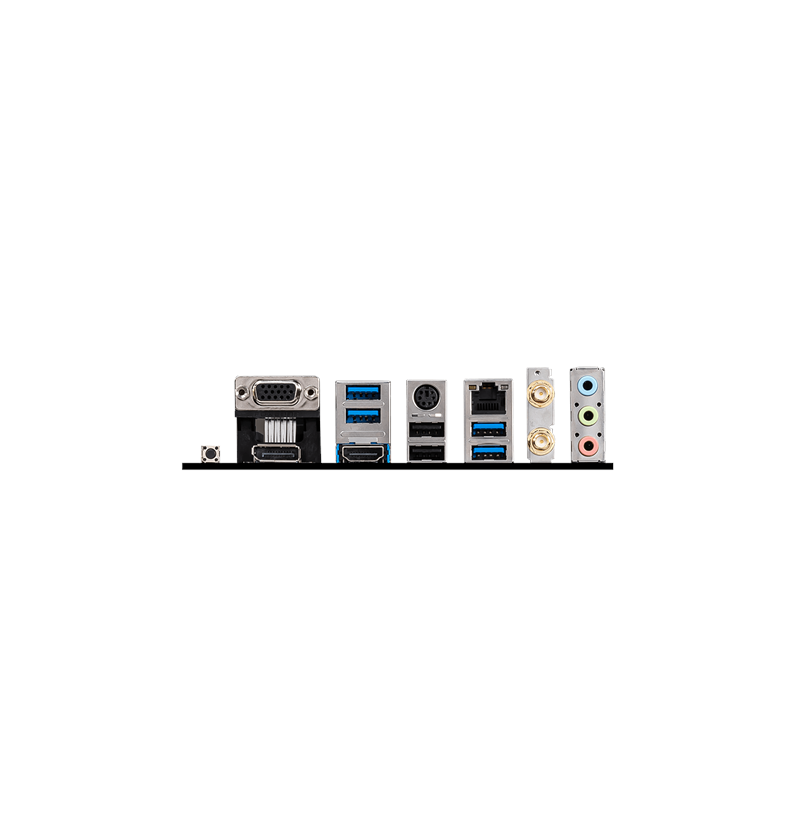

VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
WiFi-AP antenna jack: 2
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
Weight: 1 kg
Harmonized System (HS) code: 84733020
Warnings: Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture., Dispose of according to local electro-waste regulations.
