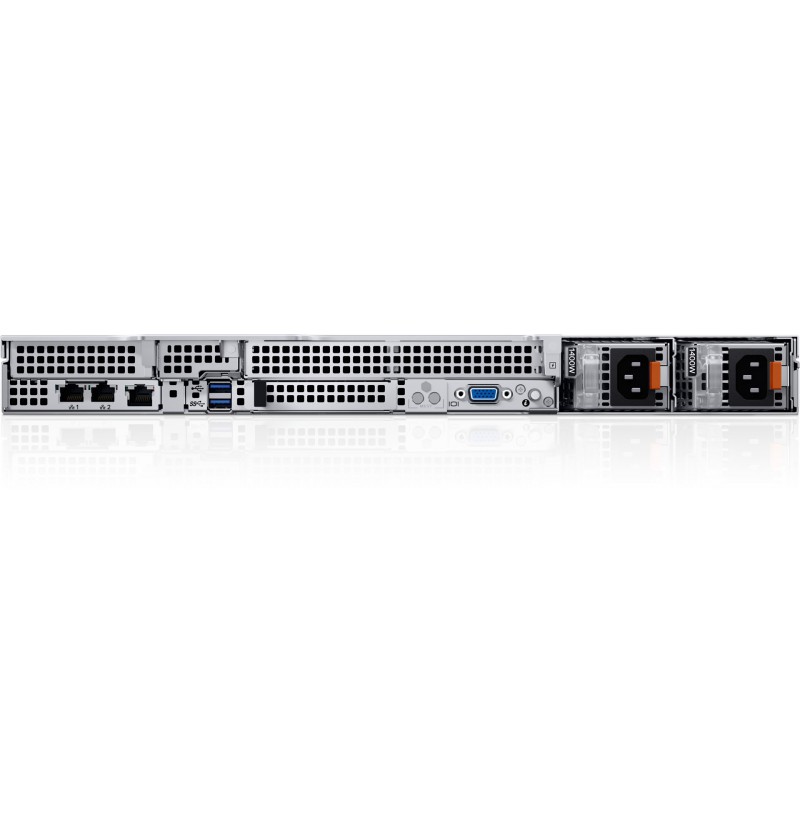

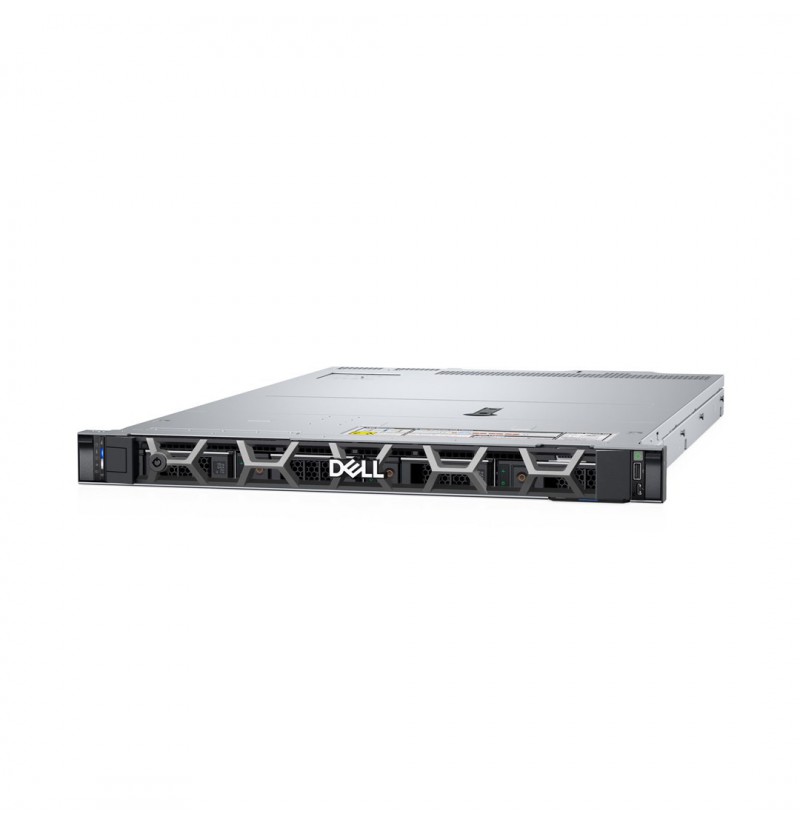

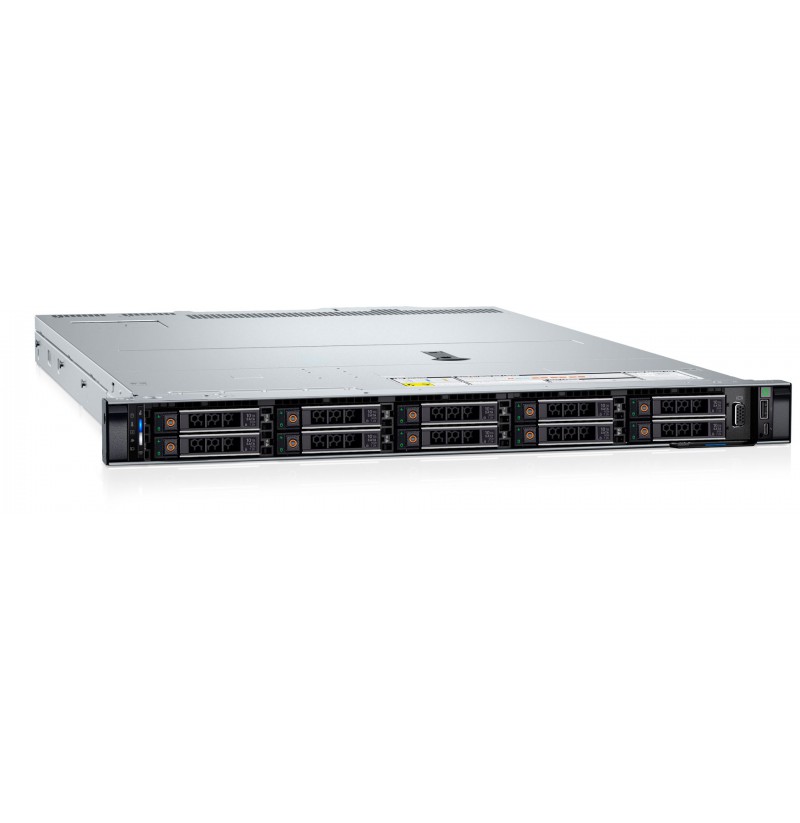

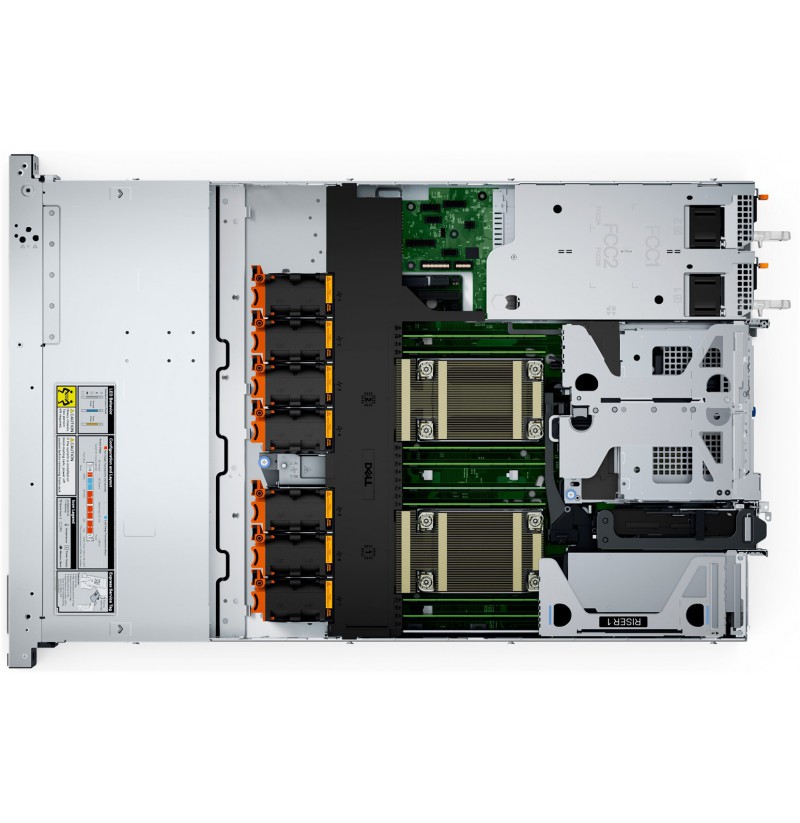

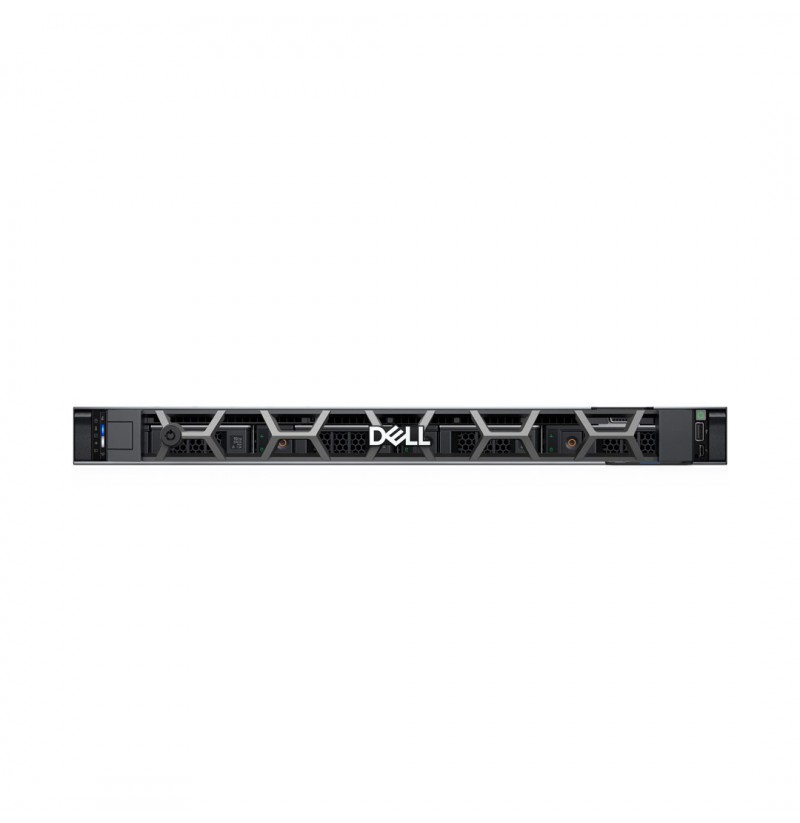

DELL PowerEdge R660XS server 480 GB Rack (1U) Intel Xeon Silver 4510 2.4 GHz 32 GB DDR5-SDRAM 1100 W

Supported RAID configuration: Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
Processor boost frequency: 4.1 GHz
Processor frequency: 2.4 GHz
Processor manufacturer: Intel
System bus rate: 16 GT/s
Motherboard chipset: Intel C741
Memory clock speeds supported by processor: 4400 MHz
Processor cores: 12
Thermal Design Power (TDP): 150 W
Processor model: 4510
Processor cache: 30 MB
Processor family: Intel Xeon Silver
Memory types supported by processor: DDR5-SDRAM
Processor threads: 24
Number of processors installed: 1
Memory ranking: 2
Buffered memory type: Registered (buffered)
Memory layout (slots x size): 1 x 32 GB
Maximum internal memory: 1 TB
Memory slots: 16x DIMM
Internal memory type: DDR5-SDRAM
Memory data transfer rate: 5600 MT/s
Internal memory: 32 GB
Bezel: Yes
Chassis type: Rack (1U)
Product colour: Black
Rack rails: Yes
Power supply: 1100 W
Power supply input voltage: 100-240 V
Redundant power supply (RPS) support: Yes
Number of redundant power supplies installed: 2
Operating altitude: 0 - 3048 m
Operating temperature (T-T): 10 - 35 °C
Non-operating altitude: 0 - 12000 m
Storage temperature (T-T): -40 - 65 °C
Storage relative humidity (H-H): 5 - 95%
Height: 42.8 mm
Width: 434 mm
LAN controller: Broadcom 5720
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Trusted Platform Module (TPM): Yes
Remote administration: iDRAC9, Enterprise 16G
Trusted Platform Module (TPM) version: 2.0
PCI Express x8 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Compatible operating systems: Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware vSAN/ESXi
Operating system installed: No
80 PLUS certification: 80 PLUS Titanium
Drive writes per day (DWPD): 1
SSD size: 2.5"
Number of SSDs supported: 8
Supported SSD sizes: 2.5"
Total storage capacity: 480 GB
Optical drive type: No
Number of SSDs installed: 1
SSD interface: SATA III
Supported RAID controllers: Front PERC H755 Front Load
SSD capacity: 480 GB
Hot-Plug support: Yes
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Target workload: Read Intensive (RI)
Open Compute Project (OCP): NIC 3.0
Bytes per sector: 512e
Data transfer rate: 6 Gbit/s
Total carbon footprint (kg of CO2e): 6561
Carbon emissions, manufacturing (kg of CO2e): 459.27
Carbon emissions, energy usage (kg of CO2e): 5970.51
Total carbon emissions, standard deviation (kg of CO2e): 3677
Carbon emissions, logistics (kg of CO2e): 131.22
PAIA version: PAIA 1.3.2, 2022
