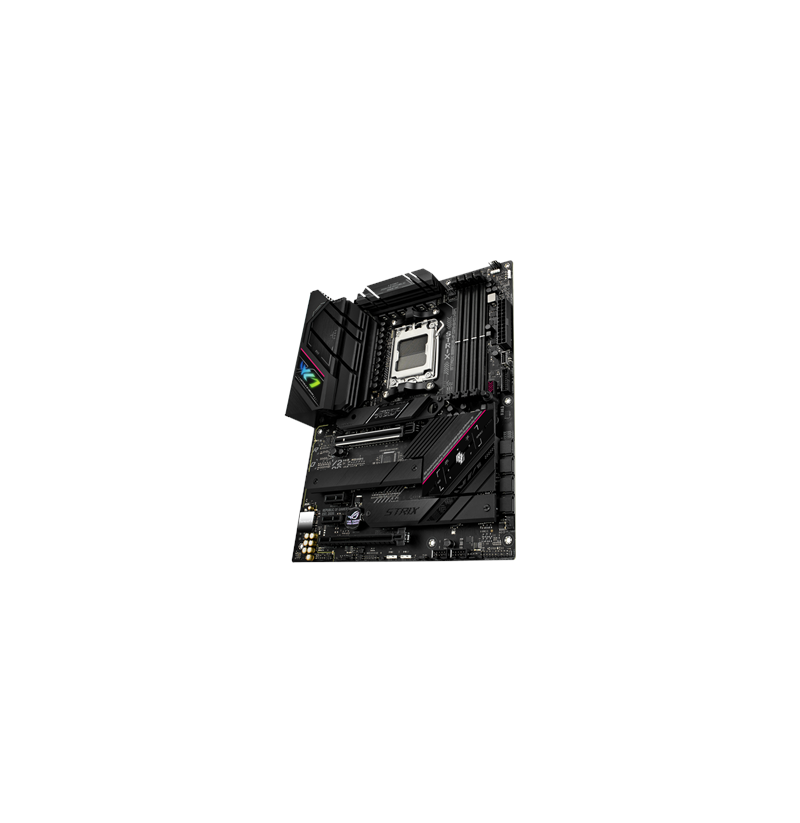

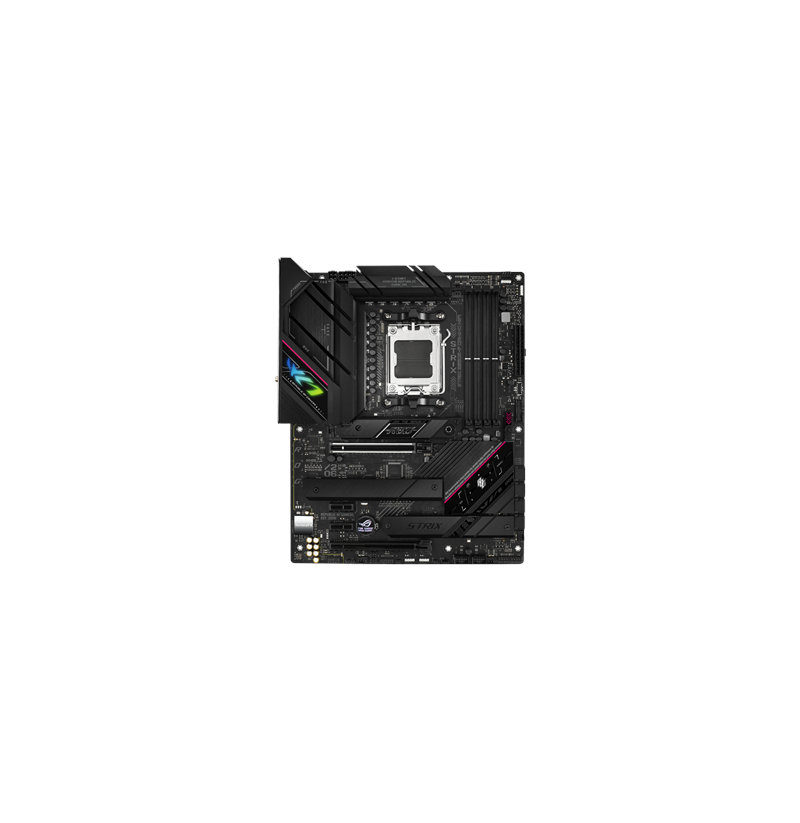

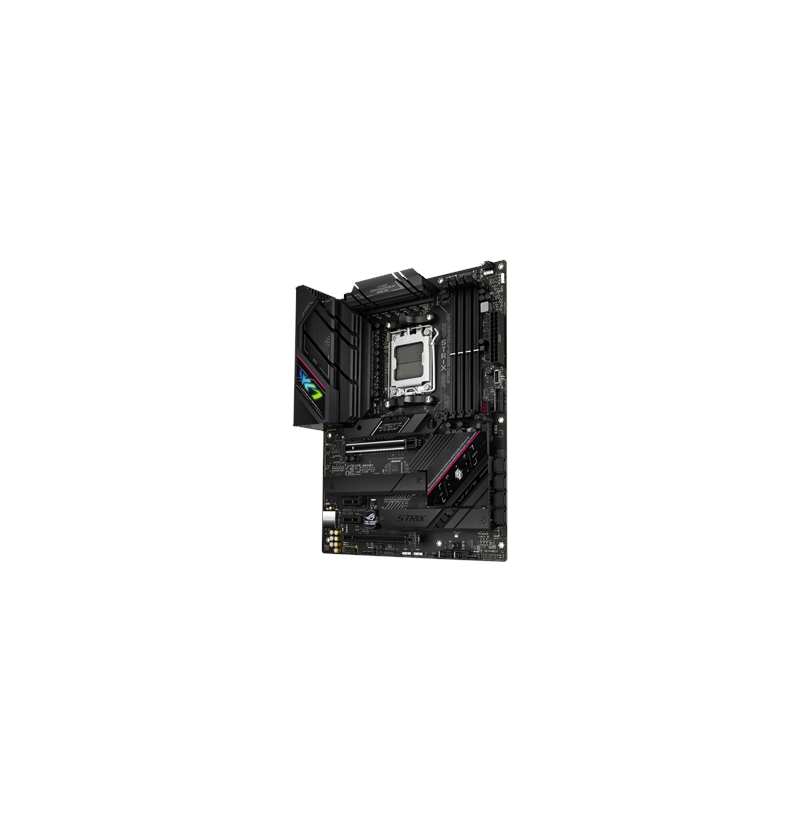

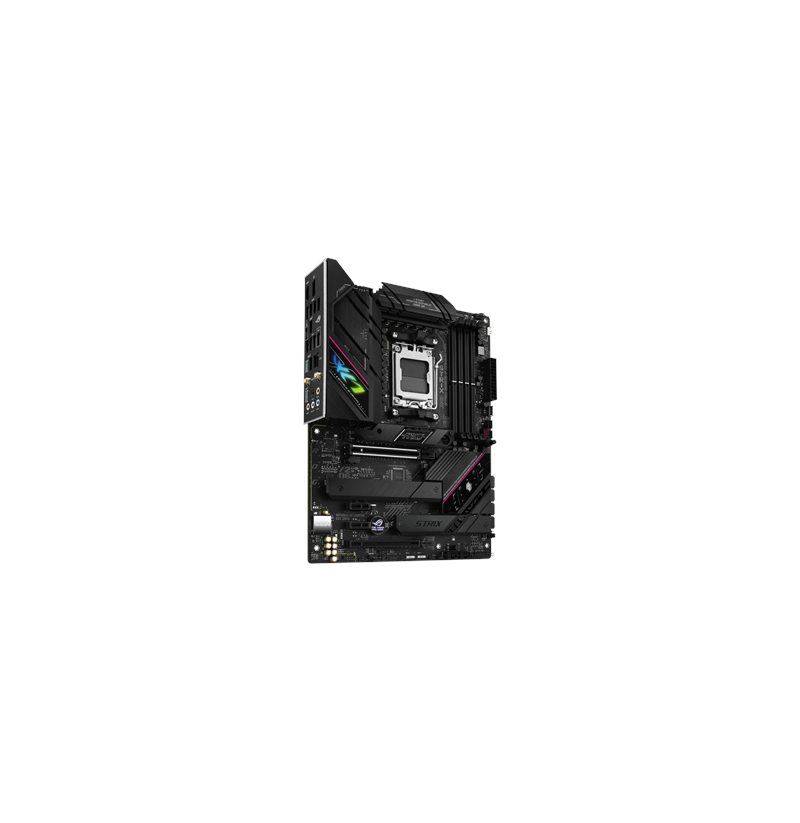

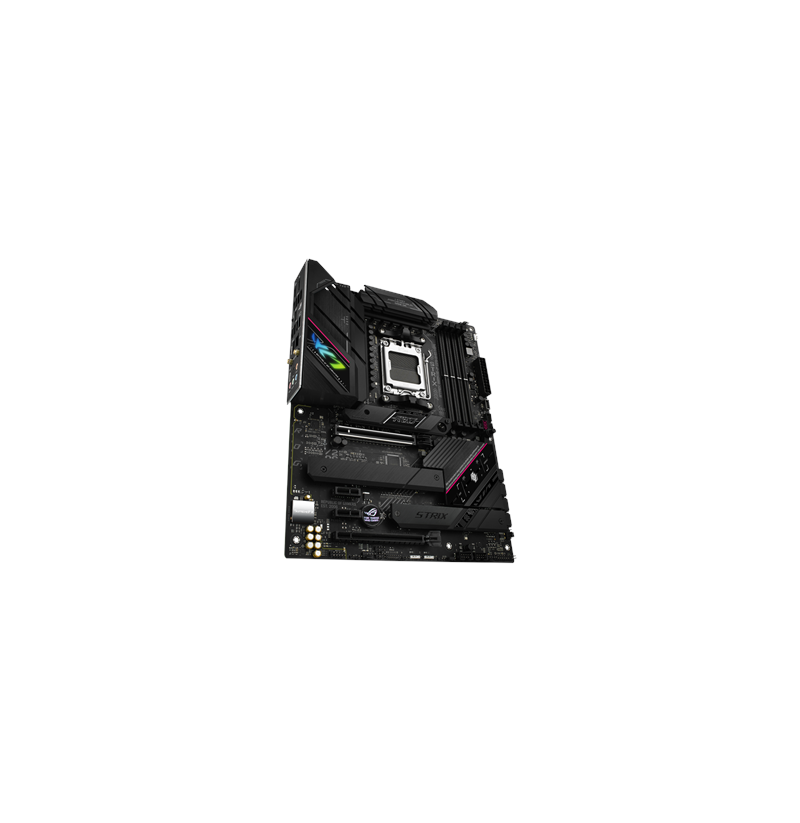

ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX

Compatible processor series: AMD Ryzen™ 7
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5
Parallel processing technology support: Not supported
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio chip: Realtek ALC4080
Motherboard chipset: AMD B650
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory clock speeds: 6400, 6200, 5000, 5200, 6000, 5800, 5400, 5600, 4800
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
Width: 305 mm
Depth: 244 mm
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
LAN controller: Intel I225-V
Bluetooth: Yes
RGB LED pin header: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
Number of chassis fan connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
Peripheral (Molex) power connectors (4-pin): 1
CPU fan connector: Yes
Chassis intrusion connector: Yes
Thunderbolt headers: 1
S/PDIF out connector: Yes
USB 2.0 connectors: 4
Clear CMOS button: Yes
BIOS type: UEFI AMI
Package height: 71 mm
Package width: 280 mm
Package weight: 9.22 kg
Package depth: 265 mm
Cables included: SATA
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 10, 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Headphone outputs: 3
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
