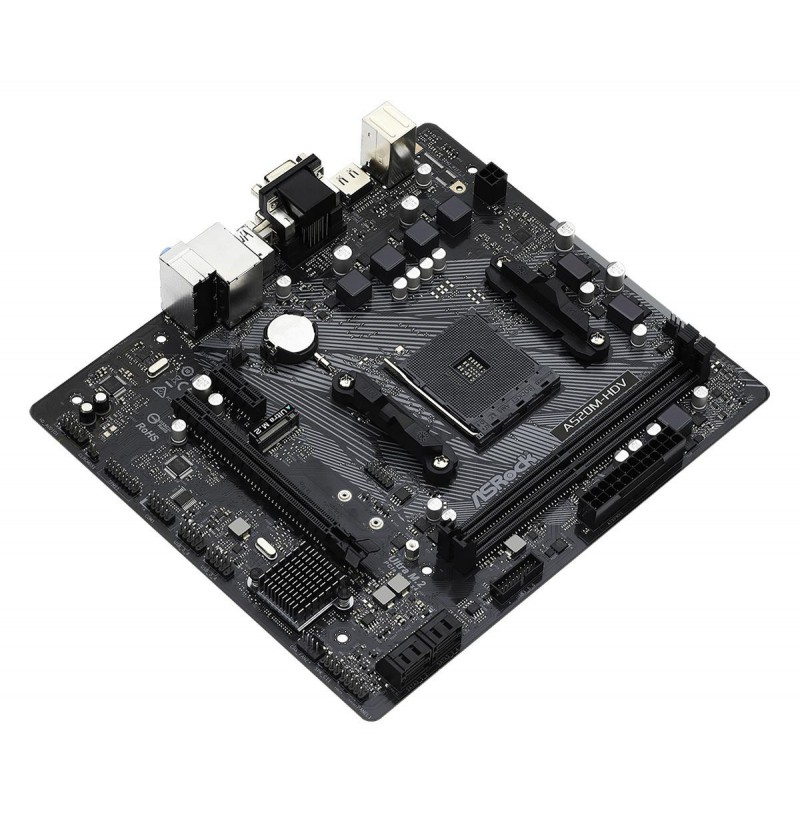

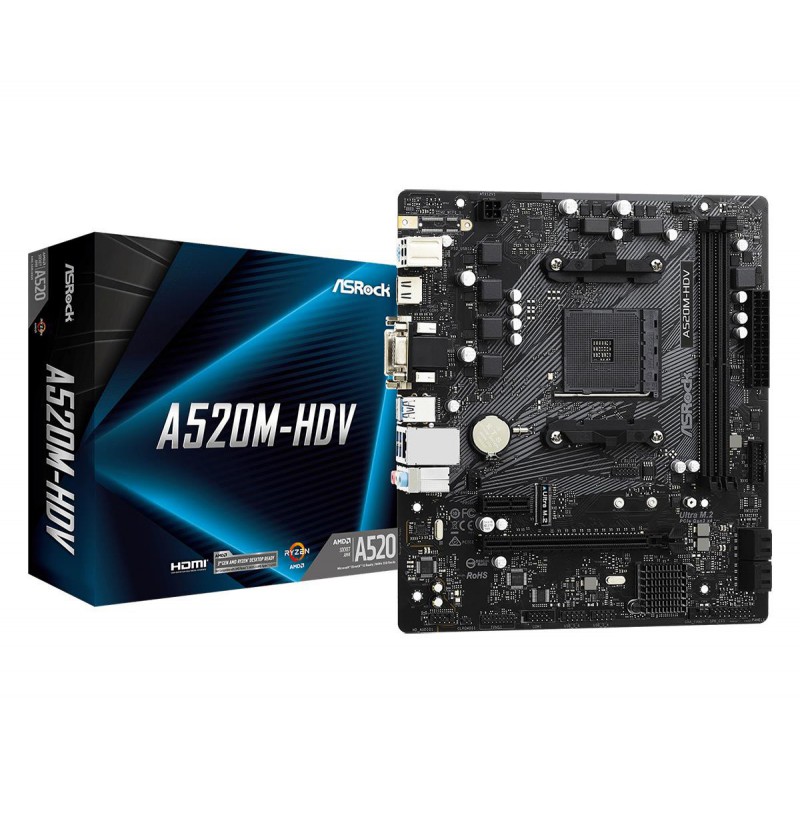

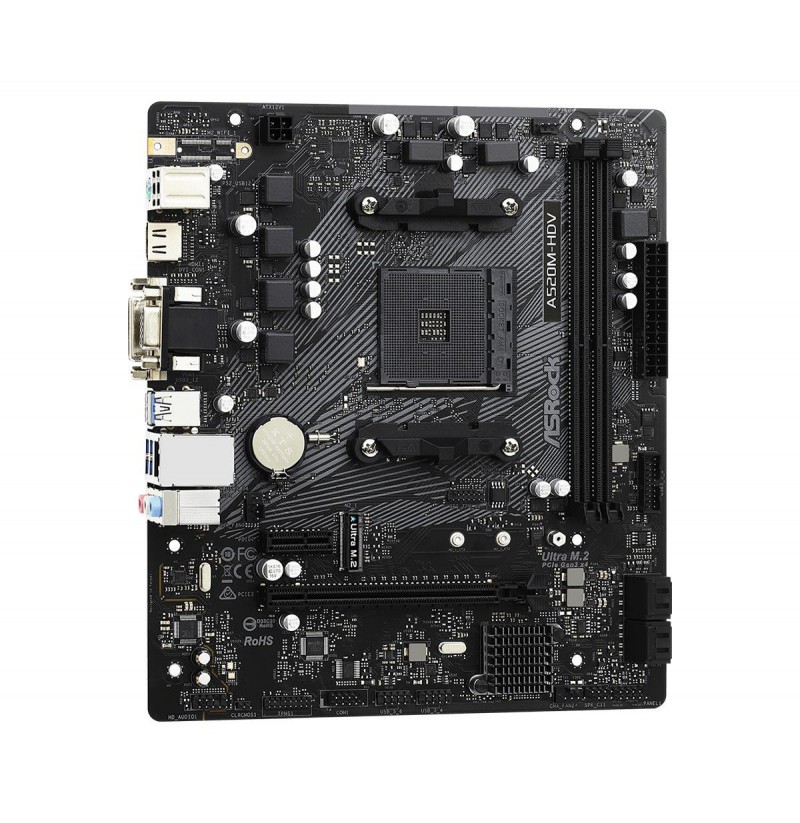

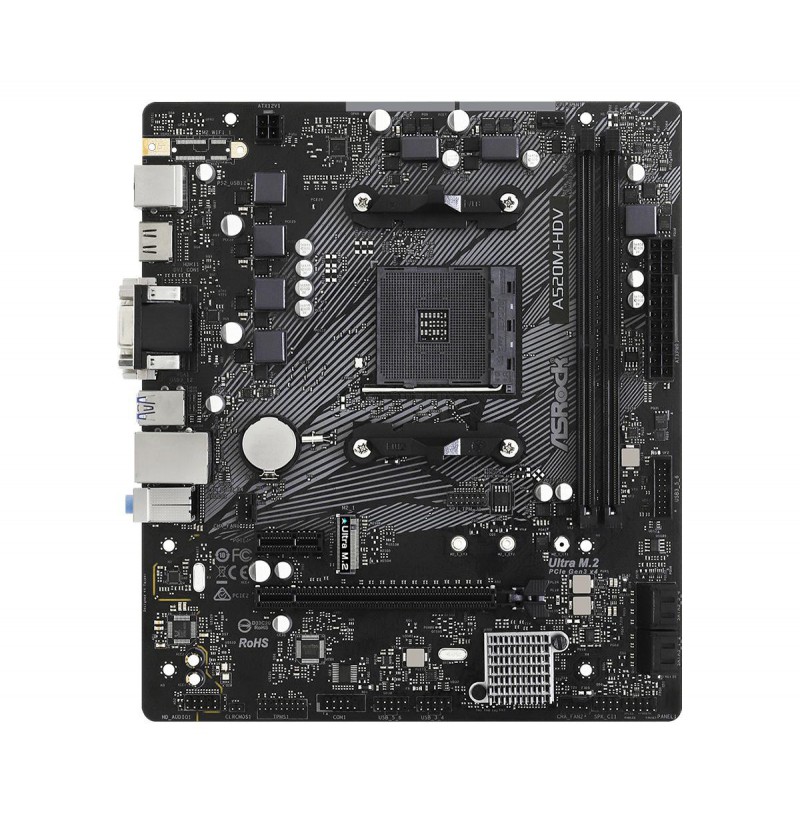

Asrock A520M-HDV Socket AM4 micro ATX

Processor manufacturer: AMD
Compatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7
Processor socket: Socket AM4
Graphics card family: AMD
Graphics card: Radeon Vega
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speeds: 2933, 4533, 4500 MHz, 4133, 4000, 4333, 2400, 3200, 2666, 4266, 3733, 4400, 3466, 3866, 3600, 2133 MHz, 4200, 3800, 4466
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Width: 230 mm
Depth: 201 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Wake-on-LAN ready: Yes
LAN controller: Realtek RTL8111H
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 2
USB 2.0 connectors: 2
BIOS type: UEFI AMI
Number of HDDs supported: 5
Supported storage drive interfaces: M.2, Serial ATA III

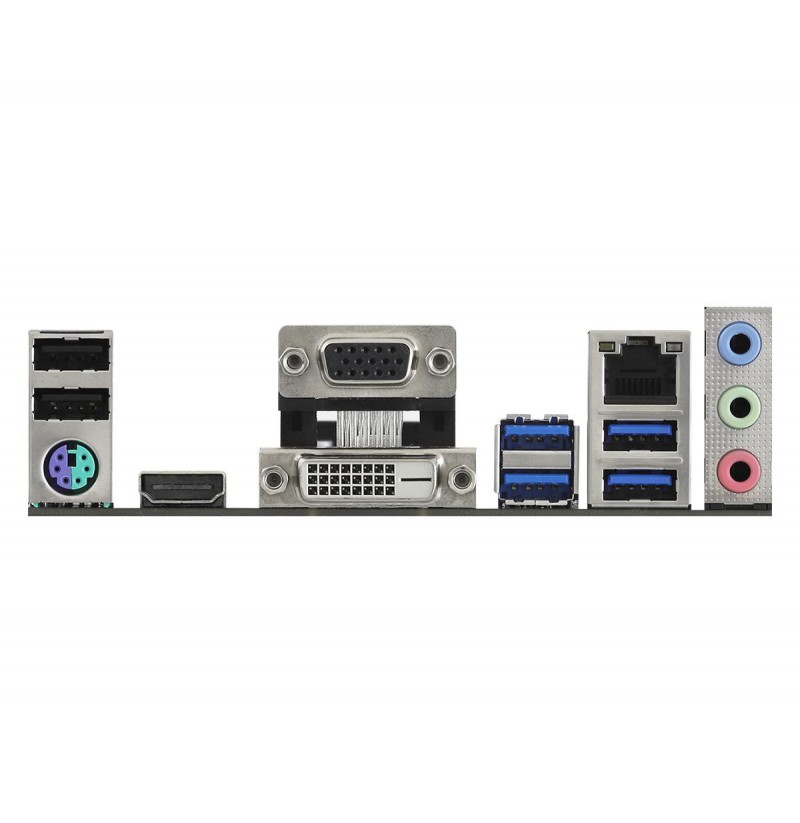

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
