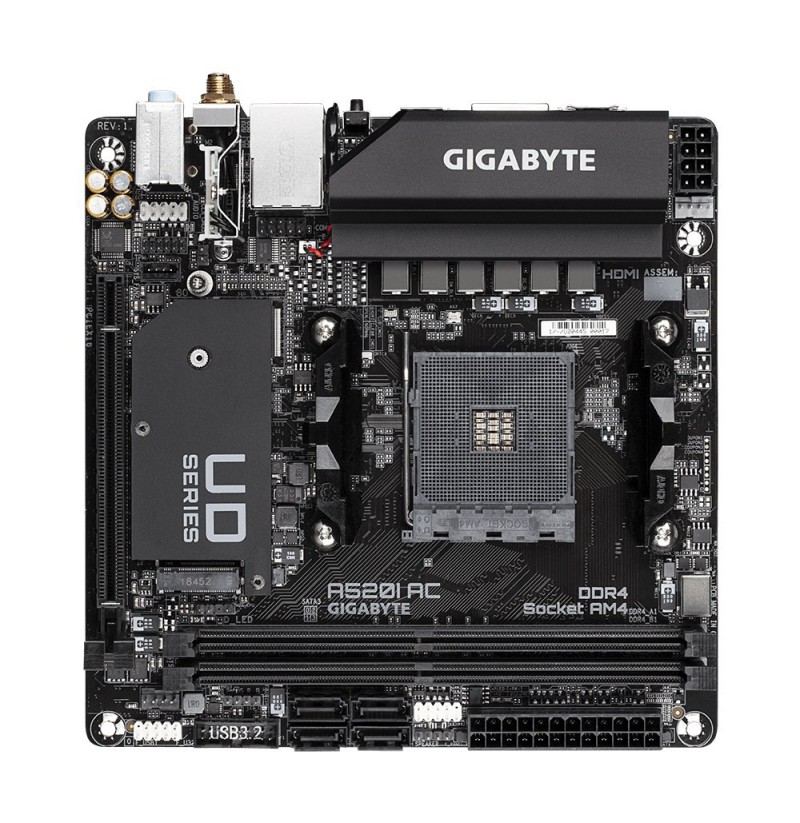

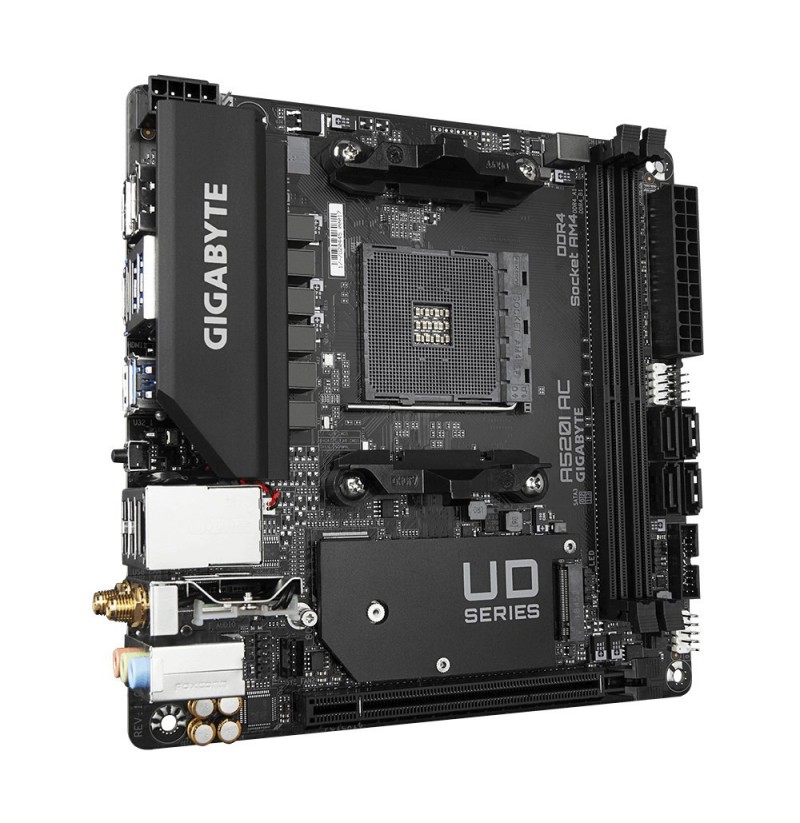

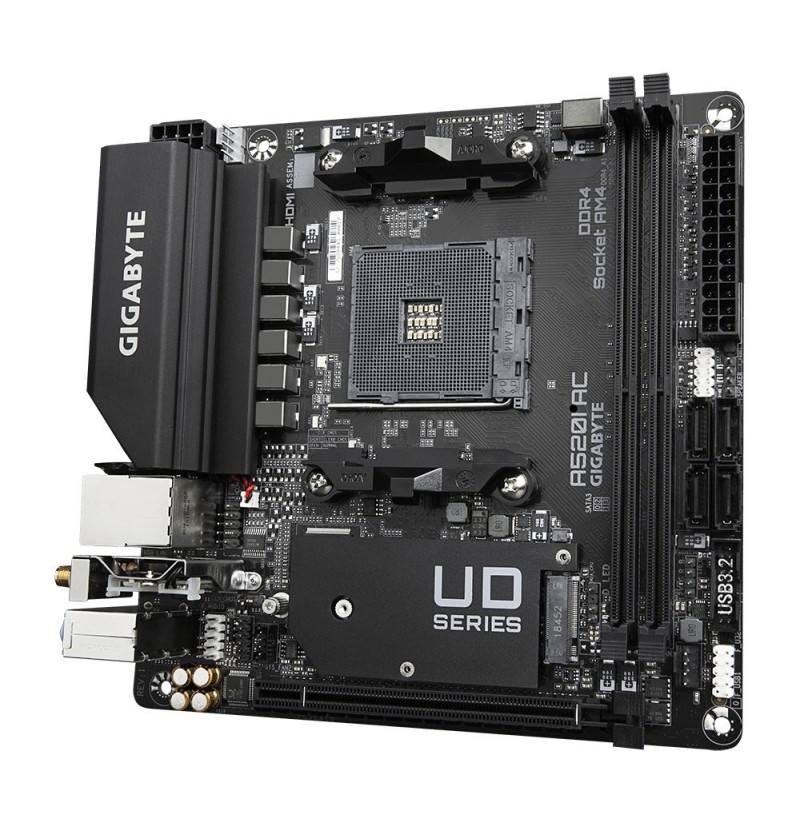

Gigabyte | A520I AC | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Number of SATA connectors 4 | C

Warranty period: 3 year(s)
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Maximum internal memory supported by processor: 64 GB
Processor manufacturer: AMD
Number of displays supported: 3
On-board graphics card: No
HDCP: Yes
DirectX version: 12.0
Maximum resolution: 5120 x 2880 pixels
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Product colour: Black
PC health monitoring: Temperature, Voltage, Fan
Audio chip: Realtek ALC887
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: mini ITX
Motherboard chipset: AMD A520
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Supported memory module capacities: 1GB, 12GB, 32GB, 2GB, 4GB, 16GB, 8GB
Supported memory clock speeds: 5100 MHz, 2133, 5200, 4600, 3333, 4000, 2400, 3200 MHz, 2933, 3600 MHz, 2667, 4400 MHz, 5000, 4866
Unbuffered memory: Yes
Maximum internal memory: 64 GB
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 5300 MHz
Width: 170 mm
Depth: 170 mm
Height: 35 mm
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11a, 802.11b
Bluetooth version: 4.2
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Bluetooth: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
TPM connector: Yes
Total number of SATA connectors: 4
CPU fan connector: Yes
Front panel connector: Yes
Power fan connector: Yes
Audio connector: Yes
Serial port headers: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
USB 2.0 connectors: 1
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
Package height: 78 mm
Package depth: 189 mm
Package weight: 800 g
Package width: 222 mm
Bundled software: Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Batteries included: Yes
Number of HDDs supported: 4
RAID levels: 1, 0, 10
Number of storage drives supported: 5
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
HDMI ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
Headphone outputs: 3
WiFi-AP antenna jack: 2
HDMI version: 2.1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
Number of M.2 (M) slots: 1
PCI Express x16 slots: 1
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warnings: Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture.
