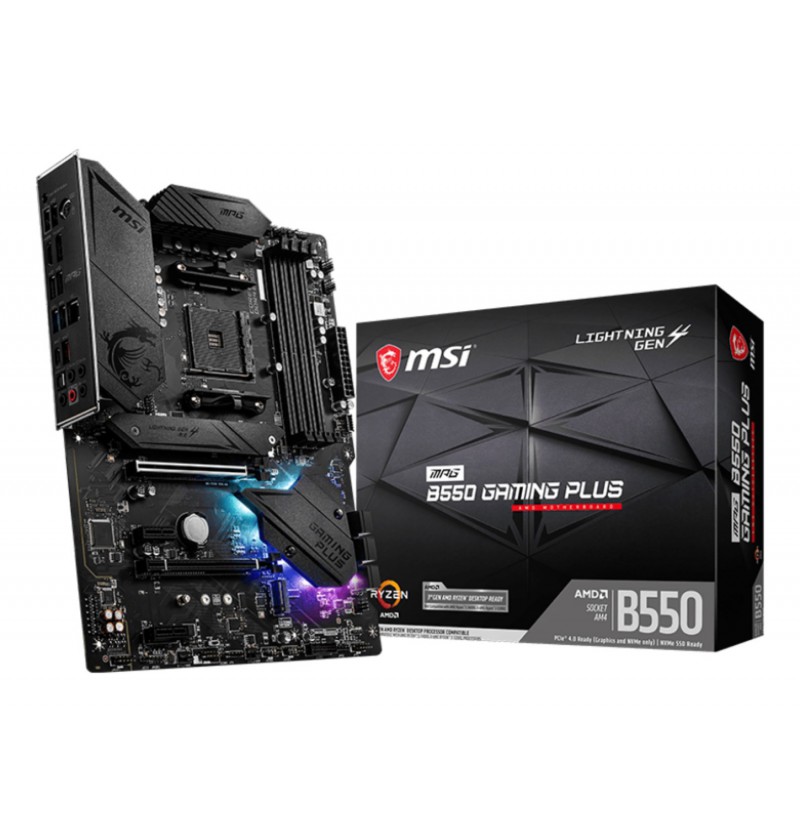

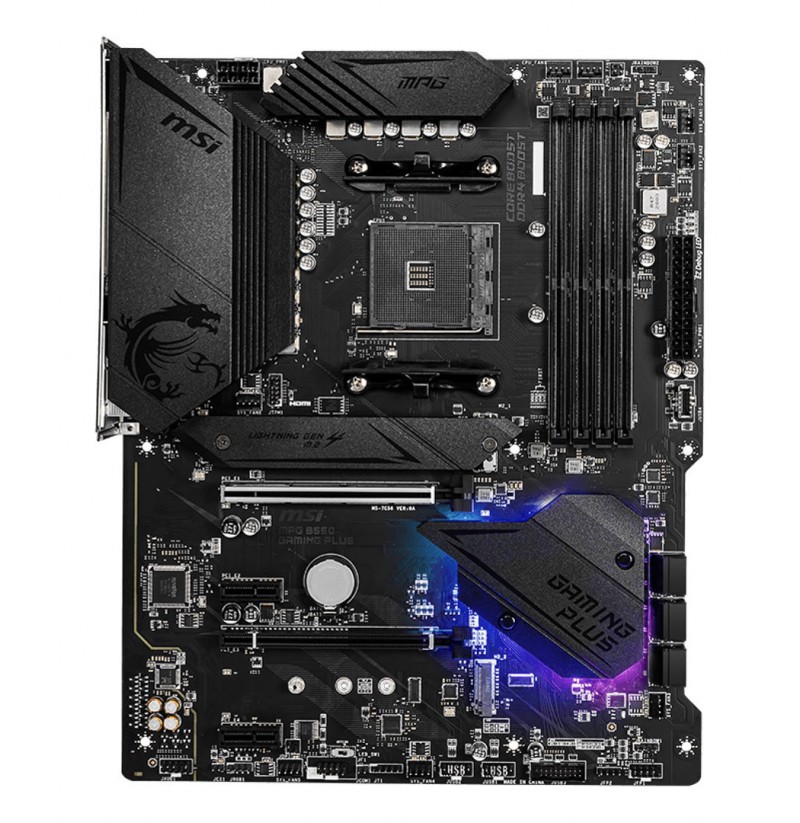

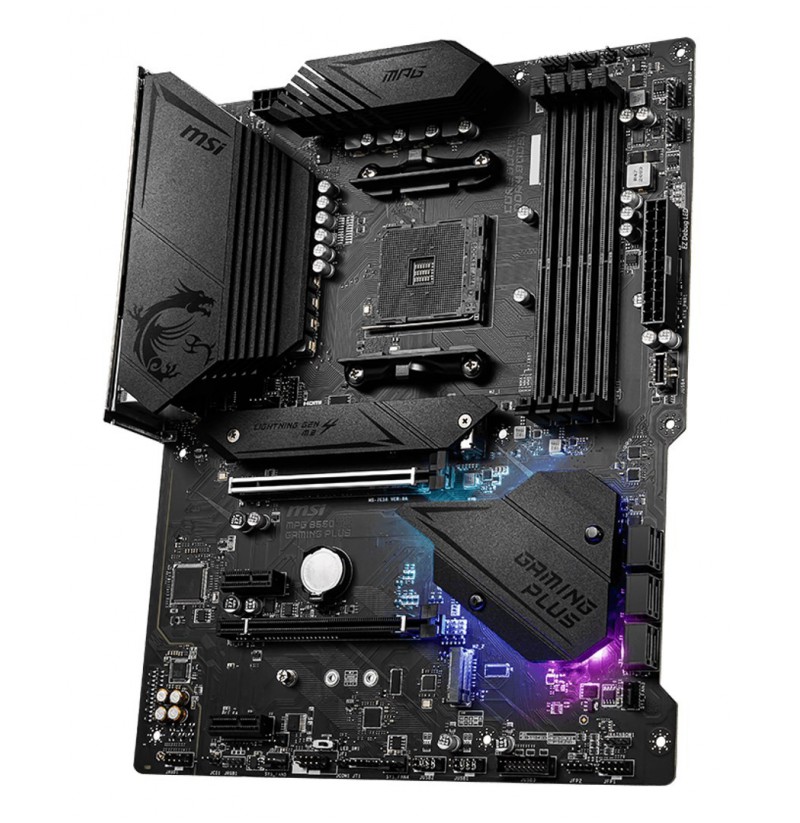

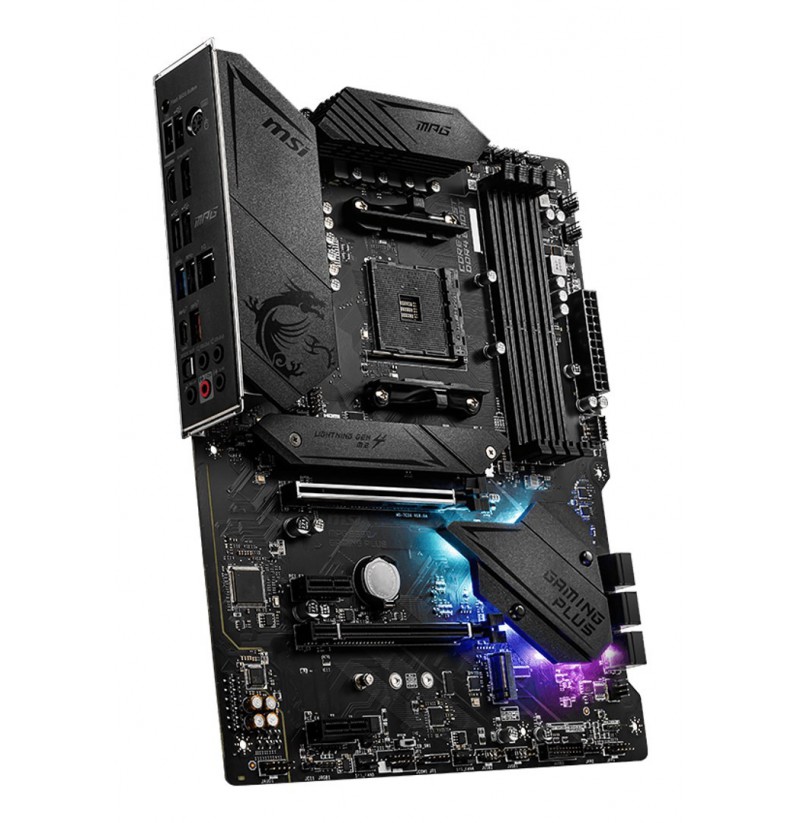

MSI MPG B550 Gaming Plus AMD B550 Socket AM4 ATX

Maximum number of SMP processors: 1
Processor socket: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series
On-board graphics card: No
Maximum graphics card memory: 16000 MB
Parallel processing technology support: 2-Way CrossFireX
Maximum resolution: 4096 x 2160 pixels
Motherboard chipset: AMD B550
Number of mounting holes: 9
Product colour: Black
Audio chip: Realtek ALC892
PC health monitoring: CPU, Temperature, Fan
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Component for: PC
Supported memory clock speeds: 3200 MHz, 2933, 3600, 3466, 2667, 3733, 4400 MHz, 3066, 3000, 2133 MHz, 4133, 4000, 3866, 4266, 1866, 2400, 2800
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
Memory slots type: DIMM
Maximum internal memory: 128 GB
ECC сompatibility: ECC & Non-ECC
Height: 65 mm
Width: 305 mm
Depth: 244 mm
LAN controller: Realtek 8111H
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Top Wi-Fi standard: Not available
RGB LED pin header: Yes
12V power connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
Front panel audio connector: Yes
Number of chassis fan connectors: 6
TPM connector: Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Drivers included: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
Number of storage drives supported: 8
Supported storage drive interfaces: SATA III
RAID support: Yes
RAID levels: 1, 0, 10

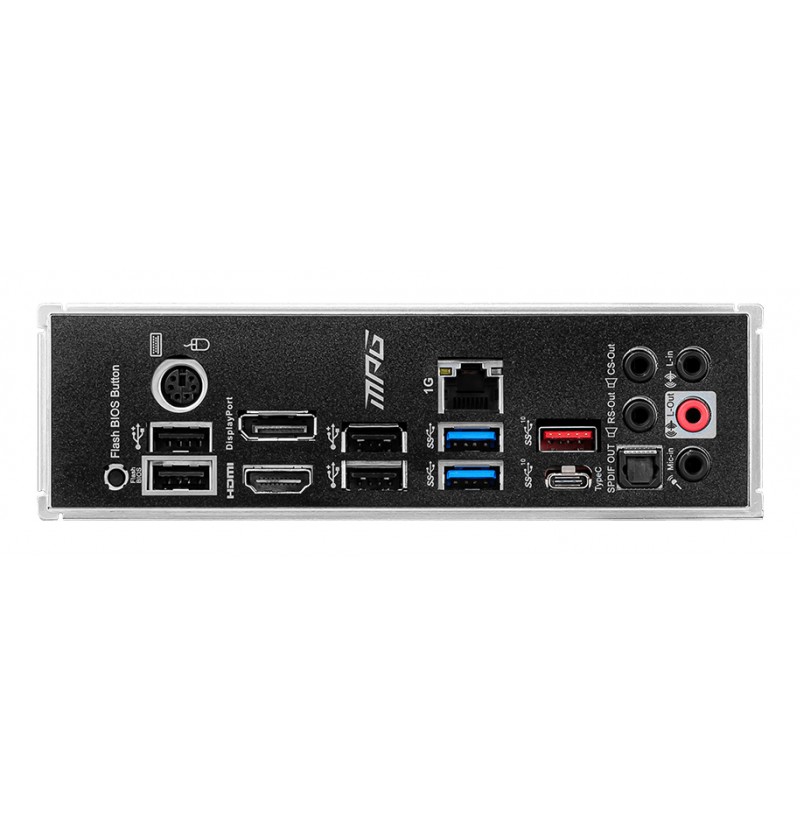

HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Digital audio optical out: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
Weight: 1 kg
Harmonized System (HS) code: 84733020
