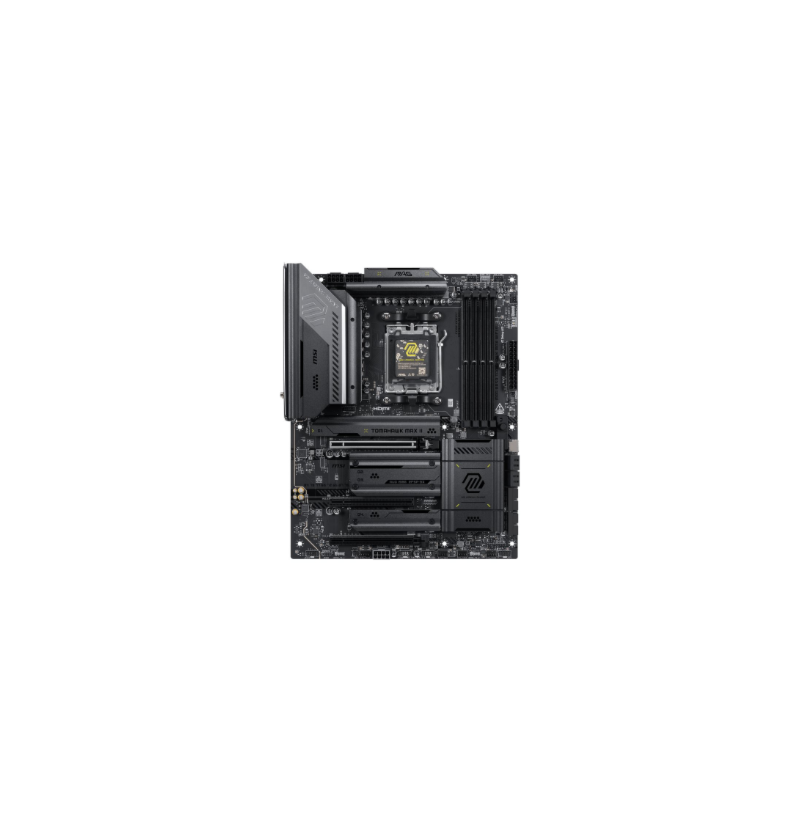

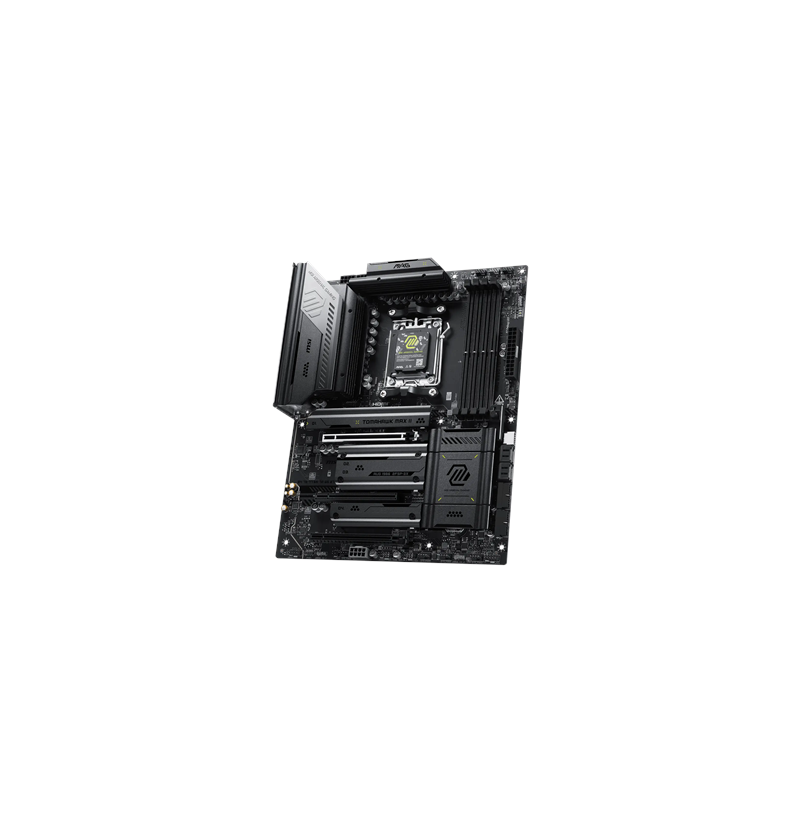

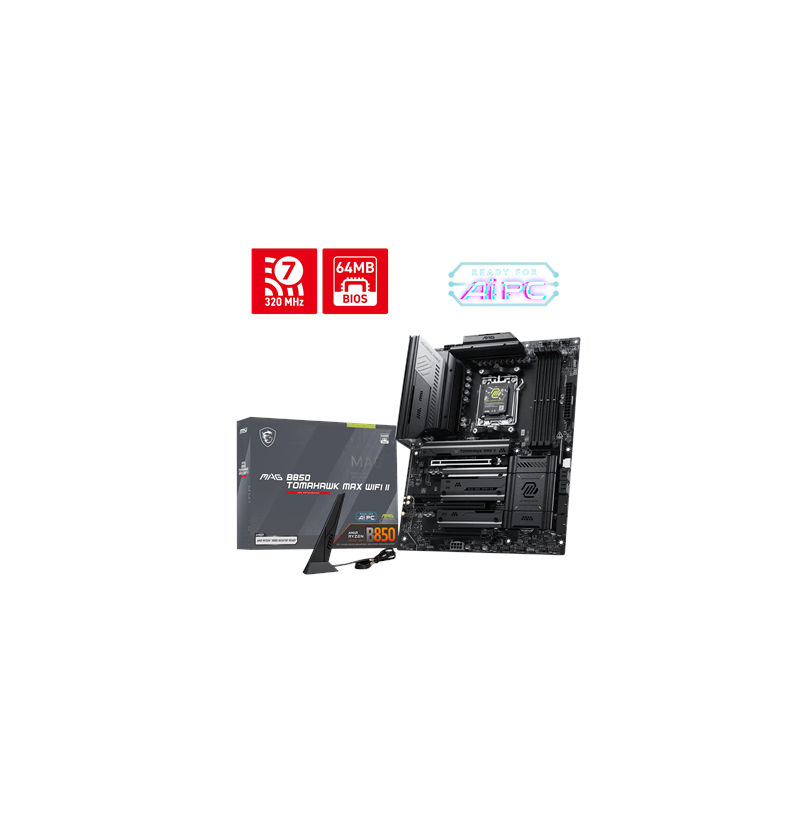

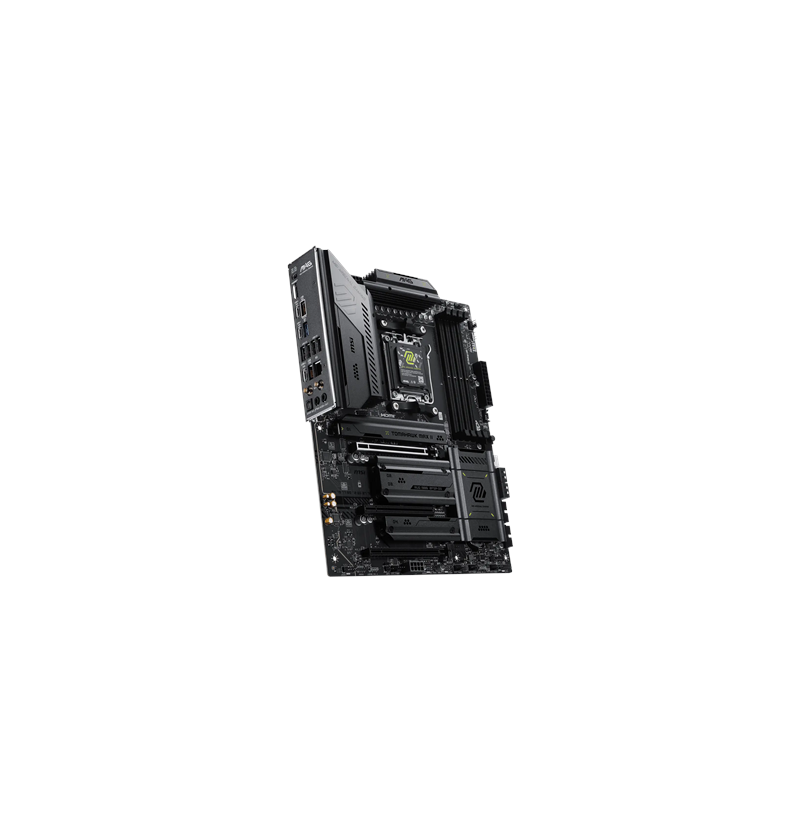

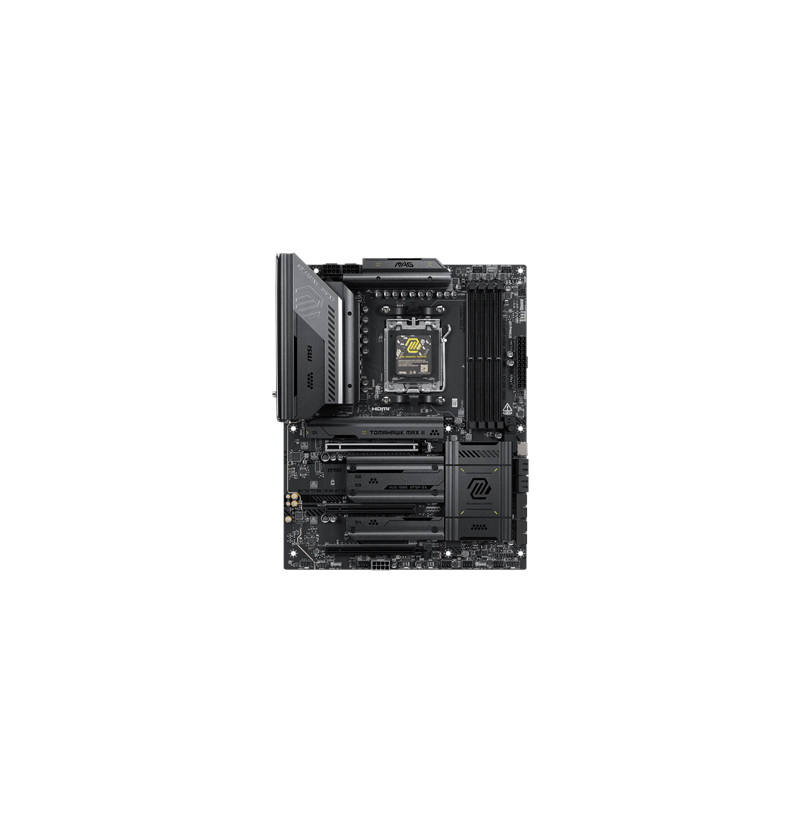

MSI MAG B850 TOMAHAWK MAX WIFI II motherboard AMD B850 Socket AM5 ATX

Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
On-board graphics card: No
Windows operating systems supported: Windows 11 x64
Product colour: Black
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Audio chip: Realtek ALC4080
Motherboard chipset: AMD B850
Supported memory clock speed (max): 8400 MHz
ECC сompatibility: Non-ECC
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory clock speeds: 5600, 4800, 8400
Maximum internal memory: 256 GB
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Depth: 304.8 mm
Width: 243.8 mm
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi: Yes
Bluetooth: Yes
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
Number of CPU fan connectors: 6
Number of RGB LED pin headers: 3
Number of water pump connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 2.0 connectors: 4
RGB LED pin header: Yes
Number of SATA III connectors: 4
Total number of SATA connectors: 4
BIOS type: UEFI AMI
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, Micro SATA III
Number of storage drives supported: 8
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
RAID support: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
1st M.2 largest key size: 22110
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 1
4th M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
