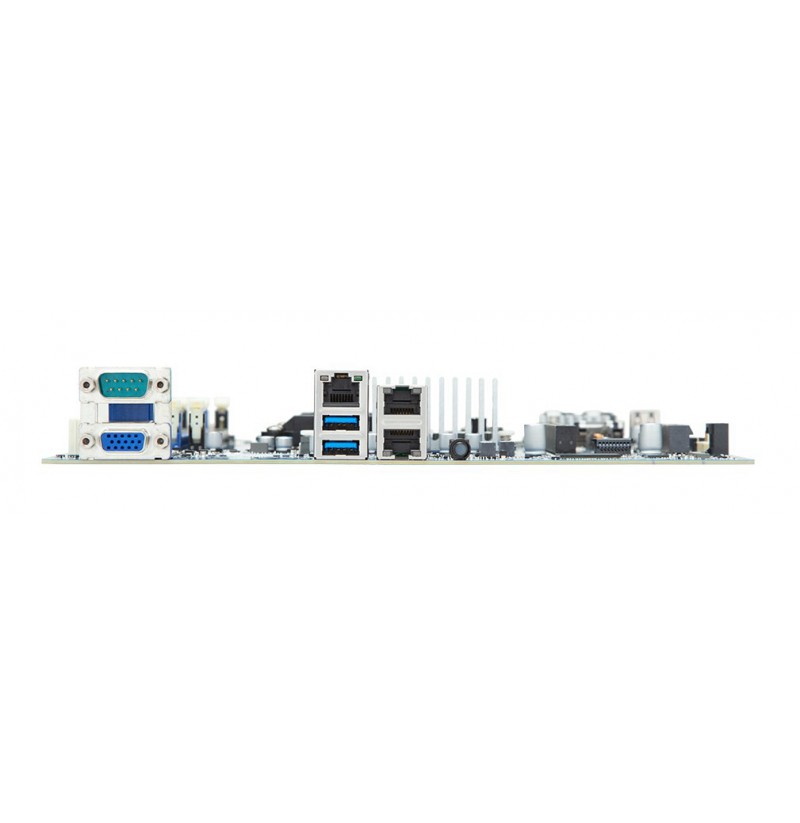

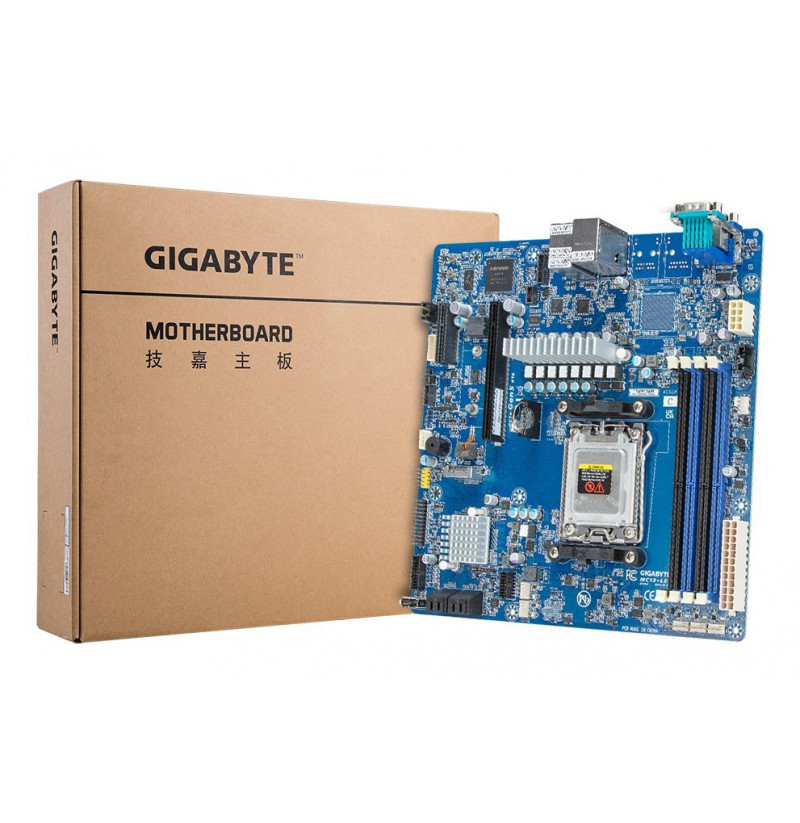

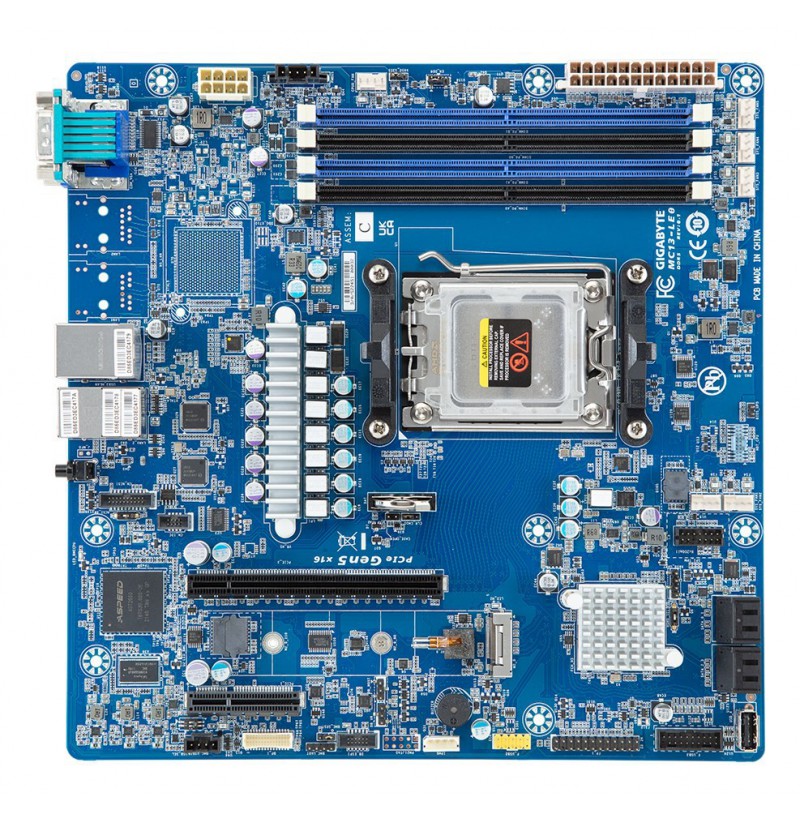

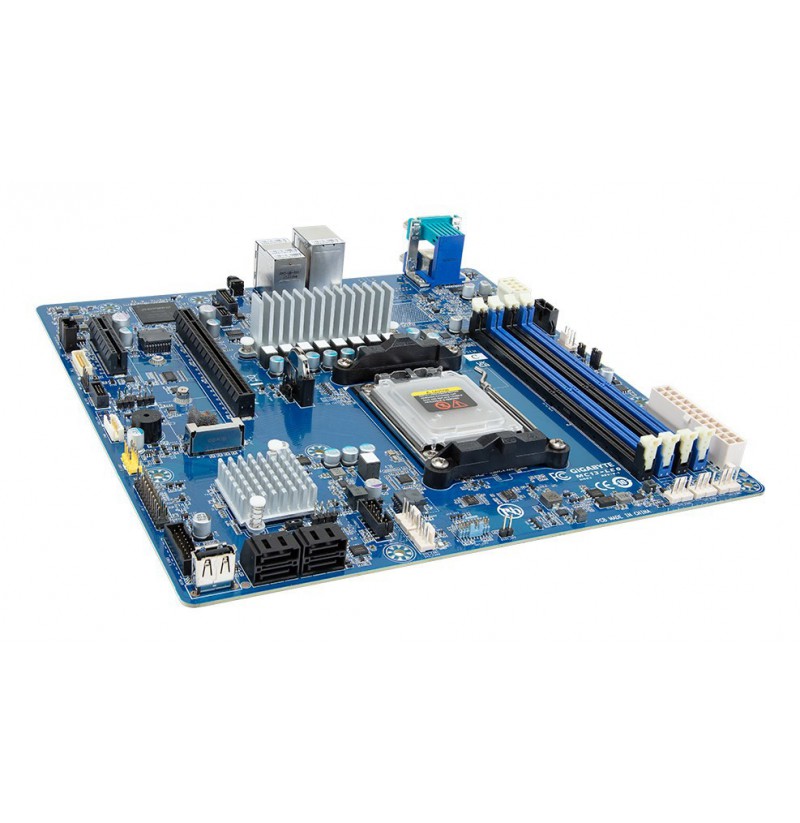

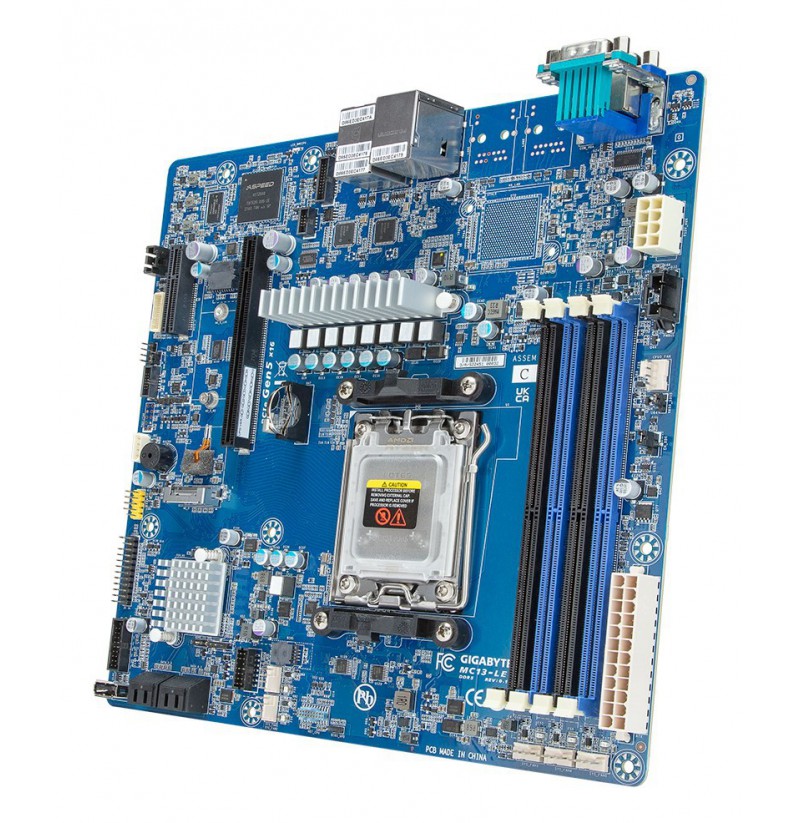

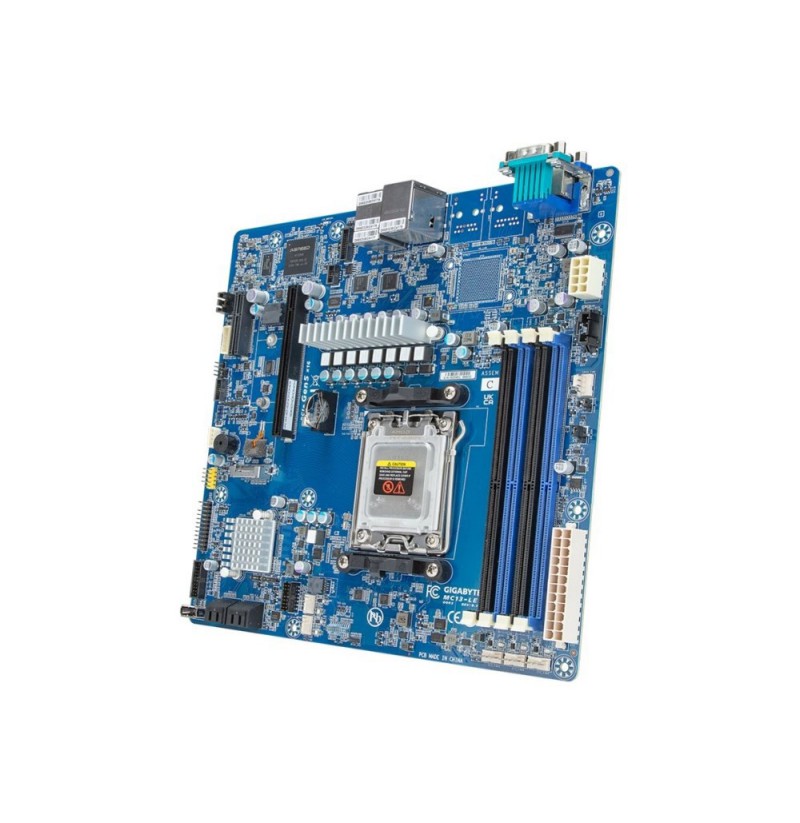

GIGABYTE MC13-LE0 AMD B650 Socket AM5 micro ATX

Processor manufacturer: AMD
Compatible processor series: AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
On-board graphics card model: Aspeed AST2600
Compatible operating systems: EPYC 4004 Series:Ubuntu 22.04Ubuntu 24.04Windows Server 2022Ryzen 9000/7000 Series:Windows 10 21H2Windows 11
Motherboard chipset: AMD B650
Motherboard form factor: micro ATX
Component for: PC
Motherboard chipset family: AMD
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Operating relative humidity (H-H): 8 - 80%
Storage relative humidity (H-H): 20 - 95%
Operating temperature (T-T): 10 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Depth: 244 mm
Width: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Number of SATA III connectors: 4
TPM connector: Yes
Package width: 321 mm
Package height: 78.5 mm
Package depth: 308.5 mm
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
Number of M.2 (M) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
