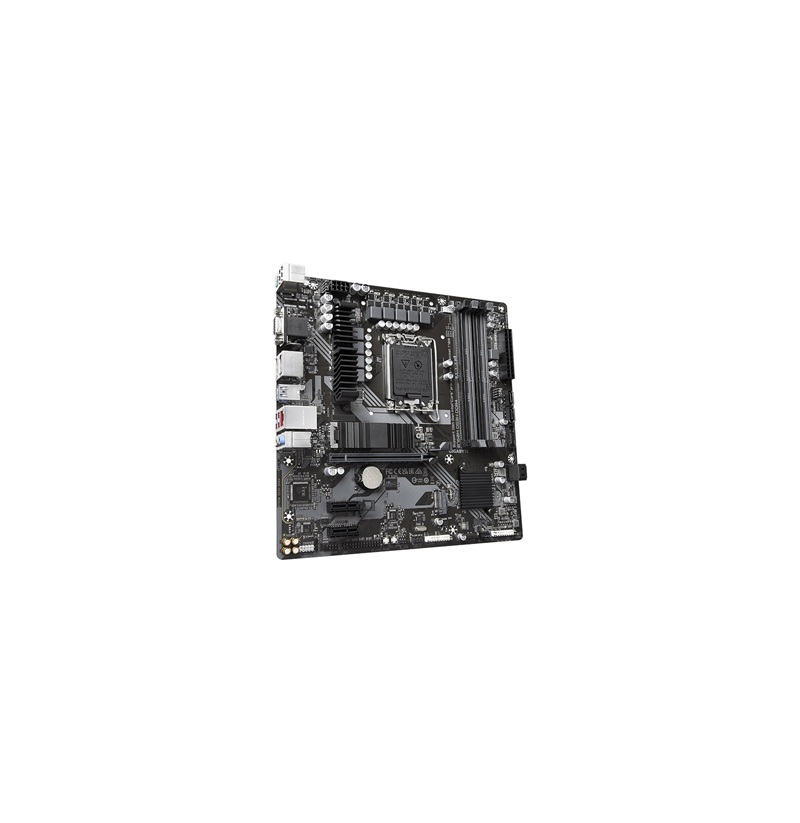

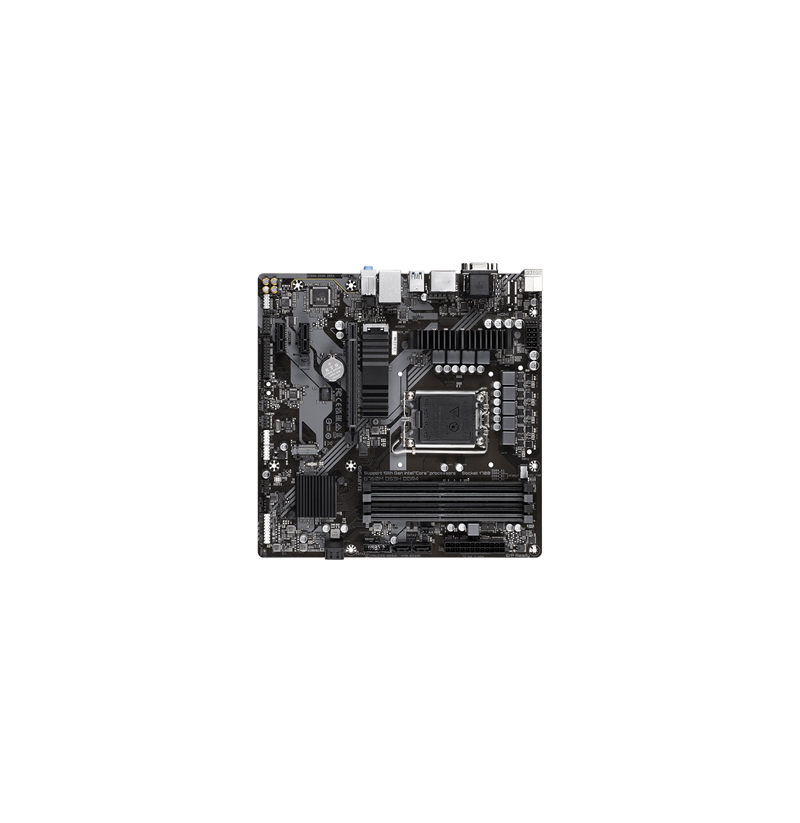

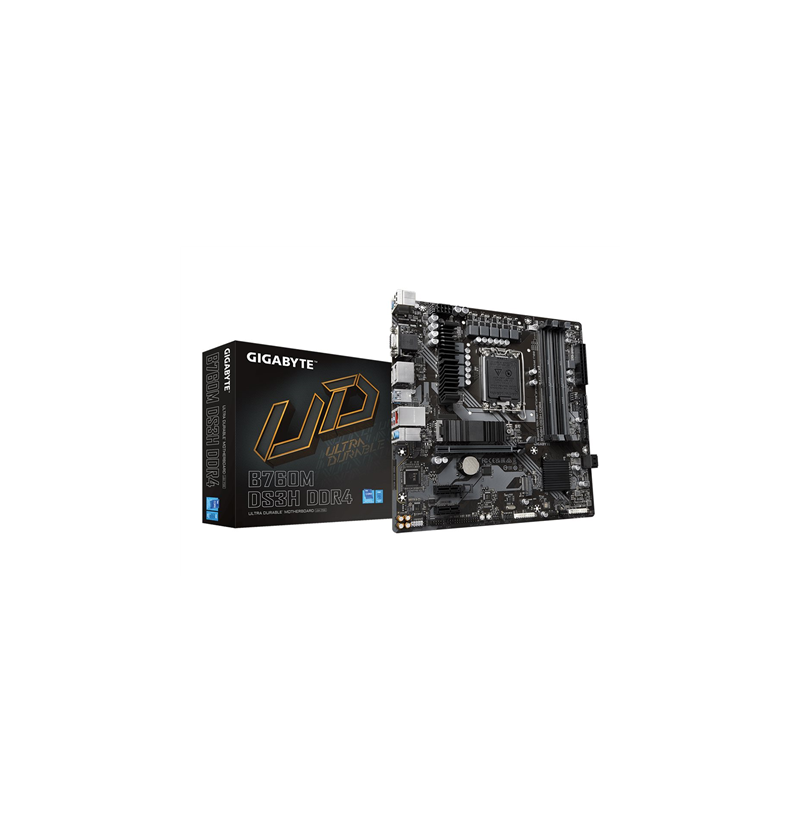

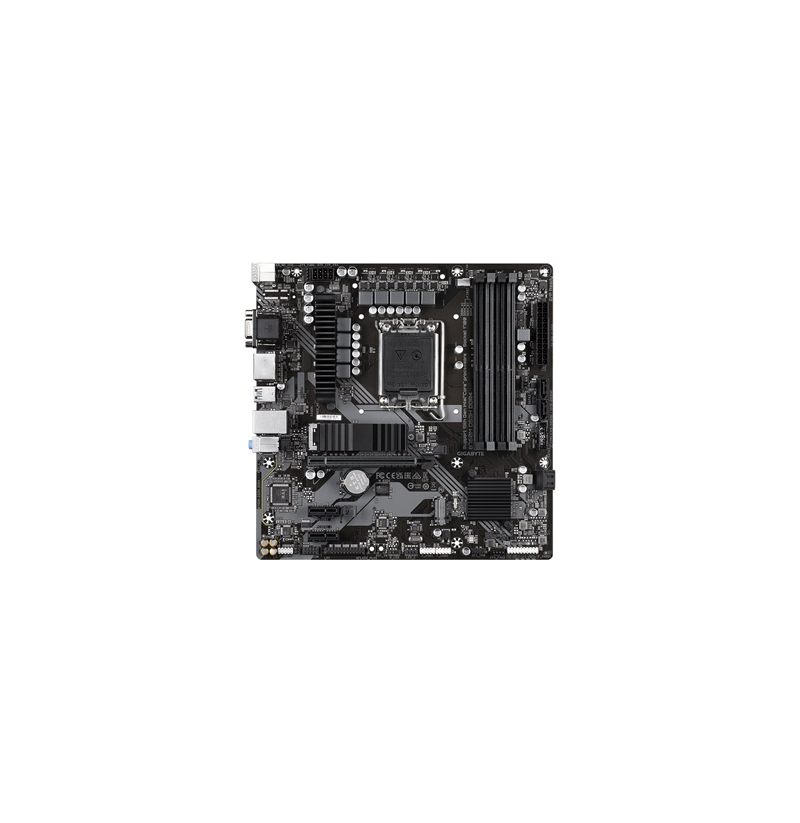

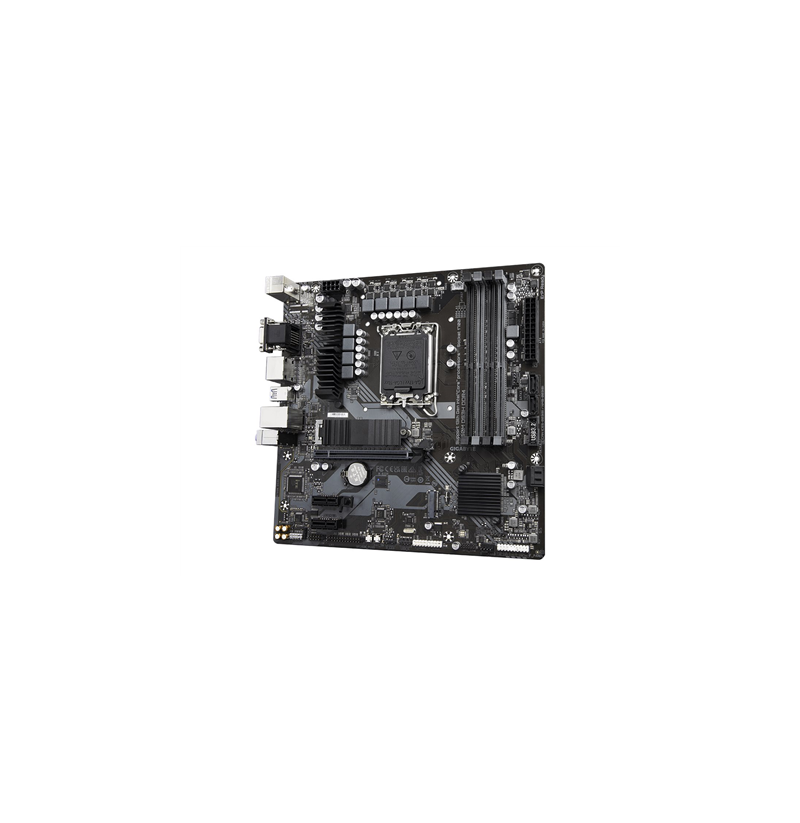

Gigabyte B760M D3HP DDR4 (B760,S1700,mATX,DDR4)

Warranty period: 3 year(s)
Maximum internal memory supported by processor: 128 GB
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Maximum resolution: 4096 x 2304 pixels
DirectX version: 12.0
HDCP: Yes
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
PC health monitoring: Fan, Voltage, Water cooling, Temperature
Motherboard chipset family: Intel
Product colour: Bronze
Motherboard chipset: Intel B760 Express
Power source type: ATX
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory clock speeds: 3733, 3466, 3000, 3200, 2666, 4266 MHz, 3800, 3333, 4133, 4000, 2400, 3400, 3866, 2933, 3600, 3300, 4700, 2133 MHz, 4600, 4300, 4400 MHz, 3666, 4800 MHz, 4933, 4500, 5333 MHz, 5000, 5133
Supported memory module capacities: 8GB, 12GB, 1GB, 32GB, 2GB, 4GB, 16GB
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 5333 MHz
ECC сompatibility: ECC & Non-ECC
Height: 35 mm
Width: 244 mm
Depth: 244 mm
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Total number of SATA connectors: 4
RGB LED pin header: Yes
12V power connector: Yes
TPM connector: Yes
Front panel connector: Yes
Audio connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Serial port headers: 1
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 3
S/PDIF out connector: Yes
Power fan connector: Yes
Parallel connector: Yes
USB 2.0 connectors: 2
Number of Parallel ATA connectors: 1
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Package height: 54 mm
Package width: 265 mm
Package depth: 265 mm
Package weight: 990 g
Bundled software: Norton Internet Security
Batteries included: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 1, 5, 0
Microphone in: Yes
Headphone outputs: 1
PS/2 ports quantity: 1
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
HDMI version: 2.1
VGA (D-Sub) ports quantity: 1
Digital audio optical out: 3
DisplayPorts quantity: 2
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
PCI Express x4 slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 slots: 1
PCI Express x16 slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warnings: Protect from extreme temperatures., Dispose of in accordance with local regulations for electronic waste., Do not open the memory module housing.
